Brands: LEA Professional

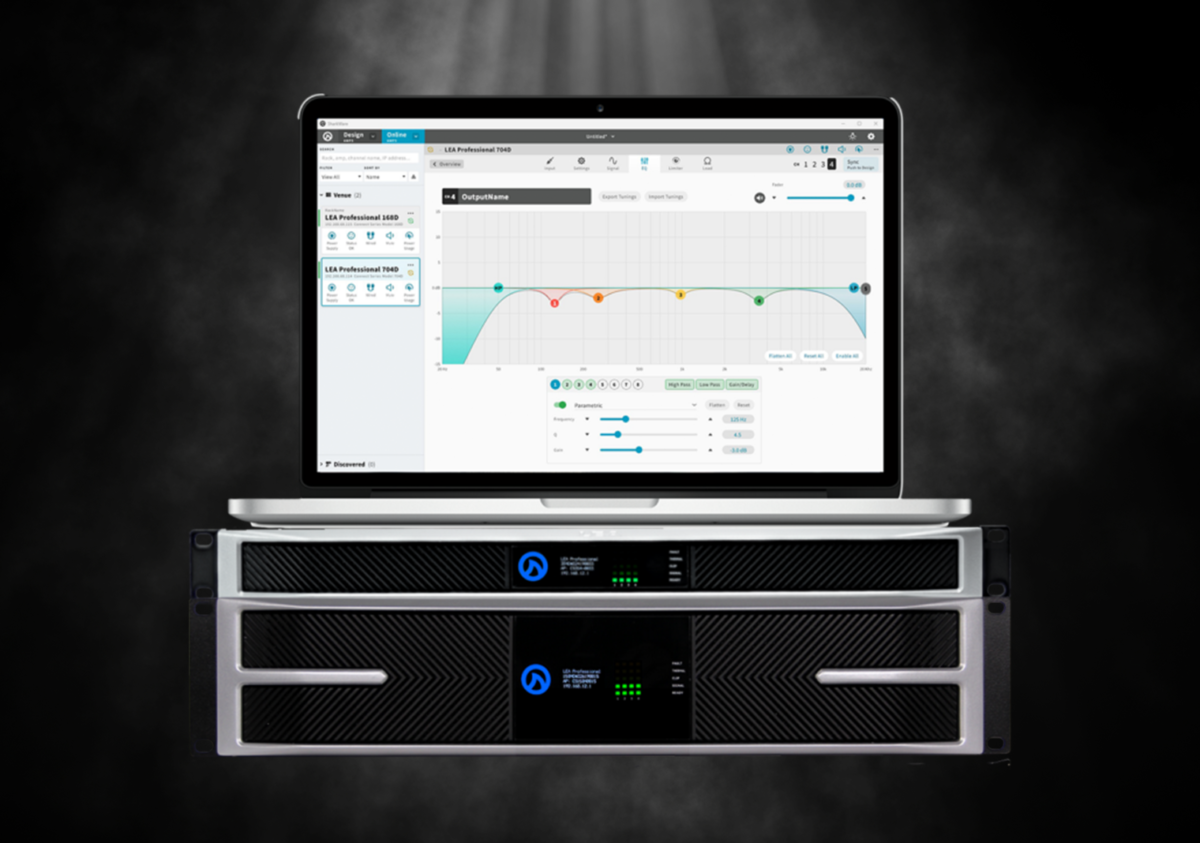

Sharkware

SOFTWARE

SHARKWARE

ADVANCED AMPLIFIER CONTROL SOFTWARE

Developed in part based on integrator and customer feedback, Sharkware allows integrators to work both in offline design and online mode on a systems amplification configuration to ensure a more seamless, accessible, and flexible user experience with all LEA Professional Connect Series amplifiers.

Free to download and available for both Windows and Mac, Sharkware includes features such as amplifier grouping, offline design, granular user access control levels, locked speaker tunings, and a graphical EQ.

Sharkware also incorporates key features from LEA Professional’s existing Web UI tool, allowing users to monitor the status of every amplifier connected to the network as well as the status and performance of individual channels. In addition, the software gives users the ability to view and adjust channel settings such as input settings, signal generator, crossover, equalizer, limiter, and load monitoring for all LEA Professional Connect Series amplifiers.

KEEP IN MIND: AMPS USED WITH SHARKWARE MUST BE ON VERSION 3.1.0.0 FIRMWARE OR HIGHER.

Now Available For Download!

MAC
WINDOWS

Features

Offline Design Mode

Design your system from 1 to 1000 amplifiers without physically being connected to an amp

Grouping

Group amplifier channels together to control and monitor by group

User Access Control

Role Based restriction to lock users out of certain parameters. Roles can have Read/Write, Read Only, or No Access for each parameter

Locked Speaker Tunings

Lock out your speaker tuning parameters so nobody can see or change your proprietary speaker tuning information

Graphical EQ

Drag and Drop your EQ parameters in our new graphical EQ window

Save & Load Design Files

Save and Load Design files for your entire system

Sharkware Documentation And Training Videos Coming Soon!!

ARE YOU INTERESTED TO LEARN MORE ABOUT LEA PROFESSIONAL?

Speak to one of our Consultants now

speak to us

CS1504 & CS1504D

CONNECT SERIES

CS1504 & CS1504D

HIGH POWER SMART AMP | 4 CH | 1500 WATTS/CH

Introducing the CONNECT 1504 high-power IoT-enabled smart amps. This four-channel model drives 1,500 watts per channel (into 2, 4, and 8 ohms as well as 70Vrms and 100Vrms). This addition to the CONNECTSERIES amplifiers is available in NETWORK CONNECT and DANTE CONNECT versions, including both Dante and AES 67 connectivity options. With three different methods of network connection, users can connect using the amplifier’s built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.

Then there’s the Cloud…The CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

U.S. Customers can register your product to extend your warranty to 6 years

Front-_-Back_1504D-1024x399
1500-e1650305088719-1024x189
Previous
Next
AUDIO SPECIFICATIONS
INPUTS
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N
0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL
105dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK
70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP
DSP ARCHITECTURE
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX
Routable matrix; any input to any output with primary and secondary input priority
CROSSOVERS
Advanced DSP with Linear Phase FIR Crossovers and up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ
16 Band Parametric EQ per channel
OUTPUT DELAY
4 seconds per channel
OUTPUT PROTECTION
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING
Peak Voltage and RMS Voltage
LOAD MONITORING
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
CONTROL, MONITORING, NETWORKING
USER INTERFACE
Web Browser User Interface, 3rd Party API control, or CLOUD control
EXTERNAL I/O
External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
OPERATION
AC MAINS
100VAC – 240VAC +/- 15% 50Hz or 60Hz
POWER SUPPLY
Universal Switch Mode Power Supply with Power Factor Correction
PHYSICAL SPEC
DIMENSIONS (L X W X H)
Product: 17.88” x 19” x 2U (362mm x 482mm x 2U) (362mm x 482mm x 2U)
Shipping: TBD
WEIGHT
26lbs / 11.8kg | Shipping: 30 lbs / 13.6 kg
COOLING
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m

Features

  • 3 WAYS TO CONNECT
    1. Built-in Wi-Fi Access Point
    2. Existing Wi-Fi Network
    3. Local Area Network
  • WEB BROWSER-BASED UI
    Works on any web browser on any device with no software downloads
  • CLOUD CONTROL
    Remote control and monitoring from anywhere in the world — no VPN needed
  • DIRECT LOW-Z & HI-Z
    70V or 100V selectable per channel
  • SMART POWER BRIDGE
    Double the power any any single channel without sacrificing other amp channels
  • UNIVERSAL SWITCH-MODE POWER SUPPLY
    with PFC — Operation from 100VAC – 240VAC +/-15%
  • ANALOG BALANCED INPUTS
    Fully routable via input matrix in Web UI or Cloud platform
  • 96KHZ ANALOG DEVICES DSP
    with linear phase FIR filters, up to 4 seconds of delay, Input Routing, multiple 48dB/Oct crossover filters, 16 Parametric EQ filters, user-configurable speaker limiters, and real-time load monitoring
  • EXTERNAL I/O PORT
    For Remote ON/OFF and Fault Monitoring
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • HIGHLY EFFICIENT CLASS-D OUTPUT STAGE
    For low AC Current Draw

product range

Power ratings are stated on a per-channel basis. Ex: 80 Watts at 8 ohms = 80 Watts on each individual channel of the amplifier.
MODEL
2Ω
4Ω
8Ω
70V / 100V
CONNECT 88
40W
80W
80W
80W
CONNECT 168
80W
160W
160W
160W
CONNECT 84
40W
80W
80W
80W
CONNECT 164
80W
160W
160W
160W
CONNECT 354
175W
350W
350W
350W
CONNECT 704
350W
700W
700W
700W
CONNECT 352
175W
350W
350W
350W
CONNECT 702
350W
700W
700W
700W
CONNECT 1504
1500W
1500W
1500W
1500W
CONNECT 1504D
1500W
1500W
1500W
1500W
USER GUIDE
BROCHURE
DATASHEET
TROUBLESHOOTING

ARE YOU INTERESTED TO LEARN MORE ABOUT LEA PROFESSIONAL?

Speak to one of our Consultants now

speak to us

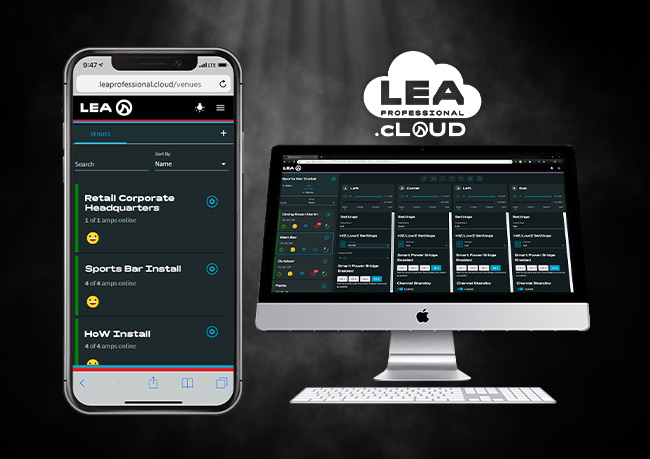

LEA Professional Cloud

LEA PROFESSIONAL CLOUD

CLOUD MONITORING, CONTROL, & ANALYTICS FOR PROFESSIONAL AMPLIFIERS

cloud monitoring, control, and analytics for professional amplifiers

LEA PROFESSIONAL CLOUD

Introducing LEA PROFESSIONAL CLOUD – cloud monitoring, control, and analytics for professional amplifiers. This Cloud platform gives system integrators powerful, reliable, and secure remote monitoring and control capabilities when used with the CONNECTSERIES of IoT-Enabled professional amplifiers.

By leveraging a built-in Amazon Web Services (AWS) IoT Core, system integrators can send their CONNECTSERIES systems into the Cloud where they can be accessed and controlled from anywhere in the world without the need to VPN into a Local Area Network.

The capability delivers greater visibility to provide preventative maintenance, easier troubleshooting and fewer on-site maintenance requirements, ultimately providing a recurring revenue stream for integrators to add to their service contracts.  Register for your free LEA Cloud account at leaprofessional.cloud

LEA_Professional_CLOUD_Product_Image

Features

  • No Cost or Monthly Fee to use
  • Add Venues to your LEA Cloud account and easily manage your multiple installations
  • Uses Amazon Web Services (AWS) IoT Core
  • Encrypted 256bit SSL Security from the amp to cloud and from your device to the cloud
  • Amplifiers can connect to over 50 Global AWS managed servers
  • No VPN Required
  • Opportunities For Recurring Revenue Streams
  • Works with any LEA Connect Series Amplifier

product range

***The LEA Cloud is enabled on any LEA Connect Series Amplifier that has Firmware version 1.1.0.29 and higher.  Please see the Dante and Network product pages to download the latest firmware version.

ARE YOU INTERESTED TO LEARN MORE ABOUT LEA PROFESSIONAL?

Speak to one of our Consultants now

speak to us

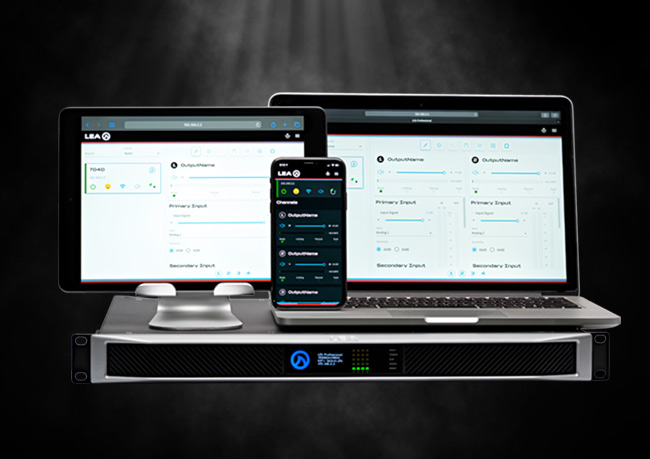

Web UI

WEB UI

SYSTEM CONTROL & MONITORING FROM ANY DEVICE

Introducing the world’s first

IoT-ENABLED PROFESSIONAL AMPLIFIERS

With our Web UI, you are no more than three clicks away from anything.

First, from the broadest view, you get a clear status check of every amplifier connected to the network. Therefore, you can see which amps are online/offline, whether they are powered on or in a standby mode, a quick performance status to report any errors or faults and even more.

In addition, with one click, you can view the status of every channel on any given amp to quickly monitor channel performance. Such as your output meter with a clip indicator, status indicators such as Ready, Limiting, Thermal, and Fault, as well as a quick attenuation level view and channel mute button.

So then, with a second click, you can select an individual channel for control and monitoring. Lastly, with a third click you are ready to start viewing and adjusting channel settings such as Input Settings, Signal Generator, Crossover, Equalizer, Limiter, and Load Monitoring.

Features

  • Web Browser-based UI –  works on any device with no software to download
  • Control & Monitoring on any device (phone, tablet, PC or Mac).3-Click Visibility & Control you are no more than three clicks away from any device setting.
  • No Software Download The amplifier serves the Web UI directly to your device. No need to download any software to configure and monitor your device.
  • 3 Ways to Connect 1. Built in Wi-Fi Access Point (WAP) 2. Connect to Existing Wi-Fi Networks 3. Local Area Network (LAN) Ethernet Connection
  • Save & Load Complete Amp Settings Download and upload the entire amplifier settings at any time.
  • Save & Load Complete Speaker Settings Download and upload any speaker settings at any time.
SPEAKER TUNINGS

ARE YOU INTERESTED TO LEARN MORE ABOUT LEA PROFESSIONAL?

Speak to one of our Consultants now

speak to us

Dante Connect

DANTE CONNECT

IoT-ENABLED PROFESSIONAL AMPLIFIERS WITH DANTE

Introducing the world’s first

IoT-ENABLED PROFESSIONAL AMPLIFIERS WITH DANTE

Introducing the world’s first Internet of Things- (IoT) enabled, professional-grade amplifier family – the DANTE CONNECTSERIES. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in WiFi access point, connect to the venue’s WiFi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Then there’s the Cloud…DANTE CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.  Register for your free LEA Cloud account at leaprofessional.cloud

The DANTE CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.

704D_Connect_Series_LEA_Professional_Right-scaled
704D_Connect_Series_LEA_Professional_Front-scaled
704D_Connect_Series_LEA_Professional_Left-scaled
704D_Connect_Series_LEA_Professional_Back-scaled
Dante_Stack_Connect_Series_LEA_Professional_Front-scaled
Dante_Stack_Connect_Series_LEA_Professional_Back-scaled
Dante_Stack_Connect_Series_LEA_Professional_Left-scaled
Dante_Stack_Connect_Series_LEA_Professional_Right-scaled
Previous
Next

Features

  • Web Browser-based UI –  works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

product range

Power ratings are stated on a per-channel basis. Ex: 80 Watts at 8 ohms = 80 Watts on each individual channel of the amplifier.
MODEL
2Ω
4Ω
8Ω
70V / 100V
CONNECT 88D
40W
80W
80W
80W
CONNECT 168D
80W
160W
160W
160W
CONNECT 84D
40W
80W
80W
80W
CONNECT 164D
80W
160W
160W
160W
CONNECT 354D
175W
350W
350W
350W
CONNECT 704D
350W
700W
700W
700W
CONNECT 352D
175W
350W
350W
350W
CONNECT 702D
350W
700W
700W
700W
CONNECT 1504
1500W
1500W
1500W
1500W
CONNECT 1504D
1500W
1500W
1500W
1500W
USER GUIDE
BROCHURE
DATASHEET
TROUBLE SHOOTING

ARE YOU INTERESTED TO LEARN MORE ABOUT LEA PROFESSIONAL?

Speak to one of our Consultants now

speak to us

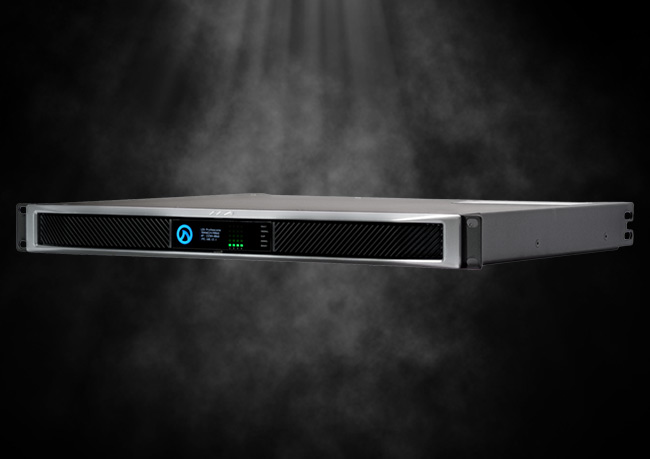

Network Connect

Network CONNECT

IoT-ENABLED PROFESSIONAL AMPLIFIERS

Introducing the world’s first

IoT-ENABLED PROFESSIONAL AMPLIFIERS

Introducing the world’s first Internet of Things- (IoT) enabled, professional-grade amplifier family – the NETWORK CONNECTSERIES. Perfectly suited for small to medium scale installations, these two, four, and eight channel amps feature direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Then there’s the Cloud…NETWORK CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.  Register for your free LEA Cloud account at leaprofessional.cloud

LEA-NETWROK1
LEA-NETWROK2
LEA-NETWROK3
LEA-NETWROK4
Previous
Next

Features

  • Web Browser-based UI –  works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 Ways to Connect) Built-in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
  • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O Port for Remote On/Off and fault monitoring
  • Highly Efficient Class D Output Stage for low AC Current draw

product range

Power ratings are stated on a per-channel basis. Ex: 80 Watts at 8 ohms = 80 Watts on each individual channel of the amplifier.
MODEL
2Ω
4Ω
8Ω
70V / 100V
CONNECT 88
40W
80W
80W
80W
CONNECT 168
80W
160W
160W
160W
CONNECT 84
40W
80W
80W
80W
CONNECT 164
80W
160W
160W
160W
CONNECT 354
175W
350W
350W
350W
CONNECT 704
350W
700W
700W
700W
CONNECT 352
175W
350W
350W
350W
CONNECT 702
350W
700W
700W
700W
CONNECT 1504
1500W
1500W
1500W
1500W
CONNECT 1504D
1500W
1500W
1500W
1500W
USER GUIDE
BROCHURE
DATASHEET
TROUBLESHOOTING

ARE YOU INTERESTED TO LEARN MORE ABOUT LEA PROFESSIONAL?

Speak to one of our Consultants now

speak to us

LEA PROFESSIONAL SERIES

Product Series

ABOUT THE BRAND

Our company was founded in January 2019 with a drive to introduce technology, not yet seen in the audio industry. We committed ourselves to power, performance, advanced connectivity, and bold, compelling design.
