Brands: Sonance

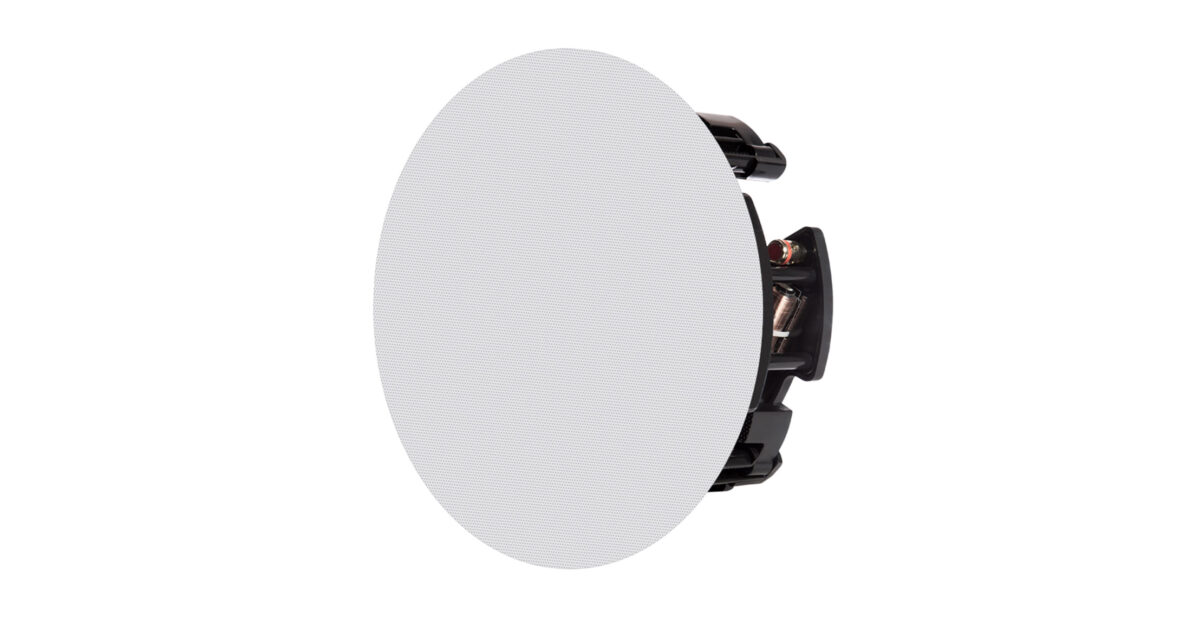

C6R
- Post date May 6, 2022

C Series
C Series
C Series extends the Sonance distributed audio line with a combination of value, aesthetics, and performance.

![]() C6R | ![]() C6R SST | |
---|---|---|
Tweeter | 1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting | Two 1″ (25mm) cloth dome, Ferrofluid-cooled |
Woofer | 6 1/2″ (165mm) Polypropylene cone with a rubber surround | 6 1/2″ (165mm) Polypropylene cone with a rubber surround, dual voice coil |
Frequency Response | 50Hz – 20kHz ±3dB | 50Hz – 20kHz ±3dB |
Impedance | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum |
Power Handling | 5 watts minimum; 85 watts maximum | 5 watts minimum; 85 watts maximum |
Sensitivity | 88dB SPL (2.8V/1 meter) | 88dB SPL (2.8V/1 meter) |
Shipping Weight
| 9.4 lbs (4.3kg) pair | 5.2 lbs (2.4kg) each |
Shared Specifications
- 9″ (232mm) x 3 3/4″ (95mm)
- Cut-Out Dimensions8 1/4″ (210mm)
- 3 3/4″ (95mm)
- Perforated steel grille

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Medium
- Post date May 5, 2022

Architectural Series
Medium
- Totally-flush and trimless round or square aesthetic provides minimal visual distraction.
- Independently pivoting woofer and tweeter to direct sound where required.
- Patented mounting platforms deliver a high-quality installation with precision grille leveling.
- Optional bandpass subwoofer delivers large speaker performance and bass response.

Architectural Series Medium Speaker
![]() AS68RS | |
---|---|
Tweeter | 1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber |
Woofer | 6 1/2″ (165mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting |
Frequency Response | 40Hz – 20kHz ±3dB |
Impedance | 6 ohms nominal; 4 ohms minimum |
Power Handling | 5 watts minimum; 150 watts maximum |
Sensitivity | 90dB SPL (2.83V/1 meter) |
Grille | AS68RS shipped w/ Round 8″ (203mm) and Square 8″ (203mm) perforated steel grilles |
High Pass Filter | 90Hz 6dB per Octave |
Dimensions (Dia. x D) | 8″ x 5 3/16″ (203mm x 131mm) |
Shipping Weight | 8 lbs (3.62 kg) each |
Dimensions (Dia x D) | — |
Architectural Series Medium Subwoofer and Bandpass Connector
![]() BPS8 Subwoofer + ASBPC6RS Bandpass Connector | |
---|---|
Woofer | 8″ (203mm) dual voice coil, carbon fiber/Rohacell laminated cone with a rubber surround |
Frequency Response | 30Hz – 90Hz – ±3dB |
Impedance | 6 ohms nominal; 4 ohms minimum |
Power Handling | 150 watts maximum |
Sensitivity | 90dB SPL (2.83V/1 meter) |
Internal Crossover Frequency | 90Hz @12dB per Octave |
Dimensions | 9 1/4″ x 12 5/16″ x 24″ (235mm x 313mm x 610mm) |
Shipping Weight | 45 lbs (20.41 kg) each |
Port Tube Dimensions (Dia x L) | 4 1/2″ x 22″ (76mm x 559mm) |
Architectural Series Discreet Opening System Mounting Platforms
![]() 1/2″ Medium Gypsum Mounting Platform Round | ![]() 5/8″ Medium Gypsum Mounting Platform Round | ||
---|---|---|---|
![]() 1/2″ Medium Gypsum Mounting Platform Square | ![]() 5/8″ Medium Gypsum Mounting Platform Square | ![]() Medium Solid Surface Mounting Platform SQ & R | |
Dimensions (H x W x D) | 16 3/8″ (416mm) x 30 13/32″ (772mm) x 3 13/16″ (97mm) | 16 3/8″ (416mm) x 30 13/32″ (772mm) x 3 13/16″ (97mm) | 16 3/8″ (416mm) x 30 13/32″ (772mm) x 3 13/16″ (97mm) |
Shipping Weight
| 14 lbs (6.35kg) | 14 lbs (6.35kg) | 14 lbs (6.35kg) |
Downloads
Data Sheets
Manuals
Quickstart Guides
- AS38RS and AS68RS Speakers Quickstart Guide
- AS Medium Solid Surface Shim Selector Chart
- BPS8 Subwoofer Quickstart Guide
- Bandpass Connector Quickstart Guide
- AS38RS and AS68RS Plaster Shim Quickstart Guide
Spec Sheets
CAD Drawings
- AS68RS
- BPS8
- ASBPC6RS
- Medium Mounting Platform Solid Surface
- Medium Mounting Platform Gypsum Round
- Medium Mounting Platform Gypsum Square
Configuration Charts
Application Notes
Solid Surface Cut Files
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Discreet Opening System
- Post date May 5, 2022

Architectural Series
Discreet Opening System
- Discreet opening system delivers amazing sonic performance with minimal visual intrusion
- Totally flush aesthetic that exactly matches size of round or square trim-less downlights
- Unique satellite speaker and subwoofer system delivers even coverage in any sized space
- Patented mounting platforms deliver a high-quality installation with precision grille leveling


Architectural Series Discreet Opening System Speakers
![]() AS38RS | |
---|---|
Grille | Ships w/ Round 4″ (102mm) and Square 4″ (102mm) perforated steel grilles |
Dimensions (Dia x D) | — |
Shipping Weight | 3.5 lbs (1.58kg) each |
Tweeter | 3/4″ (19mm) ceramic dome, Ferrofluid-cooled, in acoustic back chamber |
Woofer | 3 1/2″ (89mm) carbon fiber/Rahacell laminated cone with a rubber surround |
Frequency Response | 75Hz – 20kHz +/-3dB |
Impedance | 10 ohms nominal; 8 ohms minimum |
Power Handling | 100 watts maximum |
Sensitivity | 83dB SPL (2.83V/1 meter) |
High Pass Filter | 125Hz 6dB per Octave |
Dimensions | 3 5/16″ Dia. x 4 1/10″ D (100mm x 104.14mm) |
Architectural Series Discreet Opening System Bandpass Subwoofer
![]() BPS6 Subwoofer + ASBPC3RS Bandpass Connector | |
---|---|
Woofer | 6 1/2″ (165mm) dual voice coil, carbon fiber/Rohacell laminated cone with a rubber surround |
Frequency Response | 40Hz – 125Hz – ±3dB |
Impedance | 6 ohms nominal; 4 ohms minimum |
Power Handling | 100 watts maximum |
Sensitivity | 87dB SPL (2.8V/1 meter) |
Internal Crossover Frequency | 125Hz @12dB per Octave |
Dimensions | 3 7/8″ x 2 1/4″ (99mm x 57mm) |
Shipping Weight | 29 lbs (13.54 kg) each |
Port Tube Dimensions |
3″ x 22″ (76mm x 559mm) |
Bandpass Connector | ASBPC3RS |
Grille | ASBPC3RS ships with Round 4″ (102mm) and Square 4″ (102mm) perforated steel grilles |
BPC Cutout Dims | 3.25″ (82mm) Diameter |
Architectural Series Discreet Opening System Mounting Platforms
![]() 5/8″ Discreet Gypsum Mounting Platform Round | ![]() 1/2″ Discreet Gypsum Mounting Platform Round | ||
---|---|---|---|
![]() 5/8″ Discreet Gypsum Mounting Platform Square | ![]() 1/2″ Discreet Gypsum Mounting Platform Square | ![]() Discreet Solid Surface Mounting Platform SQ & R | |
Dimensions (H x W x D) | 12″ (305mm) x 31 7/8″ (810mm) x 1 15/32″ (38mm) | 12″ (305mm) x 31 7/8″ (810mm) x 1 15/32″ (38mm) | 12″ (305mm) x 31 7/8″ (810mm) x 1 7/16″ (37mm) |
Shipping Weight
| 11 lbs (4.98kg) | 11 lbs (4.98kg) | 11 lbs (4.98kg) |
Downloads
Data Sheets
Manuals
Quickstart Guides
- AS38RS and AS68RS Plaster Shim Quickstart Guide
- AS Discreet Solid Surface Shim Selector Chart Quickstart
- BPS6 Subwoofer Quickstart Guide
- Bandpass Connector Quickstart Guide
- AS38RS Data Sheet
- DOS System Data Sheet
Data Sheets
CAD Drawings
Configuration Charts
- Discreet Opening System Gypsum Configuration Chart
- Discreet Opening System Solid Surface Configuration Chart
Application Notes
Solid Surface Cut Files
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Architectural Series
- Post date May 5, 2022
Architectural Series
Sonance Architectural Series delivers the ultimate blend of high performance and premium aesthetics. The totally flush and bezel-less grilles disappear into the surrounding ceiling surface while the state-of-the-art driver materials and cutting-edge design sets a new standard in audiophile sound quality.

Architectural Series Discreet Opening System
Architectural Series Discreet Opening System delivers unprecedented sound quality via a revolutionary system approach to distributed audio. The finished product exactly matches the footprint of small aperture downlights for minimal distraction, maximum performance.


Precision engineered Mounting Platforms provide flexibility to align with light fixtures or ceiling features and deliver the highest quality result in drywall, plaster, wood, and other solid surfaces.

The unique system design (Satellite Speakers and Subwoofers) provides a better finished aesthetic than traditional larger loudspeakers while delivering superior sound coverage and sonic performance.
Precision Finish
Sonance Architectural Series is installed using patented Mounting Platforms that feature exclusive technology and trade-familiar installation processes, to ensure a precision result is always achieved.

Drywall and Plaster
Drywall and plaster Mounting Platforms are installed as part of the ceiling and finished with the surrounding surface. The precision-engineered design ensures a perfect reveal is always achieved.

Wood, Stone, and More
Solid Surface Mounting Platforms are specifically designed to deliver a repeatable, perfect result in tongue-in-groove, wood paneling and stone. The adjustable design provides flexibility to accommodate a variety of material thicknesses, while the engineered installation process ensures a totally professional finish.

Engineered for Excellence
The Discreet Opening System utilizes four or more AS38RS Satellite Speakers to achieve breathtaking sound quality. The cutting-edge design features a carbon fiber and Rohacell woofer and ceramic dome tweeter to deliver sonic performance that defies its size.

Discreet Design, Big Bass
The BPS6RS Bandpass Subwoofer features a dual voicecoil high excursion carbon fiber and Rohacell driver to achieve deep and impactful bass response.

Better Coverage, Less Distraction
The Satellite and Subwoofer design of the Discreet Opening System allows the entire room to be filled with audiophile sound quality at the perfect volume, eliminating the loud zones and quiet areas experienced with traditional loudspeakers.

Aesthetics to Match
The AS38RS Satellite Speakers and BPS6 Subwoofer utilize the same sized paintable round or square grilles to deliver a consistent and minimalistic aesthetic.

Continuous Sight Lines
Discreet Opening System grilles are the exact dimension of small aperture downlights, delivering continuous sight-lines across the ceiling.

Precision Grille Leveling
The precision grille leveling system ensures a perfectly flush installation with the surrounding ceiling surface, eliminating unsightly shadow lines and minimizing distraction.

Architectural Series Medium Speakers and Subwoofers
Architectural Series Medium Speakers are the perfect solution for large spaces, high ceilings, or anyone seeking higher volume levels without compromising the aesthetics of the designed space.

Precision Finish
Sonance Architectural Series is installed using patented Mounting Platforms that feature exclusive technology and trade-familiar installation processes, to ensure a precision result.

Drywall and Plaster Construction
Drywall and plaster Mounting Platforms are installed as part of the ceiling and finished with the surrounding surface. The precision engineering ensures a perfectly flush reveal to accommodate speaker grilles.

Wood, Stone, and More
Solid surface Mounting Platforms are specifically designed to deliver a repeatable, perfect result in tongue-in-groove, wood paneling and stone. The adjustable design provides flexibility to accommodate a variety of material thicknesses, while the engineered installation process ensures a totally professional finish.

State-of-the-Art Materials and Design
The AS68RS features cutting edge design and state-of-the-art materials including a ceramic dome Tweeter and high-excursion carbon fiber and Rohacell woofer to deliver uncompromised sonic performance.

Aesthetics and Performance
The independently pivoting Woofer and Tweeter allow the speakers to be installed for the best aesthetic, while the sound can be directed for the optimum performance.

Serious Bass Response
The optional BPS8 Bandpass Subwoofer features a dual voicecoil 8″ (203mm) high excursion carbon fiber and Rohacell driver, to deliver unequalled bass response.

Minimalistic Aesthetic
The round and square flush design provides a minimalistic, non-obtrusive aesthetic that can be further disguised by painting it to match the surrounding ceiling surface.

Maximum Sound, Minimal Distraction
Architectural Series Medium Speakers and optional Subwoofer is the perfect solution for high-ceiling installations, large areas or those seeking louder volume levels without compromising the look of the room.

Precision Grille Leveling
The precision grille leveling system ensures a perfectly flush installation with the surrounding ceiling surface, eliminating unsightly shadow lines and minimizing distraction.

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

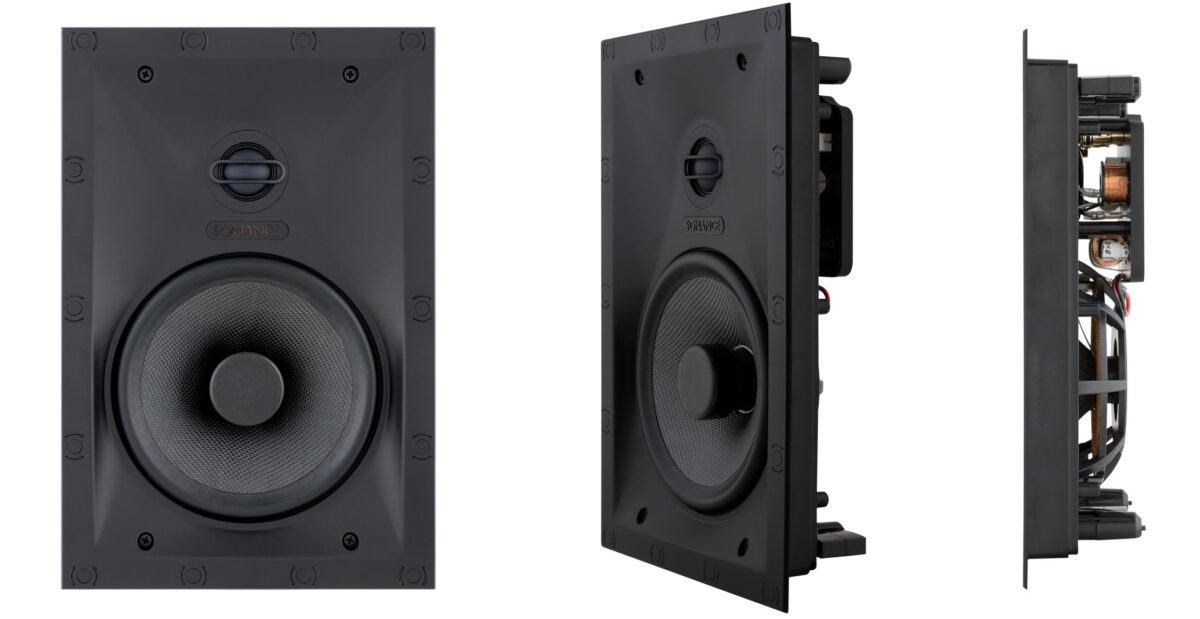

ThinLine
- Post date April 29, 2022

Visual Performance Series
ThinLine
- 34% shallower than standard-depth Visual Performance Series models.
- Pivoting tweeter.*
- Perfect for restricted mounting depths or obstructions found during installation where a conventional speaker is too deep.
- Identical size cutout and grille for a perfect aesthetic match to other Visual Performance Series speakers.
*excluding VP62R SST/ SUR TL

![]() VP62R SST/SUR TL | ![]() VP62R TL | ![]() VP66R TL | ![]() VP66 TL | ![]() VP52R UTL | |
---|---|---|---|---|---|
Tweeter | Two 1″ (25mm) cloth domes, Ferrofluid-cooled, in acoustic back chamber | 1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber | 1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber | 1″ (25mm) powder coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber | 1″ (25mm) cloth dome, Ferrofluid-cooled, in acoustic back chamber |
Woofer | 6 1/2″ (165mm) textured polypropylene cone with a rubber surround | 6 1/2″ (165mm) textured polypropylene cone with a rubber surround | 6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround | 6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround | 5 1/4″ (133mm) polypropylene cone with a rubber surround |
Frequency Response | 45Hz – 20kHz ±3dB | 45Hz – 20kHz ±3dB | 43Hz – 20kHz ±3dB | 43Hz – 20kHz ±3dB | 75Hz – 20kHz +/- 3dB |
Impedance | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum |
Power Handling | 5 watts minimum; 125 watts maximum | 5 watts minimum; 125 watts maximum | 5 watts minimum; 140 watts maximum | 5 watts minimum; 140 watts maximum | 5 watts minimum; 80 watts maximum |
Sensitivity | 89dB SPL (2.83V/1 meter) | 89dB SPL (2.83V/1 meter) | 90dB SPL (2.83V/1 meter) | 90dB SPL (2.83V/1 meter) | 89dB SPL (2.83V/1 meter) |
Speaker Depth | 3 5/32″ (80mm) | 3 5/32″ (80mm) | 3 5/32″ (80mm) | 2 1/2″ (64mm) | 1 7/16″ (36.2mm) |
Dimensions | 9 3/4″ (248mm) | 9 3/4″ (248mm) | 9 3/4″ (248mm) | 8 3/8″ x 12 1/4″ (213mm x 311mm) | 9 3/4″ (248mm) Diameter |
Cut-Out Dimensions | 8 1/4″ (210mm) | 8 1/4″ (210mm) | 8 1/4″ (210mm) | 6 15/16″ x 10 3/4″ (176mm x 273mm) | 8 1/4″ (210mm) Diameter |
Grille Material | Perforated steel | Perforated steel | Perforated steel | Perforated steel | Perforated steel |
Shipping Weight
| 5 lbs (2.3kg) each | 9 lbs (4.1kg) pair | 9 lbs (4.1kg) pair | 9 lbs (4.1kg) pair | 9 lbs (4.1kg) pair |

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

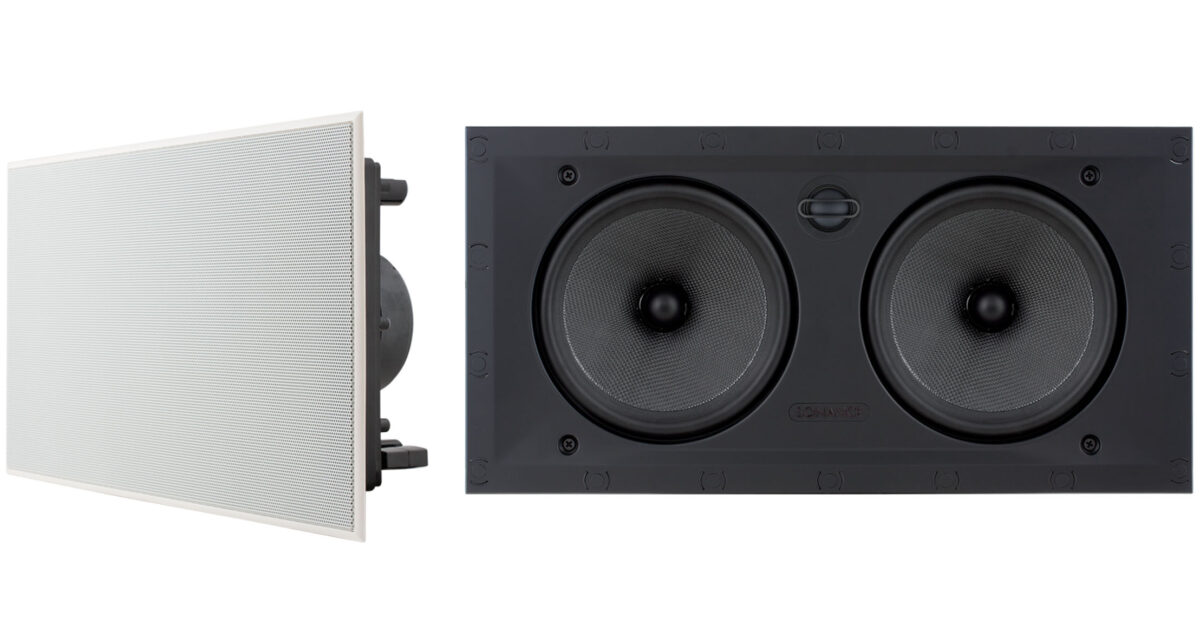

LCR
- Post date April 29, 2022

Visual Performance Series
LCR
- Easily mounted vertically or horizontally depending on install needs for Left and Right speakers or Center Channel.
- Combines elegant, modern style with outstanding sonic performance.
- Two performance levels to accommodate any ear or budget.
- Pair with Visual Performance Series SST/SUR speakers for surround sound.

![]() VP62 LCR | ![]() VP66 LCR | |
---|---|---|
Tweeter | 1″ (25mm) cloth dome, Ferrofluid-cooled, in acoustic back chamber | 1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled in acoustic back chamber |
Woofer | Two 6 1/2″ (165mm) textured polypropylene cones with a rubber surround | Two 6 1/2″ (165mm) Kevlar / Nomex laminated cones with a rubber surround |
Frequency Response | 45Hz – 20kHz ±3dB | 43Hz – 20kHz ±3dB |
Impedance | 6 ohms nominal; 4 ohms minimum | 6 ohms nominal; 4 ohms minimum |
Power Handling | 5 watts minimum; 125 watts maximum | 5 watts minimum; 140 watts maximum |
Sensitivity | 90dB SPL (2.83V/1 meter) | 91dB SPL (2.83V/1 meter) |
Speaker Depth | 3 9/16″ (91mm) | 3 9/16″ (91mm) |
Dimensions (W x H ) | 16 1/8″ x 8 3/8″ (410mm x 213mm) | 16 1/8″ x 8 3/8″ (410mm x 213mm) |
Shared Specifications
- 16 1/8″ (410mm) x 8 3/8″ (213mm)
- Cut-Out Dimensions (W x H)6 7/8″ (175mm) x 14 1/2″ (368mm)
- 3 9/16″ (91mm)
- Perforated Steel
- Shipping Weight8 lbs (3.6kg) each

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

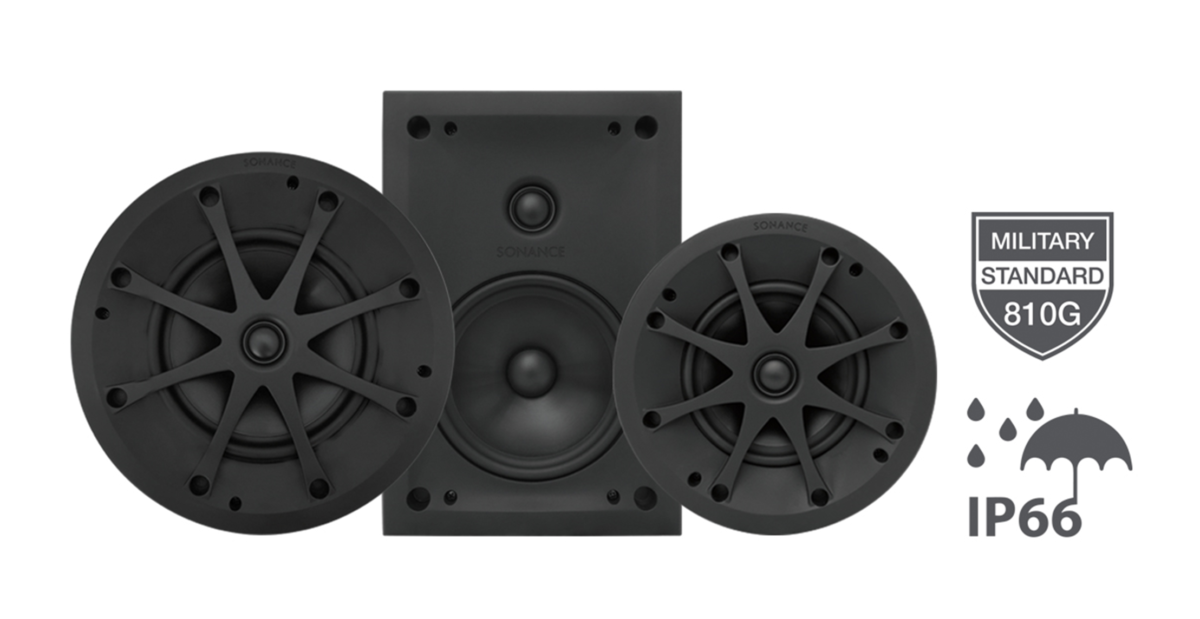

VP Extreme
- Post date April 29, 2022

Visual Performance Series
Visual Performance Extreme
- The Sonance XPC Grille Retention Technology® ensures the grille is held securely in place even during high pressure washing
- Engineered to handle extreme temperature and humidity areas from -30º F up to +175º F (-34º C up to + 79º C) while still maintaining superior Sonance sound quality
- Powder-coated marine-grade stainless steel grille to avoid corrosion
- Conforms to Military Standard 810G for humidity, salt spray, temperature and UV
- IP-66 rated for powerful jets of water
- Optional square adapter (sold separately) give the speakers a square aesthetic

![]() VPXT8R | ![]() VPXT6R | ![]() VPXT6R SST | ![]() VPXT6 | |
---|---|---|---|---|
Tweeter | 1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber | 1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber | 1″ (25mm) polyurethane dome, dual voice coil, Ferrofluid cooled, in acoustic back chamber | 1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber |
Woofer | 8″ (205mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround | 6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround | 6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround | 6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround |
Frequency Response | 40Hz – 20kHz ±3dB | 45Hz – 20kHz ±3dB | 45Hz – 20kHz ±3dB | 45Hz – 20kHz ±3dB |
Impedance | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum |
Power Handling | 5 watts minimum; 130 watts maximum | 5 watts minimum; 130 watts maximum | 5 watts minimum; 130 watts maximum | 5 watts minimum; 130 watts maximum |
Sensitivity | 90dB SPL (2.83V/1 meter) | 89dB SPL (2.83V/1 meter) | 89dB SPL (2.83V/1 meter) | 89dB SPL (2.83V/1 meter) |
Environment Temp | -30º – 175ºF (-34ºC – 79ºC) | -30º – 175ºF (-34ºC – 79ºC) | -30º – 175ºF (-34ºC – 79ºC) | -30º – 175ºF (-34ºC – 79ºC) |
Speaker Depth | 3 3/4″ (95mm) | 3 1/2″ (89mm) | 3 1/2″ (89mm) | 2 1/2″ (64mm) |
Dimensions | 11 5/8″ (295mm) | 9 3/4″ (248mm) | 9 3/4″ (248mm) | 8 3/8″ x 12 1/4″ (213mm x 311mm) |
Cut-Out Dimensions | 10 1/8″ (257mm) | 8 1/4″ (210mm) | 8 1/4″ (210mm) | 6 15/16″ x 10 3/4″ (176mm x 273mm) |
Grille Material | Powder-coated stainless steel | Powder-coated stainless steel | Powder-coated stainless steel | Powder-coated stainless steel |
Shipping Weight
| 14 lbs (6.35kg) pair | 12 lbs (5.4 kg) pair | 4.5 lbs (2.1 kg) each | 12 lbs (5.4 kg) pair |

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
SST/SUR
- Post date April 29, 2022

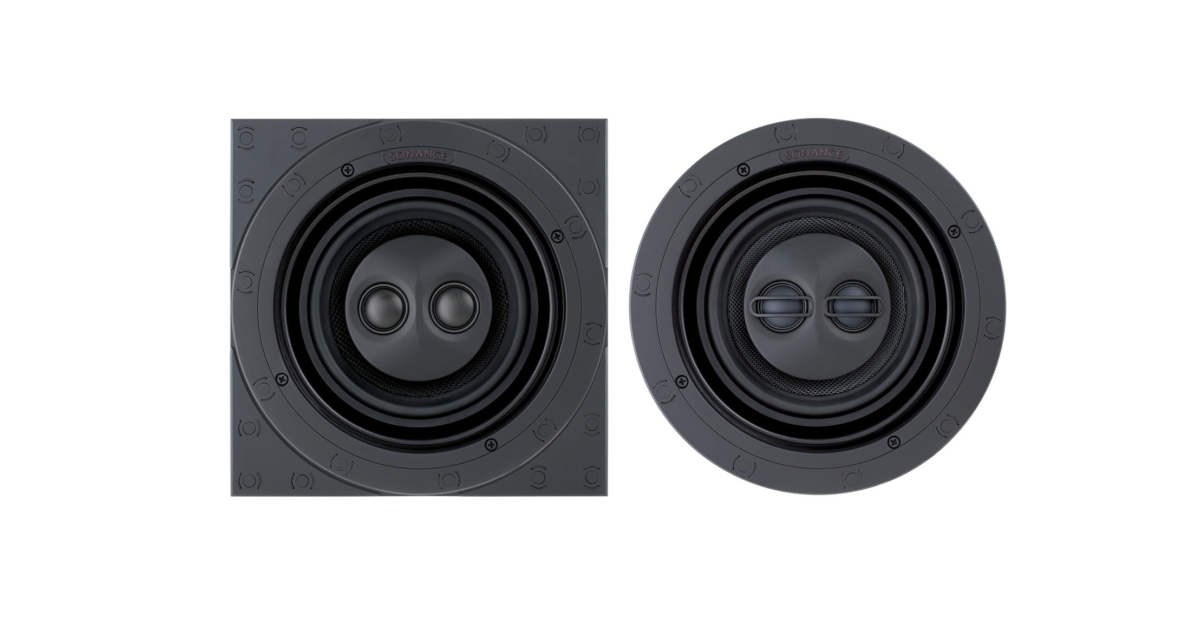

Visual Performance Series
Surround Speakers
- Surround speakers for home theater applications
- The perfect surround sound partner for Visual Performance Series LCR speakers or Sonance Soundbars
- Various sizes and shapes to match the aesthetic of the room
- Two performance levels to accommodate any ear or budget
- Same exceptional Visual Performance Series sound quality

![]() VP86R SST/SUR | ![]() VP66R SST/SUR | ![]() VP62R SST/SUR | ![]() VP46R SST/SUR | ![]() VP66 SST/SUR | |
---|---|---|---|---|---|
Tweeter | Two 1″ (25mm) powder-coated aluminum domes, Ferrofluid-cooled, in an acoustic back chamber | Two 1″ (25mm) powder-coated aluminum domes, Ferrofluid-cooled, in an acoustic back chamber | Two 1″ (25mm) cloth dome, Ferrofluid-cooled, in an acoustic back chamber | Two 1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, in an acoustic back chamber | Two 1″ (25mm) powder-coated aluminum domes, Ferrofluid-cooled, in acoustic back chamber |
Midrange | Two 3″ (76mm) Kevlar/Nomex laminated cone with a rubber surround | — | — | — | — |
Woofer | 8″ (203mm) Kevlar/Nomex laminated cones with rubber surrounds, pivoting, dual voice coil | 6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting, dual voice coil | 6 1/2″ (165mm) textured polypropylene cone with a rubber surround, pivoting, dual voice coil | 4 1/2″ (114mm) Kevlar/Nomex laminated cone with a rubber surround, dual voice coil | 6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround, dual voice coil |
Frequency Response | 34Hz – 20kHz ±3dB | 43Hz – 20kHz ±3dB | 45Hz – 20kHz ±3dB | 58Hz – 20kHz ±3dB | 43Hz – 20kHz ±3dB |
Impedance | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum | 8 ohms nominal; 6 ohms minimum |
Power Handling | 5 watts minimum; 150 watts maximum | 5 watts minimum; 140 watts maximum | 5 watts minimum; 125 watts maximum | 5 watts minimum; 70 watts maximum | 5 watts minimum; 140 watts maximum |
Sensitivity | 91dB SPL (2.83V/1 meter) | 90dB SPL (2.83V/1 meter) | 89dB SPL (2.83V/1 meter) | 90dB SPL (2.83V/1 meter) | 90dB SPL (2.83V/1 meter) |
Speaker Depth | 5 7/8″ (149mm) | 4 3/4″ (121mm) | 4 3/4″ (121mm) | 3 3/4″ (95mm) | 3 1/2″ (89mm) |
Dimensions | 11 5/8″ (295mm) | 9 3/4″ (248mm) | 9 3/4″ (248mm) | 6 7/8″ (175mm) | 8 3/8″ x 12 1/4″ (213mm x 311mm) |
Cut-Out Dimensions | 10 1/8″ (257mm) | 8 1/4″ (210mm) | 8 1/4″ (210mm) | 5 7/8″ (149mm) | 6 15/16″ x 10 3/4″ (176mm x 273mm) |
Grille Material | Perforated steel | Perforated steel | Perforated steel | Perforated steel | Perforated steel |
Shipping Weight
| 10 lbs (4.5kg) each | 5 lbs (2.3kg) each | 5 lbs (2.3kg) each | 3 lbs (1.4kg) each | 5 lbs (2.3kg) each |

Downloads
- VP Round SST/SUR Data Sheet
- VP66 SST/SUR Data Sheet
- Speaker Selection Poster 2021
- VP Brochure
- VP Round Speakers Manual
- VP46R SST/SUR CAD Drawings
- VP62R SST/SUR CAD Drawings
- VP66R SST/SUR CAD Drawings
- VP86R SST/SUR CAD Drawings
- VP8SQ Square Adapter CAD Drawings
- VP6SQ Square Adapter CAD Drawings
- VP4SQ Square Adapter CAD Drawings
- VP Grille Painting Instructions
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Professional Series
- Post date April 29, 2022
Professional Series
From Sonance, the company that invented the architectural audio category comes a range of professional loudspeakers that set a new benchmark in sound quality and aesthetics for commercial environments.
Sonance Professional Series includes a range of 70V, 100V, 8 Ohm selectable In-Ceiling, Pendant and Surface Mount Speakers that deliver unequalled fidelity, extremely low distortion, wide dispersion and exceptional reliability.
The range also shares consistent voicing, ensuring seamless sonic integration when used together throughout a space.





Performance
Sonance Professional Series has been engineered with a level of attention to detail not typically seen in the commercial audio industry.
The range features a full-fidelity transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension and chambered 1″ pivoting tweeter for precise high-end detail and exceptional off-axis performance.
Available in 4″, 4″ Low Profile, 6.5″, 6.5″ Low Profile, 8″ 2-Way and an 8″ Woofer. An additional lower-cost 4″ and 6.5″ provide the benefits of Professional Series in budget-conscious projects.

Aesthetics
Sonance Professional Series In-Ceiling Speakers feature a bezel-less grille design to minimize visual distraction and reduce shadow lines.
The optional black or white square grille adapter allows the speakers to match the aesthetic of downlights or HVAC grilles.
Black grilles in round or square are also available, eliminating the need to order a specific black speaker.

Installation
A one-piece grille allows for a one-step painting process, while the magnetic retention simplifies installation and reduces the risk of damage during fitment and removal.
The sealed enclosure incorporates cable and conduit clamping and knock-out. An easily-accessible Euroblock connector provides input and loop through connections, while the seismic attachment provides added security when used in suspended ceiling applications.
UL 1480 and UL 2043 certified and shipped with Tile Bridge and C-Ring.
EASE Address software for Sonance Professional Series provides simple and accurate system layout of distributed audio systems, ensuring perfect coverage is always achieved.
Watch EASE Address tutorial video here.
Free download of EASE Address for Sonance here.
EASE is a registered trademark of AFMG Technologies GmbH.

Performance
Sonance Professional Series has been engineered with a level of attention to detail not typically seen in the commercial audio industry.
The range features a full-fidelity transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension and chambered 1″ pivoting tweeter for precise high-end detail and exceptional off-axis performance.
Available in 4″, 6.5″, 8″ 2-Way and an 8″ Woofer.

Aesthetics
These elegant Pendant Speakers utilize a minimalistic design similar to pendant lighting to blend discreetly into the environment. Available in black or white and can also be painted to match decor.
They also take advantage of the same one-piece grille design as the In-Ceiling Speakers in the range to deliver consistent sight lines when installed in the same space.
The unique integrated top cover hides the hanging hardware and wiring connector making them perfect for installation where they may be viewed from above.

Installation

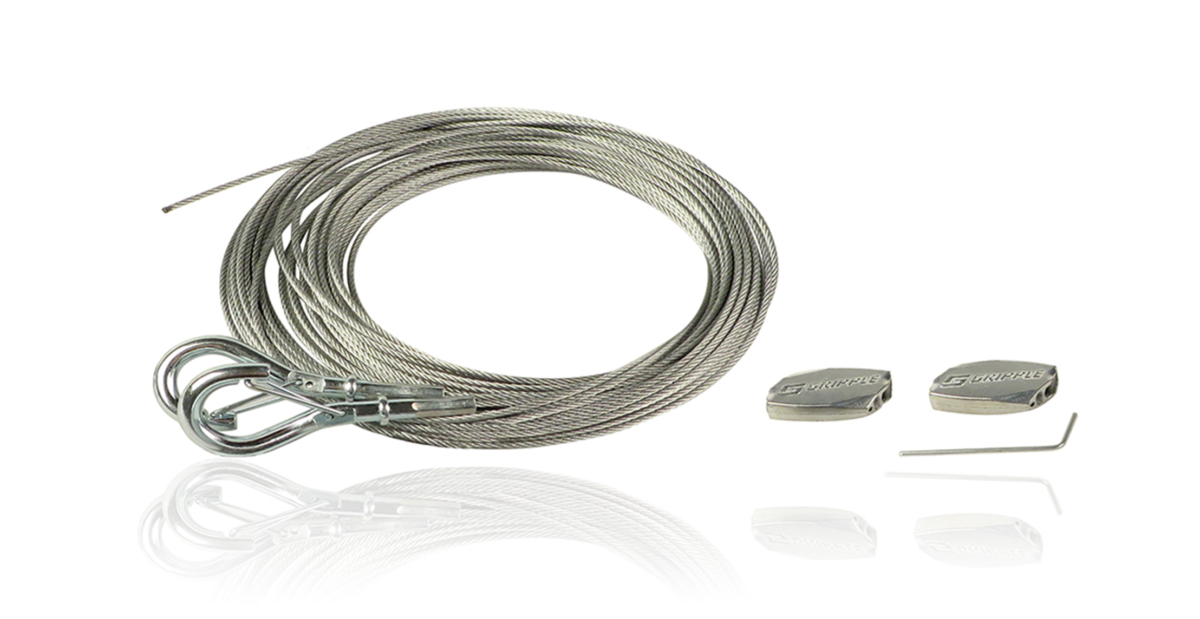

Sonance Professional Series Pendant Speakers are supplied with hanging hardware kits that includes two 15’ stainless steel suspension cables with snap hook and two Gripple® hangers to ensure a safe and secure installation.
The front-mounted tap selector makes it easier to adjust the speaker once installed.
UL 1480 and UL 2239 certified.
EASE Address software for Sonance Professional Series provides simple and accurate system layout of distributed audio systems, ensuring perfect coverage is always achieved.
Watch EASE Address tutorial video here.
Free download of EASE Address for Sonance here.
EASE is a registered trademark of AFMG Technologies GmbH.

Performance
Sonance Professional Series has been engineered with a level of attention to detail not typically seen in the commercial audio industry.
The range features a full-fidelity transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension and chambered 1″ tweeter for precise high-end detail and exceptional off-axis performance.
Available in 4″, 5.25″, 6.5″, 8″ 2-Way and an 8″ Woofer.

Aesthetics
Clean minimalistic lines and a flush-fitting grille make Sonance Professional Series Surface Mount Speakers look more like carefully designed pieces of decor, rather than the traditional bulky look of cabinet speakers.
Available in either black or white, which can be painted to match wall or ceiling colors.

Installation
Sonance Professional Series Surface-Mount Speakers feature the patented FastMount bracket to speed up the installation process and prevent them from slipping out of adjustment over time.
The front-mounted cable connector and tap selector makes connection and adjustment a breeze, while the clip-in cover shields them from the elements.
The weather and temperature resistant construction and powder coated aluminum grille allow them to be used in either indoor or outdoor applications. UL 1480 certified, IPX4, Mil Spec 810, and UV IEC 529.
EASE Address software for Sonance Professional Series provides simple and accurate system layout of distributed audio systems, ensuring perfect coverage is always achieved.
Watch EASE Address tutorial video here.
Free download of EASE Address for Sonance here.
EASE is a registered trademark of AFMG Technologies GmbH.


ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
