Blackline Q44

4 x 4” Passive Two-way Portable Column Loudspeaker

Designed for venues where clarity and control are paramount, Blackline Q44 is a compact column loudspeaker that delivers a peak SPL of 119dB (125dB with crest factor 4) with precise coverage from a discreet footprint.

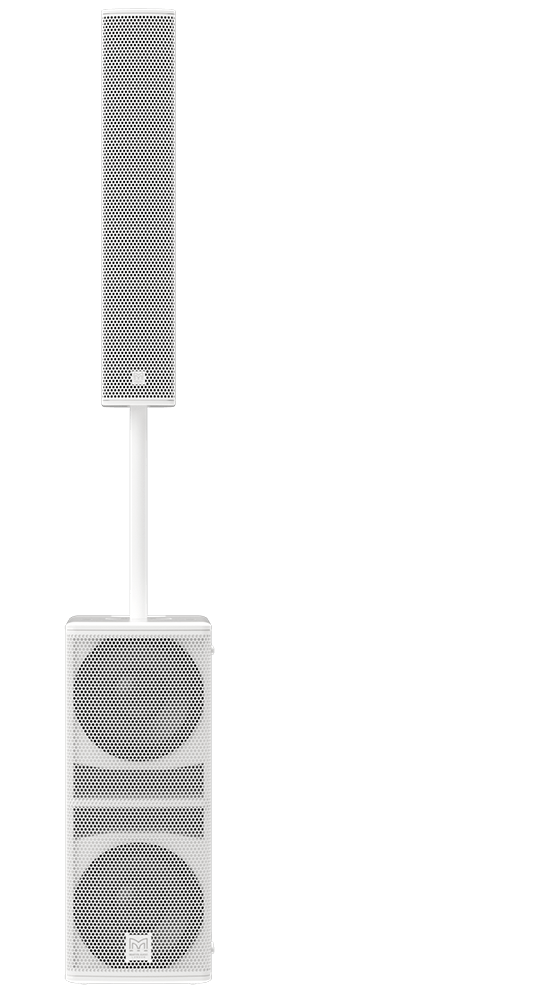

It can operate as a stand-alone system or be supplemented by Blackline Q210 subwoofer, making it equally suited to performance venues, corporate events and worship spaces.

Features

Compact passive two-way system
Lightweight, portable with a discreet design
Peak SPL of 119dB (125dB with crest factor 4)
Differential Dispersion horn
Dispersion: 100°–120° horizontal × 40° vertical
Screw-tight, cloth-backed perforated steel grille
Pole-mount cover maintains clean lines
8Ω nominal impedance
Two NL4 connectors
Flexible mounting options via M8 inserts

Applications

Portable sound reinforcement
Bars and restaurants
Corporate AV events and conferences
Weddings and parties
Houses of worship

Q44 is an ideal solution for rental houses seeking elegant voice reinforcement with extended bandwidth and refined musicality, while installers benefit from its versatile mounting options.

Q44 features four 4” (100mm) LF drivers with 1.5” (38mm) voice coils and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. A Differential Dispersion horn ensures wide, consistent coverage.

Constructed from durable plywood, Q44 is fitted with a screw-tight steel grille and includes M8 inserts for wall brackets, yokes, and eyebolt suspension. A pole-mount socket with a removable cover maintains clean lines for installation applications. It is finished in hard-wearing black or white paint.

Engineered for clarity and control, Q44 integrates seamlessly into larger systems or functions as a standalone solution where aesthetics and performance are equally important.

Q44 is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

Specifications

Edit Content


TYPE	Passive two-way compact column loudspeaker
FREQUENCY RESPONSE ¹	82 Hz – 17 kHz ± 3 dB, -10 db @ 63 Hz
DRIVER (LF)	Four 4” (100 mm) with 1” (25 mm) voice coil, ferrite motor system
DRIVER (HF)	1″ (25 mm) exit compression driver with 1″ (25 mm) voice coil, PETP dome
RATED POWER ²	200 W AES, 800 W peak
REQUIRED ELECTRONICS	Processor and amplifier, or a combined amplifier-processor unit
RECOMMENDED ELECTRONICS	DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
SENSITIVITY ³	90 dB
MAXIMUM SPL ³	113 dB continuous, 119 dB peak, 125 dB peak with crest factor 4
NOMINAL IMPEDANCE	8 ohm
DISPERSION	Dispersion: 100°–120° (horizontal) × 40° (vertical)
CROSSOVER	2.4 kHz passive
ENCLOSURE	Durable plywood
FINISH	Black or white textured paint
PROTECTIVE GRILLE	Black or white perforated steel grille with scrim cloth backing
CONNECTORS	1 x NL4 connector
PIN CONNECTIONS (INPUT)	1+/1–
PIN CONNECTIONS (LINK)	NA
FITTINGS	3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket 1 x pocket handle made from recycled ABS Pole-mount socket with removable cover
DIMENSIONS	(W) 150 mm x (H) 800 mm x (D) 187 mm (W) 5.9 in x (H) 31.5 in x (D) 7.3 in
WEIGHT	7.5 kg (16.5 lbs)

¹ On-axis in open space (4pi) with full-range preset.

² 2-hour test with band-limited pink noise signal as specified in AES2-1984 (r2003). Peak power defined as 6 dB above AES power.

³ 1 W input at 1 meter in open space (4pi), measured in the 2pi (baffle) region.

Architectural Specs

Edit Content

Martin Audio Blackline Q44

The loudspeaker shall be a passive, two-way column system. Its transducers shall consist of four reflex-loaded 4” (100 mm) low-frequency drivers with 1.5” (38 mm) voice coils and a 1” (25 mm) exit high-frequency compression driver with a 1” (25 mm) dome, mounted on a Differential Dispersion horn to provide wide and consistent coverage.

Horizontal dispersion shall taper from 100° to 120° along the vertical axis to optimise near and far field coverage. Vertical dispersion shall be 40° total (+15° / –25°). The on-axis frequency response shall be 82 Hz to 17 kHz (±3 dB), with low-frequency extension down to 63 Hz (–10 dB). The loudspeaker shall produce a peak SPL of 119 dB (125 dB with crest factor 4) at 1 metre. Nominal impedance shall be 8 ohms. The loudspeaker shall require external amplification and processing. For optimal performance, it shall be used in conjunction with a dedicated electronic controller such as a Martin Audio DX series processor, paired with a VIA series amplifier, or with an iKON series combined amplifier and processor.

The rear connector panel shall be fitted with an NL4 connector. The enclosure shall be constructed from durable plywood and finished in durable black or white paint. It shall be fitted with a pole-mount socket with a removable cover and M8 threaded inserts to accommodate wall brackets, yokes or eyebolt suspension. The drivers shall be protected by a screw-fixed, perforated steel grille with a cloth backing.

Dimensions (W x H x D) shall be 150 mm x 800 mm x 187 mm (5.9 in x 31.5 in x 7.3 in). Weight shall be 7.5 kg (16.5 lbs).

The loudspeaker shall be the Martin Audio Blackline Q44.

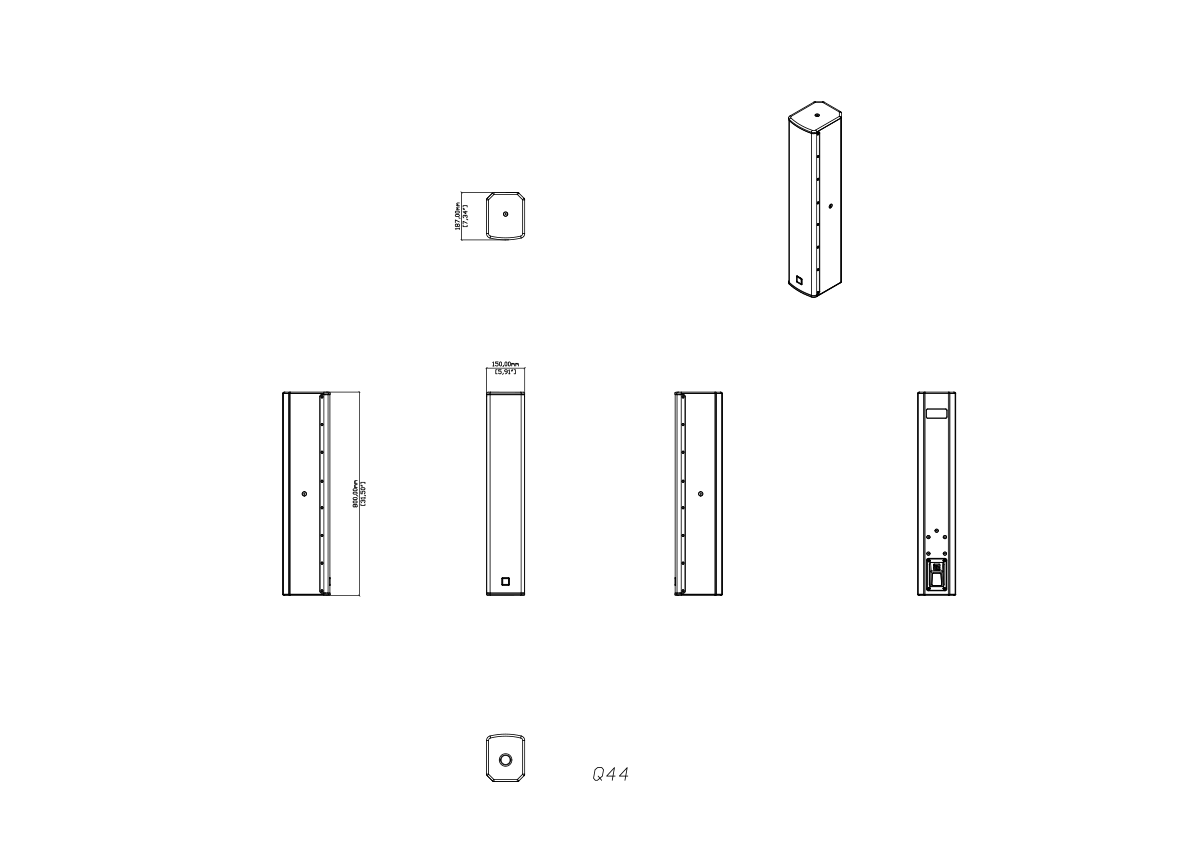

Technical Drawings & 3D Models
