VP Extreme – Generation AV

Visual Performance Series

Visual Performance Extreme

The Sonance XPC Grille Retention Technology® ensures the grille is held securely in place even during high pressure washing
Engineered to handle extreme temperature and humidity areas from -30º F up to +175º F (-34º C up to + 79º C) while still maintaining superior Sonance sound quality
Powder-coated marine-grade stainless steel grille to avoid corrosion
Conforms to Military Standard 810G for humidity, salt spray, temperature and UV
IP-66 rated for powerful jets of water

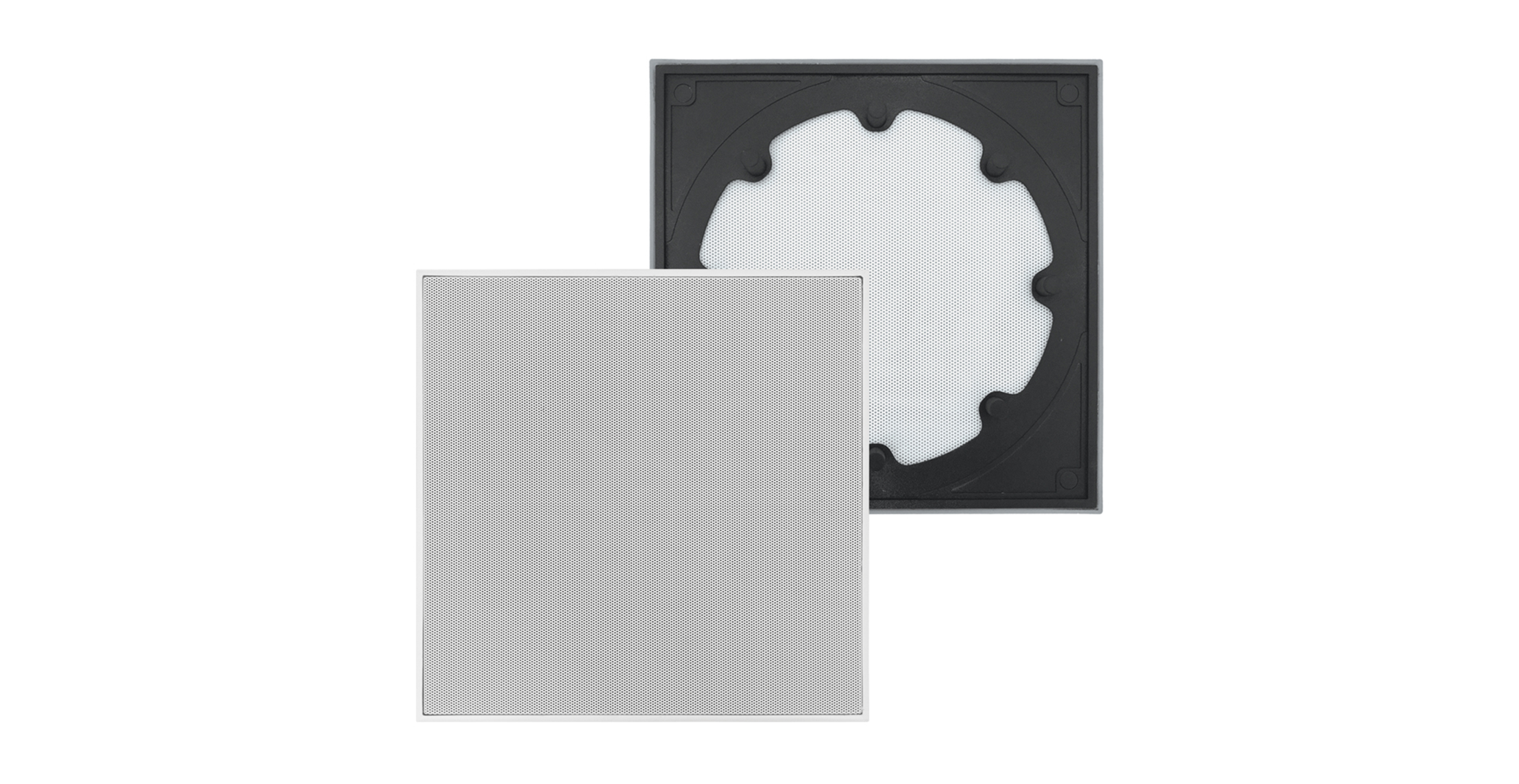

Optional square adapter (sold separately) give the speakers a square aesthetic

	VPXT8R	VPXT6R	VPXT6R SST	VPXT6
Tweeter	1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber	1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber	1″ (25mm) polyurethane dome, dual voice coil, Ferrofluid cooled, in acoustic back chamber	1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber
Woofer	8″ (205mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround	6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround	6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround	6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround
Frequency Response	40Hz – 20kHz ±3dB	45Hz – 20kHz ±3dB	45Hz – 20kHz ±3dB	45Hz – 20kHz ±3dB
Impedance	8 ohms nominal; 6 ohms minimum	8 ohms nominal; 6 ohms minimum	8 ohms nominal; 6 ohms minimum	8 ohms nominal; 6 ohms minimum
Power Handling	5 watts minimum; 130 watts maximum	5 watts minimum; 130 watts maximum	5 watts minimum; 130 watts maximum	5 watts minimum; 130 watts maximum
Sensitivity	90dB SPL (2.83V/1 meter)	89dB SPL (2.83V/1 meter)	89dB SPL (2.83V/1 meter)	89dB SPL (2.83V/1 meter)
Environment Temp	-30º – 175ºF (-34ºC – 79ºC)	-30º – 175ºF (-34ºC – 79ºC)	-30º – 175ºF (-34ºC – 79ºC)	-30º – 175ºF (-34ºC – 79ºC)
Speaker Depth	3 3/4″ (95mm)	3 1/2″ (89mm)	3 1/2″ (89mm)	2 1/2″ (64mm)
Dimensions	11 5/8″ (295mm)	9 3/4″ (248mm)	9 3/4″ (248mm)	8 3/8″ x 12 1/4″ (213mm x 311mm)
Cut-Out Dimensions	10 1/8″ (257mm)	8 1/4″ (210mm)	8 1/4″ (210mm)	6 15/16″ x 10 3/4″ (176mm x 273mm)
Grille Material	Powder-coated stainless steel	Powder-coated stainless steel	Powder-coated stainless steel	Powder-coated stainless steel
Shipping Weight	14 lbs (6.35kg) pair	12 lbs (5.4 kg) pair	4.5 lbs (2.1 kg) each	12 lbs (5.4 kg) pair
