Series: Architectural Series

Medium

Architectural Series

Medium

  • Totally-flush and trimless round or square aesthetic provides minimal visual distraction.
  • Independently pivoting woofer and tweeter to direct sound where required.
  • Patented mounting platforms deliver a high-quality installation with precision grille leveling.
  • Optional bandpass subwoofer delivers large speaker performance and bass response.

Architectural Series Medium Speaker

AS68RS
Tweeter
1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer
6 1/2″ (165mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting
Frequency Response
40Hz – 20kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
Grille
AS68RS shipped w/ Round 8″ (203mm) and Square 8″ (203mm) perforated steel grilles
High Pass Filter
90Hz 6dB per Octave
Dimensions (Dia. x D)
8″ x 5 3/16″ (203mm x 131mm)
Shipping Weight
8 lbs (3.62 kg) each
Dimensions (Dia x D)
—

Architectural Series Medium Subwoofer and Bandpass Connector

BPS8 Subwoofer + ASBPC6RS Bandpass Connector
Woofer
8″ (203mm) dual voice coil, carbon fiber/Rohacell laminated cone with a rubber surround
Frequency Response
30Hz – 90Hz – ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
Internal Crossover Frequency
90Hz @12dB per Octave
Dimensions
9 1/4″ x 12 5/16″ x 24″ (235mm x 313mm x 610mm)
Shipping Weight
45 lbs (20.41 kg) each
Port Tube Dimensions (Dia x L)
4 1/2″ x 22″ (76mm x 559mm)

Architectural Series Discreet Opening System Mounting Platforms
1/2″ Medium Gypsum Mounting Platform Round
5/8″ Medium Gypsum Mounting Platform Round
1/2″ Medium Gypsum Mounting Platform Square
5/8″ Medium Gypsum Mounting Platform Square
Medium Solid Surface Mounting Platform SQ & R
Dimensions (H x W x D)
16 3/8″ (416mm) x 30 13/32″ (772mm) x 3 13/16″ (97mm)
16 3/8″ (416mm) x 30 13/32″ (772mm) x 3 13/16″ (97mm)
16 3/8″ (416mm) x 30 13/32″ (772mm) x 3 13/16″ (97mm)
Shipping Weight
14 lbs (6.35kg)
14 lbs (6.35kg)
14 lbs (6.35kg)

Accessories

Downloads

Data Sheets

Manuals

Quickstart Guides

Spec Sheets

CAD Drawings

Configuration Charts

Application Notes

Solid Surface Cut Files

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

Discreet Opening System

Architectural Series

Discreet Opening System

  • Discreet opening system delivers amazing sonic performance with minimal visual intrusion
  • Totally flush aesthetic that exactly matches size of round or square trim-less downlights
  • Unique satellite speaker and subwoofer system delivers even coverage in any sized space
  • Patented mounting platforms deliver a high-quality installation with precision grille leveling

Architectural Series Discreet Opening System Speakers

AS38RS
Grille
Ships w/ Round 4″ (102mm) and Square 4″ (102mm) perforated steel grilles
Dimensions (Dia x D)
—
Shipping Weight
3.5 lbs (1.58kg) each
Tweeter
3/4″ (19mm) ceramic dome, Ferrofluid-cooled, in acoustic back chamber
Woofer
3 1/2″ (89mm) carbon fiber/Rahacell laminated cone with a rubber surround
Frequency Response
75Hz – 20kHz +/-3dB
Impedance
10 ohms nominal; 8 ohms minimum
Power Handling
100 watts maximum
Sensitivity
83dB SPL (2.83V/1 meter)
High Pass Filter
125Hz 6dB per Octave
Dimensions
3 5/16″ Dia. x 4 1/10″ D (100mm x 104.14mm)

Architectural Series Discreet Opening System Bandpass Subwoofer

BPS6 Subwoofer + ASBPC3RS Bandpass Connector
Woofer
6 1/2″ (165mm) dual voice coil, carbon fiber/Rohacell laminated cone with a rubber surround
Frequency Response
40Hz – 125Hz – ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
100 watts maximum
Sensitivity
87dB SPL (2.8V/1 meter)
Internal Crossover Frequency
125Hz @12dB per Octave
Dimensions
3 7/8″ x 2 1/4″ (99mm x 57mm)
Shipping Weight
29 lbs (13.54 kg) each
Port Tube Dimensions
3″ x 22″ (76mm x 559mm)
Bandpass Connector
ASBPC3RS
Grille
ASBPC3RS ships with Round 4″ (102mm) and Square 4″ (102mm) perforated steel grilles
BPC Cutout Dims
3.25″ (82mm) Diameter

Architectural Series Discreet Opening System Mounting Platforms
5/8″ Discreet Gypsum Mounting Platform Round
1/2″ Discreet Gypsum Mounting Platform Round
5/8″ Discreet Gypsum Mounting Platform Square
1/2″ Discreet Gypsum Mounting Platform Square
Discreet Solid Surface Mounting Platform SQ & R
Dimensions (H x W x D)
12″ (305mm) x 31 7/8″ (810mm) x 1 15/32″ (38mm)
12″ (305mm) x 31 7/8″ (810mm) x 1 15/32″ (38mm)
12″ (305mm) x 31 7/8″ (810mm) x 1 7/16″ (37mm)
Shipping Weight
11 lbs (4.98kg)
11 lbs (4.98kg)
11 lbs (4.98kg)

Accessories

Downloads

Data Sheets

Manuals

Quickstart Guides

Data Sheets

CAD Drawings

Configuration Charts

Application Notes

Solid Surface Cut Files



ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

Architectural Series

Architectural Series

Sonance Architectural Series delivers the ultimate blend of high performance and premium aesthetics. The totally flush and bezel-less grilles disappear into the surrounding ceiling surface while the state-of-the-art driver materials and cutting-edge design sets a new standard in audiophile sound quality.

Architectural Series Discreet Opening System

Architectural Series Discreet Opening System delivers unprecedented sound quality via a revolutionary system approach to distributed audio. The finished product exactly matches the footprint of small aperture downlights for minimal distraction, maximum performance.

Precision engineered Mounting Platforms provide flexibility to align with light fixtures or ceiling features and deliver the highest quality result in drywall, plaster, wood, and other solid surfaces.

The unique system design (Satellite Speakers and Subwoofers) provides a better finished aesthetic than traditional larger loudspeakers while delivering superior sound coverage and sonic performance.

Edit Content

Precision Finish

Sonance Architectural Series is installed using patented Mounting Platforms that feature exclusive technology and trade-familiar installation processes, to ensure a precision result is always achieved.

Drywall and Plaster

Drywall and plaster Mounting Platforms are installed as part of the ceiling and finished with the surrounding surface. The precision-engineered design ensures a perfect reveal is always achieved.

Wood, Stone, and More

Solid Surface Mounting Platforms are specifically designed to deliver a repeatable, perfect result in tongue-in-groove, wood paneling and stone. The adjustable design provides flexibility to accommodate a variety of material thicknesses, while the engineered installation process ensures a totally professional finish.

Edit Content

Engineered for Excellence

The Discreet Opening System utilizes four or more AS38RS Satellite Speakers to achieve breathtaking sound quality. The cutting-edge design features a carbon fiber and Rohacell woofer and ceramic dome tweeter to deliver sonic performance that defies its size.

Discreet Design, Big Bass

The BPS6RS Bandpass Subwoofer features a dual voicecoil high excursion carbon fiber and Rohacell driver to achieve deep and impactful bass response.

Better Coverage, Less Distraction

The Satellite and Subwoofer design of the Discreet Opening System allows the entire room to be filled with audiophile sound quality at the perfect volume, eliminating the loud zones and quiet areas experienced with traditional loudspeakers.

Edit Content

Aesthetics to Match

The AS38RS Satellite Speakers and BPS6 Subwoofer utilize the same sized paintable round or square grilles to deliver a consistent and minimalistic aesthetic.

Continuous Sight Lines

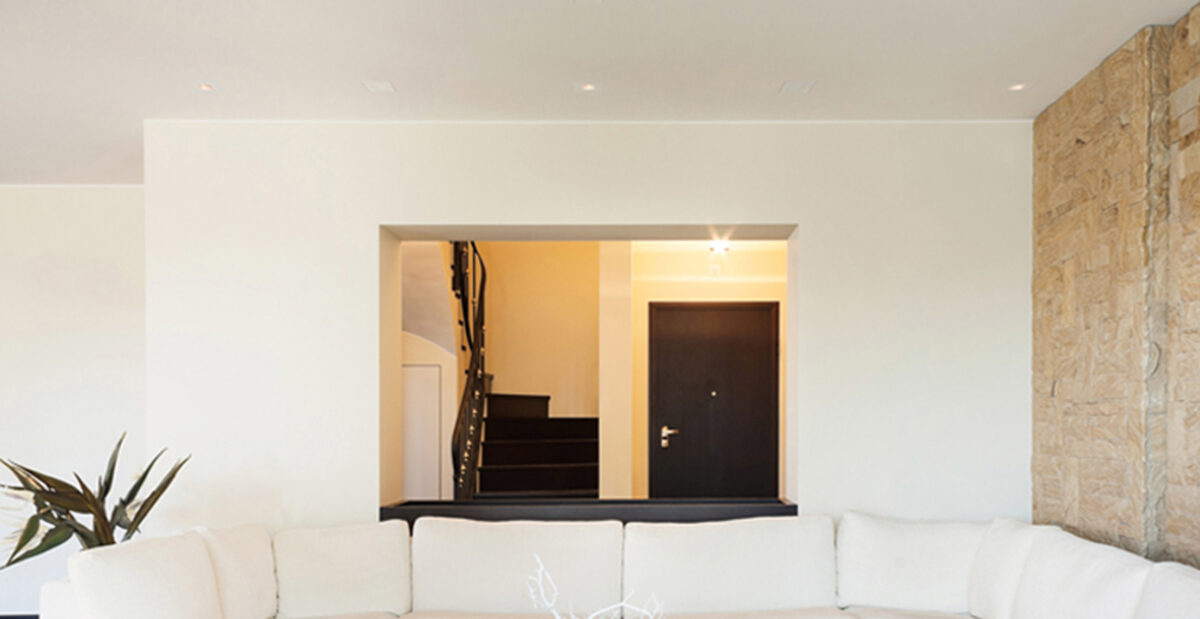

Discreet Opening System grilles are the exact dimension of small aperture downlights, delivering continuous sight-lines across the ceiling.

Precision Grille Leveling

The precision grille leveling system ensures a perfectly flush installation with the surrounding ceiling surface, eliminating unsightly shadow lines and minimizing distraction.

Architectural Series Medium Speakers and Subwoofers

Architectural Series Medium Speakers are the perfect solution for large spaces, high ceilings, or anyone seeking higher volume levels without compromising the aesthetics of the designed space.

Edit Content

Precision Finish

Sonance Architectural Series is installed using patented Mounting Platforms that feature exclusive technology and trade-familiar installation processes, to ensure a precision result.

Drywall and Plaster Construction

Drywall and plaster Mounting Platforms are installed as part of the ceiling and finished with the surrounding surface. The precision engineering ensures a perfectly flush reveal to accommodate speaker grilles.

Wood, Stone, and More

Solid surface Mounting Platforms are specifically designed to deliver a repeatable, perfect result in tongue-in-groove, wood paneling and stone. The adjustable design provides flexibility to accommodate a variety of material thicknesses, while the engineered installation process ensures a totally professional finish.

Edit Content

State-of-the-Art Materials and Design

The AS68RS features cutting edge design and state-of-the-art materials including a ceramic dome Tweeter and high-excursion carbon fiber and Rohacell woofer to deliver uncompromised sonic performance.

Aesthetics and Performance

The independently pivoting Woofer and Tweeter allow the speakers to be installed for the best aesthetic, while the sound can be directed for the optimum performance.

Serious Bass Response

The optional BPS8 Bandpass Subwoofer features a dual voicecoil 8″ (203mm) high excursion carbon fiber and Rohacell driver, to deliver unequalled bass response.

Edit Content

Minimalistic Aesthetic

The round and square flush design provides a minimalistic, non-obtrusive aesthetic that can be further disguised by painting it to match the surrounding ceiling surface.

Maximum Sound, Minimal Distraction

Architectural Series Medium Speakers and optional Subwoofer is the perfect solution for high-ceiling installations, large areas or those seeking louder volume levels without compromising the look of the room.

Precision Grille Leveling

The precision grille leveling system ensures a perfectly flush installation with the surrounding ceiling surface, eliminating unsightly shadow lines and minimizing distraction.
