XH15

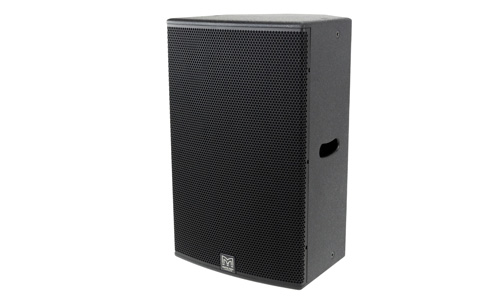

Blackline XH15

High Performance Passive Two-Way System

The high power Blackline XH15 provides improved performance over the Blackline X15 in a wide-bandwidth system and a compact and efficient package. Extended frequency response is provided by a 15” (380mm) LF driver and a 1.4” (35mm) exit compression driver mounted on a rotatable 80˚ x 50˚ constant directivity HF horn.

Features

  • High power, passive two-way wide-bandwidth system
  • User-rotatable 80° x 50° horn
  • Vertical and horizontal orientation
  • Discrete 35mm pole-mount socket
  • 1.4” (35mm) exit compression driver
  • Integral ergonomic handles
  • Screw-free, cloth-backed perforated steel grille
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts


Applications

  • Live club performance
  • High powered stage monitoring
  • Club installs
  • Portable sound reinforcement


The LF driver features a tough, water resistant cone and a lightweight, high BL, neodymium motor system with inside/outside coil windings for improved heat transfer. An aluminium demodulating ring reduces distortion and improves midrange clarity at high levels and increased excursion is available via a triple roll surround and deep motor structure. The HF driver utilises a titanium diaphragm with controlled break-up modes for improved sonic performance at high frequencies and the crossover design and LF cone profile have been optimised to match the directivity of the HF horn and LF section through the crossover region.

Blackline XH15 is perfect for higher power applications where ease of installation, or speed of deployment, are important factors. Its ergonomic design and rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height, whilst its multi-angle birch ply cabinet allows it also to be used as a high power floor monitor. Its twelve M8 inserts make a variety of horizontal or vertical mounting methods possible.

Blackline XH15 features integral; ergonomic handles for easier handling and comes with a discrete 35mm pole-mount socket for speaker stand mounting. This fitting can also be used as a pole socket when the Blackline XH15 is used with, for instance, a Blackline X118 or X218 subwoofer.

A full-range passive two-way system, the XH15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with a Blackline X118 or X218 subwoofer, crossover and EQ functions can be performed by the DX0.5.

Edit

HTKCT05

M8 Eye Bolt
8mm

HTKCT04

Pole Extension
for BlacklineX

Edit

VIA5002

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

1600 Watts/Channel @ 8 Ohms

VIA5004

4-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

Edit

X218

DIRECT RADIATING

Dual-Driver 18” Subwoofer

X118

DIRECT RADIATING

Compact 18” Subwoofer

X218

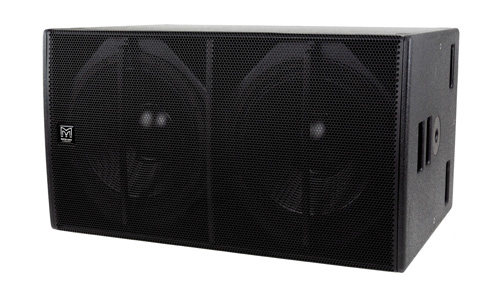

Blackline X218

Dual-Driver Subwoofer

The Blackline X218 is a dual-driver, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. With an operating range of 42Hz-200Hz + 3dB, it produces high output levels with low distortion and can be used singly or stacked horizontally. It features dual 18” (460mm)/4” (100mm) voice coil, long-excursion drivers in a reflex enclosure with eight large ports that reduce air turbulence at high output levels.

Features

  • Dual-driver, direct radiator subwoofer
  • 2 x 18” (460mm) drivers with 4” (100mm) voice coils
  • Durable plywood enclosure
  • Large ports for reduced air noise
  • Powder coated, perforated steel grille
  • Integral ergonomic handles
  • 35mm pole-mount socket
  • Feet for vertical or horizonal operation
  • Rebate recesses for stable horizontal stacking
  • M10 flying inserts


Applications

  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Corporate AV events and conferences
  • Weddings and parties
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets


The X218 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order.

For added versatility in deployment, the X218 is fitted with a 35mm pole-mount socket for mounting BlacklineX full-range enclosures, and integral M10 inserts provide for eyebolt suspension of a single enclosure. Ergonomic handles assist ease of handling and the drivers are protected by a perforated steel grille. Rubber feet on the base of the X218 resist movement and align with recesses in the top surface for stable horizontal stacking. Feet are also provided on one side of the enclosure for vertical operation of a single cabinet.

The X218 is supplied as standard without castors, which are available as an accessory pack.

When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 or DX4.0 system controllers or by a Martin Audio amplifier with onboard DSP.

Edit

HTKCT06

M10 Eye Bolt
10mm

HTKCT04

Pole Extension
for BlacklineX

Edit

iK81

HIGH POWER
8 CHANNEL CLASS D AMPLIFIER

10,000 Watts RMS

iK42

HIGH POWER
4-CHANNEL CLASS D AMPLIFIER

20,000 Watts RMS

VIA5002

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

1600 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

X118

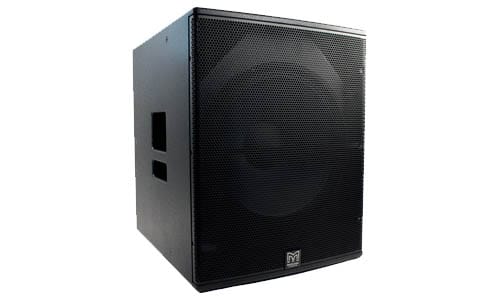

Blackline X118

Compact Subwoofer

The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18” (460mm)/3” (75 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

Features

    • Compact, direct-radiator subwoofer
    • 1 x 18” (460mm) driver with 3” (75mm) voice coil
    • Large ports for reduced air noise
    • Screw-free perforated steel grille
    • 35mm pole-mount socket
    • 8Ω nominal impedance
    • M10 flying inserts
  • Applications

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Corporate AV events and conferences
    • Weddings and parties
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets


    The X118 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.

    When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an iKON amplifier.

    Edit

    HTKCT06

    M10 Eye Bolt
    10mm

    HTKCT04

    Pole Extension
    for BlacklineX

    Edit

    VIA5002

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    1600 Watts/Channel @ 8 Ohms

    VIA5004

    4-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    Edit

    DX0.5

    DSP-BASED
    SYSTEM CONTROLLER

    2-in-6-out

    X115

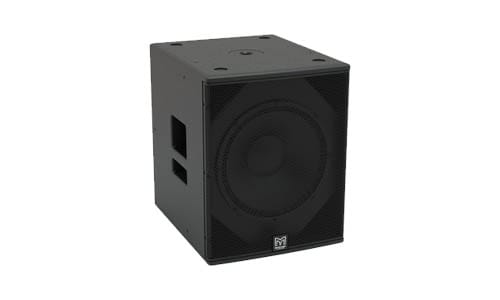

    Blackline X115

    Compact Subwoofer

    The Blackline X115 is a very compact subwoofer designed to augment the low frequency performance of BlacklineX Series full-range systems. It comprises a long excursion 15” (380mm)/3” (75mm) voice coil driver in a bass reflex enclosure and can be used singly, stacked or flown via integral M10 inserts. Four large ports contribute to a reduction in air noise at high output levels.

    Features

    • Compact, direct-radiator subwoofer
    • 1 x 15” (380mm) driver with 3” (75mm) voice coil
    • Large ports for reduced air noise
    • Screw-free perforated steel grille
    • 35mm pole-mount socket
    • 8Ω nominal impedance
    • M10 flying inserts


    Applications

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Corporate AV events and conferences
    • Weddings and parties
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets


    The Blackline X115 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.

    When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an iKON amplifier.

    Edit

    HTKCT05

    M8 Eye Bolt
    8mm

    HTKCT04

    Pole Extension
    for BlacklineX

    Edit

    VIA5002

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    1600 Watts/Channel @ 8 Ohms

    VIA5004

    4-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    Edit

    DX0.5

    DSP-BASED
    SYSTEM CONTROLLER

    2-in-6-out

    X15

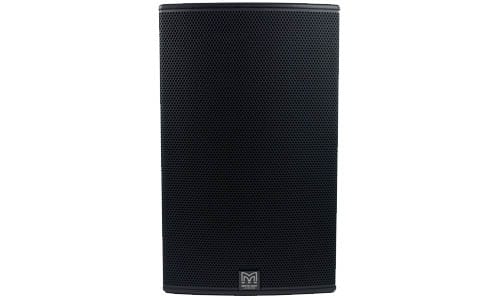

    Blackline X15

    High-Power Passive Two-Way System

    The Blackline X15 is a very high-power, passive two-way system designed for professional portable applications and installations that demand the ultimate in sonic performance from a single enclosure. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and impact.

    Features

    • High power, passive two-way system
    • Symmetrical multi-angle plywood enclosure
    • User-rotatable 80° x 50° horn
    • Vertical and horizontal orientation
    • Screw-free, cloth-backed perforated steel grille
    • Integral ergonomic handle
    • Pole-mount bung maintains clean lines
    • 8Ω nominal impedance
    • Twin NL4 connectors
    • Flexible mounting options via M8 inserts


    Applications

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Unobtrusive stage monitoring
    • Corporate AV events and conferences
    • Weddings and parties
    • Main PA infill
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets
  • Featuring a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response.

    The X15 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint as standard, the X15 can also be supplied in white or any RAL colour to order.

    A full-range passive two-way system, the X15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

    Edit

    HTKCT05

    M8 Eye Bolt
    8mm

    HTKCT04

    Pole Extension
    for BlacklineX

    Edit

    VIA5002

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    1600 Watts/Channel @ 8 Ohms

    VIA5004

    4-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    Edit

    DX0.5

    DSP-BASED
    SYSTEM CONTROLLER

    2-in-6-out

    Edit

    X118

    DIRECT RADIATING

    Compact 18” Subwoofer

    X115

    DIRECT RADIATING

    15” Compact Subwoofer

    X12

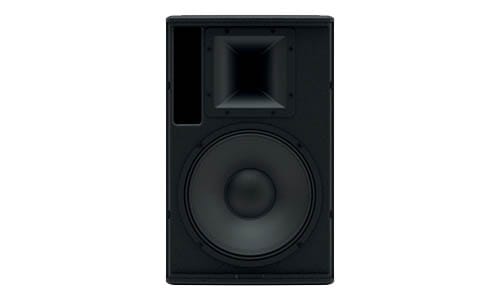

    Blackline X12

    Compact Passive Two-Way System

    The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.

    Features

    • Compact passive two-way system
    • Symmetrical multi-angle plywood enclosure
    • User-rotatable 80° x 50° horn
    • Vertical and horizontal orientation
    • Screw-free, cloth-backed perforated steel grille
    • Integral ergonomic handle
    • Pole-mount bung maintains clean lines
    • 8Ω nominal impedance
    • Twin NL4 connectors
    • Flexible mounting options via M8 inserts
    • Integral ergonomic handle
    • Pole-mount bung maintains clean lines
    • 8Ω nominal impedance
    • Twin NL4 connectors
    • Flexible mounting options via M8 inserts

    Applications

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Unobtrusive stage monitoring
    • Corporate AV events and conferences
    • Weddings and parties
    • Main PA infill
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets

    The Blackline X12 LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

    The X12 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint as standard, the X12 can also be supplied in white or any RAL colour to order.

    A full-range passive two-way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

    Edit

    WB10/12B / WB10/12W

    Wall Bracket,
    available in black or white

    HTKCT05

    M8 Eye Bolt
    8mm

    HTKCT04

    Pole Extension
    for BlacklineX

    Edit

    VIA5002

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    1600 Watts/Channel @ 8 Ohms

    VIA5004

    4-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    VIA2502

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    Edit

    DX0.5

    DSP-BASED
    SYSTEM CONTROLLER

    2-in-6-out

    Edit

    X118

    DIRECT RADIATING

    Compact 18” Subwoofer

    X115

    DIRECT RADIATING

    15” Compact Subwoofer

    X10

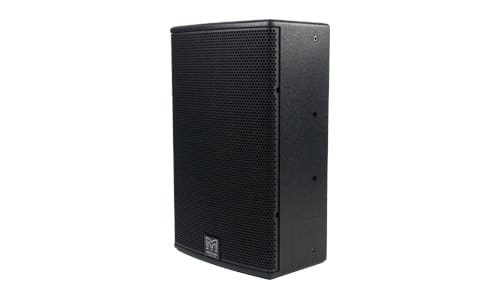

    Blackline X10

    Compact Passive Two-Way System

    The X10 is a high performance yet very compact two-way passive loudspeaker system which utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm. The rotatable 90° x 50° HF horn has equal horizontal and vertical mouth dimensions for directivity control in both planes.

    Features

    • Compact passive two-way system
    • Symmetrical multi-angle plywood enclosure
    • User-rotatable 90° x 50° horn
    • Vertical and horizontal orientation
    • Screw-free, cloth-backed perforated steel grille
    • Integral ergonomic handle
    • Pole-mount bung maintains clean lines
    • 8Ω nominal impedance
    • Twin NL4 connectors
    • Flexible mounting options via M8 inserts

    Applications

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Unobtrusive stage monitoring
    • Corporate AV events and conferences
    • Weddings and parties
    • Main PA infill
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets


    It has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as an unobtrusive stage monitor. With a maximum SPL of 124dB @ 1m, it is uniquely placed to meet the foreground requirements of music bars and clubs that require upfront sound levels from a very compact enclosure. Use with a BlacklineX Series subwoofer will enable the X10 to operate as small dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

    The X10 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint as standard, the X10 can be supplied in white or any RAL colour to order.

    A full-range passive two-way system, the X10 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

    Edit

    WB10/12B / WB10/12W

    Wall Bracket,
    available in black or white

    HTKCT05

    M8 Eye Bolt
    8mm

    HTKCT04

    Pole Extension
    for BlacklineX

    Edit

    VIA2502

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    VIA2004

    4-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    250 Watts/Channel @ 8 Ohms

    Edit

    DX0.5

    DSP-BASED
    SYSTEM CONTROLLER

    2-in-6-out

    Edit

    SX210

    DIRECT RADIATING

    Slimline Double 10”

    Subwoofer

    X115

    DIRECT RADIATING

    15” Compact Subwoofer

    X8

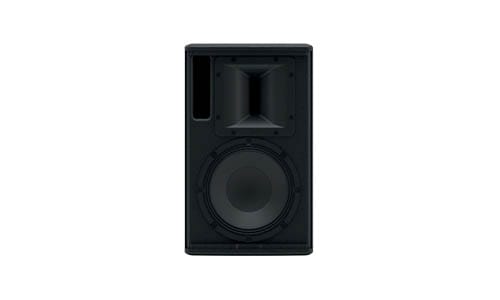

    Blackline X8

    Ultra-Compact Passive Two-Way System

    The Blackline X8 is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements. Its very small size gives no indication of its high output capability.

    Features

    • Ultra-Compact passive two-way system
    • Symmetrical multi-angle plywood enclosure
    • User-rotatable 90° x 50° horn
    • Vertical and horizontal orientation
    • Screw-free, cloth-backed perforated steel grille
    • Integral ergonomic handle
    • Pole-mount bung maintains clean lines
    • 8Ω nominal impedance
    • Twin NL4 connectors
    • Flexible mounting options via M8 inserts

    Applications

    • Portable sound reinforcement
    • Live music clubs
    • Bars and restaurants
    • Nightclubs
    • Unobtrusive stage monitoring
    • Corporate AV events and conferences
    • Weddings and parties
    • Main PA infill
    • Secondary stages at festivals
    • HoW, leisure centres and retail outlets

    As a stand-alone loudspeaker, it has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as a micro stage monitor. Complemented by a BlacklineX subwoofer, it is the ideal, simple-to-use system for portable applications and installations which call for an unobtrusive system that can deliver pristine sound over short and medium throw distances.

    The Blackline X8 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint as standard, the X8 can be supplied in white or any RAL colour to order.

    A full-range passive two-way system, the X8 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5 will maximise its capabilities. When used in conjunction with an X115, X118 or X210 subwoofer, crossover and EQ functions can be performed by the DX0.5.

    Edit

    WB6/8B / W86/8W

    Wall Bracket,
    available in black or white

    HTKCT05

    M8 Eye Bolt
    8mm

    HTKCT04

    Pole Extension
    for BlacklineX

    Edit

    VIA2502

    2-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    450 Watts/Channel @ 8 Ohms

    VIA2004

    4-CHANNEL CLASS D AMPLIFIER
    LIGHTWEIGHT 2U RACK HEIGHT

    250 Watts/Channel @ 8 Ohms

    Edit

    DX0.5

    DSP-BASED
    SYSTEM CONTROLLER

    2-in-6-out

    Edit

    SX210

    DIRECT RADIATING

    Slimline Double 10”

    Subwoofer

    X115

    DIRECT RADIATING

    15” Compact Subwoofer
