Series: Electronics

AMPLIFIERS &
CONTROLLERS

Top quality amplification and control is provided by iKON and VIA power amplifiers and DX Controllers.

U-Hub

U-Hub

Ethernet to U-NET™ Bridge

U-Hub is an Ethernet to U-NET bridge equipped with analogue and AES3 digital audio transport. It facilitates PC connection and VU-NET™ software control of MLA Series arrays and subwoofers via their inbuilt proprietary U-NET network.

WHERE TO BUY

Features

  • Ethernet to U-NET™ bridge
  • IP addressable (static and dynamic)
  • Analogue and digital audio transport
  • Designed to work with DX4.0 loudspeaker processor for Dante™ digital audio distribution

Applications

  • Network platform/converter for MLA Series systems

Converting TCP/IP to U-NET protocol, U-Hub allows MLA Series enclosures to self-address and identify their position within an array, as well as supporting a simple-to-use redundant loop. With U-Hub, an MLA Series system with onboard U-NET can be seamlessly integrated into a TCP/IP network and controlled via VU-NET software.

When used in conjunction with the Martin Audio DX4.0 networked system controller, U-Hub can connect audio and network to an MLA Series system with a single cable via a Dante™ digital audio network.

USER GUIDE
BROCHURE
DATASHEET

iK81

iKON iK81

High Power, Eight-Channel Class D Amplifier

The iKON iK81 is an advanced 8-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for the Martin Audio Wavefront Precision WPM line array, the iK81 can also provide multi-channel amplification across the Martin Audio loudspeaker range.

WHERE TO BUY

Features

  • Eight channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • 10,000 Watts total power output
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ digital audio network inputs
  • Ethernet network for system control and monitoring via Martin Audio VU-NET™ software application
  • Comprehensive protection and monitoring functions

Applications

  • Dedicated system amplifier for the Wavefront Precision Series
  • Versatile multi-channel amplification for Martin Audio loudspeaker systems

The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.

Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in the WPM line array.

The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.

USER GUIDE
BROCHURE
DATASHEET

Accessories

iK81AMPRACK-UK

Amplifier rack
for iK81

DATASHEET

IK81DIST32UK

Amplifier rack for iK81
Rest of World Version

DATASHEET

IKRACK

Rear rack ears for use
with IKON Series amplifiers

AMPRACK9UUK

9U amplifier rack
for iK42 and iK81

DATASHEET

INDIST1U+

Distro panel for
iKON amplifier racks

DATASHEET

PWA00238

0.4m NL4 biamp link 2.5mm cable
for full range enclosures

PWA00239

1m NL4 biamp link 4mm cable
for Subwoofers

PWA00240

15m NL4 biamp 4mm cable
for Subwoofers

PWA00241

20m NL4 biamp 2.5mm cable
for for full range enclosures

PWA00242

M Soca 8 way to 8 2 pole NL4
for use with 8 circuits of WPM

PWA00243

M Soca to 4 x biamp
NL4 5m tails

PWA00244

M Soca to 2 x NL8
1m

PWA00245

NL8 to 4 x NL4 15m
with 2m breakout

PWA00246

15m Soca
Male to Female

ASF14020

8 Port Rack Mount
Network Switch

PWA0067

Cat 5 cable
0.5m

iK42

iKON iK42

High Power, Four-Channel Class D Amplifier

The iKON iK42 is an advanced 4-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for Martin Audio Wavefront Precision line arrays and XE Series stage monitors, the iK42 can also provide multi-channel amplification across the Martin Audio loudspeaker range.

WHERE TO BUY

Features

  • Four channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • Up to 20,000 Watts total power output, depending on load impedance
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ digital audio network inputs
  • Ethernet network for system operation, control and monitoring via Martin Audio VU-NET™ software
  • Comprehensive protection and monitoring functions

Applications

  • Dedicated system amplifier for Martin Audio Wavefront Precision Series and XE Monitor Series
  • Versatile multi-channel amplification for Martin Audio loudspeaker systems

The iK42 can deliver a full 5000 watts per channel into 2Ω with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.

Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

Powerful DSP is fully integrated into the iK42 to provide a multitude of features that ensure maximum performance and worldwide compatibility of XE monitors. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in WP line array systems.

The iK42 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.

USER GUIDE
BROCHURE
DATASHEET

Accessories

IK42AMPRACK-UK

Amplifier rack
for iK42

DATASHEET

IK42AMPRACK-UK+

Amplifier rack
for iK42

DATASHEET

IK42DIST32UK

Distro for iK42
Rest of World Version

DATASHEET

IK42DIST32UK+

Distro for iK42
Rest of World Version

DATASHEET

IKRACK

Rear rack ears for use
with IKON Series amplifiers

AMPRACK9UUK

9U amplifier rack
for iK42 and iK81

DATASHEET

INDIST1U+

Distro panel for
iKON amplifier racks

DATASHEET

PWA00238

0.4m NL4 biamp link 2.5mm cable
for full range enclosures

PWA00239

1m NL4 biamp link 4mm cable
for Subwoofers

PWA00240

15m NL4 biamp 4mm cable
for Subwoofers

PWA00241

20m NL4 biamp 2.5mm cable
for for full range enclosures

PWA00242

M Soca 8 way to 8 2 pole NL4
for use with 8 circuits of WPM

PWA00243

M Soca to 4 x biamp
NL4 5m tails

PWA00244

M Soca to 2 x NL8
1m

PWA00245

NL8 to 4 x NL4 15m
with 2m breakout

PWA00246

15m Soca
Male to Female

ASF14020

8 Port Rack Mount
Network Switch

PWA0067

Cat 5 cable
0.5m

VIA5002

VIA5002

Two-Channel Class D Amplifier

The VIA5002 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2 x 2500 watts into 4 ohms or 2 x 1500 watts into 8 ohms, it ideal for powering subwoofers in installations and portable sound systems.

WHERE TO BUY

Features

  • Two channels of efficient Class D amplification
  • 5000 Watts total power output
  • 2U rack height
  • Exceptionally lightweight
  • Switch mode power supply
  • Variable speed cooling fan with front-to-back airflow
  • Global mains operation, 115V to 230V auto-sensing
  • Comprehensive protection systems
  • Signal and clip limiter LEDs


Applications

  • Subwoofer amplification
  • Installations, portable sound and stage monitoring
  • Hotels, restaurants and bars
  • Houses of Worship and auditoriums
  • Educational facilities
  • Live music and dance clubs
  • Mobile DJ’s


Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.

Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.

For a wide variety of applications, the VIA5002 is ideally partnered with the Martin Audio DX0.5 system processor. Larger installations will benefit from use with the DX4.0 with its onboard network capability and proprietary VU-NET software control.

USER GUIDE
BROCHURE
DATASHEET

VIA5004

VIA5004

Four-Channel Class D Amplifier

The VIA5004 is an advanced 4-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 4 x 1250 watts into 2 ohms, or 2 x 2500 watts into 4 ohms bridged, it is ideal for powering Blackline X, CDD and V.Series systems in small to medium-scale installations and portable sound applications. It can also be configured for 3-channel operation, for perfect compatibility with TH Series 3-way systems.

WHERE TO BUY

Features

  • Four channels of efficient Class D amplification
  • 5000 Watts total power output
  • 2U rack height
  • Exceptionally lightweight
  • Switch mode power supply
  • Variable speed cooling fan with front-to-back airflow
  • Global mains operation, 115V to 230V auto-sensing
  • Comprehensive protection systems
  • Signal and clip limiter LEDs


Applications

  • Small to medium-scale installations
  • Portable sound and stage monitoring
  • Hotels, restaurants and bars
  • Houses of Worship and auditoriums
  • Educational facilities
  • Live music and dance clubs
  • Mobile DJ’s


Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.

Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.

For a wide variety of installations and portable situations, the VIA5004 is ideally partnered with the Martin Audio DX0.5 system processor. Larger installations will benefit from use with the DX4.0 with its on-board network capability and proprietary VU-NET software control.

USER GUIDE
BROCHURE
DATASHEET

VIA2502

VIA2502

Two-Channel Class D Amplifier

The VIA2502 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2×1250 watts into 2 ohms, or 1×2500 watts into 4 ohms bridged, it is ideal for powering BlacklineX, CDD and V.Series systems in small to medium-scale installations and portable sound applications.

WHERE TO BUY

Features

  • Two channels of efficient Class D amplification
  • 2500 Watts total power output
  • 2U rack height
  • Exceptionally lightweight
  • Switch mode power supply
  • Variable speed cooling fan with front-to-back airflow
  • Global mains operation, 115V to 230V auto-sensing
  • Comprehensive protection systems
  • Signal and clip limiter LEDs


Applications

  • Small to medium-scale installations
  • Portable sound and stage monitoring
  • Hotels, restaurants and bars
  • Houses of Worship and auditoriums
  • Educational facilities
  • Live music and dance clubs
  • Mobile DJ’s


Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.

Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.

For a wide variety of installations and portable situations, the VIA2502 is ideally partnered with the Martin Audio DX0.5 system processor. Larger installations will benefit from use with the DX4.0 processor with its onboard network capability and proprietary VU-NET software control.

USER GUIDE
BROCHURE
DATASHEET

VIA2004

VIA2004

Four-Channel Class D Amplifier

The VIA2004 is an advanced 4-channel power amplifier which delivers superb audio performance in a lightweight, cost-effective package. Delivering 4×500 watts into 4 ohms, it is ideal for powering O-Line, ADORN and CDD Series installations in bars, auditoriums and HoW, as well as small-medium scale portable sound reinforcement and club use.

WHERE TO BUY

Features

  • Four channels of efficient Class D amplification
  • 2000 Watts total power output
  • 2U rack height
  • Exceptionally lightweight
  • Switch mode power supply
  • Variable speed cooling fan with front-to-back airflow
  • Global mains operation, 115V to 230V auto-sensing
  • Comprehensive protection systems
  • Signal and clip limiter LEDs


Applications

  • Small to medium-scale installations
  • Portable sound and stage monitoring
  • Hotels, restaurants and bars
  • Houses of Worship and auditoriums
  • Educational facilities
  • Live music and dance clubs
  • Mobile DJ’s


Its high efficiency design reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound in demanding environments with reliability and ease.

Comprehensive protection functions continuously monitor its performance to maintain safe operating conditions and full output capability in ambient temperatures up to 40°C.

For a wide variety of installations and portable applications, the VIA2004 is ideally partnered with the Martin Audio DX0.5 system processor. Larger installations will benefit from use with the DX4.0 processor with its onboard network capability and proprietary VU-NET software control. The DX4.0 and VIA2004 combination is perfect for delivering cost-effective scalable resolution under VU-NET control to an installed O-Line array.

USER GUIDE
BROCHURE
DATASHEET

DX4.0

DX4.0

Networked System Controller

The Martin Audio DX4.0 is an advanced loudspeaker controller and system matrix with four input and eight output channels. Class-leading sonic performance is achieved by state-of-the-art audio converters and DSP algorithms, with a 96kHz sampling frequency delivering a nominally flat response beyond 40kHz.

WHERE TO BUY

Features

  • Four input channels and eight output channels loudspeaker processor and matrix
  • Analogue, AES3 and Dante™ digital audio inputs
  • High performance 96kHz DSP
  • Remote control and monitoring over Ethernet via Martin Audio VU-NET software
  • FIR optimisation for Martin Audio’s O-Line
  • VX limiting allows a passive enclosure the same protection as a fully active unit.
  • Comprehensive suite of EQ’s, delays and all pass filters.
  • Global mains operation 100-240V, 50-60Hz


Applications

  • Loudspeaker system digital controller
  • Front-of-house matrix to feed Dante digital audio to iKON amplifiers powering Martin Audio loudspeaker systems
  • Use with Martin Audio O-Line for FIR Optimisation
  • Use with Martin Audio U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable


Connected via Ethernet, system remote control and monitoring is done via Martin Audio’s VU-NET proprietary software application, while a front panel interface gives local control of features.

Four analogue/AES3 inputs and eight analogue/AES outputs are available, with AES3 inputs and outputs selected in pairs. Dante™ digital audio networking is also provided for digital audio distribution and control, with automatic fall back to analogue or AES3. By converting analogue or AES audio to Dante, the DX4.0 provides ‘on-ramp’ entry to digital audio networking.

The DX4.0 features a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive two-way systems. High-pass filtering, three shelving filters and six parametric filters are provided for each input channel, with crossover filters, two shelving filters and eight parametric filters on each output channel.

The DX4.0 supports FIR filters for use with optimisation of Martin Audio’s O-Line and can also be used with Martin Audio’s U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable.

BROCHURE
DATASHEET

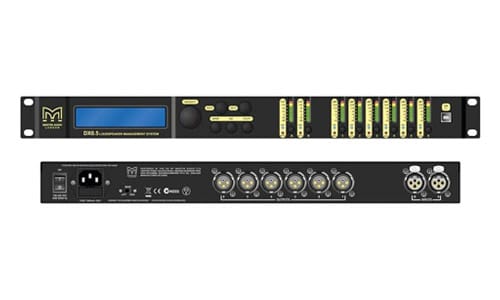

DX0.5

DX0.5

Loudspeaker Management System

Offered to partner our new CDD range the DX0.5 adds affordable loudspeaker system management to the existing range of DX loudspeaker controllers. Delivering EQ, crossover, processing and system protection, the DX0.5 2×6 speaker processor provides complete optimisation for both passive and powered loudspeaker systems.

WHERE TO BUY

Features

  • Professional 2-input, 6-output system processor for passive and powered PAs
  • Sophisticated, intuitive EQ, crossover, delay and dynamics processing optimises and protects your system
  • High-end 24-bit AKM AD/DA converters with 120dB dynamic range
  • Two balanced XLR inputs with level control, mute, 600ms delay and 5-band parametric/shelving EQ
  • Six balanced XLR outputs with level control, mute, polarity invert, dedicated high and low pass filters, 7-band parametric/shelving EQ, 600ms delay, and limiting
  • Convenient front-panel controls for parameter editing and input/output muting
  • USB port for simple programming via PC
  • Linkable inputs and outputs for easy stereo configuration
  • 7-segment LED metering for input/output level or limiter activity
  • 5 operating modes: 2 x stereo + sub, 3 x stereo, 2 x 2-way + sub, 2 x 3-way and 1 x 6-way
  • 24 presets for storing your Martin Audio or other system parameters
  • Switch mode power supply: 100V – 240V


Applications

  • Live sound loudspeaker management
  • Active monitor systems
  • Fixed installations


Each input and output is loaded with a huge range of digital processing including flexible EQ, crossover, delay and limiting solutions. It delivers everything you need to professionally optimise loudspeaker systems of nearly any size.

The DX0.5 utilizes high-end 24-bit AKM® AD/DA converters with 120dB dynamic range for class-leading sound quality. With 24 memory locations users can recall CDD pre-set files via the front panel, or using the free software application and front panel USB users can define and store their own settings. With simple I/O routing and configuration, the DX0.5 is an ultra-flexible processor, ideal for a wide range of portable and installed applications.

USER GUIDE
BROCHURE
DATASHEET
