Series: Invisible Series

In-Wall Subwoofer Enclosures
- Post date December 5, 2022

Reference Series Accessories
In-Wall Subwoofer Enclosures
Feature a combination of 1/2″ and 1″ MDF materials for superior isolation of bass; extruded aluminum bracing for minimal obstruction of airflow inside the enclosure; mass damping of front and back walls of enclosure; long-strand fiberglass internal damping for standing wave dissipation; dual positive and negative terminals for maximum wire connectivity; floating enclosure design minimizes vibration transfer to adjoining rooms; fits in standard 2×4 stud bay; blank pre-construction plate for easy installation

![]() R10SUB ENC | ![]() R12SUB ENC | |
---|---|---|
Internal Volume | .80 cubic feet (22.6 liters) of volume | 1.20 cubic feet (34.3 liters) of volume |
Material | MDF wood box with long strand fiberglass acoustic dampening material | MDF wood box with long strand fiberglass acoustic dampening material |
Compatibility | For use with R10SUB only | For use with R12SUB only |
Enclosure Dimensions (WxHxD) | 14 1/4″ x 47 1/4″ x 3 7/16″ (362mm x 1200mm x 87mm) | 14 1/4″ x 70 7/8″ x 3 7/16″ (362mm x 1800mm x 87mm) |
Mounting Depth | 3 3/8” (85.7mm) | 3 3/8” (85.7mm) |
Mounting Bracket Width | 16 1/4” (409.5mm) | 16 1/4” (409.5mm) |
Hardware | Integrated L-bracket mounting system included | Integrated L-bracket mounting system included |
Shipping Weight | 51 lbs | 79 lbs |
Downloads
- Visual Performance Cinema SUB Enclosure Manual
- Visual Performance Cinema SUB Driver-Grille Manual
- Visual Performance Cinema SUB Amplifier Manual
- Visual Performance New Construction Data Sheet
- RSUB ENC CAD File
- R12 SUB ENC CAD File
- R10SUB ENC/R12SUB ENC Quickstart Guide
- Sonance Grille Painting Instructions
- REFERENCE Accessories
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

Invisible Series Accessories

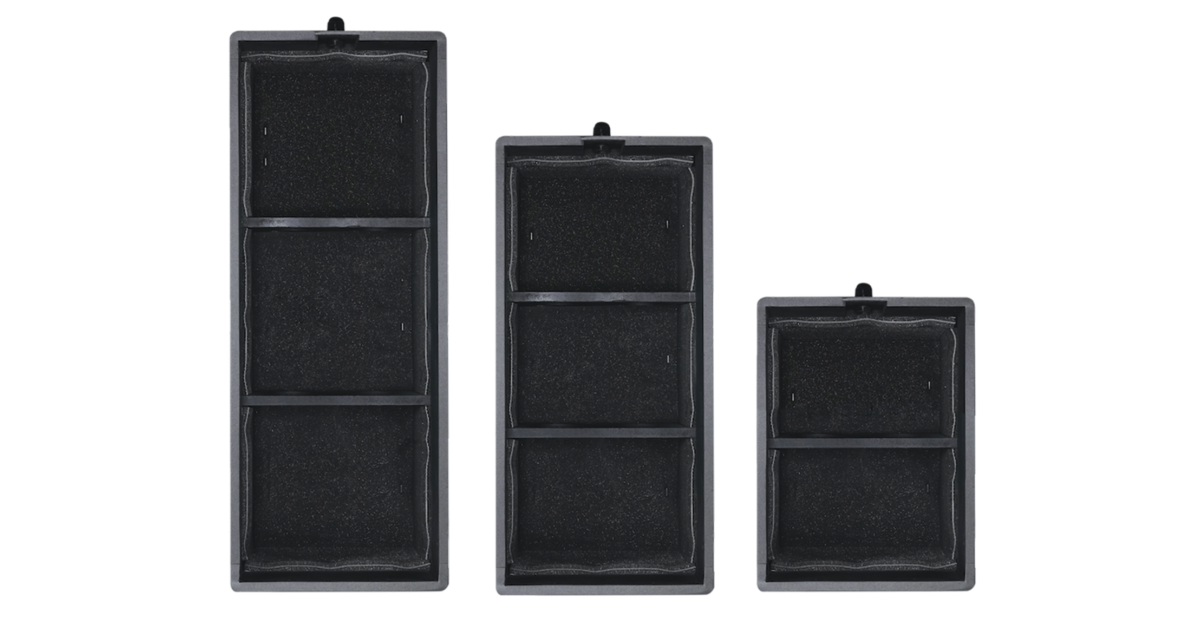

Narrow Sound Isolating Enclosures
Narrow Sound Isolating Enclosures for use with Sonance Invisible Series speakers and woofers. More narrow and deep in dimension than the standard Sound Isolating Enclosures, the Narrow Enclosures are designed to support Sonance Invisible Series installations into 16″ on-center TJI joist construction.

![]() IS-ENCL-S-NARROW | ![]() IS-ENCL-M-NARROW | ![]() IS-ENCL-L-NARROW | |
---|---|---|---|
Dimensions
(WxHxD) | 10.43” x 13.9” x 7.78” (265mm x 353mm x 197.5mm) | 10.43” x 21.93” x 7.78” (265mm x 557mm x 197.5mm) | 10.43” x 26.46” x 7.78” (265mm x 672mm x 197.5mm) |
Shipping Weight | 10.6 lbs (4.81 kg) | 14.22 lbs (6.45kg) | 16.98 lbs (7.7kg) |
UOM | Each | Each | Each |
SKU | 93533 | 93534 | 93535 |
Compatible
Models | IS6 | IS8, IS10W | IS10 |

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

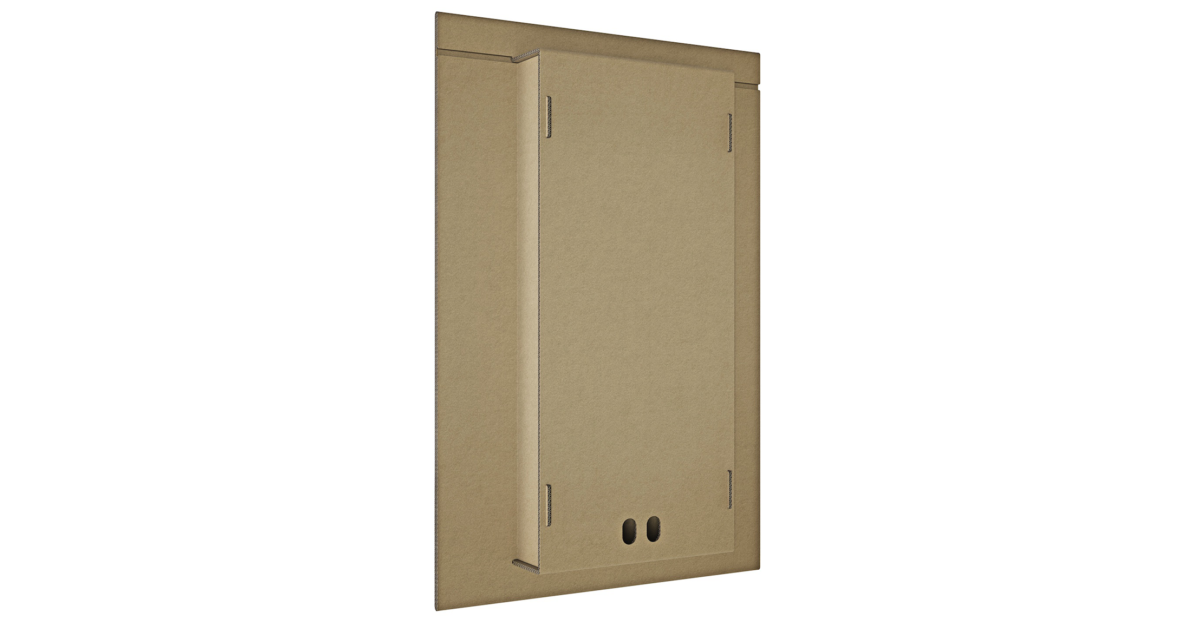

Space Savers
- Post date November 21, 2022

Invisible Series Accessories
Space Savers
Flat-packed, lightweight units designed to be installed into new construction to reserve locations for Sonance Invisible Series speakers and subwoofers during the early stages of construction. Sonance Invisible Series Space Savers are easy to transport and are reusable and recyclable. At the appropriate time, the speaker installer removes the Space Saver and replaces it with the Invisible Series speaker or subwoofer.

![]() SpaceSaver Small | ![]() SpaceSaver Medium | ![]() SpaceSaver Large | ![]() SpaceSaver XX Large | |
---|---|---|---|---|
Dimensions
(WxHxD) | 16.10″ x 16.10″ x 3.15″ (409mm x 409mm x 80mm) | 16.10″ x 24.13″ x 3.15″ (409mm x 613mm x 80mm) | 16.10″ x 28.66″ x 3.15″ (409mm x 728mm x 80mm) | 32.20″ x 32.20″ x 3.86″ (818mm x 818mm x 98mm) |
Mounting Depth | 2.68in (68mm) | 2.68in (68mm) | 2.68in (68mm) | 3.39in (86mm) |
Shipping Weight | 3.55lbs (1.61kgs) | 4.65lbs (2.11kgs) | 5.80lbs (2.63kgs) | 2.20lbs (1.00kgs) |
Use With | IS6 | IS8, IS8T, IS10W | IS10 | IS15 |
UOM | 4-Pack | 4-Pack | 4-Pack | Each |
SKU | 93492 | 93493 | 93494 | 93495 |
Compatible
Models | IS6 | IS8, IS8T, IS10W | IS10 | IS15W |
Downloads
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

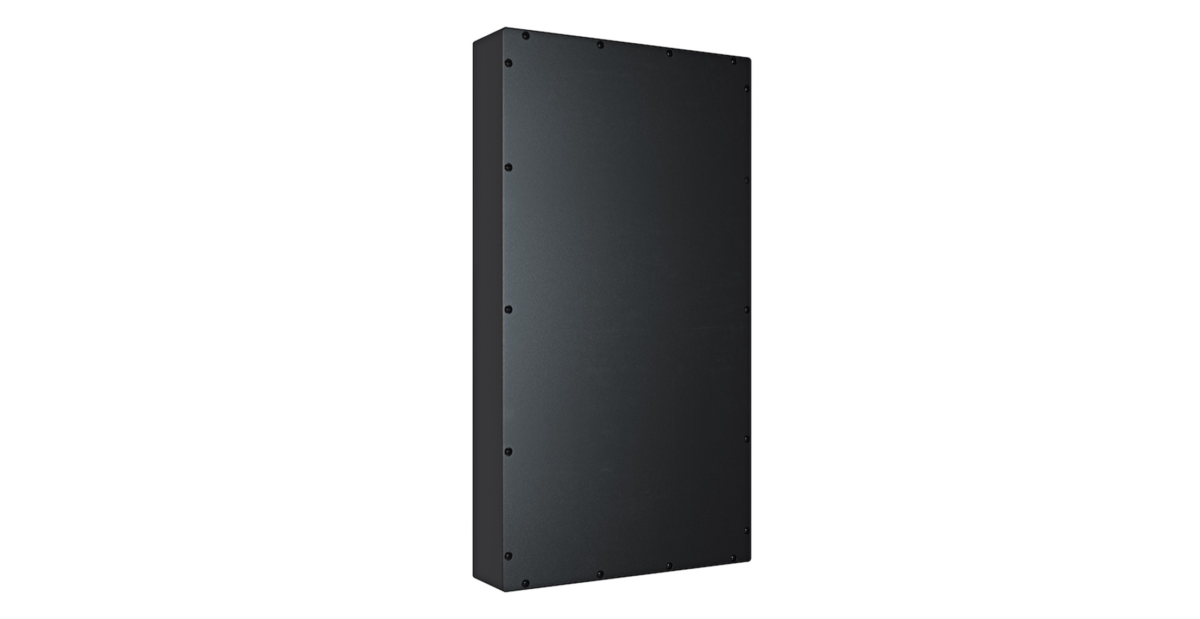

Sound-Isolating Enclosures
- Post date November 21, 2022

Invisible Series Accessories
Sound-Isolating Enclosures
IS enclosures provide an impressive broadband noise reduction of 20dB which greatly reduces sound transference into adjacent spaces. This is achieved via a rigorously engineered MDF and aluminum structure that is lined with a vibration-damping membrane sandwiched between two asymmetrical acoustic absorbers. Though this advanced construction technique is common in some of the world’s finest hi-fi loudspeaker to reduce cabinet noise, it is rarely—if ever—used in architectural speakers. These enclosures are recommended for applications where keeping sound leakage to a minimum is crucial.

![]() IS-ENCL-S | ![]() IS-ENCL-M | ![]() IS-ENCL-L | |
---|---|---|---|
UOM | Each | Each | Each |
Dimensions
(WxHxD) | 14.13×14.13×3.43in (359x359x87mm) | 14.13×22.17×3.43in (359x563x87mm) | 14.13×26.69×3.43in (359x563x87mm) |
Dimensions on Speaker
(WxHxD) | 16.10×16.10×3.86in (409x406x98mm) | 16.10×24.13×3.86in (409x613x98mm) | 16.10×28.66×3.86in (409x728x98mm) |
Product Weight | 6.17lbs (2.80kgs) | 6.17lbs (2.80kgs) | 6.17lbs (2.80kgs) |
Shipping Weight | 8.49lbs (3.85kgs) | 8.49lbs (3.85kgs) | 8.49lbs (3.85kgs) |
SKU | 93488 | 93489 | 93490 |
Compatible
Models | IS6 | IS8, IS10W | IS10 |
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

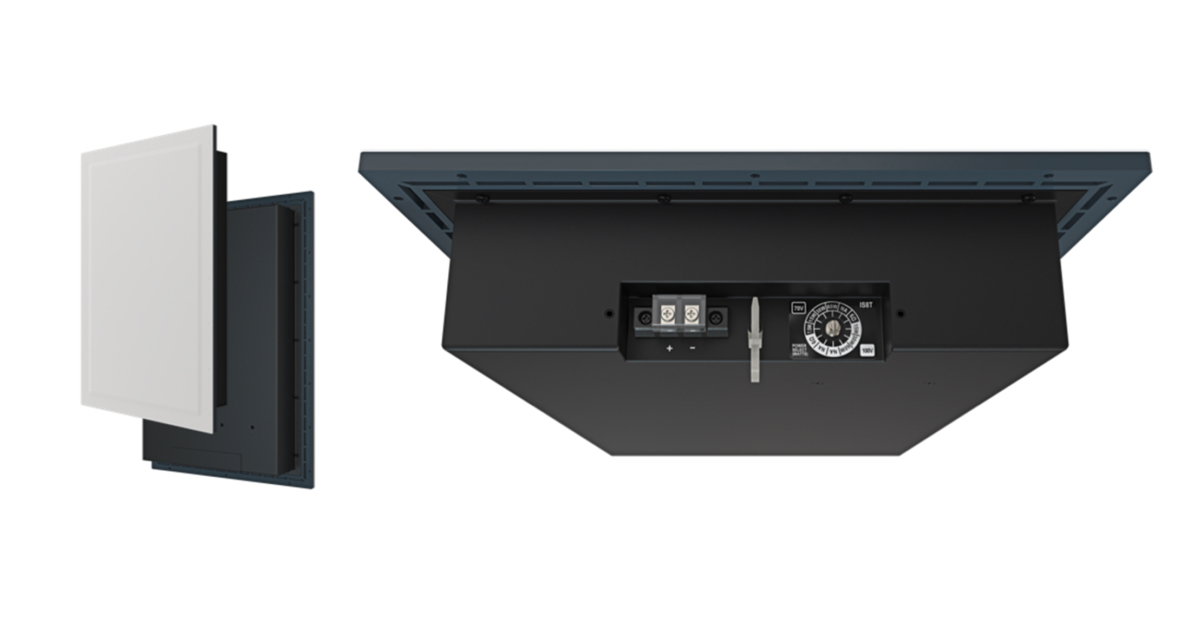

IS8T
- Post date August 2, 2022

Invisible Series
IS8T Speaker
Invisible Speakers are the pinnacle of the Sonance “Designed to Disappear” strategy. After a multi-year development process, the all-new Motion Flex Invisible Series line incorporates new breakthroughs in installation and audio quality, and firmly entrenches Sonance as the unrivaled leader in discreet performance audio. Sonance Invisible Series Speakers are perfect for luxury retail boutiques, hotels, and other high-end spaces that require best-in-class performance with zero visual intrusion.

![]() IS8T 70V/100V/4 Ohm Invisible Speaker | |
---|---|
SKU | 401987 |
UOM | EACH |
Wave Flex Drive Unit | 29 sq in (188 sq cm) bending wave diaphragm, 1.75” (44mm) voice coil |
Air Flex Woofer | 191 sq in (1234 sq cm) air pulse diaphragm, 8in (203mm) carbon fiber woofer |
Frequency Response | 40Hz–30Hz (- 3dB) |
Nominal Impedance | 4 Ohm |
Power Handling (RMS) | 160W |
Sensitivity (2.83V/1m) | 86dB |
Dispersion | 170 degree hemispherical up to 10kHz |
Transformer | 60W with Sonance Laminated Core Technology |
Transformer Taps | Primary Taps (70V): 7.5W, 15W, 30W, 60W; Primary Taps (100V): 15W, 30W, 60W; 4 Ohm Bypass |
Overload Protection | Two Independent Self-Resetting Poly Switches, Safety AgencyUL-1480A, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A |
Product Dimensions (WxHxD) | 16.10” x 24.13” x 3.86” (409mm x 613mm x 98mm) |
Mounting Depth | 3.39” (86mm) |

Accessories
Downloads
- Invisible Series Brochure
- IS8T Commercial Data Sheet
- IS8T Manual
- IS8T REVIT
- IS8T CAD
- IS Depth DISC Location CADs
- EASE gll Files
- IS EQ Presets for Sonance DSP Amps
- IS DG-1 Depth Gauge Manual
- Invisible Series Application Guide
- Invisible Series Amp Guidelines Tech Note
- Invisible Series Installation Video
- Invisible Series DISC System Video
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now

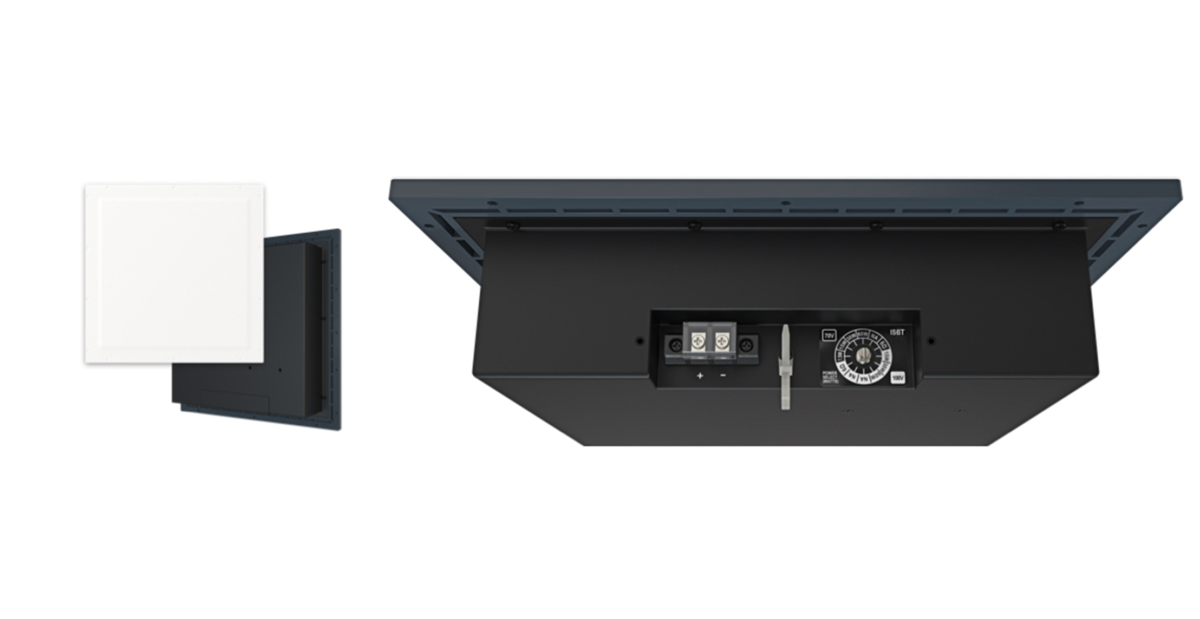

IS6T
- Post date August 2, 2022

Invisible Series
IS6T Speaker
Invisible Speakers are the pinnacle of the Sonance “Designed to Disappear” strategy. After a multi-year development process, the all-new Motion Flex Invisible Series line incorporates new breakthroughs in installation and audio quality, and firmly entrenches Sonance as the unrivaled leader in discreet performance audio. Sonance Invisible Series Speakers are perfect for luxury retail boutiques, hotels, and other high-end spaces that require best-in-class performance with zero visual intrusion.

![]() IS6T 70V Speaker | |
---|---|
SKU | 40198 |
UOM | EACH |
Wave Flex Drive Unit | 20 sq in (127 sq cm) bending wave diaphragm, 1.75” (44mm) voice coil |
Air Flex Woofer | 98 sq in (633 sq cm) air pulse diaphragm, 6.5″ (165mm) carbon fiber woofer |
Frequency Response | 50Hz–30Hz (+/- 3dB) |
Nominal Impedance | 4 Ohm |
Power Handling (RMS) | 100W |
Sensitivity (2.83V/1m) | 84dB |
Dispersion | 170o hemispherical up to 10kHz |
Transformer | 30W with Sonance Laminated Core Technology |
Transformer Taps | Primary Taps (70V): 3.8W, 7.5W, 15W, 30W; Primary Taps (100V): 7.5W, 15W, 30W; 4 Ohm Bypass |
Overload Protection | Two Independent Self-Resetting Poly Switches, Safety AgencyUL-1480A, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A |
Product Dimensions (WxHxD) | 16.10” x 16.10” x 3.86” (409mm x 409mm x 98mm) |
Mounting Depth | 3.39” (86mm) |

Accessories
Downloads
- Invisible Series Brochure
- IS6T Commercial Data Sheet
- IS6T Manual
- IS6T Revit
- IS6T CAD
- IS Depth DISC Location CADs
- EASE gll Files
- IS EQ Presets for Sonance DSP Amps
- IS DG-1 Depth Gauge Manual
- Invisible Series Application Guide
- Invisible Series Amp Guidelines Tech Note
- Invisible Series Installation Video
- Invisible Series DISC System Video
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Invisible Series
- Post date August 2, 2022

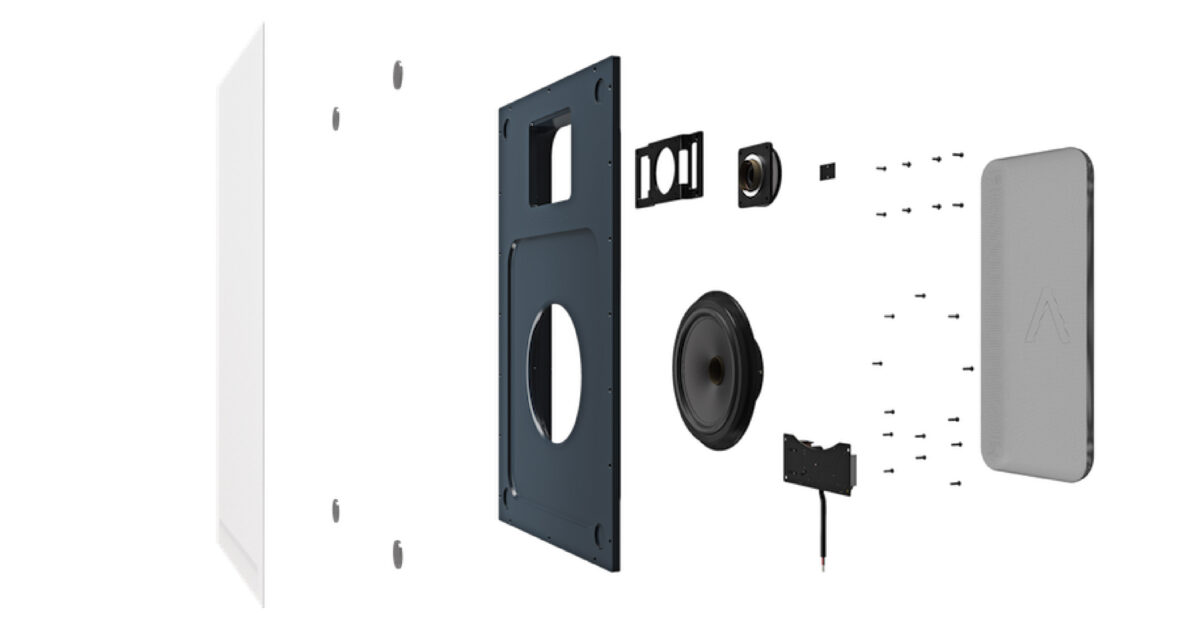

Commercial Invisible Series
Sonance award-winning Invisible Series Speakers are used exclusively in luxury retail boutiques around the world, including Louis Vuitton, Prada Fendi, Gucci, Tom Ford, Valentino, Tiffany’s, Burberry, Dior and Miu Miu.
The new Sonance Invisible Series, featuring Motion Flex Technology, offers a suite of advancements in invisible speaker engineering that together delivers unparalleled sonic performance and redefines what is possible from an invisible speaker.




Wave Flex Drive Unit
This high-bandwidth midrange and high-frequency transducer drive unit propagates sound via a bending-wave principle, delivering velvety-smooth mids and crystal-clear highs while enabling a lower crossover point to facilitate high fidelity listening.

Air Flex Woofer
By coupling a glass-fiber woofer to our acoustically inert diaphragm via a pocket of air, the active diaphragm area moves like a piston. The result is robust and powerful bass that defies expectations and delivers unsurpassed sonic quality.

Sonance Laminated Core Transformer (SLCT)
The Sonance Laminated Core Transformer is built into the IS6T and IS8T to deliver distortion-free, wide-bandwidth audio for uncompromising performance in 70V/100V commercial applications.

Design not Distraction
Sonance Invisible Series can be finished over with same material as the adjoining wall or ceiling surface, including regular drywall finishing compound and paint, wallpaper, wood veneer, or even venetian plaster. This feature allows Architects and Designers to specify a variety of different finishes throughout their projects without impacting the sound quality.

Eliminate the guess work
The Sonance DISC System uses a high accuracy depth gauge and embedded steel locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker. This allows for a consistent finish and performance within specifications every time.

Professional Processes
Sonance Invisible Series is complete with supporting installation accessories like pre-construction brackets, and space savers to reserve the location during the construction stage of the project. These installation accessories ensure a simple step-by-step process throughout the construction phase to reserve speaker placement and ensure a flawless finish.

Certification
Sonance IS-6T and IS-8T meet UL1480 and UL2043 standards, allowing it to be used in commercial installations throughout the United States and Canada.

Design and Specification
The available EASE data provides system designers with the critical detail required to accurately map sound coverage throughout a space, ensuring specification is achieved and the client’s expectations are met. Additionally.

70V/100V/4Ohm
Sonance IS-6T and IS-8T feature a 70 or 100 Volt input selection as well a low-impedance bypass, making them compatible with any industry standard commercial audio system. The IS-6T and IS-8T are transformer-coupled, with multiple tap settings and a 4-ohm bypass that are selectable from the speaker’s enclosure.


ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Invisible Series Woofers
- Post date April 5, 2022

Sonance Invisible Series Woofers and Subwoofers Featuring Motion Flex Technology
Sonance Invisible Series Woofers

Sonance Invisible Series

DETAILS
CATEGORY
INVISIBLE SPEAKERS
AVAILABILITY
US, UK, ASIA PACIFIC
KEY FEATURES
MOTION FLEX TECHNOLOGY
A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible subwoofer
AIR FLEX WOOFER
Glass-fiber woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass
ACOUSTICALLY ISOLATED BAFFLE
The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before
CONSTANT DIRECTIVITY CROSSOVER (CDX)
The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greater fidelity and coverage and almost 180° of horizontal and vertical dispersion
SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM
Uses a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker, allowing for a consistent finish and performance within specifications every time
![]() IS10W | ![]() IS15W | |
---|---|---|
SKU | 93481 | 93482 |
UOM | EACH | EACH |
Air Flex Woofer | 244in² (1573cm²) air pulse diaphragm 10″ (254mm) carbon fiber woofer | 592in² (3819cm²) air pulse diaphragm 15″ (381mm) carbon fiber woofer |
Frequency Response | 35Hz–250Hz (±3dB) | 30Hz–250Hz (±3dB) |
Impedance | 6 Ohms Nominal | 6 Ohms Nominal |
Power Handling (RMS) | 200W | 250W |
Sensitivity (2.83V/1m) | 87dB | 93dB |
Dispersion | 180º hemispherical up to 10kHz | 180º hemispherical up to 10kHz |
Dims (WxHxD) | 16.10″ x 24.13″ x 3.15″ (409mm x 613mm x 80mm) | 32.20″ x 32.20″ x 3.86″ (818mm x 818mm x 98mm) |
Mounting Depth | 2.68″ (68mm) | 3.39″ (86mm) |
Back Dims (WxH)
| 9.49” (241mm) x 20.98” (533mm) | 30.12” (765mm) x 30.12” (765mm) |
Product Weight
| 14.31 lbs (6.49 kgs) | – |
Shipping Weight
| 22.27 lbs (10.1 kgs) | – |
Compatible Space Saver
| IS-SAVER-M, SKU 93493 | IS-SAVER-XXL, SKU 93495 |
Compatible Enclosure
| IS-ENCL-M, SKU 93489 | – |

Accessories
Downloads
- Invisible Series Brochure
- IS10W CAD
- IS15W CAD
- IS DISC Locations CADs
- EASE gll Files
- IS10W Woofer Data Sheet
- IS15W Subwoofer Data Sheet
- IS EQ Presets for Sonance DSP Amps
- IS15W 80Hz EQ
- IS15W 250Hz EQ
- IS DG-1 Depth Gauge Manual
- IS6 | IS8 | IS10 | IS10W Manual
- IS15W Manual
- Invisible Series Application Guide
- Invisible Series Amp Guidelines Tech Note
- Invisible Series Installation Video
- Invisible Series DISC System Video
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
Invisible Series Speakers
- Post date March 2, 2022

Sonance Invisible Series Speakers Featuring Motion Flex Technology
Sonance Invisible Series

Sonance Invisible Series

DETAILS
CATEGORY
INVISIBLE SPEAKERS
AVAILABILITY
US, UK, ASIA PACIFIC
KEY FEATURES
MOTION FLEX TECHNOLOGY
A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible speaker
WAVE FLEX DRIVE UNIT
High-bandwidth midrange and high-frequency transducer that leverage the bending-wave principle, delivering velvety-smooth mids and crystal-clear highs
AIR FLEX WOOFER
Glass-fiber woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass
ACOUSTICALLY ISOLATED BAFFLE
The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before
CONSTANT DIRECTIVITY CROSSOVER (CDX)
The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greater fidelity and coverage and almost 180° of horizontal and vertical dispersion
SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM
Uses a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker, allowing for a consistent finish and performance within specifications every time
![]() is6 | ![]() is6t | ![]() is8 | ![]() Is8t | ![]() is10 | |
---|---|---|---|---|---|
SKU | 93478 | 40198 | 93479 | 40197 | 93480 |
UOM | PAIR | EACH | PAIR | EACH | PAIR |
Wave Flex Drive Unit | 20in² (127cm²) bending wave diaphragm 1.75″ (44mm) voice coil | 20in² (127cm²) bending wave diaphragm, 1.75” (44mm) voice coil | 29in² (188cm²) bending wave diaphragm 1.75″ (44mm) voice coil | 29in² (188cm²) bending wave diaphragm 1.75″ (44mm) voice coil | 29in² (188cm²) bending wave diaphragm 1.75″ (44mm) voice coil |
Air Flex Woofer | 98in² (633cm²) air pulse diaphragm 6.5″ (165mm) carbon fiber woofer | 98in² (633cm²) air pulse diaphragm 6.5″ (165mm) carbon fiber woofer | 191in² (1234cm²) air pulse diaphragm 8″ (203mm) carbon fiber woofer | 191in² (1234cm²) air pulse diaphragm 8″ (203mm) carbon fiber woofer | 244in² (1573cm²) air pulse diaphragm 10″ (254mm) carbon fiber woofer |
Frequency Response | 50Hz–30kHz (±3dB) | 50Hz–30Hz (+/- 3dB) | 40Hz–30kHz (±3dB) | 40Hz–30kHz (±3dB) | 35Hz–30kHz (±3dB) |
Impedance | 6 Ohms Nominal | 4 Ohms Nominal | 6 Ohms Nominal | 4 Ohms Nominal | 6 Ohms Nominal |
Power Handling (RMS) | 100W | 100W | 160W | 160W | 200W |
Sensitivity (2.83V/1m) | 84dB | 84dB | 86dB | 86dB | 87dB |
Transformer | – | 30W with Sonance Laminated Core Technology | – | 60W with Sonance Laminated Core Technology | – |
Transformer Taps | – | Primary Taps (70V): 3.8W, 7.5W, 15W, 30W;Primary Taps (100V): 7.5W, 15W, 30W;4 Ohm Bypass | – | Primary taps (70V): 7.5W, 15W, 30W, 60W; Primary taps (100V): 15W, 30W, 60W; 4 Ohm bypass | – |
Overload Protection | – | Two Independent Self-Resetting Poly Switches, Safety AgencyUL-1480A, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A | – | Two Independent Self-Resetting Poly Switches, Safety AgencyUL-1480A, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A | – |
Dispersion | 170º hemispherical up to 10kHz | 170º hemispherical up to 10kHz | 170º hemispherical up to 10kHz | 170º hemispherical up to 10kHz | 170º hemispherical up to 10kHz |
Dims (WxHxD) | 16.10″ x 16.10″ x 3.15″ (409mm x 409mm x 80mm) | 16.10” x 16.10” x 3.86” (409mm x 409mm x 98mm) | 16.10″ x 24.13″ x 3.15″ (409mm x 613mm x 80mm) | 16.10” x 24.13” x 3.15” (409mm x 613mm x 80mm) | 16.10″ x 28.66″ x 3.15″ (409mm x 728mm x 80mm) |
Mounting Depth | 2.68″ (68mm) | 3.39” (86mm) | 2.68″ (68mm) | 3.39” (86mm) | 2.68″ (68mm) |
Back Dims (WxH)
| 9.49” x 12.95” (241mm x 329mm) | – | 9.49” (241mm) x 20.98” (533mm) | – | – |
Product Weight
| 12.24 lbs (5.55 kgs) | – | 16.81 lbs (7.63 kgs) | – | 18.85 lbs (8.55 kgs) |
Shipping Weight
| 31.69 lbs (14.375 kgs) | – | 42.36 lbs (19.215 kgs) | – | 47.38 lbs (21.49 kgs) |
Compatible Space Saver
| IS-SAVER-S, SKU 93492 | IS-SAVER-S, SKU 93492 | IS-SAVER-M, SKU 93493 | IS-SAVER-M, SKU 93493 | IS-SAVER-L, SKU 93494 |
Compatible Enclosure
| IS-ENCL-S, SKU 93488 | – | IS-ENCL-M, SKU 93489 | – | IS-ENCL-L, SKU 93490 |

Accessories
Downloads
- Invisible Series Brochure
- IS6 CAD
- IS8 CAD
- IS10 CAD
- IS10W CAD
- IS15W CAD
- IS DISC Locations CADs
- EASE gll Files
- IS6 | IS8 | IS10 Speaker Data Sheet
- IS6T 70V Speaker Data Sheet
- IS8T 70V Speaker Data Sheet
- IS10W Woofer Data Sheet
- IS15W Subwoofer Data Sheet
- IS EQ Presets for Sonance DSP Amps
- IS DG-1 Depth Gauge Manual
- IS6 | IS8 | IS10 | IS10W Manual
- IS15W Manual
- IS6T 70V Speaker Manual
- IS8T 70V Speaker Manual
- Invisible Series Application Guide
- Invisible Series Amp Guidelines Tech Note
- Invisible Series Installation Video
- Invisible Series DISC System Video
ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?
Speak to one of our Consultants now
