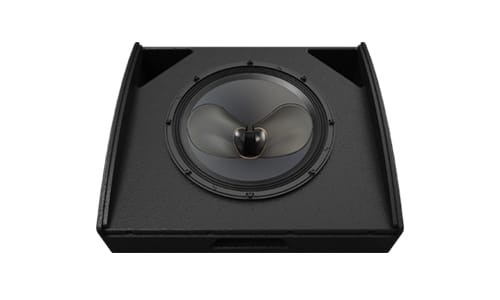

LE200

LE200

Two-way, Bi-amp/Passive Coaxial Differential Dispersion Stage Monitor

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

Features

  • Compact, two-way stage monitor
  • Coaxial ‘point-source’ performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, near-rectangular coverage plane at head-height
  • Switchable active/passive operation
  • Low-profile plywood enclosure
  • M8 rigging inserts
  • Multiple connectors for flexible deployment


Applications

  • Stage monitor
le-series-logo

Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage plane at head-height.

The LE200 enclosure is constructed from durable plywood, features integral ergonomic handles, and is finished with a hard-wearing, black textured paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet prevent movement onstage and protect against scratches to the base of the monitor.

Switchable between bi-amp and passive operation, the LE200 incorporates an internal 1.6kHz passive crossover and four NL4 connectors located to suit a variety of user requirements. Compact and easy to manoeuvre, its exceptional performance, high output and consistent coverage makes the LE200 the definitive, affordable professional monitor for a wide range of applications.

Edit

HTKCT05

M8 Eye Bolt 8mm

LE200FCUK

Flightcase for 2 x LE200 ROW spec

LE200FCUS

Flightcase for 2 x LE200 US spec
Edit

iK81

HIGH POWER
8 CHANNEL CLASS D AMPLIFIER

10,000 Watts RMS

VIA5002

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

1600 Watts/Channel @ 8 Ohms

VIA5004

4-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX4.0

LOUDSPEAKER CONTROLLER
AND SYSTEM MATRIX

Networked System Controller

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

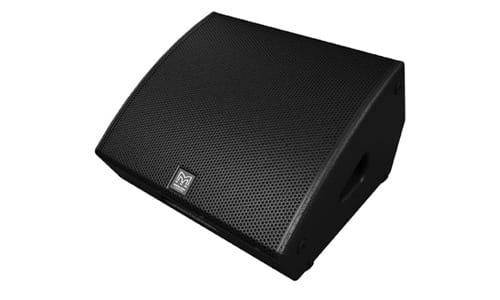

LE100

LE100

Two-Way Passive Coaxial Differential Dispersion Stage Monitor

The LE100 is an extremely compact, two-way passive monitor. It features a 12” (300mm) LF /1” (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5” (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75” (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.

Features

  • Compact, two-way stage monitor
  • Coaxial ‘point-source’ performance
  • Differential Dispersion™ technology for consistent coverage
  • Defined, near-rectangular coverage plane at head-height
  • Low-profile plywood enclosure
  • Integral pole-mount with removable bung
  • M8 rigging inserts
  • Multiple connectors for flexible deployment


Applications

  • Stage monitor
  • Pole-mounted fill/PA system

le-series-logo

The unique Coaxial Differential Dispersion technology employed in the LE100 produces a horizontal coverage pattern which varies from a wide 110° directly over the monitor, reducing to 60° further back. This tapering produces a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.

The LE100 enclosure is constructed from durable plywood and is finished with a durable black textured paint. Ergonomic pocket handles assist handling and a strong, perforated steel grille with an acoustically transparent cloth backing provides driver protection. Moulded feet prevent movement onstage and protect the base of the monitor from scratches.

As well as use as a stage monitor, the LE100 offers a range of flexible deployment options. It can be inverted and used as a pole-mounted sidefill or sound reinforcement system without the need to rotate the drive unit, or combined with a Martin Audio subwoofer as a drumfill. A removable pole-mount bung maintains clean lines in stage monitor guise while a total of five NL4 connectors at the front, base and in each handle pocket satisfy a wide variety of user configurations.
