OptiLinq Emitters

OptiLinq IR Series

OptiLinq Emitters

OptiLinq Single and Dual emitters work with the the latest IR receivable AV components and require no connection blocks. Emitters come in 7 ft. lengths and can be expanded up to 25 ft. to reach remote AV components.

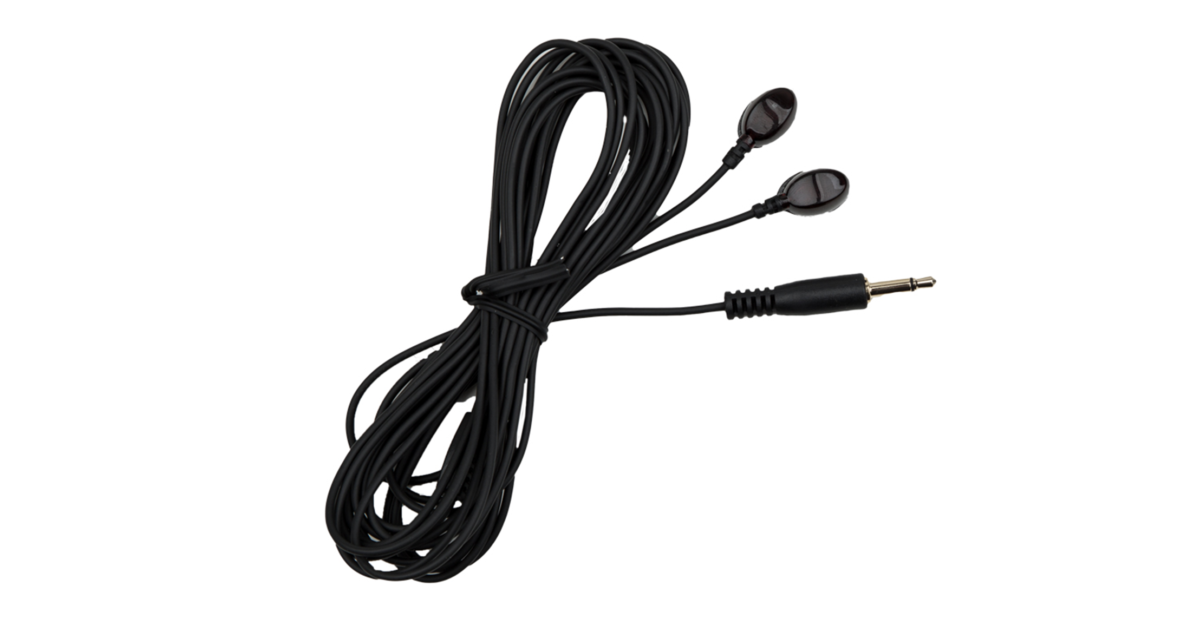

OptiLinq Single Emitters
OptiLinq Dual Emitters
OptiLinq Emitter Covers
Length
7 ft (2.1 m)
7 ft (2.1 m)
UOM
10 Pack
10 Pack
20 Pack
Lead Termination
Gold 3.5 mm plug
Gold 3.5 mm plug
Shipping Weight
.41 lbs (0.19 kg)
.7 lbs (.31 kg)
.05 lbs (0.023 kg)
Product SKU
93145
93146
93147

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

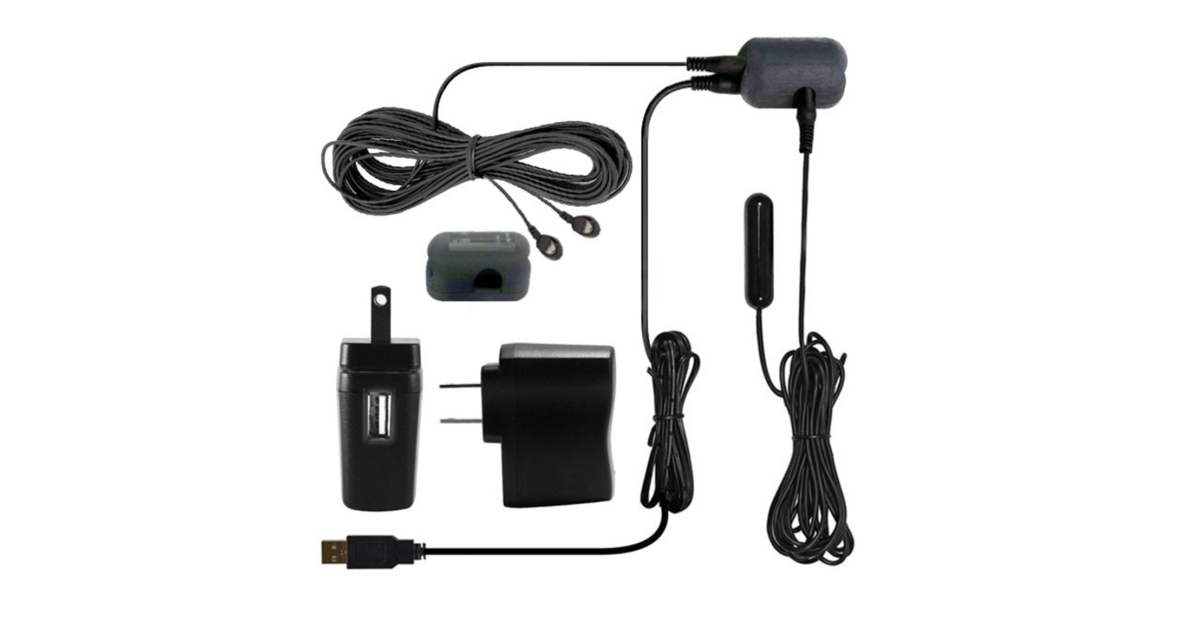

OptiLinq IR Repeater Kits

OptiLinq IR Series

OptiLinq IR Repeater Kits

Control multiple AV devices with OptiLinq IR Repeater Kits. Each Kit has an available USB power option and does not require a connection block. Extendable from 7ft. to 700 ft., the line of OptiLinq IR Repeater kits effortlessly install into any job. All kits include adhesive pads for mounting emitters, and IR covers.

OptiLinq 4 IR KIT
OptiLinq 2 IR CAT/KIT
Emitters
2 Dual Emitters
1 Dual Emitter
System Length
16 ft (4.9 m)
16 ft (4.9 m) – 700 ft (213 m) *Cat5 cable not included
Power
AC or USB
AC or USB (powered on either the emitter or receiver side)
Lead Termination
Gold 3.5 mm plug
Gold 3.5 mm plug
Shipping Weight
.54 lbs (0.245 kg)
.5 lbs (0.227 kg)
Product SKU
93143
93144

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

IR

IR

OptiLinq IR products provide a simple solution to controlling multiple AV devices. The IR Receivers pick up commands from an infrared remote control and send them to one or multiple points to be re-transmitted through an IR Emitter. This system allows electronic components to be hidden in cabinets or mounted remotely in a rack while still providing a reliable means of controlling them locally from a single point.

Edit Content

Signal Confirmation

Emitter LED blinks red to confirm signal transmission. No more guessing if the signal was received.

Universal Compatibility

Emitters are compatible with the latest AV components

Reach every component

Each emitter cable spans 7 ft., and can be extended to up to 25 ft.

Edit Content

Control up to 4 AV devices

2 dual emitters provide coverage for 4 AV devices and work with the latest IR receiving components.

USB power option

The available USB power option provides installation flexibility.

No need for blocks

Bulky connection blocks have been eliminated for clean and simple installs.

Edit Content

Going the distance

Use Cat5, Cat5e, or Cat6 to extend the IR repeater system up to 700ft in length to reach AV equipment almost anywhere.

Power where you want it

Power the IR repeater system on either the receiver side or the emitter side for easy installation.

USB power option

The available USB power option provides installation flexibility.
