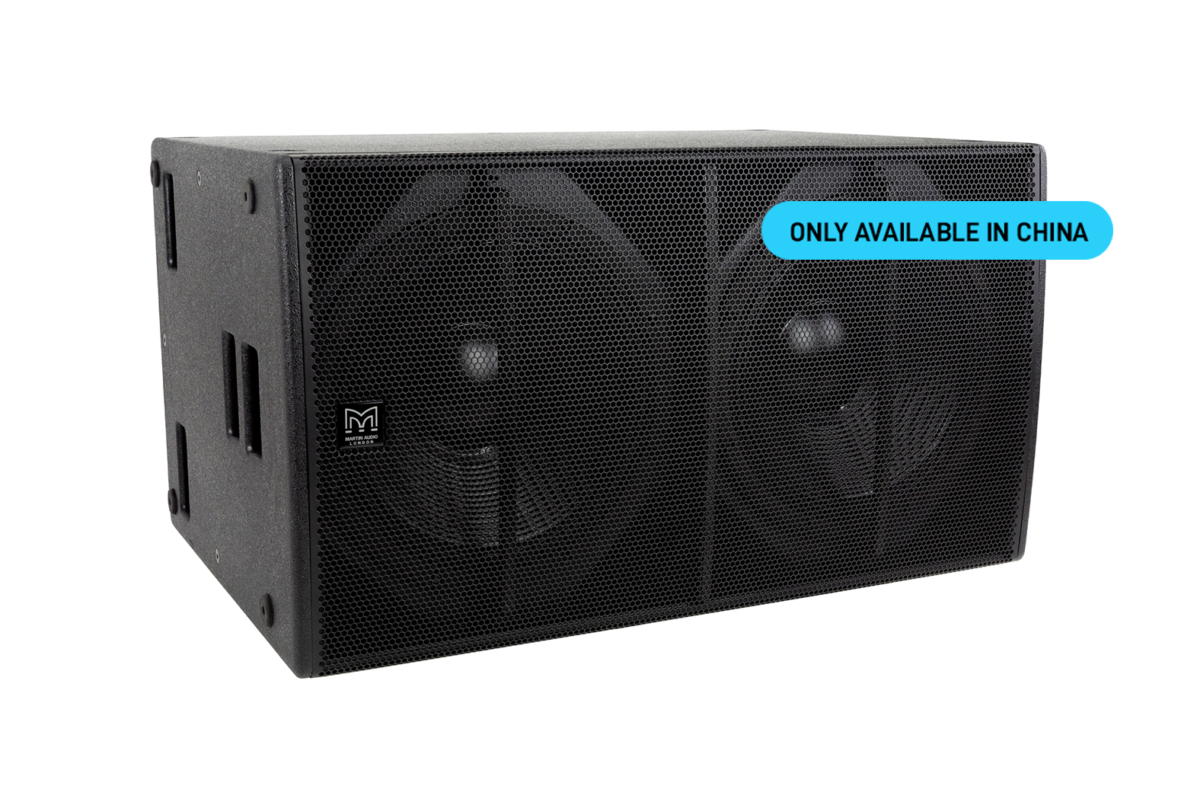

PI218

PI218

Dual-Driver Subwoofer

The PI218 is a dual-driver, high performance subwoofer for use with P.I. Series full-range loudspeakers.

Features

  • Dual-driver, direct radiator subwoofer
  • 2 x 18” (460mm) drivers with 4” (100mm) voice coils
  • Durable plywood enclosure
  • Large ports for reduced air noise
  • Powder coated, perforated steel grille
  • Integral ergonomic handles
  • 35mm pole-mount socket
  • Feet for vertical or horizonal operation
  • Rebate recesses for stable horizontal stacking
  • M10 flying inserts

Applications

  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Corporate AV events and conferences
  • Weddings and parties
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets

With an operating range of 42Hz-200Hz + 3dB, it produces high output levels with low distortion and can be used singly or stacked horizontally. It features dual 18” (460mm)/4” (100mm) voice coil, long excursion drivers in a reflex enclosure with eight large ports that reduce air turbulence at high output levels.

The PI218 enclosure is constructed from plywood and finished in black textured paint as standard. Integral M10 inserts provide for eyebolt suspension of a single enclosure. Ergonomic handles assist ease of handling and the drivers are protected by a perforated steel grille. Rubber feet on the base of the PI218 resist movement and align with recesses in the top surface for stable horizontal stacking. Feet are also provided on one side of the enclosure for vertical operation of a single cabinet.

Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

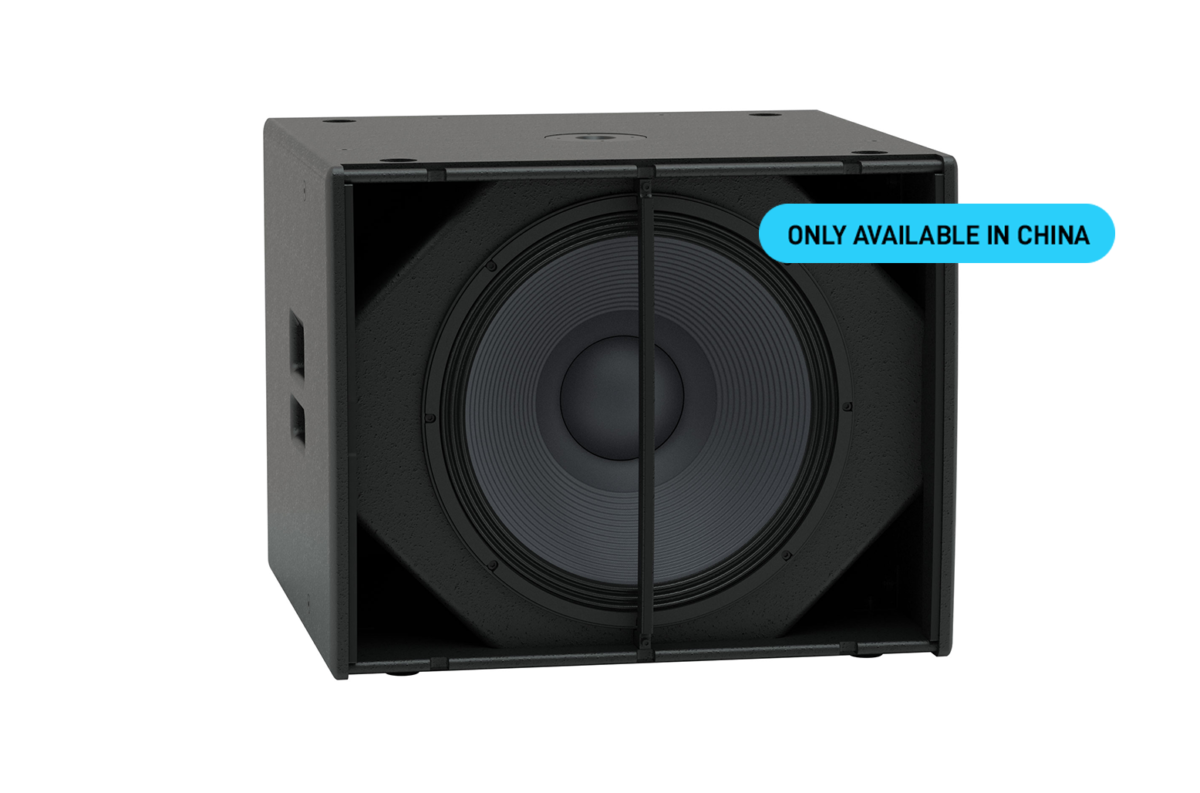

PI118

PI118

Compact, Direct Radiating Subwoofer

The PI118 is a compact, high performance subwoofer for indoor use with P.I Series full-range loudspeakers.

Features

  • Compact, direct radiating subwoofer
  • 18” (460mm)/4” (100mm) voice coil, long excursion
  • High output capability
  • Plywood enclosure with flying inserts

Applications

  • Live sound reinforcement and portable systems
  • Stage monitors and sidefills
  • Theatre sound
  • Corporate AV events
  • Fixed installations in Government, Education, Museums, Hotels and hospitality

It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets. It features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

The PI118 enclosure is constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure two ergonomic side handles.

Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

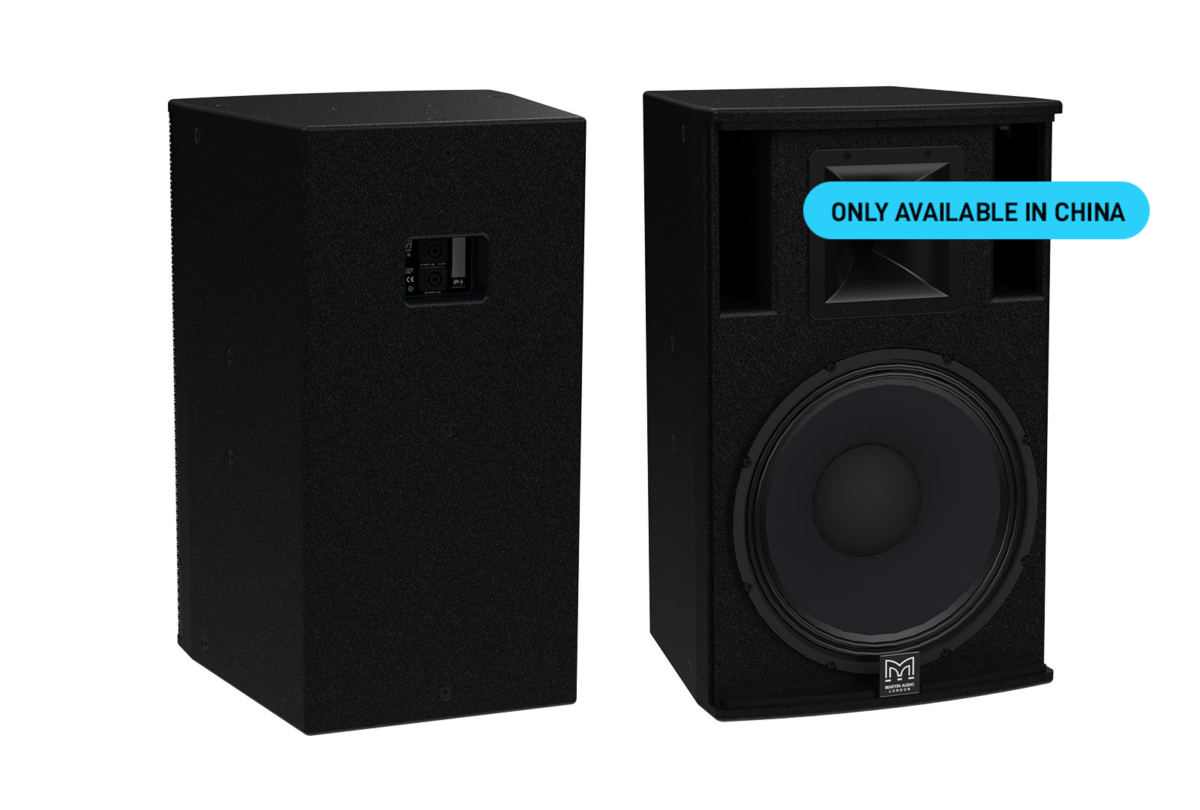

PI15

PI15

Compact, Two-way Passive System

The PI15 is a high-power, passive two-way system designed applications bars that require performance and output from a single enclosure.

Features

  • Full-range, passive two-way system
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Education
  • Hospitality
  • Small performance spaces
  • Government
  • Public Spaces

It features a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response. Its 80° x 50° coverage pattern is ideal for medium-throw applications, and it delivers superior vocal performance at very high sound levels without harshness.

The enclosure is constructed from 15mm engineered wood fibre and finished in black textured paint. A cloth-backed protective steel grille protects the drivers, and M8 inserts are provided for eyebolt suspension and installation.



Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

Edit

PI118

SUBWOOFER

Compact, Direct Radiating

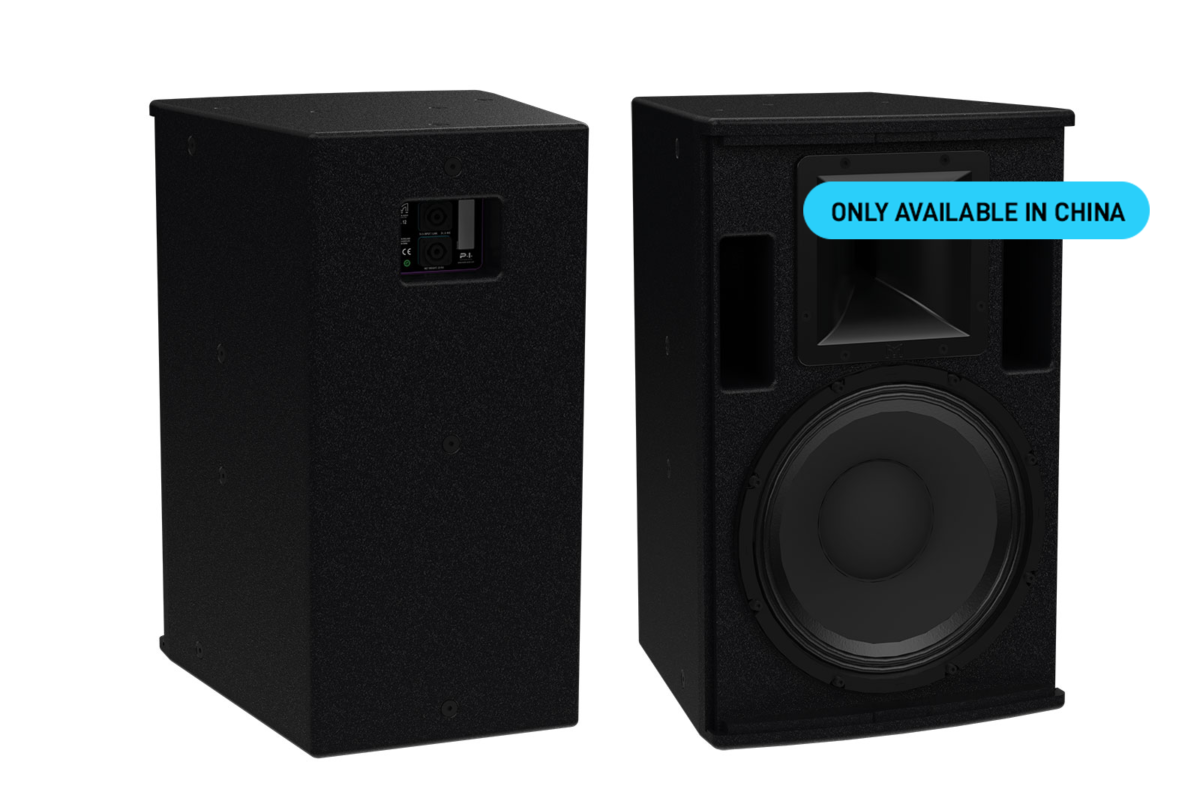

PI12

PI12

Compact, Two-way Passive System

The PI12 is a high-performance, two-way system with a maximum SPL of 129dB peak @ 1m. It features a 12” (300mm)/2.5” (63mm) voice coil LF driver unit and a 1” (25mm) exit compression driver with a 1.4” (35mm) polyimide diaphragm on a rotatable 80° x 50° HF horn.

Features

  • Full-range, passive two-way system
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Education
  • Hospitality
  • Small performance spaces
  • Government
  • Public Spaces

The trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.

Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

Edit

PI118

SUBWOOFER

Compact, Direct Radiating

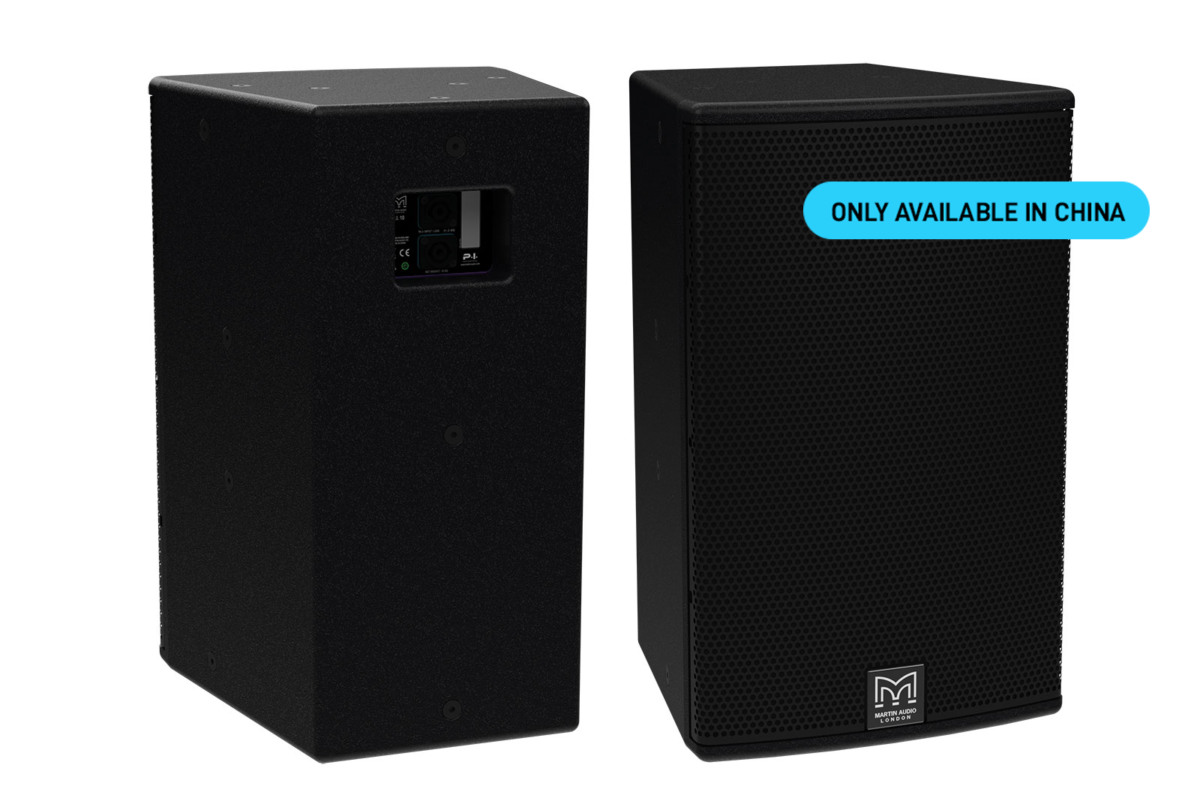

PI10

PI10

Compact, Two-way Passive System

The PI10 is very compact, two-way passive loudspeaker designed for quality sound over short throw distances. It utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm.

Features

  • Full-range, passive two-way system
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Education
  • Hospitality
  • Small performance spaces
  • Government
  • Public Spaces

It is capable of high output levels for its small size and its rotatable 90° x 50° HF horn provides extremely smooth coverage. Equal horizontal and vertical horn mouth dimensions ensure its excellent directivity control is maintained in both planes. The trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.

Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

Edit

PI118

SUBWOOFER

Compact, Direct Radiating

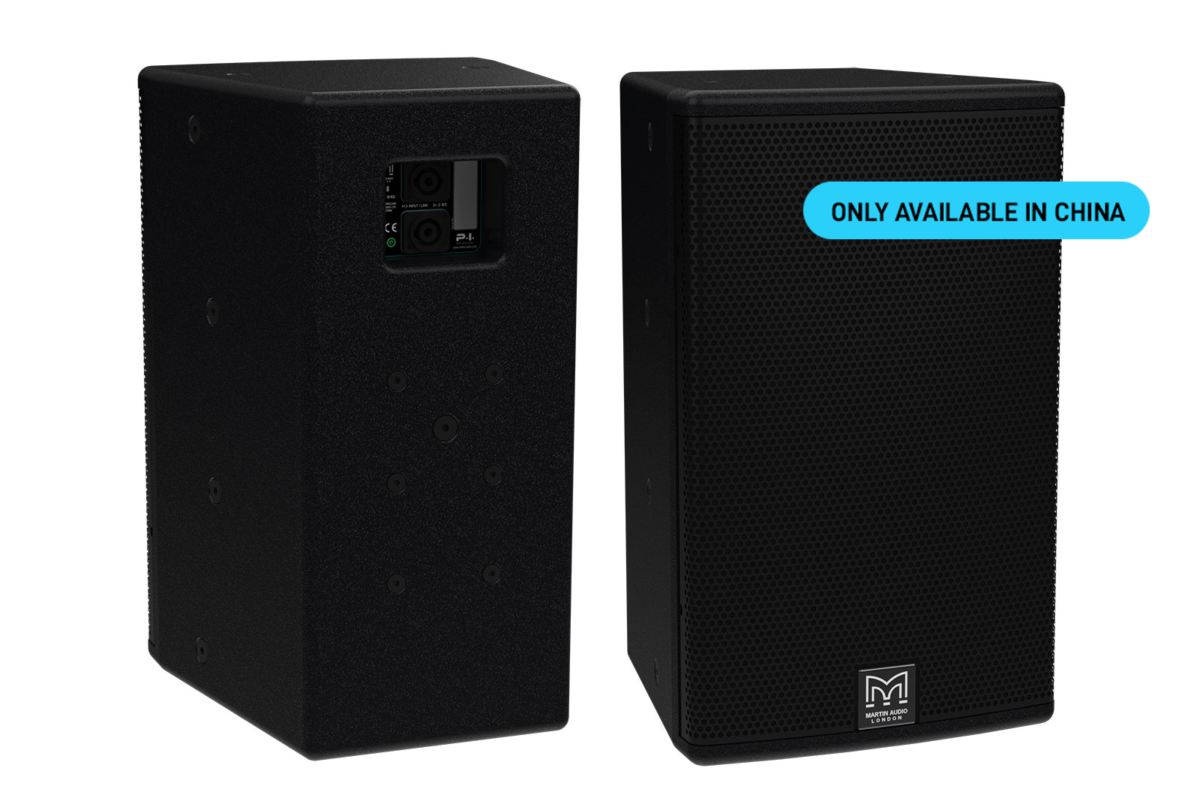

PI8

PI8

Compact, Two-way Passive System

The PI8 is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) /2” (50mm) voice coil LF driver and a 1” (25mm) HF driver. Its very small size belies its high output capability.

Features

  • Full-range, passive two-way system
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Education
  • Hospitality
  • Small performance spaces
  • Government
  • Public Spaces

PI8 can deliver pristine sound over short and medium throw distances and its rotatable 90° x 50° HF horn provides extremely smooth coverage in either plane. The trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.

Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

Edit

PI118

SUBWOOFER

Compact, Direct Radiating

P.I. Series

P.I. Series

Passive Two-way Loudspeakers

everyday full-range loudspeakers and subwoofers

SIGNATURE SOUND FOR INSTALLATION

With the P.I. Series, Martin Audio engineers have designed a range of everyday full-range point source loudspeakers and subwoofers, specifically for small-medium installations such education, hospitality, performance venues and government buildings.

P.I. is exclusively distributed by Guangzhou Guidance AV Technology Ltd for the China market.

Four, passive two-way systems — the PI8, PI10, PI12 and PI15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the simplicity of easy installation. Additional bass can be achieved by complementing the system with either the PI118 or PI218 subwoofers.

P.I. Series enclosure features a user-rotatable horn for vertical or horizontal orientation and multiple M8 threaded inserts for easy installation. The trapezoid enclosures are braced internally to reduce panel resonances and improve sonic performance and are finished in a textured black paint, with drivers protected by a perforated steel grille.

The LF drivers have demodulating rings providing clear, distortion-free reproduction, even at high SPL and internal crossover networks incorporate technology to protect the low and high frequency drivers and assure reliability without interrupting the performance.
