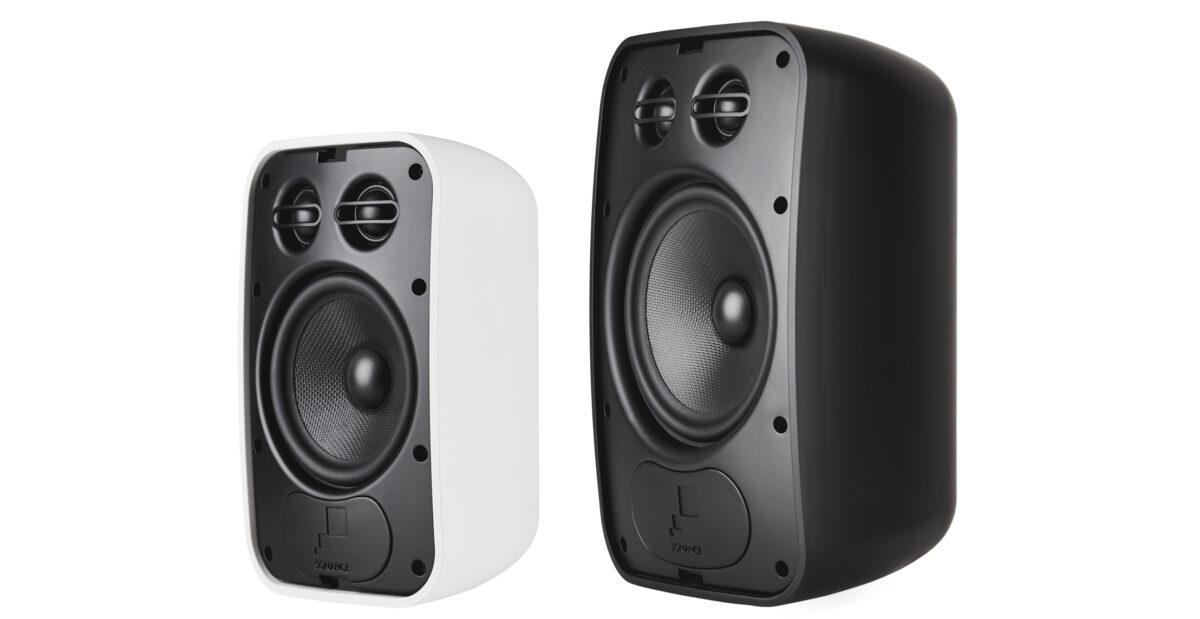

Single Stereo Mariners

Rocks, Mariners and Extremes Series

Single Stereo Mariners

  • Award-winning outdoor speakers feature multiple weather-resistant technologies.
  • New White and Black color options for vastly improved aesthetics.
  • Completely redesigned woofer, tweeter and crossover with the same materials and technology as our award-winning Visual Performance line.
  • A 250% increase in woofer excursion allows for significantly decreased distortion at high volumes.
  • 7.44mm increase in the diameter of the voice coils for increased output and vented pole pieces to decrease heat at voice coils.
  • Tweeters are all chambered allowing for lower crossover frequency and cooling of the tweeter.
  • Innovative front-mounted wire terminal connections protect against corrosion for a long service life.
  • Grille fit has been precision engineered for ease of installation while maintaining grille retention.
  • Water impermeable drivers and sealed polypropylene enclosure ensure consistent, trouble-free performance.
  • Precision FastMount mounting bracket simplifies installation, provides up to 180 degrees of pivot and securely locks the speaker into place.
Mariner 54 SST
Mariner 64 SST
Tweeter
Two 1″ (25mm) cloth dome, Ferrofluid cooled, in acoustic back chamber
Two 1″ (25mm) cloth dome, Ferrofluid cooled, in acoustic back chamber
Woofer
5.25″ (130mm) textured polypropylene cone with a Santoprene surround, dual voice coil
6.5″ (165mm) textured Polypropylene cone with a Santoprene surround, dual voice coil
Frequency Response
65Hz – 20kHz ±3dB
55Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 60 watts maximum
5 watts minimum; 80 watts maximum
Sensitivity
87dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Environment Temperature
-13º – 149ºF (-25ºC – 65ºC)
-13º – 149ºF (-25ºC – 65ºC)
Dimensions (WxHxD)
6.36″ x 10.08 x 5.68″ (162mm x 256mm x 144mm)
7.51″ x 12.14″ x 6.86″ (191mm x 308mm x 174mm)
Grille
Perforated aluminum
Perforated aluminum
Shipping Weight
6 lbs. (2.8kg) each
7 lbs. (3.2kg) each

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

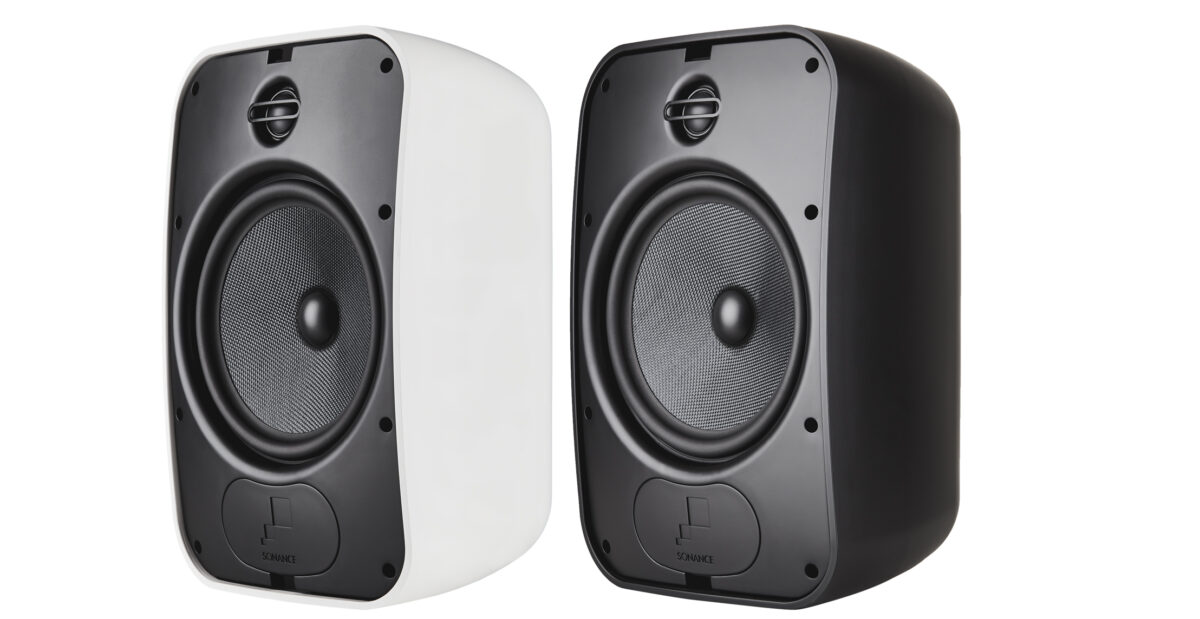

Large Mariner

Rocks, Mariners and Extremes Series

Large Mariner

  • Award-winning outdoor speakers feature multiple weather-resistant technologies.
  • New White and Black color options for vastly improved aesthetics.
  • Completely redesigned woofer, tweeter and crossover with the same materials and technology as our award-winning Visual Performance line.
  • A 250% increase in woofer excursion allows for significantly decreased distortion at high volumes.
  • 7.44mm increase in the diameter of the voice coils for increased output and vented pole pieces to decrease heat at voice coils.
  • Tweeters are all chambered allowing for lower crossover frequency and cooling of the tweeter.
  • Innovative front-mounted wire terminal connections protect against corrosion for a long service life.
  • Grille fit has been precision engineered for ease of installation while maintaining grille retention.
  • Water impermeable drivers and sealed polypropylene enclosure ensure consistent, trouble-free performance.
  • Precision FastMount mounting bracket simplifies installation, provides up to 180 degrees of pivot and securely locks the speaker into place.
Mariner 86
Tweeter
1″ (25mm) powder-coated aluminum dome, Ferrofluid cooled, in acoustic back chamber
Woofer
8″ (203mm) Kevlar/Nomex laminated cone with a Santoprene surround
Frequency Response
45Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 125 watts maximum
Sensitivity
91dB SPL (2.83V/1 meter)
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Environment Temperature
-13º – 149ºF (-25ºC – 65ºC)
Dimensions (WxHxD)
9.01″ x 14.02 x 8.58″ (229mm x 356mm x 218mm)
Grille
Perforated aluminum
Shipping Weight
20 lbs. (9kg) pair

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

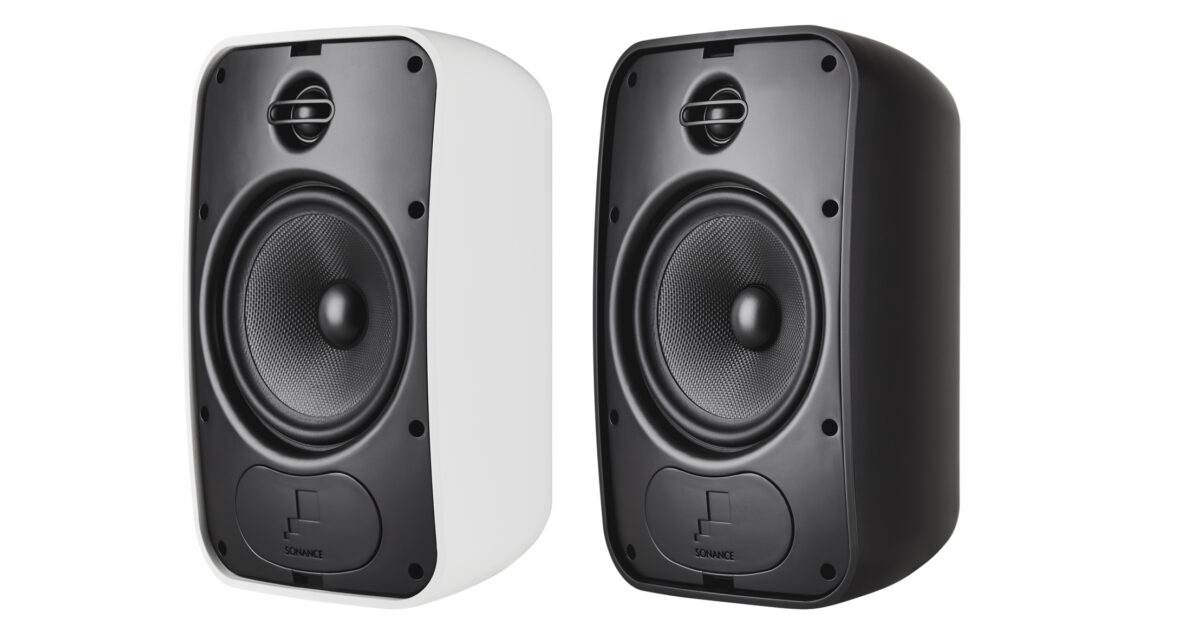

Medium Mariners

Rocks, Mariners and Extremes Series

Medium Mariner

  • Award-winning outdoor speakers feature multiple weather-resistant technologies.
  • New White and Black color options for vastly improved aesthetics.
  • Completely redesigned woofer, tweeter and crossover with the same materials and technology as our award-winning Visual Performance line.
  • A 250% increase in woofer excursion allows for significantly decreased distortion at high volumes.
  • 7.44mm increase in the diameter of the voice coils for increased output and vented pole pieces to decrease heat at voice coils.
  • Tweeters are all chambered allowing for lower crossover frequency and cooling of the tweeter.
  • Innovative front-mounted wire terminal connections protect against corrosion for a long service life.
  • Grille fit has been precision engineered for ease of installation while maintaining grille retention.
  • Water impermeable drivers and sealed polypropylene enclosure ensure consistent, trouble-free performance.
  • Precision FastMount mounting bracket simplifies installation, provides up to 180 degrees of pivot and securely locks the speaker into place.
  • Available in Black or White, two performance levels and one single stereo (SST).
Mariner 64
Mariner 66
Tweeter
1″ (25mm) cloth dome, Ferrofluid cooled, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid cooled, in acoustic back chamber
Woofer
6.5″ (165mm) textured polypropylene cone with a Santoprene surround
6.5″ (165mm) Kevlar/Nomex laminated cone with a Santoprene surround
Frequency Response
55Hz – 20kHz ±3dB
50Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 80 watts maximum
5 watts minimum; 100 watts maximum
Sensitivity
89dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Environment Temperature
-13º – 149ºF (-25ºC – 65ºC)
-13º – 149ºF (-25ºC – 65ºC)
Dimensions (WxHxD)
7.51″ x 12.14 x 6.86″ (191mm x 308mm x 174mm)
7.51″ x 12.14 x 6.86″ (191mm x 308mm x 174mm)
Grille
Perforated aluminum
Perforated aluminum
Shipping Weight
14 lbs. (6.4kg) pair
17 lbs. (7.7kg) pair

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

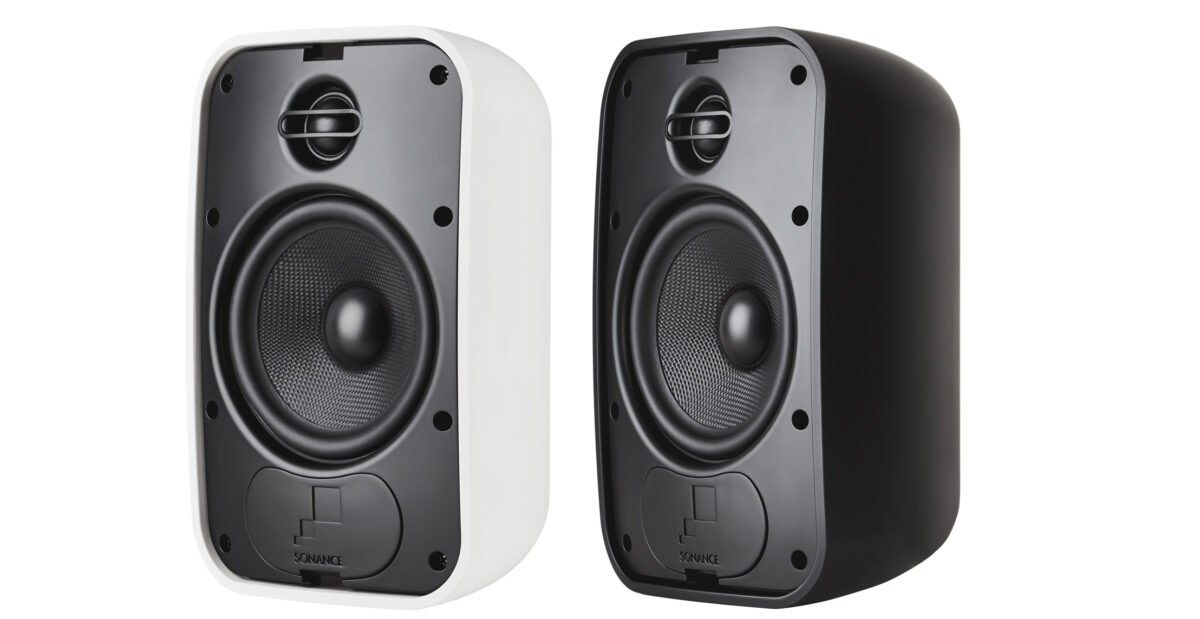

Small Mariner

Rocks, Mariners and Extremes Series

Small Mariner

  • Award-winning outdoor speakers feature multiple weather-resistant technologies.
  • New White and Black color options for vastly improved aesthetics.
  • Completely redesigned woofer, tweeter and crossover with the same materials and technology as our award-winning Visual Performance line.
  • A 250% increase in woofer excursion allows for significantly decreased distortion at high volumes.
  • 7.44mm increase in the diameter of the voice coils for increased output and vented pole pieces to decrease heat at voice coils.
  • Tweeters are all chambered allowing for lower crossover frequency and cooling of the tweeter.
  • Innovative front-mounted wire terminal connections protect against corrosion for a long service life.
  • Grille fit has been precision engineered for ease of installation while maintaining grille retention.
  • Water impermeable drivers and sealed polypropylene enclosure ensure consistent, trouble-free performance.
  • Precision FastMount mounting bracket simplifies installation, provides up to 180 degrees of pivot and securely locks the speaker into place.
  • Available in Black or White, two performance levels and one single stereo (SST).
Mariner 54
Mariner 56
Tweeter
1″ (25mm) cloth dome, Ferrofluid cooled, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid cooled, in acoustic back chamber
Woofer
5.25″ (130mm) textured polypropylene cone with a Santoprene surround
5.25″ (130mm) Kevlar/Nomex laminated cone with a Santoprene surround
Frequency Response
65Hz – 20kHz ±3dB
60Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 60 watts maximum
5 watts minimum; 70 watts maximum
Sensitivity
87dB SPL (2.83V/1 meter)
88dB SPL (2.83V/1 meter)
Environmental
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IP-66 waterproof rating
Environment Temperature
-13º – 149ºF (-25ºC – 65ºC)
-13º – 149ºF (-25ºC – 65ºC)
Dimensions (WxHxD)
6.36″ x 10.08 x 5.68″ (162mm x 256mm x 144mm)
6.36″ x 10.08 x 5.68″ (162mm x 256mm x 144mm)
Grille
Perforated aluminum
Perforated aluminum
Shipping Weight
12 lbs. (5.5kg) pair
13 lbs. (6kg) pair

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

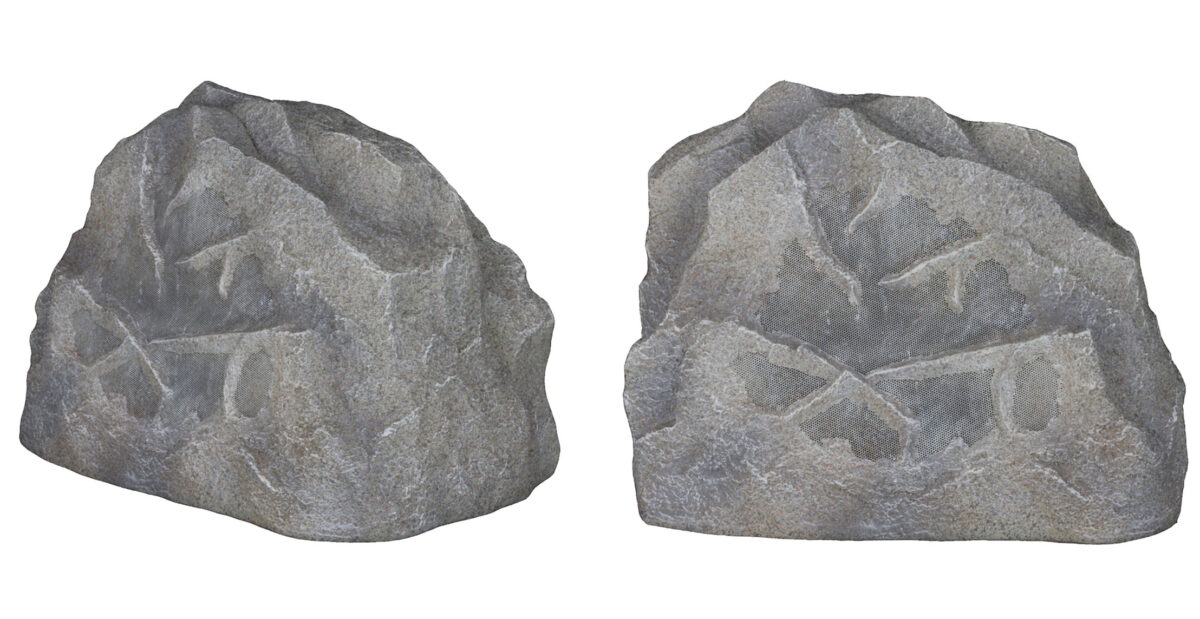

Rocks

Rocks, Mariners and Extremes Series

Rocks

  • Amazing performance in a rock form factor.
  • Durable, corrosion-free and weather-resistant design can withstand exposure to UV, high heat, wind, rain, snow and splashing pool water. IPX4 rated.
  • Two sizes and two colors to suit a variety of spaces and landscape designs.
  • Rock subwoofer for increased bass response.
RK63
RK83
RK10W WOOFER
Tweeter
1″ (25mm) polyurethane dome, Ferrofluid-cooled
1″ (25mm) polyurethane dome, Ferrofluid-cooled
Woofer
6 1/2″ (165mm) polypropylene cone with a Santoprene™ surround
8″ (203mm) polypropylene cone with a Santoprene surround
10″ (254mm) black polypropylene cone, dual voice coil, with rubber surround
Frequency Response
50Hz – 20kHz ±3dB
40Hz – 20kHz ±3dB
35Hz – 150Hz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal
Power Handling
5 watts minimum; 100 watts maximum
5 watts minimum; 150 watts maximum
5 watts minimum; 150 watts maximum
Sensitivity
89dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Crossover Frequency
150Hz (low-pass), 150Hz (high-pass)
Environment Temperature
-13º – 149ºF (-25ºC – 65ºC)
-13º – 149ºF (-25ºC – 65ºC)
-13º – 149ºF (-25ºC – 65ºC)
Enclosure Material
Fiberglass Reinforced Plastic (FRP)
Fiberglass Reinforced Plastic (FRP)
Fiberglass Reinforced Plastic (FRP)
Dimensions (W x H x D)
13 3/4″ x 11″ x 11″ (349mm x 279mm x 279mm)
17 1/4″ x 12 1/2″ x 14″ (438mm x 318mm x 356mm)
19 3/8″ x 16 7/8″ x 14 3/8″ (492mm x 429mm x 365mm)
Shipping Weight
29 lbs. (13kg) pair
44 lbs. (20kg) pair
37lbs. (16kg) each

Accessories
