Series: SA Small Aperture

SA853Q-9

SA Small Aperture® Series

SA853Q-9

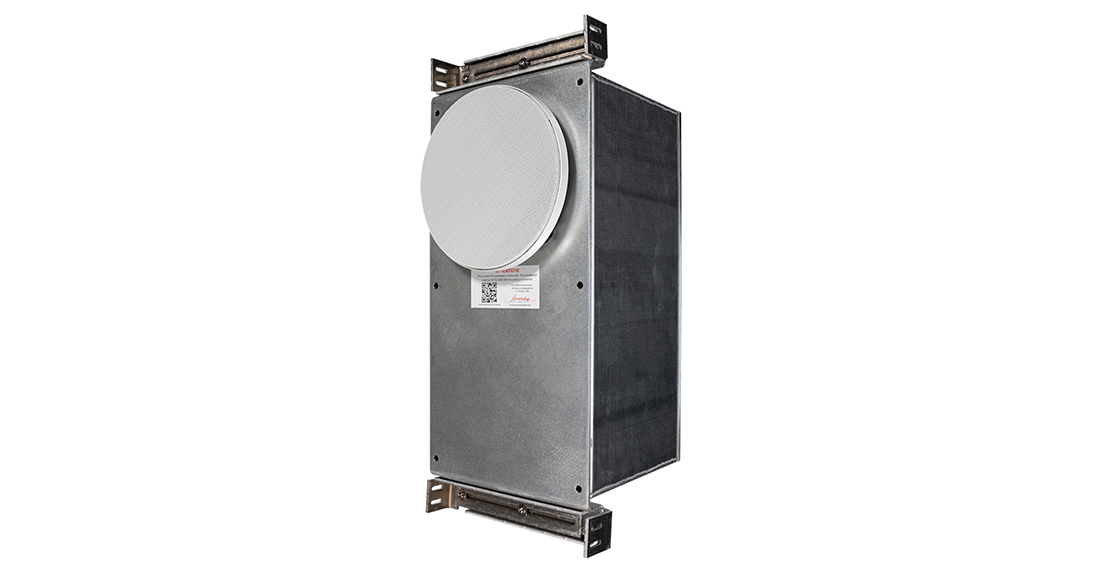

High Output Small Aperture Ceiling Speaker

Unlike anything you have seen or heard, James Loudspeaker has raised industry standards once again. The James Small Aperture® ceiling/in-wall speaker features a 8.5” round or 7”x 7” square sound aperture, yet packs a full 3-way system experience for deep bass and wide frequency response. A seamless edge detail keeps 853 looking smart and modern yet discreet. The SA853Q-9 includes a mini 8” PowerPipe subwoofer, 5.25” midrange, and ¾” dome tweeter in quad array for wide 30Hz to 20kHz response. Having a real subwoofer allows the system to play at loud levels. The deep bass and high SPL produced causes a second take!

The all aircraft-grade aluminum construction and modular design provide long life, easy service, and high reliability. The SA853Q-9 is bi-amped and has a small footprint with a 9” depth, best suited for in-ceiling mounting.

Order woofer enclosure, mid-range module, and grille kits separately. Custom and wood trim kits available and quoted individually.

This model of Small Aperture ships with a 16″ stud bay bracket as standard. The 16″ stud bay bracket can collapse down to 10” and expand to 16”. An optional 24″ stud bay bracket can be ordered (range of 14″- 24″). If the 24″ bracket is required, please specify at the time of order.

This speaker can be ordered in 70V which will include a 50W transformer on the mid/high and a 100W transformer for the subwoofer section. Bi-ampling still required.

SA853Q-9_45_Round_Grille
SA853Q-9_45_Round_Grille
SA853Q-9_Round_with_MOD_45
SA853Q-9_Round_with_MOD_45
SA853Q-9_Round_with_MOD_Front
SA853Q-9_Round_with_MOD_Front
SAA853Q-9_Square_with_Grille_45
SAA853Q-9_Square_with_Grille_45
SA853Q-9_Square_with_MOD_45
SA853Q-9_Square_with_MOD_45
SA853Q-9_Square_with_MOD_Front
SA853Q-9_Square_with_MOD_Front
SA853Q-9_ENC_45
SA853Q-9_ENC_45
Previous
Next

SPECIFICATIONS
Frequency Response
37Hz-20kHz +/-3dB
Nominal Impedance
8 ohms (mid/high) / 8 ohms (sub)
Sensitivity
90dB 2.83V /1m
Recommended Power Range
Mid/High section 50W-150W Subwoofer section 100W-300W
Bi-amplified only
Yes, electronic/DSP crossover required at 80 Hz
70V Power
If ordered as 70V, 50W mid/high, 100W subwoofer
Subwoofer
(1) 8″ (204mm) Aluminum
Woofer
(1) 5.25″ (133mm) Aluminum
Tweeter
(4) 0.75″ (19mm) Aluminum Tweeter Quad Array
Enclosure
Aluminum
Finishes
See Trim Kit Options
Width
10 in (254.00 mm)
Depth
9 in (228.60 mm)
Height
20 in (508.00 mm)
Net Weight
Sub 29 lbs, module 5 lbs, 34 lbs total
Shipping Weight
Sub 31 lbs, module 6 lbs

VIDEOS

Downloads

CAD drawings

SA853Q-9 ENC Enclosure Drawing (PDF)

SA853Q-9 ENC Enclosure Drawing (DWG)

SA853Q-9-MOD Module CAD (DWG)

SA853Q-9 MOD Module CAD (PDF)

SA853Q-6 Enclosure Drawing (DWG)

Datasheets/Cutsheets

SA853Q-9 Datasheet

EASE/CLF files

EASE GLL file for SA853Q-9

Software

SA853Q-9 Mid-high module preset – Sonance DSP-750

SA853Q-9 Subwoofer preset – Sonance DSP-750

Installation Guides and Info

SA853Q-9 Installation Instructions (Bi-Folding Document)

Related Documents

Advertisements/Press Releases

Press Release July 16, 2019 – Microperf Grilles

Brochures

SA Series Color Brochure

Full Line Brochure

Interior Product Brochure

Case Studies

Case Study – Mode Green Airstream (CS1009)

Case Study – Nashville The 505 (CS1008)

Tech Notes

SA Series Rear Sound Output

ARE YOU INTERESTED TO LEARN MORE ABOUT JAMES LOUDSPEAKER?

Speak to one of our Consultants now

speak to us

SA Small Aperture Series

SA Small Aperture®

James Loudspeaker has always sought to push the envelope when it comes to better solutions through innovation, and nothing reflects that commitment like our Small Aperture® (SA) Series. These barely visible ultra-high-performance architectural speakers have been created to redefine the concept of a décor-matched entertainment system. The SA Series is unlike anything you’ve ever seen or heard, reproducing sound with the refinement of a more costly studio monitor.

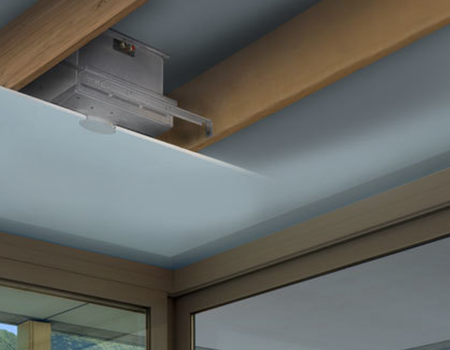

The engineering behind Small Aperture is the culmination of extensive hours in the lab and a relentless passion for the art of recreating sound. Each one of the SA Series models can be mounted either in-ceiling or in-wall, with only a relatively tiny opening exposed to the listener. To trim this opening, James

Loudspeaker offers a vast array of standard and custom finishes for the low-profile grille, which is available in 3-inch or 4-inch round or square flush mount style. (Now available with 3-inch Microperf grille.) Inside each of the SA speakers is a powerful yet compact subwoofer, coupled with a module that handles the midrange and high frequencies. We think the sound quality is nothing short of staggering, with detailed bass notes reaching down to 38 Hz and dispersion that covers a sizable area. We encourage anyone and everyone who loves music to audition the James Loudspeaker Small Aperture Series.

To learn more about the technologies used in the Small Aperture series, visit this link.

Below, check out a 5 minute video explaining how Small Aperture products are designed, manufactured and integrated into modern homes.
