Series: Volume Controls and Speaker Selectors

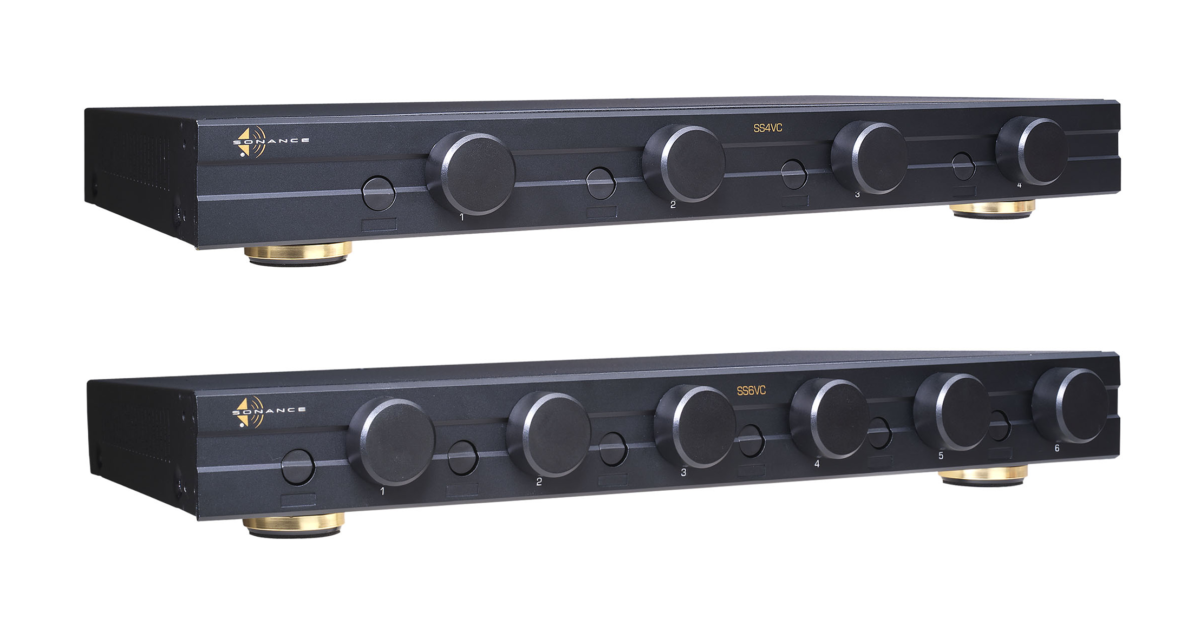

Speaker Selectors with Volume Controls

Volume Control and Speaker Selectors Series

Speaker Selectors with Volume Controls

  • Features a 12 position soft touch rotary volume control nob.
  • Low impedance protection circuit reduces the risk of damaging unit or speakers.
  • Quick connectors on the rear panel make for quick installation.
  • Can be installed in a rack or on a cabinet.
  • Boat and RV compatible
SS4VC
SS6VC
Speaker Outputs
4 stereo pair – 14 AWG wire capacity
6 stereo pair -14 AWG wire capacity
Total Attenuation
-42dB
-42 dB
Attenuation Steps
Top seven steps are -3dB per step; lowest four steps are -6dB per step.
Top seven steps are -3dB per step; lowest four steps are -6dB per step.
Frequency Response
20Hz – 20kHz ±1dB
20Hz – 20kHz ±1dB
Speaker Impedance
8 ohms per zone
8 ohms per zone
Power Handling
75 watt/channel with protection engaged; 120 watt/channel without protection engaged
75 watt/channel with protection engaged; 120 watt/channel without protection engaged
Rack Space
1U (rack ears included)
1U (rack ears included)

Shared Specifications

  • Dimensions with feet (WxHxD)
    16 7/8″ x 2 3/16″ x 10 1/4″ (429mm x 56mm x 260mm)
  • RMF Dimensions without feet (WxHxD)
    19″ x 1 3/4″ x 10 1/4″ (483mm x 45mm x 260mm)

Downloads

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

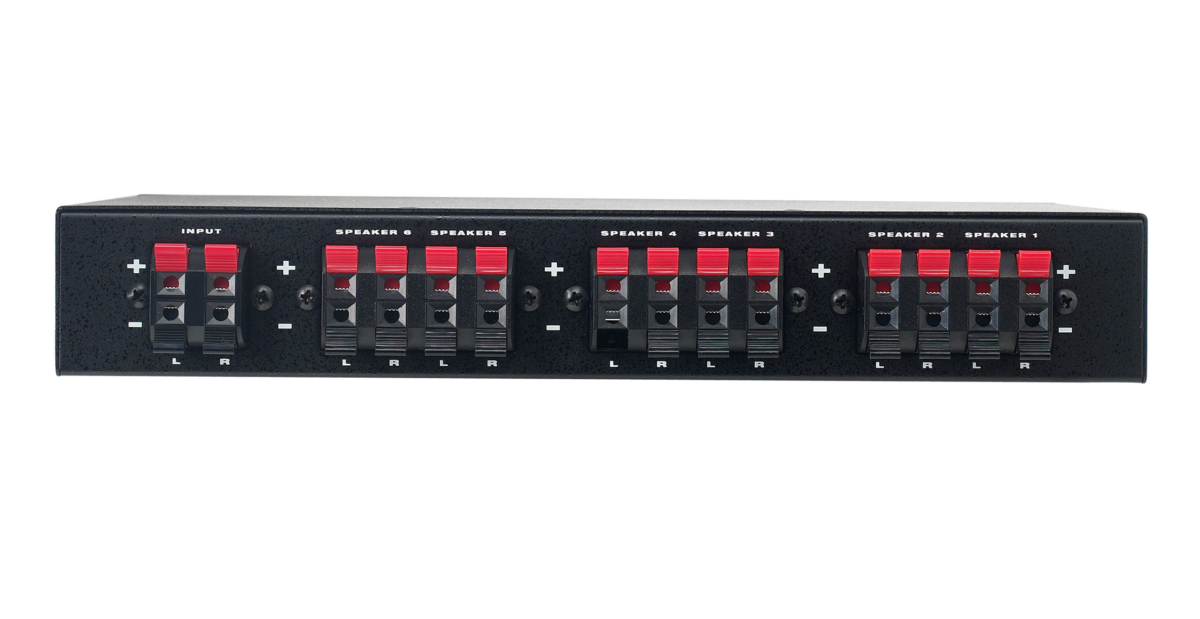

Speaker Selectors

Volume Control and Speaker Selectors Series

Speaker Selectors

  • Small profile speaker selector.
  • Independent on/off switches.
  • Manual protection slide switch on bottom of switcher.
  • Custom button labels can be attached to identify each zone.
  • Stereo speaker push-type connectors on rear accept up to 12 gauge wire.
  • Boating and RV compatible.
SS4
SS6
Frequency Response
20Hz – 20kHz ±1dB
20Hz – 20kHz ±1dB
Power Handling
40 watt/channel with protection engaged; 120 watt/channel without protection engaged
40 watt/channel with protection engaged; 120 watt/channel without protection engaged
Ground Paths
Separate left and right ground paths for compatibility with all amps, even bridged
Separate left and right ground paths for compatibility with all amps, even bridged
Input Connections
One stereo source input (speaker level)
One stereo source input (speaker level)
Output Connections
4 stereo speaker push-type connectors on rear accept up to 12 gauge wire
6 stereo speaker push-type connectors on rear accept up to 12 gauge wire
Dimensions with Feet (WxHxD)
8 1/2″ x 2″ x 7″ (286mm x 51mm x 178mm)
11 1/4″ x 2″ x 7″ (286mm x 51mm x 178mm)
Shipping Weight
3 lbs (1.4kg)
3 lbs (1.4kg)

Downloads

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

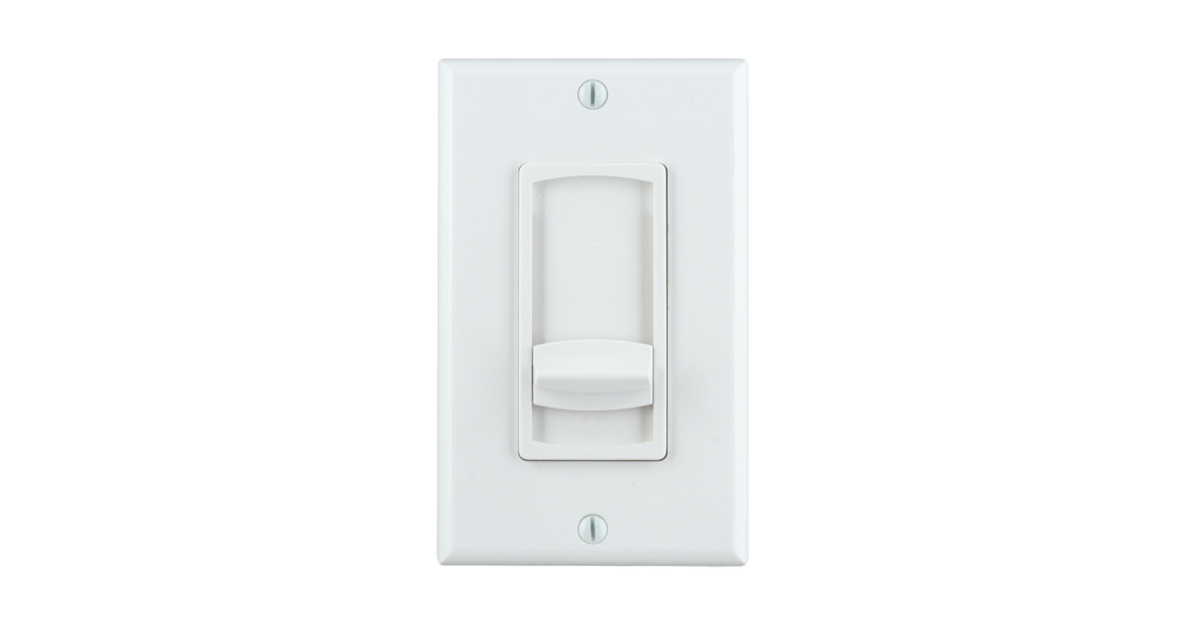

Volume Controls

Volume Control and Speaker Selectors Series

Volume Controls

  • 12-step, high-quality autoformer design combines premium performance with great reliability.
  • Available in rotary or slider formats.
  • Allows volume control for individual pairs of speakers connected to a common amplifier.
  • Decoraâ„¢ style can be ganged together with other low voltage devices.
VC60R_060313_070328
VC30R
VC60R_060313
VC60R
VC60S_060331
VC60S
Outdoor_VC_060304
ODVC60 OUTDOOR
Power Handling
30W RMS max input/channel
60W RMS max input/channel
60W RMS max input/channel
60W RMS max input/channel
Total Attenuation
-30 dB
-42 dB
-42 dB
-42 dB
Attenuation Steps
Top 7 steps are -3dB per step; lowest two steps are -6dB per step; last step is OFF position.
Top 6 steps are -3dB per step; lowest four steps are -6dB per step; last step is OFF position.
Top 6 steps are -3dB per step; lowest four steps are -6dB per step; last step is OFF position.
10 position light touch switch
Speaker Impedance
8 ohms
8 ohms
8 ohms
8 ohms
Frequency Response
20Hz – 20kHz ±2dB
20Hz – 20kHz ±1dB
20Hz – 20kHz ±1dB
20Hz – 20kHz ±2dB
Connections
Quick-disconnect screw terminal, 20-14 AWG wire capacity.
Quick-disconnect screw terminal, 20-14 AWG wire capacity.
Quick-disconnect screw terminal, 20-14 AWG wire capacity.
Wire leads with wire nuts.
Design
Decora Style Rotary
Decora Style Rotary
Decora Style Slider
Weatherproof
Dimensions (WxHxD)
1 3/4″ x 4″ x 2 1/4″ (44mm x 102mm x 57mm)
1 3/4″ x 4″ x 2 3/4″ (44mm x 102mm x 76mm)
1 5/8″ x 4″ x 3″ (41mm x 102mm x 76mm)
1 3/4″ x 4″ x 2 1/4″ (44mm x 102mm x 76mm)
Shipping Weight
1 lbs. (0.45kg)
2 lbs. (0.9kg)
2 lbs. (0.9kg)
2 lbs. (0.9kg)

Downloads

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

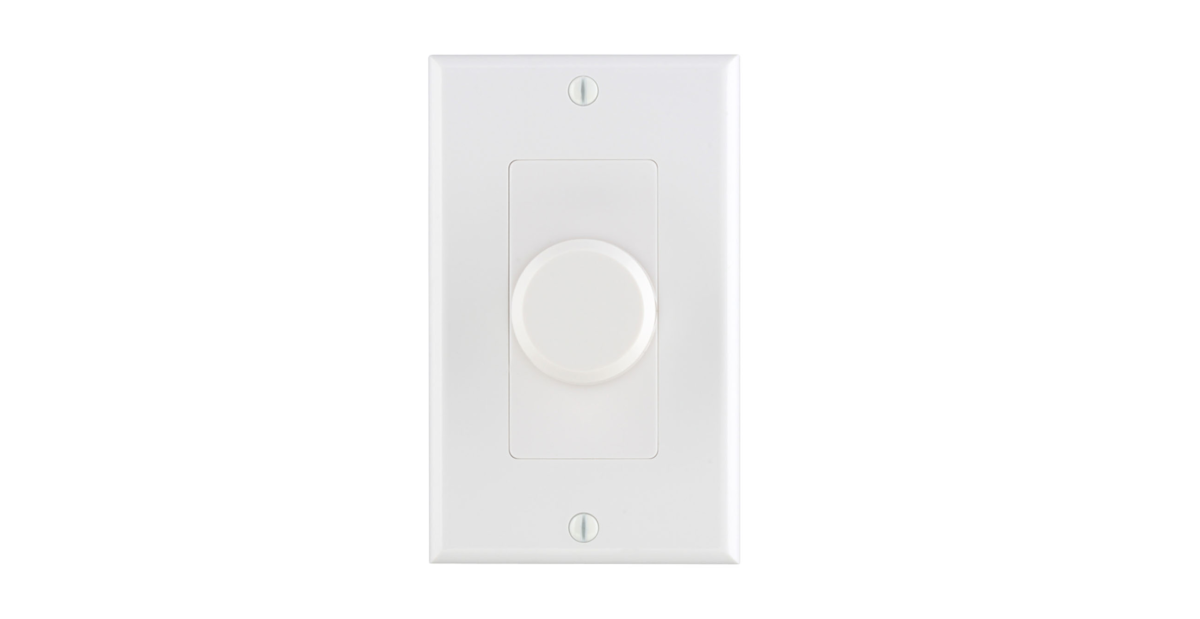

Impedance Matching

Volume Control and Speaker Selectors Series

Impedance Matching Volume Controls

The Sonance line of digital amplifiers have been engineered to deliver all the reliable and stable power that Sonance amplifiers are known for in less than half the space. The smaller size sacrifices nothing while delivering 93% energy efficiency.

VC60R_070318
VC60RIM
VC60S_070329
VC60SIM
Speaker Impedance
8 ohms
8 ohms
Amplifier Impedance
8 ohms (X1 setting); 16 ohms (X2 setting);32 ohms (X4 setting); 64 ohms (X8 setting)
8 ohms (X1 setting); 16 ohms (X2 setting);32 ohms (X4 setting); 64 ohms (X8 setting)
Connections
Removable 4-pin screw connectors simplify speaker and amplifier wiring (14 AWG wire capacity).
Removable 4-pin screw connectors simplify speaker and amplifier wiring (14 AWG wire capacity).
Frequency Response
20Hz – 20kHz ±1dB
20Hz – 20kHz ±1dB
Power Handling
60W RMS max input/channel
60W RMS max input/channel
Design
Rotary (includes Decora wallplate)
Slider (includes Decora wallplate)
Shipping Weight
2 lbs (0.9kg)
2 lbs (0.9kg)

Shared Specifications

  • Dimensions (W x H)
    1 1/2″ x 4″ (41mm x 102mm)
  • Depth
    3″ (76mm)

Downloads

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

Volume Controls and Speaker Selectors

Volume Controls and Speaker Selectors

Sonance volume controls and speaker selectors are the simplest way to increase and decrease audio levels or turn speaker zones on and off. Wall-mounted single-gang volume controls in either rotary or slider provide easy adjustment of local zones. 4 or 6 zone speaker selectors, with or without independent volume, allows control of several areas from a single location.

Previous
Next
Edit Content

Speaker Selectors

Sonance Speaker Selectors provide a simple solution to controlling different zones of a distributed audio system. Available in either 6 or 4 zones and with or without independent volume control per channel, Sonance Speaker Selectors are the user-friendly solution for anyone wanting basic control of their audio throughout their home or commercial environment.

Edit Content

Volume Controls

For simplicity in technology and high-value distributed audio, Sonance Volume Controls are the perfect choice. Available in rotary or slider control in Decora® or standard wall plate design. Choose as standard or impedance-matching versions with either a 30-watt or 60-watt power rating.

Edit Content

Outdoor Volume Control

The Sonance Outdoor Volume Control is the perfect choice for anyone wanting simple operation of their outdoor audio system. Encased in a weatherproof plastic enclosure, the 10-position rotary dial handles up to 60 watts per channel. Finished in a neutral light grey to blend into exterior wall finishes.
