Woofers

Subwoofers and Woofers

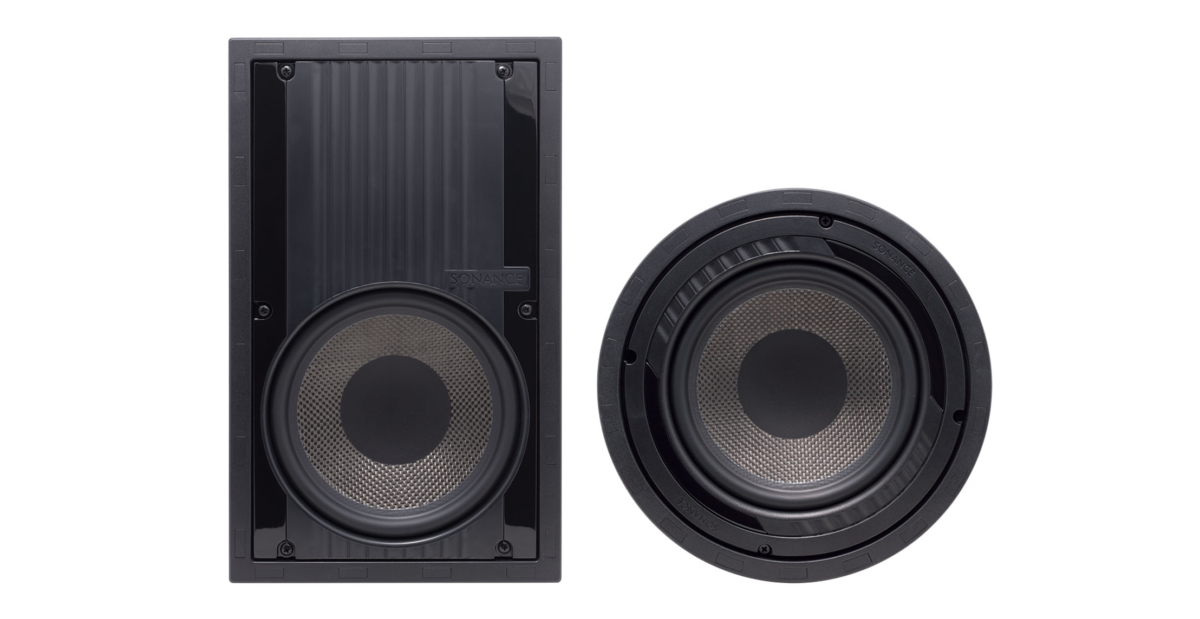

Woofers

  • Designed to enhance bass levels when combined with Visual Performance Series speakers.
  • Creates depth and fullness at low and medium listening levels and deep punchy bass at louder volumes.
  • Consistent low-profile design with other Visual Performance Series speakers.
  • Available in round, square or rectangle to achieve a consistent aesthetic.
VP85R W
VP85 W
Woofer
8″ (203mm) long-throw carbon fiber cone, rubber surround
8″ (203mm) long-throw carbon fiber cone, with a rubber surround
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Frequency Response
35Hz – 250Hz ±3dB
35Hz – 250Hz ±3dB
Power Handling
5 watts minimum; 150 watts maximum
5 watts minimum; 150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Speaker Depth
3 7/8″ (98mm)
3 7/8″ (98mm)
Dimensions
11 5/8″ (295mm)
10″ x 16″ (254mm x 406mm)
Cut-Out Dimensions
10 1/8″ (257mm)
8 1/2in x 14 1/2in (216mm x 368mm)
Grille Material
Perforated steel
Perforated steel
Shipping Weight
13 lbs (5.8 kg) each
13 lbs (5.8 kg) each
Requirement
*DSP 2-150 or DSP 8-130 MKII amplifiers sold separately
*DSP 2-150 or DSP 8-130 MKII amplifiers sold separately

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

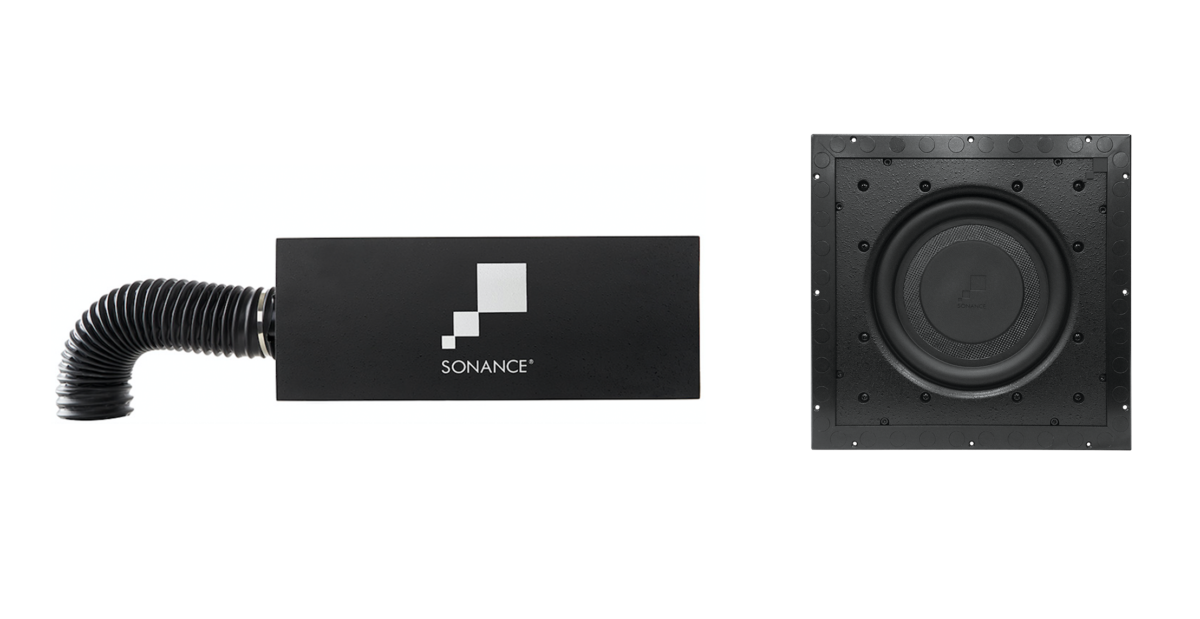

Subwoofers

Subwoofers and Woofers

Subwoofers

  • Finish solutions to match Visual Performance, Architectural Series, and TRUFIG style installations
  • Pair with Sonance DSP Amplifiers for custom-tuned performance
  • Designed for in-wall and in-ceiling applications, adding low end balance and removing visual intrusion
BPS8
VPSUB
Woofer
8″ (203mm) dual voice coil, carbon fiber/ Rohacell laminated cone with a rubber surround
10″ (254mm) laminated carbon fiber cone with a rubber surround
Frequency Response
30Hz – 90Hz – ±3dB
34Hz – 250Hz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
8 ohms nominal
Power Handling
150 watts maximum
260 Watts
Sensitivity
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Internal Crossover Frequency
90Hz @12dB per Octave
Cutout Dimensions
12 3/4″ x 12 3/4″ (324mm x 324mm)
Dimensions
24″ x 12 5/16″ x 9 1/4″ (610mm x 313mm x 235mm)
15″ x 15″ x 3 7/8″ (381mm x 381mm x 98mm)
Shipping Weight
45 lbs (20.41 kg) each
13 lbs (6kg)
Requirements
*VPBPC4R or VPBPC6R (Bandpass Connectors with Grilles); sold separately
*Sonance DSP 2-150 or DSP Sonance DSP 8-130 MKII (using two channels bridged)
Grille
6 7/8″ or 9 3/4″ (175mm or 248mm) diameter round, paintable perforated steel
15″ (381mm) square, paintable perforated steel
