In-Wall Subwoofer Enclosures

Reference Series Accessories

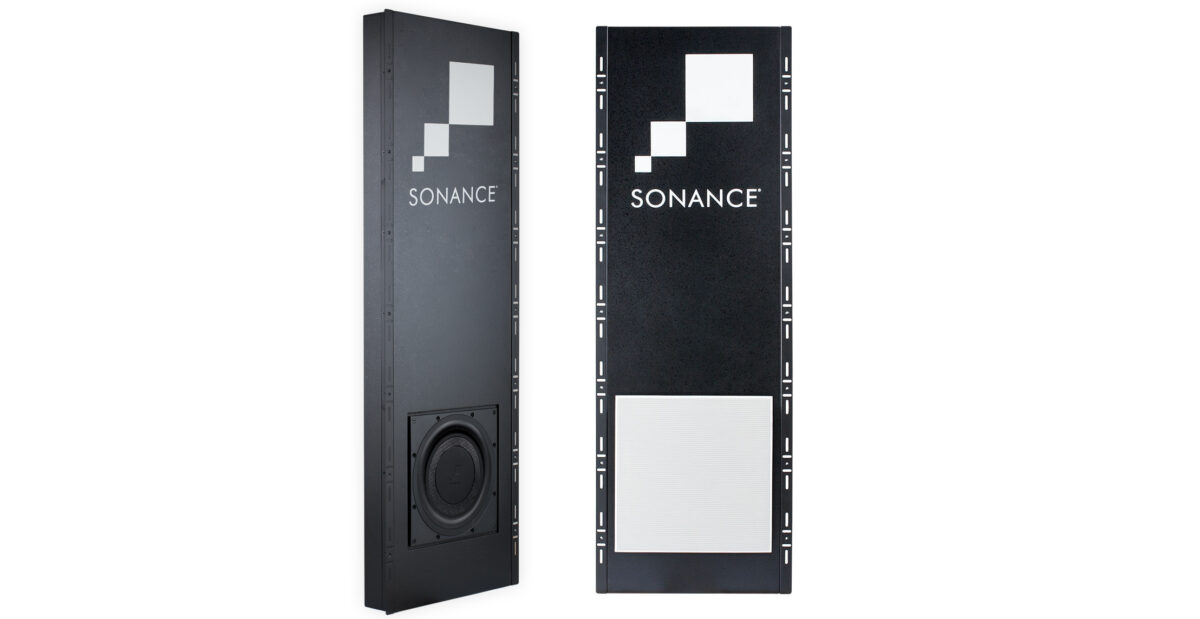

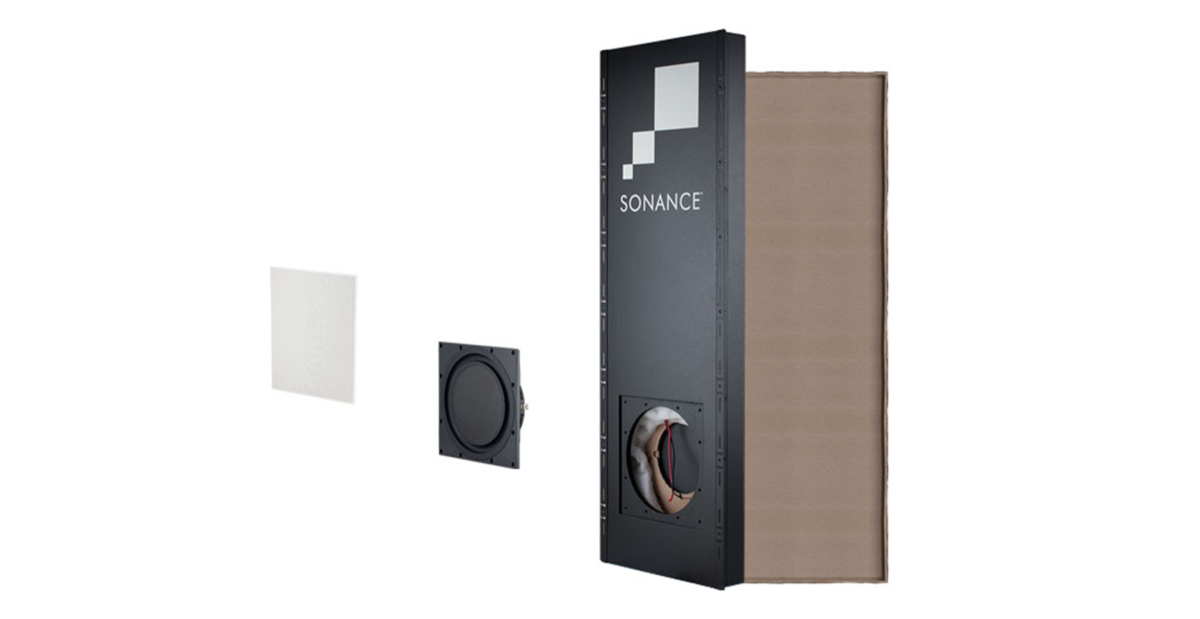

In-Wall Subwoofer Enclosures

Feature a combination of 1/2″ and 1″ MDF materials for superior isolation of bass; extruded aluminum bracing for minimal obstruction of airflow inside the enclosure; mass damping of front and back walls of enclosure; long-strand fiberglass internal damping for standing wave dissipation; dual positive and negative terminals for maximum wire connectivity; floating enclosure design minimizes vibration transfer to adjoining rooms; fits in standard 2×4 stud bay; blank pre-construction plate for easy installation

R10SUB ENC
R12SUB ENC
Internal Volume
.80 cubic feet (22.6 liters) of volume
1.20 cubic feet (34.3 liters) of volume
Material
MDF wood box with long strand fiberglass acoustic dampening material
MDF wood box with long strand fiberglass acoustic dampening material
Compatibility
For use with R10SUB only
For use with R12SUB only
Enclosure Dimensions (WxHxD)
14 1/4″ x 47 1/4″ x 3 7/16″ (362mm x 1200mm x 87mm)
14 1/4″ x 70 7/8″ x 3 7/16″ (362mm x 1800mm x 87mm)
Mounting Depth
3 3/8” (85.7mm)
3 3/8” (85.7mm)
Mounting Bracket Width
16 1/4” (409.5mm)
16 1/4” (409.5mm)
Hardware
Integrated L-bracket mounting system included
Integrated L-bracket mounting system included
Shipping Weight
51 lbs
79 lbs

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Visual Performance Surround

Visual Performance Surround

The CEDIA Hall of Fame Sonance Visual Performance Series features in-wall and in-ceiling LCR’s, Surrounds, and Subwoofers available for surround sound rooms. With three shapes and sizes, two performance levels, and a range of specialty application speakers, a consistent look can be achieved for any application in every space.

Edit Content

Cutting-edge development

Sonance Impact Subwoofers offer exceptional performance, wireless connectivity and app driven room correction, optimizing placement of the subwoofer anywhere in the room.

State-of-the-art materials

Sonance Visual Performance Series speaker drivers are constructed from state-of-the-art materials that are extremely rigid and lightweight. This enables the speaker to reproduce music and movies accurately and with precise detail.

For every ear and every budget

Sonance Visual Performance Series offers two performance levels and multiple sizes to ensure the perfect speaker is available to suit every ear and any budget.

Edit Content

Low-profile grille

Sonance Visual Performance Series features a low-profile grille aesthetic that provides a discrete design that blends cleanly into the wall or ceiling and is never distracting.

Match your wall or ceiling color

One-piece paintable grilles allow for a single-step painting process, ensuring a high quality result and accurate color matching that allows them to disappear into the surrounding wall or ceiling.

Shapes, sizes, applications

Three shapes and sizes provide the flexibility to complement the interior design and architecture cues of the space. With a speaker to suit any application, the same award winning aesthetic can be achieved in every room of the house.

Edit Content

Multiple surround options

With multiple shapes, sizes, and performance levels Sonance Visual Performance gives you the ability to design a perfect system for every room.

Direct the sound where you want it

Independently pivoting woofers and tweeters allow you to place your speakers where they look the best, while directing the sound for the best sonic performance.

Best-in-class grille fit

The high-strength magnetic retention system used in Visual Performance Series delivers a tight fit between the wall or ceiling, eliminating gaps and minimizing shadow lines.

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

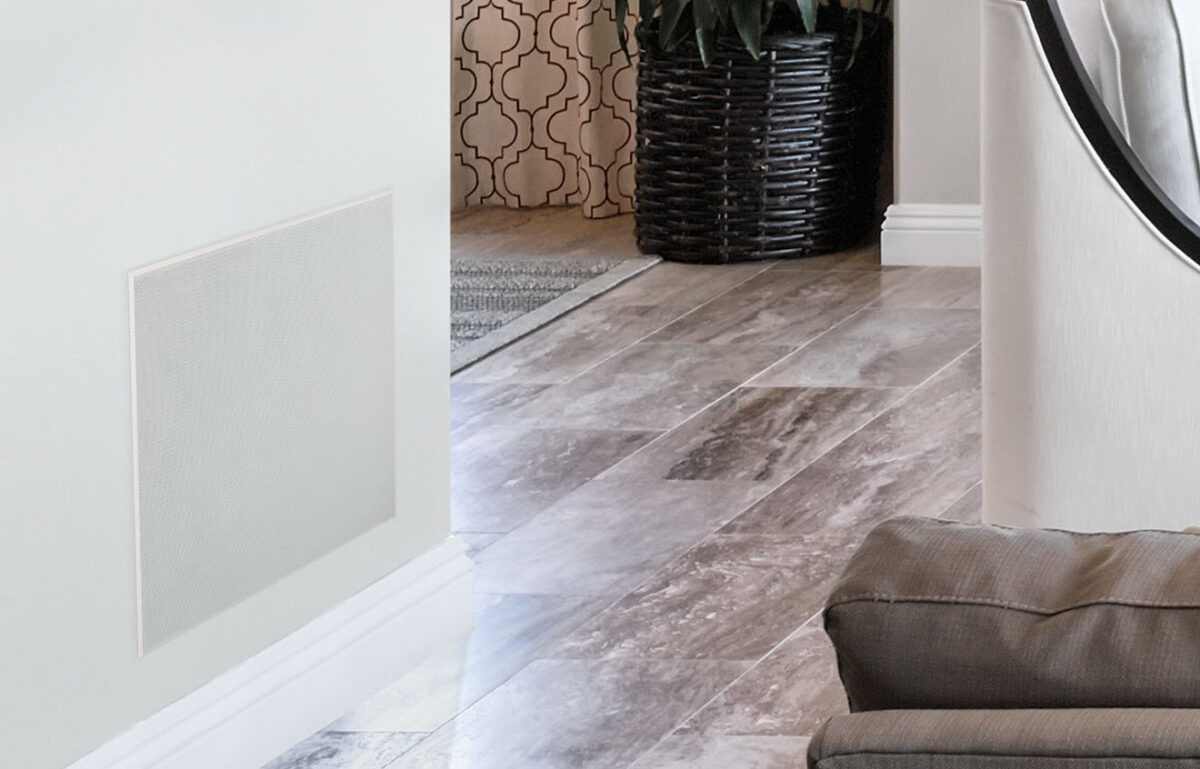

Surround Sound Subwoofers

Surround Sound Subwoofers

Sonance has a Subwoofer to suit every surround sound application. The range of in-wall, in-ceiling and cabinet subwoofers allows you to design a surround sound system that fits the style and space of your house.

Previous
Next
Edit Content

Cutting-edge development

Sonance Impact Subwoofers offer exceptional performance, wireless connectivity and app driven room correction, optimizing placement of the subwoofer anywhere in the room.

State-of-the-art materials

Sonance Visual Performance Series speaker drivers are constructed from state-of-the-art materials that are extremely rigid and lightweight. This enables the speaker to reproduce music and movies accurately and with precise detail.

For every ear and every budget

Sonance Visual Performance Series offers two performance levels and multiple sizes to ensure the perfect speaker is available to suit every ear and any budget.

Edit Content

Low-profile grille

Sonance Visual Performance Series features a low-profile grille aesthetic that provides a discrete design that blends cleanly into the wall or ceiling and is never distracting.

Match your wall or ceiling color

One-piece paintable grilles allow for a single-step painting process, ensuring a high quality result and accurate color matching that allows them to disappear into the surrounding wall or ceiling.

Shapes, sizes, applications

Three shapes and sizes provide the flexibility to complement the interior design and architecture cues of the space. With a speaker to suit any application, the same award winning aesthetic can be achieved in every room of the house.

Edit Content

Multiple surround options

With multiple shapes, sizes, and performance levels Sonance Visual Performance gives you the ability to design a perfect system for every room.

Direct the sound where you want it

Independently pivoting woofers and tweeters allow you to place your speakers where they look the best, while directing the sound for the best sonic performance.

Best-in-class grille fit

The high-strength magnetic retention system used in Visual Performance Series delivers a tight fit between the wall or ceiling, eliminating gaps and minimizing shadow lines.

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

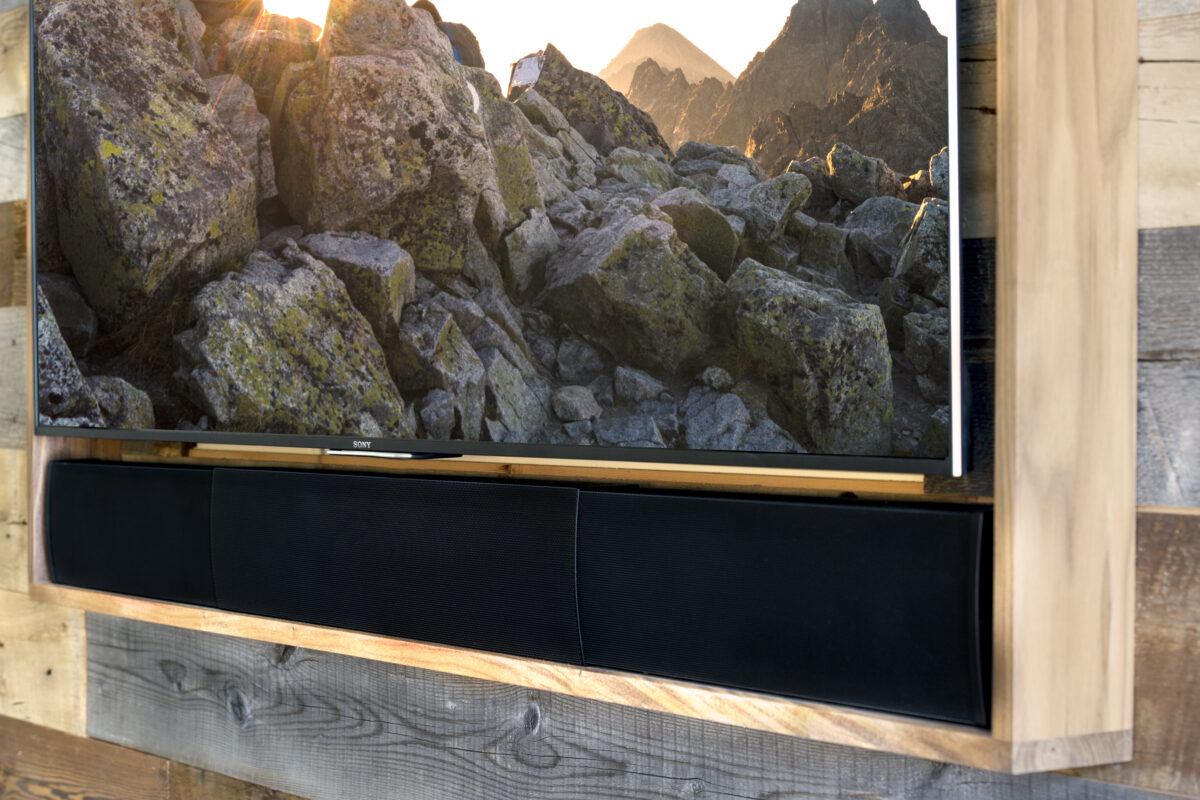

Soundbar Series

Soundbar

Sonance Soundbars feature an exclusive patent-pending adjustable width design that perfectly matches the dimensions of any 50” to 80” flat screen display. The minimalistic black perforated metal grille provides a seamless aesthetic that complements modern television designs, while the true 3-way speaker configuration and state-of-the-art driver materials deliver best-in-class sonic performance, with clarity, wide sound stage, and extremely natural sound.

Previous
Next
Edit Content

Cutting-edge development

Sonance Impact Subwoofers offer exceptional performance, wireless connectivity and app driven room correction, optimizing placement of the subwoofer anywhere in the room.

State-of-the-art materials

Sonance Visual Performance Series speaker drivers are constructed from state-of-the-art materials that are extremely rigid and lightweight. This enables the speaker to reproduce music and movies accurately and with precise detail.

For every ear and every budget

Sonance Visual Performance Series offers two performance levels and multiple sizes to ensure the perfect speaker is available to suit every ear and any budget.

Edit Content

Low-profile grille

Sonance Visual Performance Series features a low-profile grille aesthetic that provides a discrete design that blends cleanly into the wall or ceiling and is never distracting.

Match your wall or ceiling color

One-piece paintable grilles allow for a single-step painting process, ensuring a high quality result and accurate color matching that allows them to disappear into the surrounding wall or ceiling.

Shapes, sizes, applications

Three shapes and sizes provide the flexibility to complement the interior design and architecture cues of the space. With a speaker to suit any application, the same award winning aesthetic can be achieved in every room of the house.

Edit Content

Multiple surround options

With multiple shapes, sizes, and performance levels Sonance Visual Performance gives you the ability to design a perfect system for every room.

Direct the sound where you want it

Independently pivoting woofers and tweeters allow you to place your speakers where they look the best, while directing the sound for the best sonic performance.

Best-in-class grille fit

The high-strength magnetic retention system used in Visual Performance Series delivers a tight fit between the wall or ceiling, eliminating gaps and minimizing shadow lines.

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

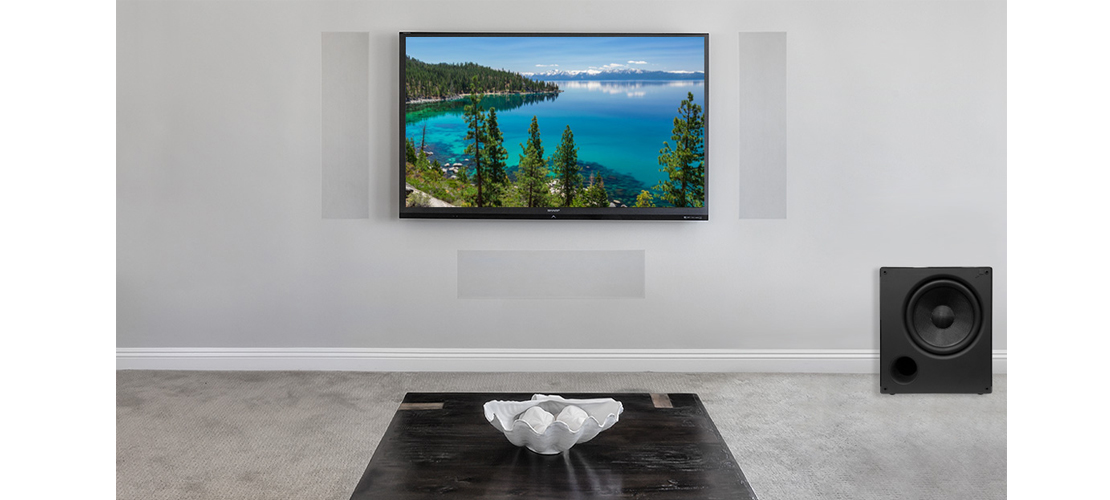

Impact Subwoofers

Subwoofer Series

Impact Subwoofers

Sonance Impact Subwoofers offer exceptional performance, wireless connectivity and app driven room correction, optimizing placement of the subwoofer anywhere in the room.

i12
i10
i8
Woofer
12″ (305mm) ultra long throw, glass fiber cone, rubber surround
10″ (254mm) ultra long throw, glass fiber cone, rubber surround
8″ (203mm) ultra long throw, glass fiber cone, rubber surround
Frequency Response
22Hz – 250Hz ±3dB
24Hz – 250Hz ±3dB
30Hz – 250Hz ±3dB
Power Output
400 watts RMS (800 watts peak)
300 watts RMS (600 watts peak)
200 watts RMS (400 watts peak)
Inputs
Line-level, speaker-level and low latency wireless
Line-level, speaker-level and low latency wireless
Line-level, speaker-level and low latency wireless
Controls
Crossover, phase and bypass
Crossover, phase and bypass
Crossover, phase and bypass
Dimensions (WxHxD)
16″ x 18″ x 16″ (407mm x 457mm x 407mm)
14″ x 16″ x 14″ (356mm x 407mm x 356mm)
12″ x 14″ x 12″ (305mm x 355mm x 305mm)

Accessories

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

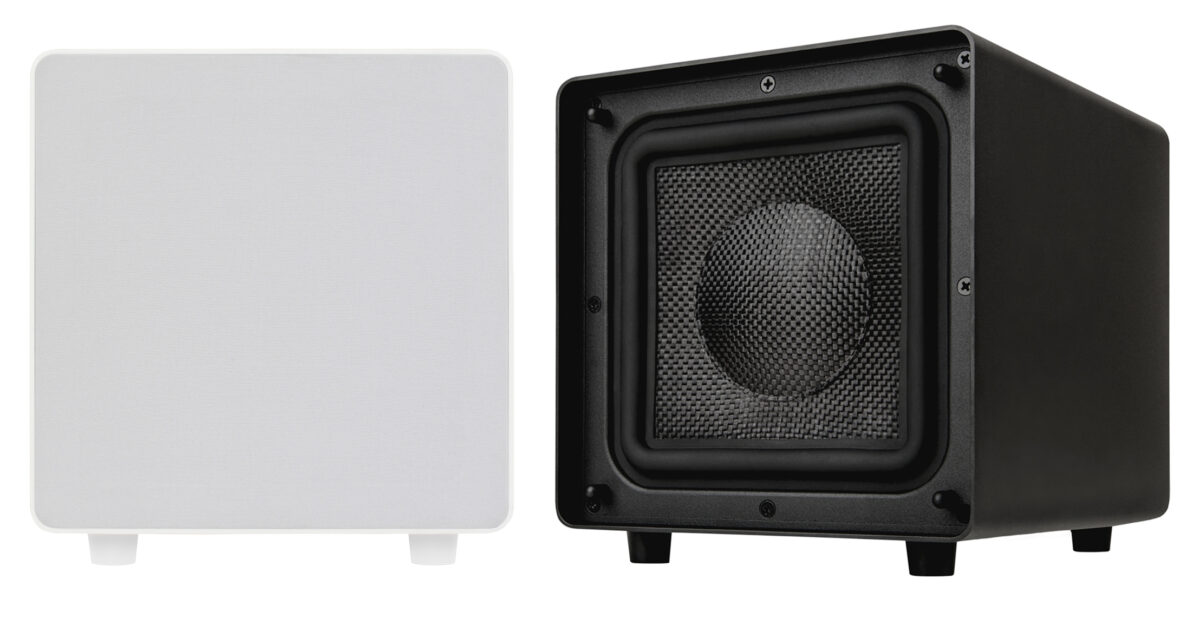

D8 Subwoofer

Subwoofer Series

D8 Subwoofer

The Sonance D8 features two powerful vibration canceling 8″ square drivers, wireless connectivity and our SonARC DSP technology, all within a sleek ultra-compact cabinet.

D8
Woofer
Two 8″ (203mm) ultra long throw, glass fiber cone, rubber surrounds
Frequency Response
32Hz – 250Hz ±3dB
Output Power
300 watts RMS (600 watts peak)
Inputs
Line-level, speaker-level and low latency wireless
Controls
Crossover, phase and bypass
Dimensions (WxHxD)
7.5″ x 8″ x 9″ (191mm x 203mm x 229mm)

Accessories

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Reference Series

Edit Content

Cutting-edge development

Sonance Impact Subwoofers offer exceptional performance, wireless connectivity and app driven room correction, optimizing placement of the subwoofer anywhere in the room.

State-of-the-art materials

Sonance Visual Performance Series speaker drivers are constructed from state-of-the-art materials that are extremely rigid and lightweight. This enables the speaker to reproduce music and movies accurately and with precise detail.

For every ear and every budget

Sonance Visual Performance Series offers two performance levels and multiple sizes to ensure the perfect speaker is available to suit every ear and any budget.

Edit Content

Low-profile grille

Sonance Visual Performance Series features a low-profile grille aesthetic that provides a discrete design that blends cleanly into the wall or ceiling and is never distracting.

Match your wall or ceiling color

One-piece paintable grilles allow for a single-step painting process, ensuring a high quality result and accurate color matching that allows them to disappear into the surrounding wall or ceiling.

Shapes, sizes, applications

Three shapes and sizes provide the flexibility to complement the interior design and architecture cues of the space. With a speaker to suit any application, the same award winning aesthetic can be achieved in every room of the house.

Edit Content

Multiple surround options

With multiple shapes, sizes, and performance levels Sonance Visual Performance gives you the ability to design a perfect system for every room.

Direct the sound where you want it

Independently pivoting woofers and tweeters allow you to place your speakers where they look the best, while directing the sound for the best sonic performance.

Best-in-class grille fit

The high-strength magnetic retention system used in Visual Performance Series delivers a tight fit between the wall or ceiling, eliminating gaps and minimizing shadow lines.

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Adjustable-Width Soundbar

Soundbar Series

Adjustable-Width Soundbar

  • Exclusive patent-pending adjustable-width design to perfectly match any display between 50″ and 80″
  • 3-way speaker design featuring coaxial midrange and tweeter plus dual high-excursion woofers for crystal clear dialog, precise detail and wide sound stage
  • Supplied with hardware for VESA TV mount, wall mount or table top
  • Discreet and minimalistic industrial design blends-in with most flat screen displays
  • Aircraft-grade extruded aluminum chassis and powder coated metal grille will not buckle, distort or discolor over time
  • Pair with Sonance surround speakers and Sonance subwoofer for perfect results
SB46L Soundbar
SB46M Soundbar
Tweeter
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
Midrange
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
Woofer
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
Frequency Response
90Hz – 20kHz ±3dB
90Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Recommended Power
50 watts minimum; 150 watts maximum
50 watts minimum; 150 watts maximum
Sensitivity
88dB SPL (2.83V/1 meter)
88dB SPL (2.83V/1 meter)
Grille Material
Perforated steel
Perforated steel
Height x Depth
5 9/32” x 2 9/16” (134mm x 65mm)
5 9/32” x 2 9/16” (134mm x 65mm)
Adjustable Width
61 1/2” to 77 5/16” (1562mm to 1964mm)
43 7/8” to 59 5/8” (1114mm to 1514mm)
Display Diagonal Size Range
70” – 80” (178cm to 203cm)
50” – 65” (127cm to 165cm)
Shipping Weight
35 lbs. (15.9kg) each
30 lbs. (13.6kg) each
IMPORTANT
Sonance Soundbars conform to 400mm and 600mm VESA mounting patterns. TV/Displays that do not support these standards will require VESA mounting adapters. Adapters are readily available from third party suppliers
Sonance Soundbars conform to 300mm and 400mm VESA mounting patterns. TV/Displays that do not support these standards will require VESA mounting adapters. Adapters are readily available from third party suppliers

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

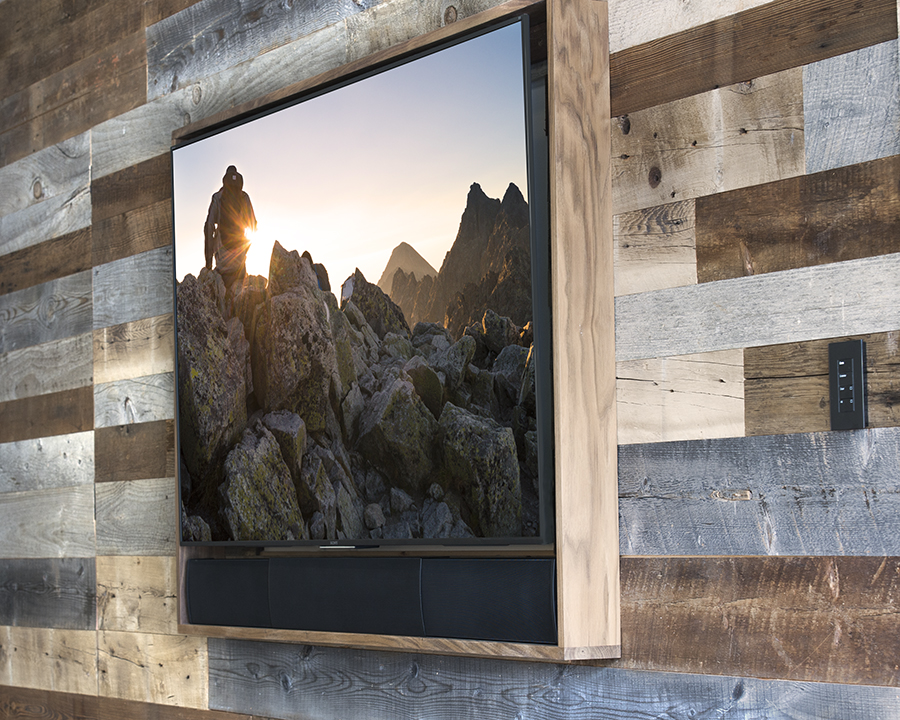

Sonance Soundbar

Soundbar Series

Sonance Soundbar

  • Sonance Soundbar combines 35 years of proven speaker performance with a sleek single-piece soundbar grille to perfectly match most television displays. With a soundbar to fit displays 55″, 65″, 75″ and 85″, Sonance Soundbar ensures a custom look and finish every time while providing class-leading audio performance.
SB46-55
SB46-65
SB46-75
SB46-85
Tweeter
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
Midrange
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
Woofer
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
Frequency Response
90Hz – 20kHz ±3dB
90Hz – 20kHz ±3dB
90Hz – 20kHz ±3dB
90Hz – 20kHz ±3dB
Impedance
8 Ohms nominal; 6 Ohms minimum
8 Ohms nominal; 6 Ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Recommended Power
50 watts minimum; 150 watts maximum
50 watts minimum; 150 watts maximum
50 watts minimum; 150 watts maximum
50 watts minimum; 150 watts maximum
Sensitivity
88dB SPL (2.83V/1 meter)
88dB SPL (2.83V/1 meter)
88dB SPL (2.83V/1 meter)
88dB SPL (2.83V/1 meter)
Height x Depth
5 9/32” x 2 9/16” (134mm x 65mm)
5 9/32” x 2 9/16” (134mm x 65mm)
5 9/32” x 2 9/16” (134mm x 65mm)
5 9/32” x 2 9/16” (134mm x 65mm)
Width
48.31″ (1227mm)
56.89″ (1445mm)
65.98″ (1676mm)
75.24″ (1911mm)
Matches Display Size (Diagonal)
55″ Display
65″ Display
75″ Display
85″ Display
Grille Material
Single piece perforated steel
Single piece perforated steel
Single piece perforated steel
Single piece perforated steel
IMPORTANT
Sonance Soundbars conform to 300mm and 400mm VESA mounting patterns. TV/Displays that do not support these standards will require VESA mounting adapters. Adapters are readily available from third party suppliers
Sonance Soundbars conform to 300mm and 400mm VESA mounting patterns. TV/Displays that do not support these standards will require VESA mounting adapters. Adapters are readily available from third party suppliers
Sonance Soundbars conform to 300mm and 400mm VESA mounting patterns. TV/Displays that do not support these standards will require VESA mounting adapters. Adapters are readily available from third party suppliers
Sonance Soundbars conform to 300mm and 400mm VESA mounting patterns. TV/Displays that do not support these standards will require VESA mounting adapters. Adapters are readily available from third party suppliers

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

In-Wall Subwoofers Reference

Reference Series

In-Wall Subwoofers

  • Designed for installation during the construction or renovation process
  • Enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion
  • State-of-the-art design and cutting-edge materials deliver the bass of a large cabinet subwoofer without sacrificing floor space
  • Available in 10″ or 12″ models to suit any sized room or available wall space
  • Provides an aesthetic consistent with Sonance Visual Performance Series
  • Pair with Sonance DSP Amplifiers for custom-tuned performance
R12SUB
R10SUB
Woofer
12” (305mm) laminated carbon fiber cone with a rubber surround
10” (254mm) laminated carbon fiber cone with a rubber surround
Frequency Response
25Hz – 250Hz ±3dB
30Hz – 250Hz ±3dB
Impedance
8 ohms nominal
8 ohms nominal
Sensitivity
90dB (2.83V/1) meter
88dB (2.83V/1) meter
Required Enclosure
R12SUB ENC acoustic enclosure (sold separately)
R10SUB ENC acoustic enclosure (sold separately)
Required Amplification
Sonance DSP2-750 (set for 8 Ohm operation)
Sonance DSP2-150 or Sonance DSP8-130MKII (using two channels bridged)
Dimensions Woofer (WxHxD)
12 3/8” x 12 3/8” x 3 5/32” (314mm x 314mm x 80.2mm)
10 7/16” x 10 7/16” x 3 5/32” (265mm x 265mm x 80.2mm)
Dimensions With Grill (WxHxD)
15” x 15” x 5/32” (381mm x 381mm x 4mm)
13 1/16” x 13 1/16” x 5/32” (332mm x 332mm x 4mm)
Required
*Sonance R12SUB ENC Subwoofer Enclosure (sold seperately)
*Sonance R10SUB ENC Subwoofer Enclosure (sold separately)

Accessories

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now
