Series: Tessen Line Array Series

TNA-2800SA

Post date April 4, 2023

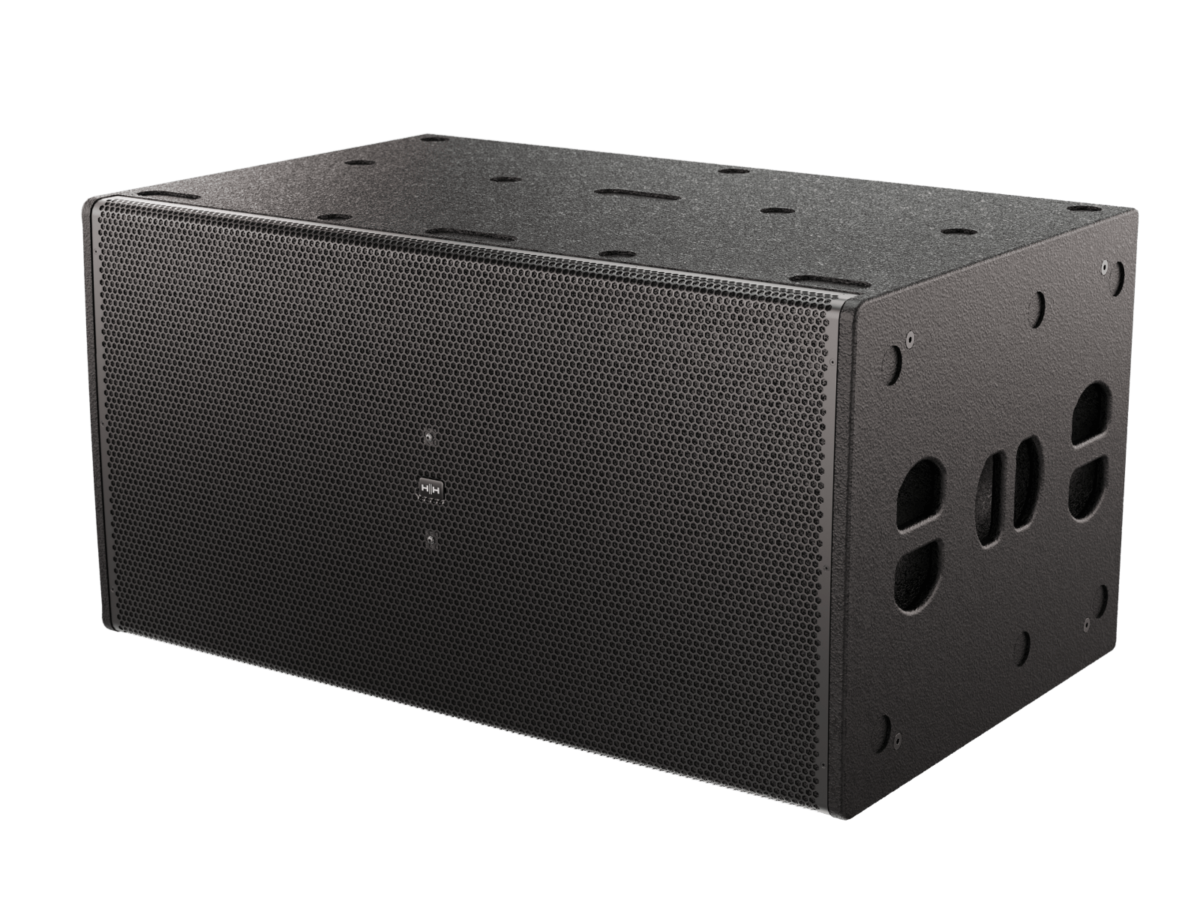

TNA-2800SA

Active Sub Enclosure

The TNA-2800SA Active subwoofer features two HH designed 18″ low frequency woofers with exceptionally high output. Equipped with integrated rigging hardware, the TNA-2800SA can be installed quickly and easily. The TNA-2800SA offers a max SPL of 144 dB and offers a frequency response as low as 32Hz. The TNA-2800SA offers an ideal venue installation or point source solution. Ideal for bars, clubs, venues, schools, sports, gyms, hotels and more.

SPECIFICATIONS

Accessories
4 x Heavy Duty 100mm PU Castors included in the box)
System Type
Dual 18″ Active Subwoofer, Direct Radiating, Bass Reflex
Frequency Response (-10)
32Hz – 100Hz
Frequency Response (-3)
37Hz – 100Hz
LF Driver
2 x 18-inch High sensitivity HH designed driver. 4-inch Voice Coil
Max SPL
144 dB
Crossover Frequency
Active – 70Hz to full range
Power
8000W Peak, 4000W Continuous, 2000W RMS
Input Sensitivity
0dBu to +10dBu Adjustable
Input Connector
Balanced Female XLR

Output Connector
Balanced Male XLR (Switchable Full Range/Xover)
Controls
Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
Cabinet
Acoustically optimised 18mm plywood cabinet with extensive internal bracing
Finish
Painted Black (White finish optional, subject to MOQ)
Mounting Points
8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for included transport wheels
Grille
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Unit Dimensions (Hwd)
562 x 1080 x 685mm, (22.1″ x 42.5″ x 27″)
Unit Weight
77.7Kg, 171 lbs
Carton Dimensions (Hwd)
700 x 1280 x 815mm, (27.6″ x 50.4″ x 32.1″) , (0.73 M3)
Packed Weight
91Kg, 201 lbs

BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver unrivaled performance tailored towards live sound reinforcement.

Tab Item Content

Template is not defined.

ARE YOU INTERESTED TO LEARN MORE ABOUT HH ELECTRONICS?

Speak to one of our Consultants now

TNA-DF1

Post date December 2, 2020

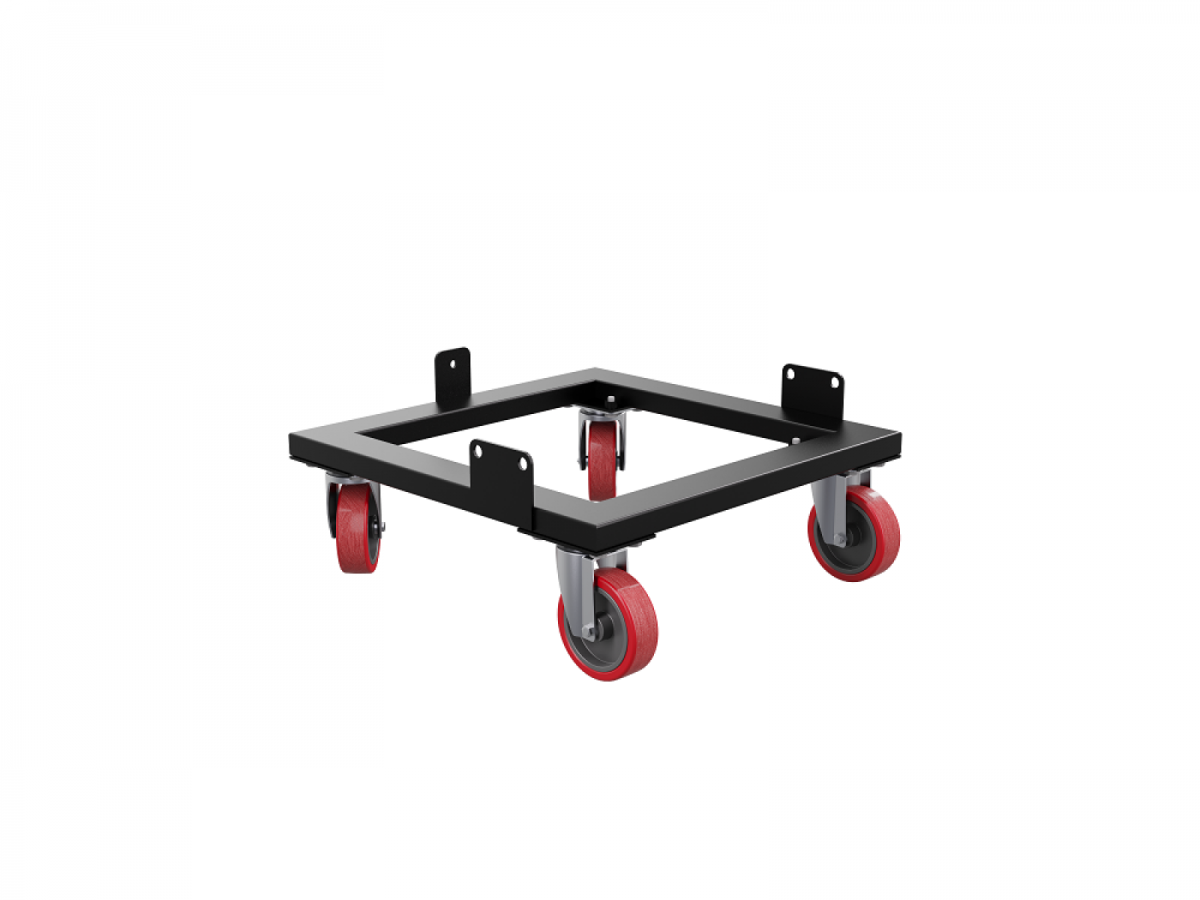

TNA-DF1

Tessen Line Array Accessories

The TNA-DF1 solid steel dolly frame attaches securely to the TNS-1200s passive sub woofer to transform the TNA system into a fully portable line array.

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

Applications

Retail outlets
Cafes, bars and restaurant chains
Hotels and convention centres
Educational facilities
Corporate offices

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

APPLICATION

TESSEN TNA RAISES THE BAR FOR HH.

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The TNA line array range features outstanding quality and customisable options for live sound solutions. Included within the TNA range are the TNA-2051; dual 5 inch mid/high passive line array enclosure and the tna-1200s; 12-inch passive subwoofer. The TNA range provides choice solutions for live sound installation or portable, ground stacked front of house systems.

Tab Item Content

Template is not defined.

TNA-BRK1

Post date December 2, 2020

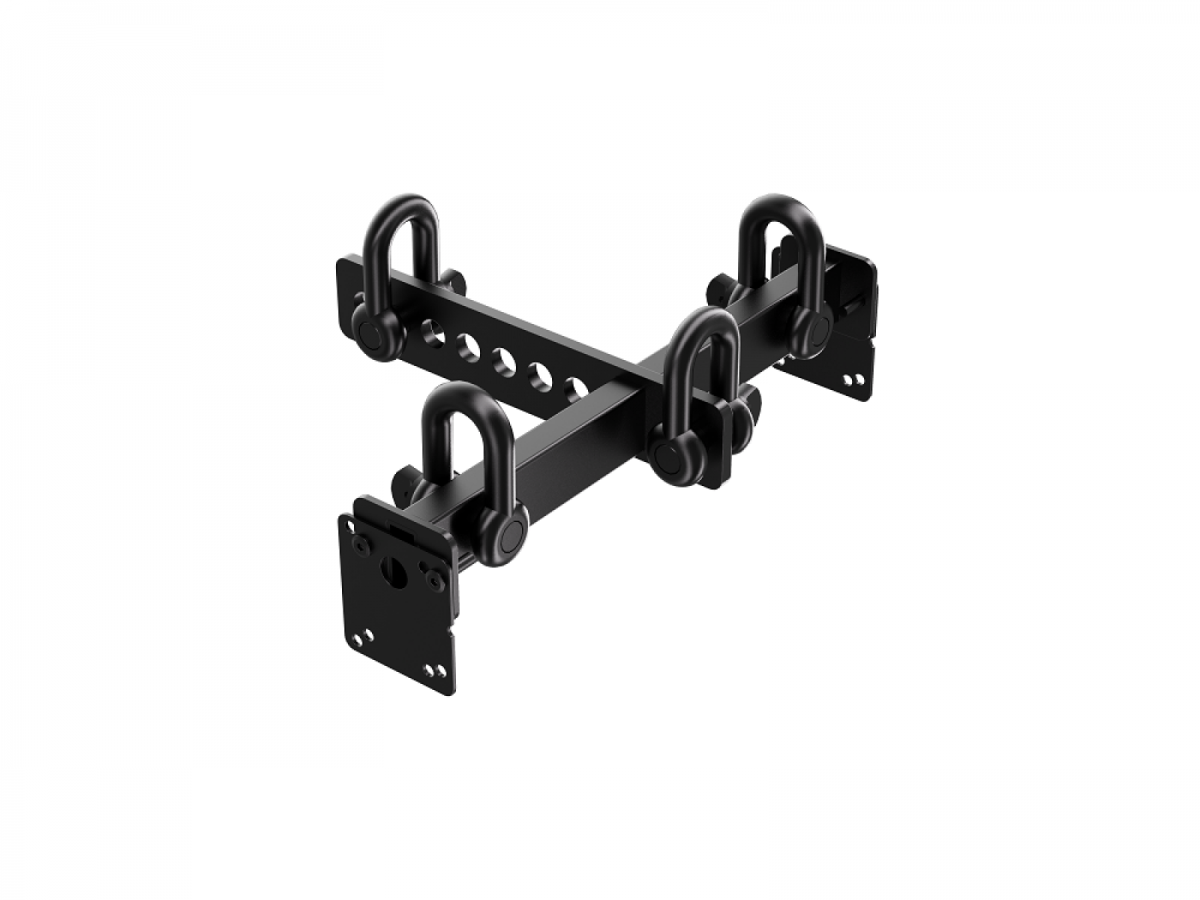

TNA-BRK1

Tessen Line Array Accessories

The TNA-BRK1 solid steel bracket attaches securely to the the TNS-1200s or TNA-2051 to allow secure flying suspension of the TNA system.

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

Applications

Retail outlets
Cafes, bars and restaurant chains
Hotels and convention centres
Educational facilities
Corporate offices

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

APPLICATION

TESSEN TNA RAISES THE BAR FOR HH.

Tab Item Content

Template is not defined.

TNA-1200S

Post date December 1, 2020

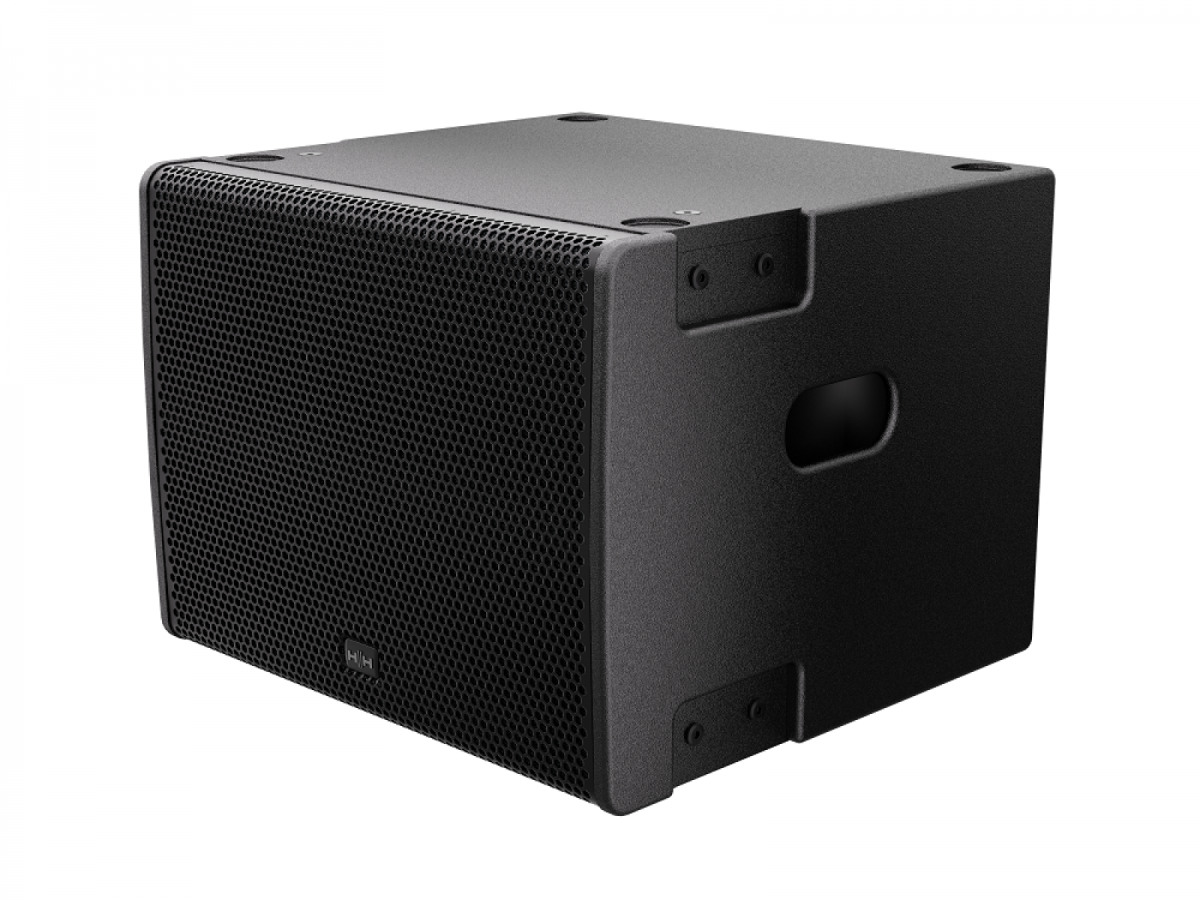

TNA-1200s

12-inch HH designed woofer

The TNA-1200s passive line array subwoofer features a high power 12-inch low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1200s can be installed quickly and easily. The TNA-1200s delivers a max SPL of 125dB with a wide frequency range of 35hz > 2kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

Applications

Retail outlets
Cafes, bars and restaurant chains
Hotels and convention centres
Educational facilities
Corporate offices

Features

12-inch HH designed woofer
Max SPL (1m) (peak): 125 db
Power rating: 1200w peak, 600w continuous, 300w aes
Frequency response (-10): 35hz > 2khz
8-ohm nominal system impedance
15mm plywood cabinet

APPLICATION

TESSEN TNA RAISES THE BAR FOR HH.

Accessories

TNA-BRK1

Solid steel bracket for TNS-1200s or TNA-2051

TNA-1800S

Post date December 1, 2020

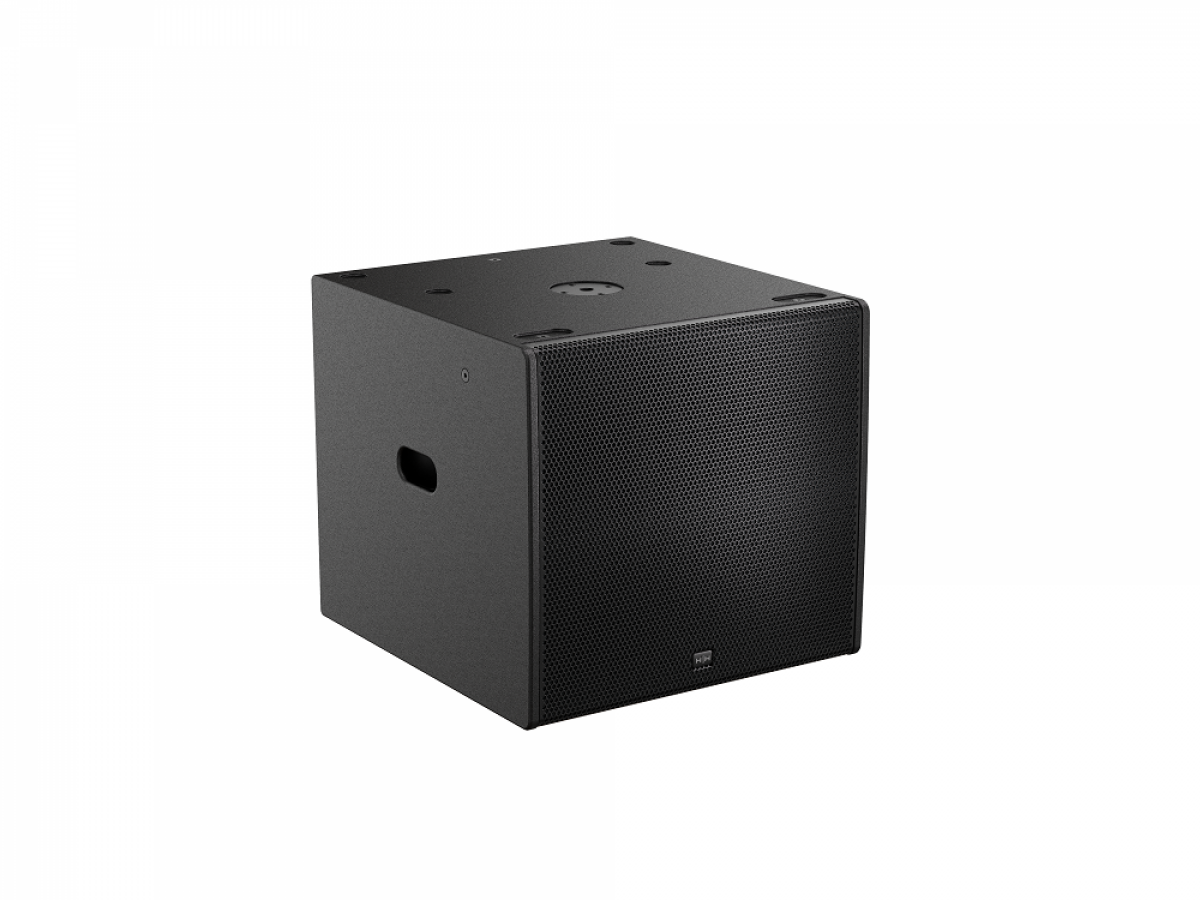

TNA-1800S

High sensitivity/long throw Celestion 18” woofer

With performance that exceeds expectations, the new TESSEN TNA-1800s 18-inch passive subwoofer is an essential addition to any professional audio set up. Custom-engineered design provides seamless integration with high/mid cabs and tailoring the system to the venue and application.

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

Applications

Retail outlets
Cafes, bars and restaurant chains
Hotels and convention centres
Educational facilities
Corporate offices

Features

High sensitivity, long throw Celestion 18” woofer gives deep musical bass with fast dynamic response
5 x M10 inserts for installations and as secure tie down points for floor stacked applications
M20 pole mount
NL4 locking input socket and NL4 link output

APPLICATION

TESSEN IS THE PROFESSIONALS’ CHOICE.

With performance that exceeds expectations the new TESSEN subwoofers are an essential addition to any professional audio set up. Custom-engineered digital processing provides seamless integration with hi/mid cabs and tailoring of response to the venue and application.

Accessories

TNA-DF1

Solid steel dolly frame for TNS-1200s

TNA-2051

Post date November 22, 2020

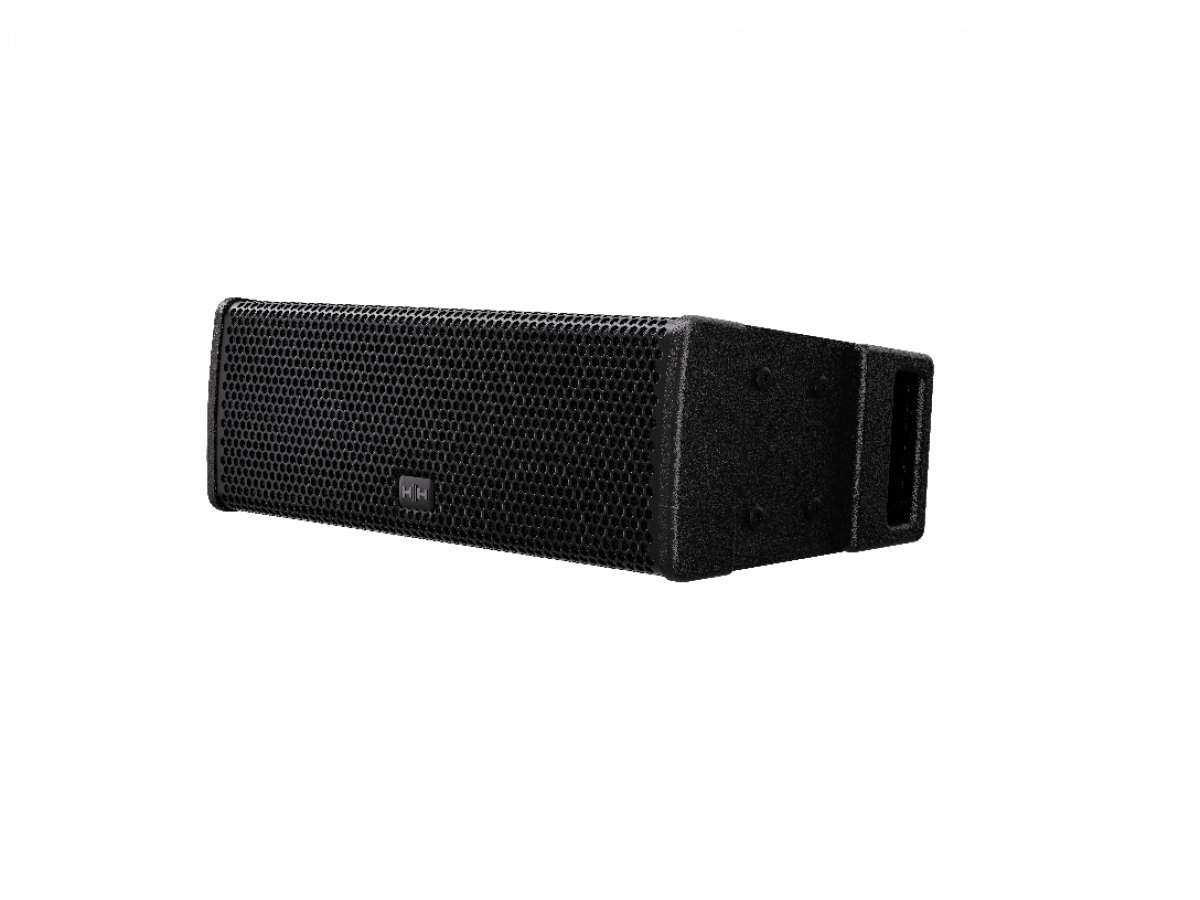

TNA-2051

Dual 5 inch mid/high passive line array enclosure

The TNA-2051 passive line array mid/high enclosure features dual 5-inch HH designed drivers alongside a 1.33-inch custom designed Celestion compression driver, mounted to a custom designed Celestion wave guide and horn. Equipped with integrated rigging hardware, the TNA-2051 can be installed efficiently. The TNA-2051 delivers a max SPL of 124dB with a wide frequency range of 65Hz > 20kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet

Applications

Retail outlets
Cafes, bars and restaurant chains
Hotels and convention centres
Educational facilities
Corporate offices

Features

Dual 5-inch HH designed woofers
Custom designed Celestion compression driver, waveguide & horn
Power rating: 800w peak, 400w continuous, 200w aes
Max spl (1m) (peak): 124 db
Frequency response : 65hz-20khz
16-ohm nominal system impedance
15mm plywood cabinet
