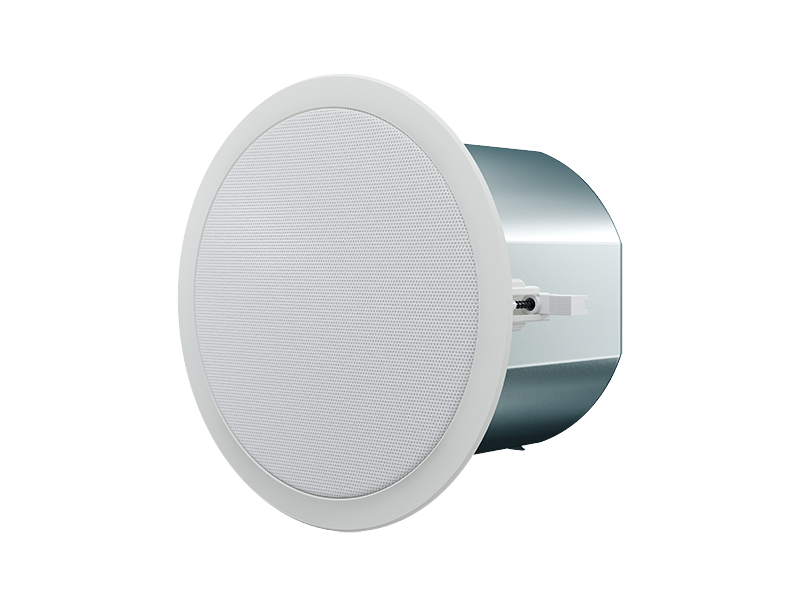

Up 6

Up 6

Two-way passive, full-range 6” ceiling speaker

Up 6 is a no-compromise two-way, passive 6” ceiling speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments that require higher sound pressure levels — from hotels and concourses to retail outlets, bars and restaurants.

An integral fixing system is included to achieve a simple and clean installation.  Up 6 has a steel back can and perforated steel grille and is finished in neutral white.

Up 6 features a 6” (162mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction.  A conical 110° coverage pattern ensures consistent, high performance sound where it needs to go.

Each Up 6 can be run on a variety of 70 or 100 volt taps, or at low impedance. The 16 ohm setting allows up to four units to be connected to each amplifier channel at low impedance. Tap selection is via a rotary switch behind the removable grille.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

Features

  • 6” coaxial driver
  • Discreet size
  • Unobtrusive design
  • 8 ohm or 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential

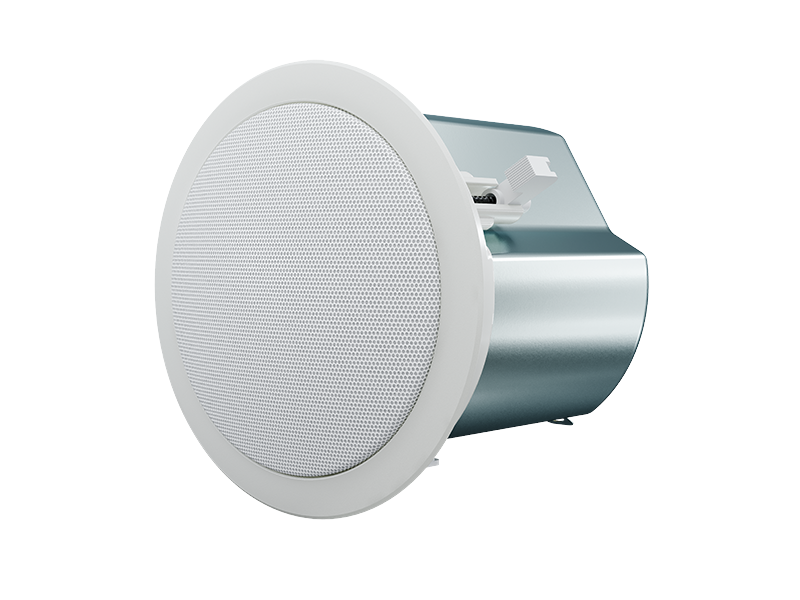

Up 4

Up 4

Two-way passive, full-range 4” ceiling speaker

Up 4 is a discreet, two-way 4” ceiling speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments — from hotels and concourses to retail outlets, bars and restaurants.

An integral fixing system is included to achieve a simple and clean installation.  Up 4 has a steel backcan and perforated steel grille and is finished in neutral white.

Up 4 features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 120° coverage pattern ensures consistent sound where it needs to go.

Each Up 4 can be run on a variety of 70 or 100 volt taps, or at low impedance. Tap selection is via a rotary switch behind the removable grille.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

Features

  • 4” coaxial driver
  • Discreet size
  • Unobtrusive design
  • 8 ohm or 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential

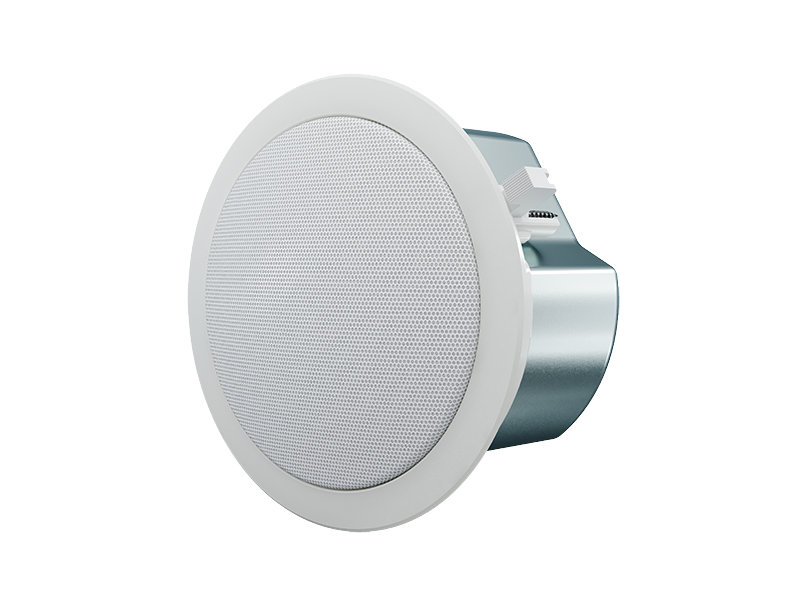

Up 4S

Up 4S

Two-way passive, full-range, low profile 4” ceiling speaker

Up 4S is a discreet, two-way, passive 4” speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments — from hotels and concourses to retail outlets, bars and restaurants.

Up 4S features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction.

The wide 150° conical coverage of Up 4S makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage leading to a reduction in installation cost. A shallow steel back can allows installation in ceilings with minimal cavity depth. An integral fixing system is included to achieve a simple and clean installation.  Up 4S has a steel back, perforated steel grille and finished in neutral white.

Each Up 4S can be run on a variety of 100 or 70 volt taps, or at low impedance. Tap selection is via a rotary switch behind the removable grille.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

Features

  • 4” coaxial driver
  • Discreet size with shallow back can
  • Unobtrusive design
  • 8 ohm or 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential

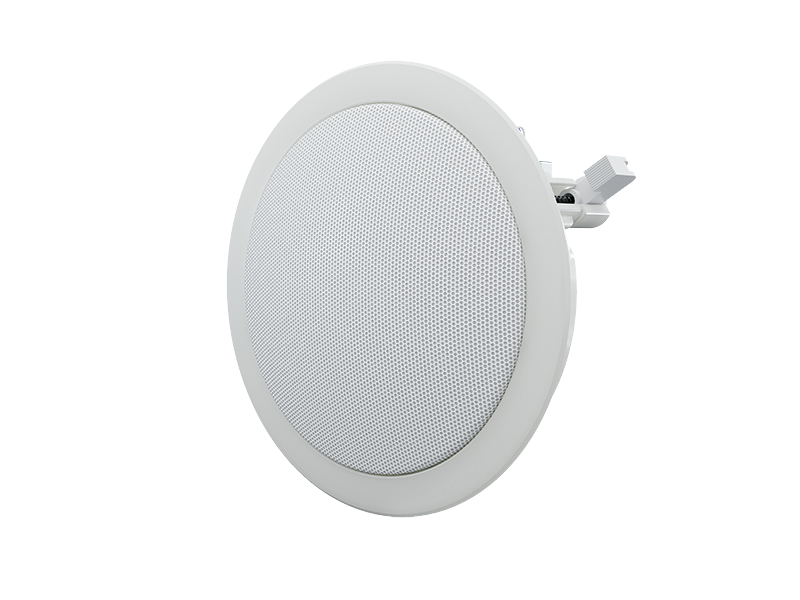

Up 4O

Up 4O

Full-range, open-backed, 4” ceiling speaker

Up 4O is a discreet 4” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments — from hotels and concourses to retail outlets, bars and restaurants.

Up 4O is supplied without a back can for ceilings with a minimum cavity depth, while an integral fixing system is included to achieve a simple and clean installation. The steel perforated grille a is finished in neutral white.

Up 4O features a 4” (105mm) driver which is ideal for both music and speech reproduction.  A 130° conical coverage pattern ensures the system is delivering sound where it needs to go.

Each Up 4O has been specifically designed to run on 70 or 100 volt line systems.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

Features

  • 4” full range driver
  • Discreet size without back can
  • Unobtrusive design
  • 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential

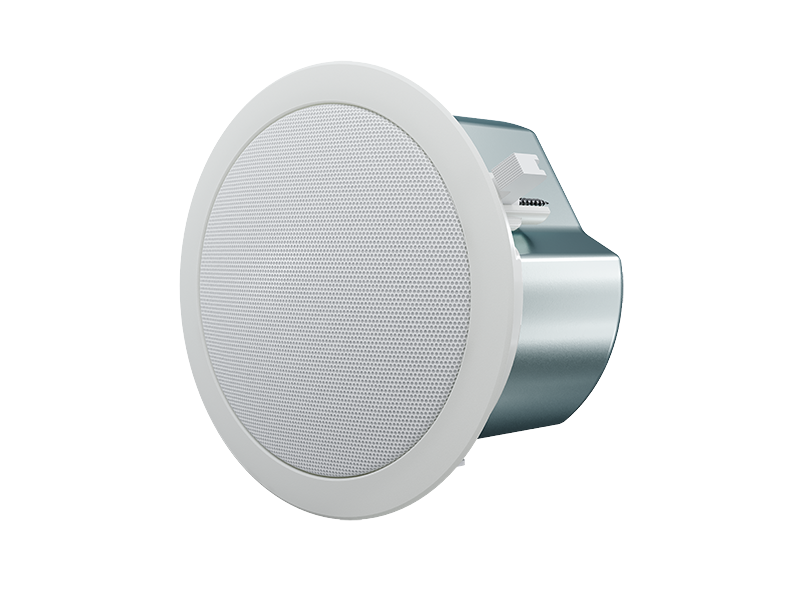

Up 3

Up 3

Full range, 3” ceiling speaker

Up 3 is a discreet, passive, 3” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments — from hotels and concourses to retail outlets, bars and restaurants.

An integral fixing system is included to achieve a simple and clean installation.  Up 3 has a perforated steel grille and is finished in neutral white.

It features a 3” (78mm) driver which is ideal for both background music and speech reproduction. A conical 130° coverage pattern ensures consistent sound where it needs to go.

Each Up 3 can be run on a variety of 100 or 70 volt taps. Tap selection is via a rotary switch behind the removable grille.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

Features

  • 3” full range driver
  • Discreet size
  • Unobtrusive design
  • 8 ohm or 70/100V line operation
  • Range of power taps
  • Wide conical coverage pattern
  • Integrated mounting hardware

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
