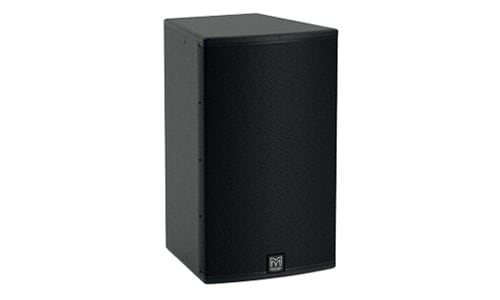

V.15

V.15

High Power 15" Two-Way Passive

With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.

Features

  • Full-range, passive two-way system
  • KTV specific voicing
  • Enhanced bass response from rear ports
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Family and Premium KTV
  • Music bars

The V.15 is a very high-power, passive two-way system designed for premium Karaoke installations that demand the ultimate performance and output from a single enclosure.

It features a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response. Its 80° x 50° coverage pattern is ideal for medium-throw applications, and it delivers superior vocal performance at very high sound levels without harshness. Twin rear ports couple with adjacent walls and ceiling to enhance low frequency output and extension.

The enclosure of the V.15 is constructed from 18mm engineered wood fibre and finished in black textured paint. A cloth-backed protective steel grille protects the drivers, and M8 inserts are provided for eyebolt suspension and installation.

Edit

WB10/12B / WB10/12W

Wall Bracket,
available in black or white

HTKCT05

M8 Eye Bolt
8mm

Edit

VIA5002

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

1600 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

ARE YOU INTERESTED TO LEARN MORE ABOUT MARTIN AUDIO?

Speak to one of our Consultants now

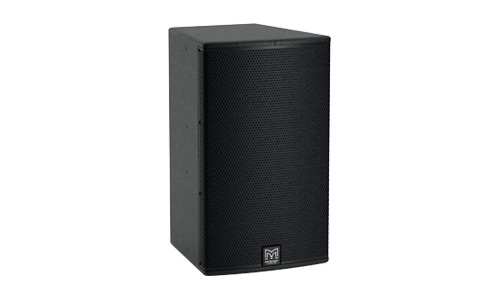

V.12

V.12

Compact 12" Two-Way Passive

With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.

Features

  • Full-range, passive two-way system
  • KTV specific voicing
  • Enhanced bass response from rear port
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Family and Premium KTV
  • Music bars

The V.12 is a high-performance, two-way entertainment system. With a maximum SPL of 130dB peak @ 1m, it is idea for KTV rooms that require high sound levels and vocal clarity from a compact enclosure. It features a 12” (300mm)/2.5” (63mm) voice coil LF driver unit and a 1” (25mm) exit compression driver with a 1.4” (35mm) polyimide diaphragm on a rotatable 80° x 50° HF horn.

It produces impressive low frequency output from its optimised, compact, rear-ported trapezoid enclosure without the need for an additional subwoofer when mounted close to a wall or ceiling. The V.12’s trapezoid enclosure is constructed from 15mm engineered wood fibre and fitted with multiple M8 inserts for eyebolt suspension and installation.

Edit

WB10/12B / WB10/12W

Wall Bracket,
available in black or white

HTKCT05

M8 Eye Bolt
8mm

Edit

VIA5002

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

1600 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

ARE YOU INTERESTED TO LEARN MORE ABOUT MARTIN AUDIO?

Speak to one of our Consultants now

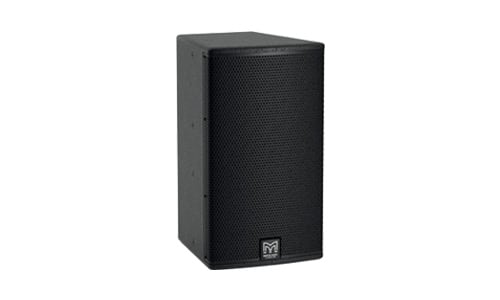

V.10

V.10

Compact 10" Two-Way Passive

With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.

Features

  • Full-range, passive two-way system
  • KTV specific voicing
  • Enhanced bass response from rear port
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Family and Premium KTV
  • Music bars

The V.10 is very compact, two-way passive loudspeaker designed for family KTV rooms which call for superior sound over short throw distances. It utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm.

It is capable of high output levels for its small size and its rotatable 90° x 50° HF horn provides extremely smooth coverage. Equal horizontal and vertical horn mouth dimensions ensure its excellent directivity control is maintained in both planes. The V.10’s trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.

Edit

WB10/12B / WB10/12W

Wall Bracket,
available in black or white

HTKCT05

M8 Eye Bolt
8mm

Edit

VIA2502

2-CHANNEL CLASS D AMPLIFIER
LIGHTWEIGHT 2U RACK HEIGHT

450 Watts/Channel @ 8 Ohms

Edit

DX0.5

DSP-BASED
SYSTEM CONTROLLER

2-in-6-out

ARE YOU INTERESTED TO LEARN MORE ABOUT MARTIN AUDIO?

Speak to one of our Consultants now
