ThinLine

Visual Performance Series

ThinLine

  • 34% shallower than standard-depth Visual Performance Series models.
  • Pivoting tweeter.*
  • Perfect for restricted mounting depths or obstructions found during installation where a conventional speaker is too deep.
  • Identical size cutout and grille for a perfect aesthetic match to other Visual Performance Series speakers.

*excluding VP62R SST/ SUR TL

VP62R SST/SUR TL
VP62R TL
VP66R TL
VP66 TL
VP52R UTL
Tweeter
Two 1″ (25mm) cloth domes, Ferrofluid-cooled, in acoustic back chamber
1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) powder coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) cloth dome, Ferrofluid-cooled, in acoustic back chamber
Woofer
6 1/2″ (165mm) textured polypropylene cone with a rubber surround
6 1/2″ (165mm) textured polypropylene cone with a rubber surround
6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround
6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround
5 1/4″ (133mm) polypropylene cone with a rubber surround
Frequency Response
45Hz – 20kHz ±3dB
45Hz – 20kHz ±3dB
43Hz – 20kHz ±3dB
43Hz – 20kHz ±3dB
75Hz – 20kHz +/- 3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 125 watts maximum
5 watts minimum; 125 watts maximum
5 watts minimum; 140 watts maximum
5 watts minimum; 140 watts maximum
5 watts minimum; 80 watts maximum
Sensitivity
89dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
Speaker Depth
3 5/32″ (80mm)
3 5/32″ (80mm)
3 5/32″ (80mm)
2 1/2″ (64mm)
1 7/16″ (36.2mm)
Dimensions
9 3/4″ (248mm)
9 3/4″ (248mm)
9 3/4″ (248mm)
8 3/8″ x 12 1/4″ (213mm x 311mm)
9 3/4″ (248mm) Diameter
Cut-Out Dimensions
8 1/4″ (210mm)
8 1/4″ (210mm)
8 1/4″ (210mm)
6 15/16″ x 10 3/4″ (176mm x 273mm)
8 1/4″ (210mm) Diameter
Grille Material
Perforated steel
Perforated steel
Perforated steel
Perforated steel
Perforated steel
Shipping Weight
5 lbs (2.3kg) each
9 lbs (4.1kg) pair
9 lbs (4.1kg) pair
9 lbs (4.1kg) pair
9 lbs (4.1kg) pair

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

LCR

Visual Performance Series

LCR

  • Easily mounted vertically or horizontally depending on install needs for Left and Right speakers or Center Channel.
  • Combines elegant, modern style with outstanding sonic performance.
  • Two performance levels to accommodate any ear or budget.
  • Pair with Visual Performance Series SST/SUR speakers for surround sound.
VP62 LCR
VP66 LCR
Tweeter
1″ (25mm) cloth dome, Ferrofluid-cooled, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled in acoustic back chamber
Woofer
Two 6 1/2″ (165mm) textured polypropylene cones with a rubber surround
Two 6 1/2″ (165mm) Kevlar / Nomex laminated cones with a rubber surround
Frequency Response
45Hz – 20kHz ±3dB
43Hz – 20kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 125 watts maximum
5 watts minimum; 140 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
91dB SPL (2.83V/1 meter)
Speaker Depth
3 9/16″ (91mm)
3 9/16″ (91mm)
Dimensions (W x H )
16 1/8″ x 8 3/8″ (410mm x 213mm)
16 1/8″ x 8 3/8″ (410mm x 213mm)

Shared Specifications

  • 16 1/8″ (410mm) x 8 3/8″ (213mm)
  • Cut-Out Dimensions (W x H)
    6 7/8″ (175mm) x 14 1/2″ (368mm)
  • 3 9/16″ (91mm)
  • Perforated Steel
  • Shipping Weight
    8 lbs (3.6kg) each

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

VP Extreme

Visual Performance Series

Visual Performance Extreme

  • The Sonance XPC Grille Retention Technology® ensures the grille is held securely in place even during high pressure washing
  • Engineered to handle extreme temperature and humidity areas from -30º F up to +175º F (-34º C up to + 79º C) while still maintaining superior Sonance sound quality
  • Powder-coated marine-grade stainless steel grille to avoid corrosion
  • Conforms to Military Standard 810G  for humidity, salt spray, temperature and UV
  • IP-66 rated for powerful jets of water

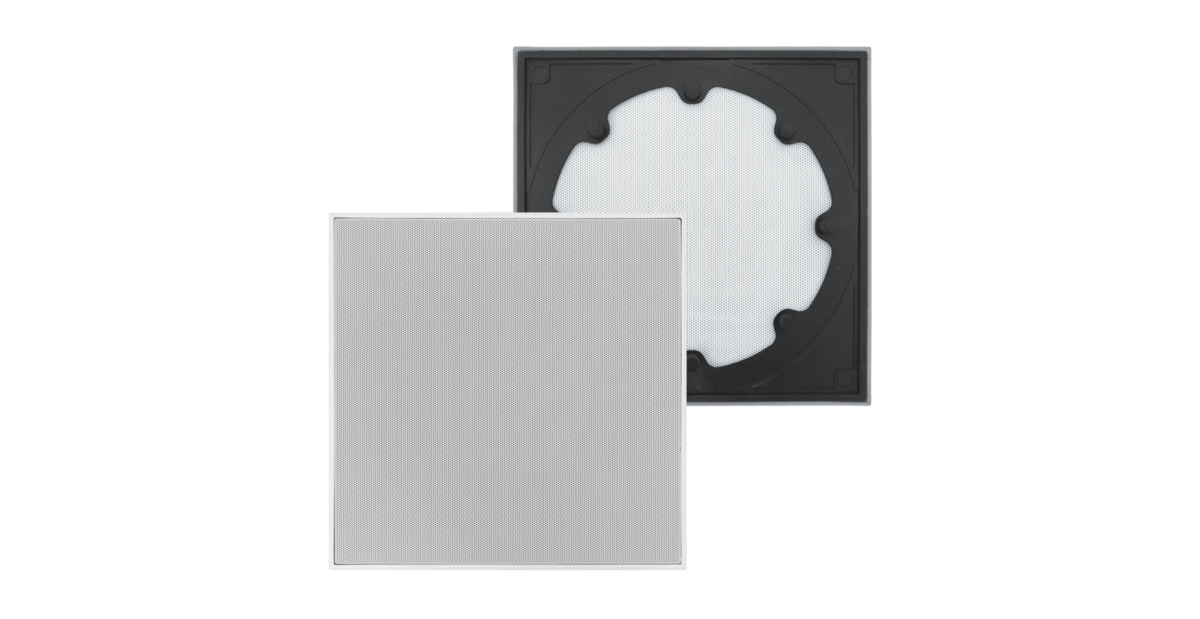

  • Optional square adapter (sold separately) give the speakers a square aesthetic
VPXT8R
VPXT6R
VPXT6R SST
VPXT6
Tweeter
1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber
1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber
1″ (25mm) polyurethane dome, dual voice coil, Ferrofluid cooled, in acoustic back chamber
1″ (25mm) polyurethane dome, Ferrofluid cooled, in acoustic back chamber
Woofer
8″ (205mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround
6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround
6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround
6 1/2″ (165mm) injection-molded polypropylene/graphite cone, with integral Santoprene™ surround
Frequency Response
40Hz – 20kHz ±3dB
45Hz – 20kHz ±3dB
45Hz – 20kHz ±3dB
45Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 130 watts maximum
5 watts minimum; 130 watts maximum
5 watts minimum; 130 watts maximum
5 watts minimum; 130 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
Environment Temp
-30º – 175ºF (-34ºC – 79ºC)
-30º – 175ºF (-34ºC – 79ºC)
-30º – 175ºF (-34ºC – 79ºC)
-30º – 175ºF (-34ºC – 79ºC)
Speaker Depth
3 3/4″ (95mm)
3 1/2″ (89mm)
3 1/2″ (89mm)
2 1/2″ (64mm)
Dimensions
11 5/8″ (295mm)
9 3/4″ (248mm)
9 3/4″ (248mm)
8 3/8″ x 12 1/4″ (213mm x 311mm)
Cut-Out Dimensions
10 1/8″ (257mm)
8 1/4″ (210mm)
8 1/4″ (210mm)
6 15/16″ x 10 3/4″ (176mm x 273mm)
Grille Material
Powder-coated stainless steel
Powder-coated stainless steel
Powder-coated stainless steel
Powder-coated stainless steel
Shipping Weight
14 lbs (6.35kg) pair
12 lbs (5.4 kg) pair
4.5 lbs (2.1 kg) each
12 lbs (5.4 kg) pair

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

SST/SUR

Visual Performance Series

Surround Speakers

  • Surround speakers for home theater applications
  • The perfect surround sound partner for Visual Performance Series LCR speakers or Sonance Soundbars
  • Various sizes and shapes to match the aesthetic of the room
  • Two performance levels to accommodate any ear or budget
  • Same exceptional Visual Performance Series sound quality
VP86R SST/SUR
VP66R SST/SUR
VP62R SST/SUR
VP46R SST/SUR
VP66 SST/SUR
Tweeter
Two 1″ (25mm) powder-coated aluminum domes, Ferrofluid-cooled, in an acoustic back chamber
Two 1″ (25mm) powder-coated aluminum domes, Ferrofluid-cooled, in an acoustic back chamber
Two 1″ (25mm) cloth dome, Ferrofluid-cooled, in an acoustic back chamber
Two 1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, in an acoustic back chamber
Two 1″ (25mm) powder-coated aluminum domes, Ferrofluid-cooled, in acoustic back chamber
Midrange
Two 3″ (76mm) Kevlar/Nomex laminated cone with a rubber surround
Woofer
8″ (203mm) Kevlar/Nomex laminated cones with rubber surrounds, pivoting, dual voice coil
6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting, dual voice coil
6 1/2″ (165mm) textured polypropylene cone with a rubber surround, pivoting, dual voice coil
4 1/2″ (114mm) Kevlar/Nomex laminated cone with a rubber surround, dual voice coil
6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround, dual voice coil
Frequency Response
34Hz – 20kHz ±3dB
43Hz – 20kHz ±3dB
45Hz – 20kHz ±3dB
58Hz – 20kHz ±3dB
43Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 150 watts maximum
5 watts minimum; 140 watts maximum
5 watts minimum; 125 watts maximum
5 watts minimum; 70 watts maximum
5 watts minimum; 140 watts maximum
Sensitivity
91dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
89dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Speaker Depth
5 7/8″ (149mm)
4 3/4″ (121mm)
4 3/4″ (121mm)
3 3/4″ (95mm)
3 1/2″ (89mm)
Dimensions
11 5/8″ (295mm)
9 3/4″ (248mm)
9 3/4″ (248mm)
6 7/8″ (175mm)
8 3/8″ x 12 1/4″ (213mm x 311mm)
Cut-Out Dimensions
10 1/8″ (257mm)
8 1/4″ (210mm)
8 1/4″ (210mm)
5 7/8″ (149mm)
6 15/16″ x 10 3/4″ (176mm x 273mm)
Grille Material
Perforated steel
Perforated steel
Perforated steel
Perforated steel
Perforated steel
Shipping Weight
10 lbs (4.5kg) each
5 lbs (2.3kg) each
5 lbs (2.3kg) each
3 lbs (1.4kg) each
5 lbs (2.3kg) each

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Large Rectangle

Visual Performance Series

Large Rectangle

  • 3-way speaker system for audiophile quality sound.
  • Coaxial midrange and tweeter provide superior clarity and detail.
  • 8″ woofer delivers exceptional bass response and authority, typical of large cabinet speakers.
  • Tweeter level switch on VP88 allows high frequencies to be adjusted to suite the install environment.
  • Independently pivoting midrange/tweeter.
  • Three performance levels to accommodate any ear or budget.
VP82
VP86
VP88
Tweeter
1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Midrange
4″ (102mm) textured polypropylene cone with a rubber surround, pivoting
4″ (102mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting
4″ (102mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting
Woofer
8″ (203mm) textured polypropylene cone with a rubber surround
8″ (203mm) Kevlar/Nomex laminated cone with a rubber surround
8″ (203mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Frequency Response
38Hz – 20kHz ±3dB
34Hz – 20kHz ±3dB
30Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 125 watts maximum
5 watts minimum; 150 watts maximum
5 watts minimum; 175 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
91dB SPL (2.83V/1 meter)
91dB SPL (2.83V/1 meter)
Adjustments
Tweeter Level Switch -3dB Flat +3dB
Shipping Weight
20 lbs (9kg) pair
20 lbs (9kg) pair
22 lbs (10kg) pair

Shared Specifications

  • 10″ (254mm) x 16″ (406mm)
  • Cut-Out Dimensions (W x H)
    8 1/2″ (216mm) x 14 1/2″ (368mm)
  • 3 7/8″ (98mm)
  • Perforated Steel

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Medium Rectangle

Visual Performance Series

Medium Rectangle

  • Combines elegant, modern style with outstanding audio performance.
  • Pivoting tweeter allows speakers to be placed where they look the best while still sounding the best.
  • Tweeter level switch on VP68 allows high frequencies to be adjusted to suite the install environment.
  • Three performance levels to accommodate any ear or budget.
VP62
VP66
VP68
Tweeter
1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer
6 1/2″ (165mm) textured polypropylene cone with a rubber surround
6 1/2″ (165mm) Kevlar/Nomex laminated cone with a rubber surround
6 1/2″ (165mm) carbon fiber/Rohacell laminated cone with a rubber surround
Frequency Response
45Hz – 20kHz ±3dB
43Hz – 20kHz ±3dB
40Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 125 watts maximum
5 watts minimum; 140 watts maximum
5 watts minimum; 150 watts maximum
Sensitivity
89dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Adjustments
Tweeter Level Switch -3dB Flat +3dB
Shipping Weight
9 lbs (4.1kg) pair
10 lbs (4.5kg) pair
12 lbs (5.4 kg) pair

Shared Specifications

  • 8 3/8″ (213mm) x 12 1/4″ (311mm)
  • Cut-Out Dimensions (W x H)
    6 15/16″ (176mm) x 10 3/4″ (273mm)
  • 3 1/2″ (89mm)
  • Perforated Steel

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Small Rectangle

Visual Performance Series

Small Rectangle

  • Small footprint does not take away from the aesthetics of install location.
  • Pivoting tweeter allows speakers to be placed where they look the best while still sounding the best.
  • Tweeter level switch on the VP48 allows high frequencies to be adjusted to suit the install environment.
  • Three performance levels to accommodate any ear or budget.
VP42
VP46
VP48
Tweeter
1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) powder-coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer
4 1/2″ (114mm) textured polypropylene cone with a rubber surround
4 1/2″ (114mm) Kevlar/Nomex laminated cone with a rubber surround
4 1/2″ (114mm) carbon fiber/Rohacell laminated cone with a rubber surround
Frequency Response
60Hz – 20kHz ±3dB
58Hz – 20kHz ±3dB
50Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 70 watts maximum
5 watts minimum; 80 watts maximum
5 watts minimum; 100 watts maximum
Sensitivity
89dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Adjustments
Tweeter Level Switch -3dB Flat +3dB
Shipping Weight
6 lbs (2.8kg) pair
6 lbs (2.8kg) pair
6 lbs (2.8kg) pair

Shared Specifications

  • 5 9/16″ (142mm) x 8 7/8″ (225mm)
  • Cut-Out Dimensions (W x H)
    4 5/8″ (117mm) x 8″ (203mm)
  • 3″ (76mm)
  • Perforated Steel

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

Discreet Opening System

Visual Performance Series

Discreet Opening System

  • Utilizes an optimized system approach of satellite speakers and a hidden subwoofer to provide even and smooth coverage
    in a space.
  • Discreet opening system delivers amazing sonic performance with minimal
    visual intrusion.
  • Small form factor aesthetic that matches size of round or square downlights.

Visual Performance Series Discreet Opening Speaker

VP38R Satellite
Tweeter
3/4″ (19mm) ceramic dome, Ferrofluid-cooled, in acoustic back chamber
Woofer
3 1/2″ (89mm) carbon fiber/ Rohacell laminated cone with a rubber surround
Frequency Response
75Hz – 20kHz – ±3dB
Impedance
10 ohms nominal; 8 ohms minimum
Power Handling
100 watts maximum
Sensitivity
83dB SPL (2.83V/1 meter)
Grille
Ships with round 4 29/32″ (124mm) perforated steel grille
High Pass Filter
25Hz 6dB per Octave
Dimensions
4 5/16″ x 3 15/16″ (109mm x 99mm)
Shipping Weight
3.1 lbs (1.4kg) each
Cutout Dimensions
3 15/16″ Diameter
Port Tube Dimensions
Requirements

Visual Performance Series Discreet Opening Bandpass Subwoofer

BPS6 Subwoofer + VPBPC3R Bandpass Connector
Woofer
6 1/2″ (165mm) dual voice coil, carbon fiber/ Rohacell laminated cone with a rubber surround
Frequency Response
40Hz – 125Hz – ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
Power Handling
100 watts maximum
Sensitivity
87dB SPL (2.8V/1 meter)
Internal Crossover Frequency
125Hz @12dB per Octave
Dimensions
7 7/8″ x 11 15/16″ x 15 3/4″ (200mm x 303mm x 400mm)
Shipping Weight
29 lbs (13.54 kg) each
Port Tube Dimensions
3″ x 22″ (76mm x 559mm)
Bandpass Connector
VPBPC3R
Dimensions (Dia x D)
4 5/16″ x 3 1/2″ (109mm x 89mm)
Grille
VPBPC3R shipped with Round 4 29/32″ (124mm) perforated steel grilles
BPC Cutout Dims
3 15/16″ (100mm)

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

CONNECT PRO

CONNECT PRO

CONNECT PRO

CONNECT PRO

IPORT products have been transforming the dedicated tablet into a simple and functional home controller and business tool for over a decade. Today, we continue to be inspired by the power of iPad and its impact as the ever-evolving central hub for home and business. That is why we are pleased to introduce IPORT CONNECT PRO, the IPORT solution that keeps up with today’s iPad and looks forward to what’s to come.

HIGH-POWERED CAPABILITIES

Edit

At the core of our new platform, we continue to be driven by the desire to provide minimalistic, industrial designs that hold, charge, and protect dedicated iPad to empower every space to come to life at the touch of a button. And with our all-new comprehensive selection of stationary and removable CONNECT PRO solutions, we introduce next-level charging technology that can be simply executed through a single Cat5 cable with CONNECT PRO PoE+.

Edit

MINIMALISTIC DESIGN

IPORT CONNECT PRO is a uniquely modular system of products designed to hold, charge, and protect iPad in the home or in large scale professional deployments. The CONNECT PRO Case features a sleek and symmetrical design that is both durable and elegant. The Case allows for full access to all iPad features including power button, microphones, cameras, and speakers. Unlike previous IPORT Case solutions, the modular design of the IPORT CONNECT PRO Case allows for the ability to upgrade the physical case for future iPad generations without replacing the charging component.

Edit

ERGONOMIC TABLETOP ANGLE

IPORT CONNECT PRO is a uniquely modular system of products designed to hold, charge, and protect iPad in the home or in large scale professional deployments. The CONNECT PRO BaseStation is the table-top solution for magnetic mounting and wireless charging iPad at an ergonomic 45-degree angle. The notched, round mounting magnet makes it simple to securely mount iPad in portrait or landscape orientation. CONNECT PRO BaseStation includes a key to secure the foot of the BaseStation to a table or solid surface for added assurance that iPad will be right where it’s needed most. The CONNECT PRO BaseStation provides power to iPad at 5B 3A using the supplied power supply or via PoE with the CONNECT PoE+ Upgrade (72109, sold separately).

Edit

SECURE WALL MOUNTING

IPORT CONNECT PRO is a uniquely modular system of products designed to hold, charge, and protect iPad in the home or in large scale professional deployments. The CONNECT PRO WallStation engages a powerful magnetic mount to dock and charge iPad on any wall or solid surface. The CONNECT PRO WallStation charges iPad at 5V 3A using the supplied power supply and a CAT-5 or CAT-6 cable run or upgrade to PoE power with the CONNECT PoE+ Upgrade (72109, sold separately). IPORT CONNECT PRO WallStation installs into a universal 1G box for simple space reservation and installation.

ARE YOU INTERESTED TO LEARN MORE ABOUT IPORT?

Speak to one of our Consultants now

Large Round & Square

Visual Performance Series

Large Round & Square

  • 3-way speaker system for audiophile quality.*
  • Perfect for high ceiling installations or anyone wanting high volume levels.
  • Coaxial midrange and tweeter provide superior clarity and detail.*
  • Independently pivoting woofer and coaxial midrange/tweeter.*
    8″ woofer delivers exceptional bass response, typical of large cabinet speakers.
  • Tweeter level switch on VP88R allows high frequencies to be adjusted to suite the install environment.
  • Four performance levels to accommodate any ear or budget.

    *excluding VP80R
VP80R
VP82R
VP86R
VP88R
VP80R +VP8SQ
VP82R +VP8SQ
VP86R +VP8SQ
VP88R +VP8SQ
Tweeter
1″ (25mm) cloth dome, Ferrofluid-cooled
1″ (25mm) cloth dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) powder coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
1″ (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Midrange
4″ (102mm) textured polypropylene cone with a rubber surround, pivoting
4″ (102mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting
4″ (102mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting
Woofer
8″ (203mm) polypropylene cone with a rubber surround
8″ (203mm) textured polypropylene cone with a rubber surround, pivoting
8″ (203mm) Kevlar/Nomex laminated cone with a rubber surround, pivoting
8″ (203mm) Carbon fiber/Rohacell laminated cone with a rubber surround, pivoting
Frequency Response
42Hz – 20kHz ±3dB
38Hz – 20kHz ±3dB
34Hz – 20kHz ±3dB
30Hz – 20kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
6 ohms nominal; 4 ohms minimum
Power Handling
5 watts minimum; 125 watts maximum
5 watts minimum; 125 watts maximum
5 watts minimum; 150 watts maximum
5 watts minimum; 175 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
91dB SPL (2.83V/1 meter)
91dB SPL (2.83V/1 meter)
Shipping Weight
12.5 lbs (5.67 kg)
20 lbs (9kg) pair
20 lbs (9kg) pair
22 lbs (10kg) pair
Speaker Depth
3 3/4” (95mm)
6 1/16″ (153.4mm)
6 1/16″ (153.4mm)
6 1/16″ (153.4mm)

Shared Specifications

  • Dimensions (Diameter)
    11 5/8″ (295mm)
  • Cut-Out Dimensions (Diameter)
    10 1/8″ (257mm)
  • Dimensions w/ Square Grille
    11 3/4″ (299mm) x 11 3/4″ (299mm)
  • Grille Material
    Perforated Steel

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now
