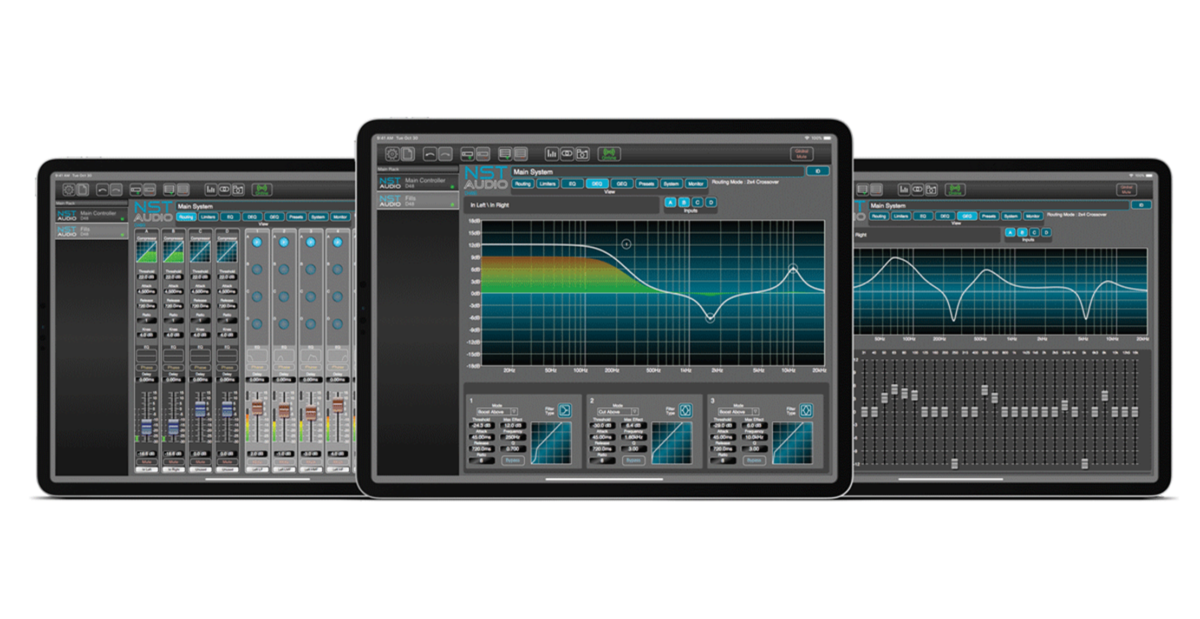

D-Net Software

D-Net Software

Designed from the ground up based on decades of experience in DSP control software, our D-Net control software for PC, Mac and iPad gives you full control of your system over Ethernet or Wifi.

D-Net Overview

With its intuitive user interface, D-Net makes it simple to automatically discover all your devices and get control of them on a network. D-Net gives full control of all DSP, routing and configuration of multiple NST devices with ability to set up systems offline and store/load presets and preset libraries.

More advanced tools are also available allowing device linking, storing/loading of system snapshots as well as selective locking of device control panels. For “Power Users” there are also many shortcuts and time saving features to make system configuration quicker and easier.

  • Available for PC, Mac and iPad
  • Automatic discovery of all devices on the network
  • Connection via Ethernet / Wifi or USB (PC only)
  • Open multiple device control panels simultaneously
  • Real time metering of all online devices at 30fps
  • Copy and paste devices, channels or EQ between devices
  • Automatic prompting when firmware updates are available for connected devices
  • System monitor window to view metering and network status of all devices
  • Split virtual rack view and system monitor into virtual “racks” to represent physical locations
  • Global mute button instantly mutes all devices on the network
  • Ability to configure a system offline and assign devices when going online
  • Load and Save of system files, current devices settings files and preset library files
  • Linking view to enable linking of multiple devices, with optional exclusion of some parameters
  • System snapshots to store or load current system state

Images

Videos

NST-Audio-logo

NST Audio

D-Net Power User Tips

Software

The latest firmware, for NST Audio devices, is included as part of the D-Net software, that can be downloaded from the D-Net page:

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now

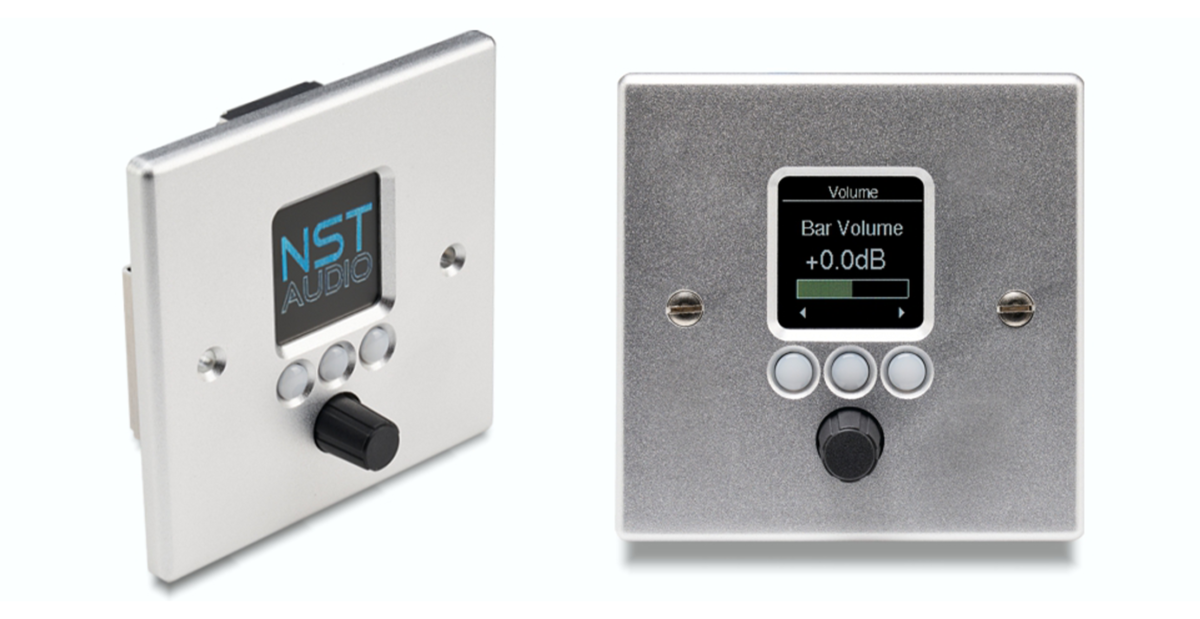

VR1 PoE Remote Control Panel

VR1 PoE Remote Control Panel

The VR1 wall panel remote is designed for simple and intuitive remote control of specific parameters of any NST Audio processor.

VR1 Overview

The panel is designed to fit into a single-gang standard UK electrical wall box (US and Euro versions available on request). The VR1 is powered by a PoE (Power Over Ethernet) router, requiring only a single standard Ethernet cable for both power and control. This second generation design reduces the in-wall depth by almost 40% (to 28.2mm from 45mm) and is now also fully enclosed to the rear.

The VR1 is programmed using the NST Audio D-Net software and can be set-up to allow control of one or more NST Audio processors connected to the same network as the wall panel.

The VR1 allows multiple pages of custom remote access to the following parameters :

Channel and matrix gains
Routing and channel mutes
Preset recall
Once set-up, the VR1 requires no technical knowledge to operate, allowing venue personnel to operate the device with ease. The full colour 128 x 128 pixel LCD display allows all pages to be labelled by the install engineer, leaving venue staff with a clear, simple and easy to use remote which enables them to adjust the configuration and volume of the sound system in multiple locations, throughout the venue.

Images

Videos

NST-Audio-logo

NST Audio

VR1 - Adding a Gain Change Page

NST-Audio-logo

NST Audio

VR1 - Adding Preset Recall

NST-Audio-logo

NST Audio

VR1 - Adding Mutes & Routes

NST-Audio-logo

NST Audio

VR1 - Adding Source Selects

NST-Audio-logo

NST Audio

VR1 - Changing Screensaver Logo

Software

The latest firmware, for NST Audio devices, is included as part of the D-Net software, that can be downloaded from the D-Net page:

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now

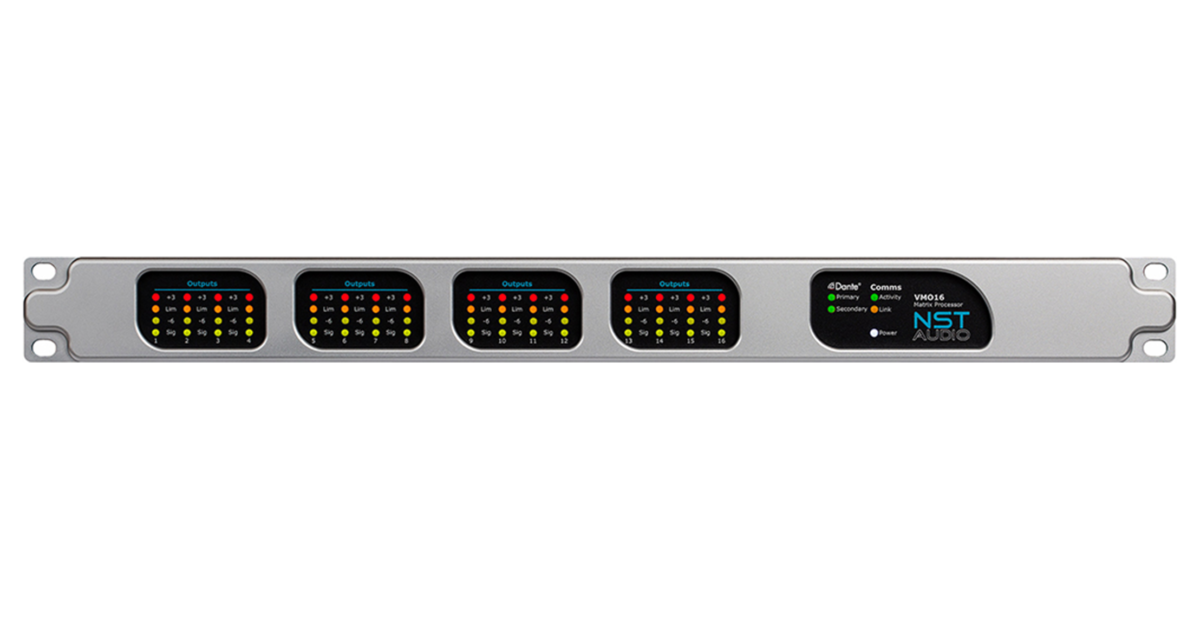

VMO16 Audio Installation Processor

VMO16 Audio Installation Processor

Designed using NST second-generation DSP designs, the VMO16 brings no-compromise audio performance and system control to Dante networked audio installations.

VMO16 Overview

The VMO16 brings all the benefits and experience of our live sound filters and dynamics algorithms to an installation product. The 16 inputs from the Dante network go to a full 16×16 matrix mixer allowing any Dante networked inputs to be routed to any analogue output channel. All of the 16 analogue outputs have 16 bands of parametric EQ, 48dB/ Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.

All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.

Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet amd wifi. The VMO16 is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.

VMO16 Technical Specifications

Analogue Outputs – 16 Electronically Balanced, Phoenix connectors
Maximum Level >20dBu
Dynamic Range >119dB (20Hz – 20kHz A-weighted)

Performance

Frequency Response (20Hz to 20kHz) : +/-0.05dB
THD + N (-10dB @ 1kHz) : 0.0005%
Latency : 0.283ms

Processing [96kHz]

Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Networked Audio : 16in / 16out Dante channels on dual redundant RJ45 connectors

Comms : 100Mbps Ethernet on rear panel (RJ45 connector)

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < 40W

Dimensions

Height : 44mm (1.75inch) 1U
Depth : 170mm (6.75 inches)
Width : 482mm (19 inches)

Weight

Net : 2.2kg
Shipping : 3.4kg

Due to continuing product improvement the above specifications are subject to change.

Images

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now

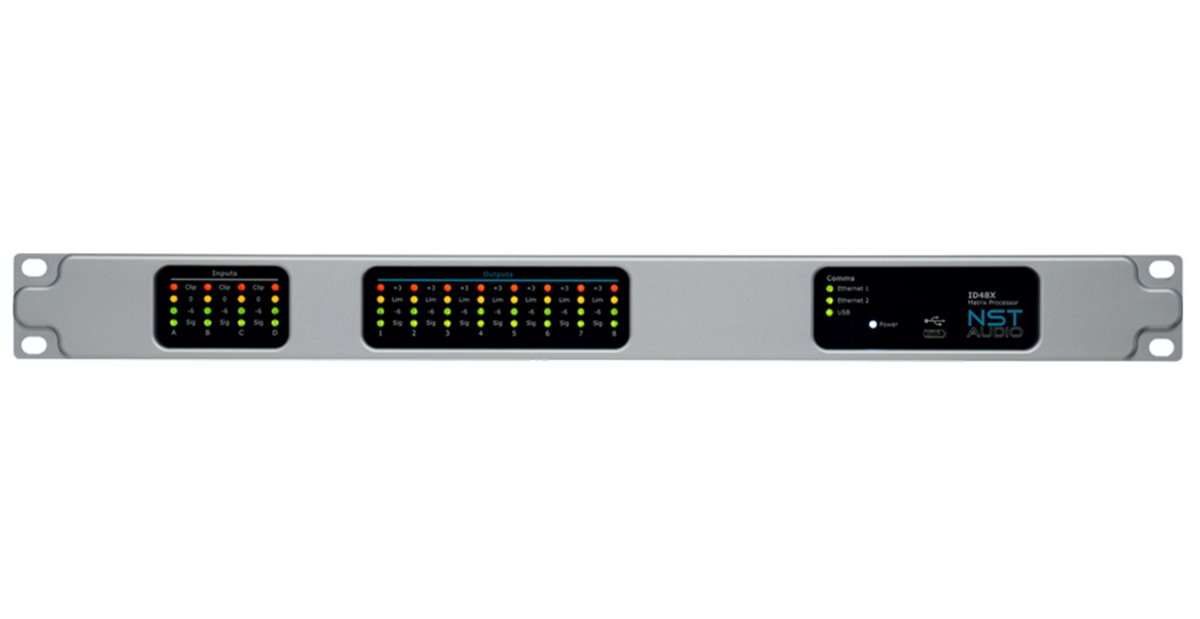

ID48X Installation Matrix Signal Processor

ID48X Installation Matrix Signal Processor

Now in its third generation, the ID48X offers the same audio performance and remote control flexibility as our acclaimed D48X in a package ideally suited to installation applications.

ID48X Overview

With inputs and outputs switchable in channel pairs between analogue or AES/EBU the ID48X gives you the flexibility you need to integrate into your system.

Compressors are available on every input as well as a high pass filter, 8 bands of parametric EQ, a 28 band graphic EQ, 3 bands of dynamic EQ and up to 1.3 seconds of delay. Routing to outputs can be configured to either mix-matrix mode, free-routing or several pre-configured routing options.

Flexible channel linking enables quick and easy configuration of common crossover setups or customised configurations as required. Every output channel has high and low pass filters, 16 bands of parametric EQ and up to 1.3 seconds of delay. FIR filtering is also supported.

Our Predictive eXcursion Limiter (PXL) algorithm, on every output, is designed to offer the best driver protection with the lowest distortion.

A new USB-C front panel connection with Ethernet bridging means you can plug into any device and control the entire network. Additionally, a new Ethernet dual port switch in every unit means flexible connection options – either quick daisy chaining of devices or traditional star routing back to a dedicated external router/switch.

Our D-Net Ethernet based control software for PC, Mac and iPad gives you the ability to not only control all the devices on a network but also to store preset memories and configure systems offline.

With enhanced audio performance thanks to the latest ESS AD/DA converter chipsets increasing the already impressive dynamic range and reducing THD+N figures, the ID48X offers even more than ever before.

ID48X Technical Specifications

Analogue Inputs – 4

Electronically balanced, pin 2 hot
CMRR : >60dB @ 1kHz
Maximum Level : >20dBu
Input Impedance : 10kΩ balanced

AES Inputs – 2 x 2 channel

Transformer balanced, pin 2 hot
AES Input Sample Rates : 8kHz to 192kHz
AES Input s/n Ratio : 139dB
Input Impedance : 110Ω

Analogue Outputs – 8

Electronically balanced, pin 2 hot
Maximum Level : >20dBu
Source Impedance : <60Ω AES Outputs – 4 x 2 channel Transformer balanced, pin 2 hot Sample Rate : same as operating sample rate Source Impedance : 110Ω Performance Frequency Response (12Hz to 32kHz) : +/-0.2dB Dynamic Range : >119dB ‘A’ weighted (in to out analogue)
THD + N (+19dB @ 1kHz) : 0.00029%
Latency : 0.427ms (in to out, analogue)

Processing [96kHz]

Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Graphic EQ (per channel) : 28 bands
Input Dynamic EQ (per channel) : 3 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Routing Inputs to Outputs : Choice of modes (Matrix Mixer, Free Routing, 1×8 crossover, 2×4 crossover, 4×2 crossover, 2×3 crossover + 2 Aux)

Output Parametric EQ (per channel) : 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Comms

2 x 1Gbps Ethernet on rear panel (Ethercon connector)
USB Type C socket

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < 20W

Dimensions

Height : 44mm (1.75inch) 1U
Depth : 213mm (8.4 inches)
Width : 482mm (19 inches)

Weight

Net : 2.5kg
Shipping : 3.5kg

Due to continuing product improvement the above specifications are subject to change.

Images

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now

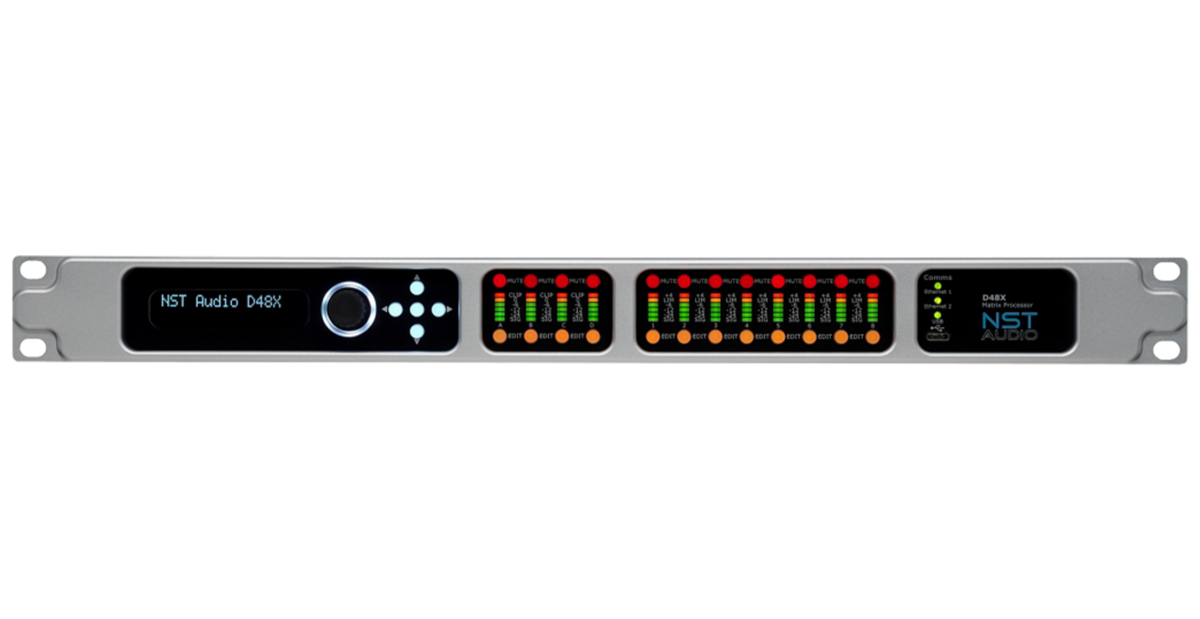

D48X Matrix Signal Processor

D48X Matrix Signal Processor

Now in its third generation, the D48X enhances both audio performance and remote control flexibility, meaning your system sounds better and is easier to control.

D48X Overview

With inputs and outputs switchable in channel pairs between analogue or AES/EBU the D48X gives you the flexibility you need to integrate into your system.

Compressors are available on every input as well as a high pass filter, 8 bands of parametric EQ, a 28 band graphic EQ, 3 bands of dynamic EQ and up to 1.3 seconds of delay. Routing to outputs can be configured to either mix-matrix mode, free-routing or several pre-configured routing options. Flexible channel linking enables quick and easy configuration of common crossover setups or customised configurations as required.

Every output channel has high and low pass filters, 16 bands of parametric EQ and up to 1.3 seconds of delay. FIR filtering is also supported. Our Predictive eXcursion Limiter (PXL) algorithm, on every output, is designed to offer the best driver protection with the lowest distortion.

Front panel control allows instant mute of any input or output as well as editing of all the most commonly used parameters and recall of presets. Our D-Net Ethernet based control software for PC, Mac and iPad gives you the ability to not only control all the devices on a network but also to store preset memories and configure systems offline.

USB-C front panel connectivity with Ethernet bridging, means you can plug into any device and control the entire network. Additionally, a new Ethernet dual port switch in every unit means flexible connection options – either quick daisy chaining of devices or traditional star routing back to a dedicated external router/switch.

With enhanced audio performance thanks to the latest ESS AD/DA converter chipsets increasing the already impressive dynamic range and reducing THD+N figures, the D48X offers even more than ever before.

D48X Technical Specifications

Analogue Inputs – 4

Electronically balanced, pin 2 hot
CMRR : >60dB @ 1kHz
Maximum Level : >20dBu
Input Impedance : 10kΩ balanced

AES Inputs – 2 x 2 channel

Transformer balanced, pin 2 hot
AES Input Sample Rates : 8kHz to 192kHz
AES Input s/n Ratio : 139dB
Input Impedance : 110Ω

Analogue Outputs – 8

Electronically balanced, pin 2 hot
Maximum Level : >20dBu
Source Impedance : <60Ω AES Outputs – 4 x 2 channel Transformer balanced, pin 2 hot Sample Rate : same as operating sample rate Source Impedance : 110Ω Performance Frequency Response (12Hz to 32kHz) : +/-0.2dB Dynamic Range : >119dB ‘A’ weighted (in to out analogue)
THD + N (+19dB @ 1kHz) : 0.00029%
Latency : 0.427ms (in to out, analogue)

Processing [96kHz]

Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Graphic EQ (per channel) : 28 bands
Input Dynamic EQ (per channel) : 3 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Routing Inputs to Outputs : Choice of modes (Matrix Mixer, Free Routing, 1×8 crossover, 2×4 crossover, 4×2 crossover, 2×3 crossover + 2 Aux)

Output Parametric EQ (per channel) : 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Comms

2 x 1Gbps Ethernet on rear panel (Ethercon connector)
USB Type C socket

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < 20W

Dimensions

Height : 44mm (1.75inch) 1U
Depth : 213mm (8.4 inches)
Width : 482mm (19 inches)

Weight

Net : 2.5kg
Shipping : 3.5kg

Due to continuing product improvement the above specifications are subject to change.

Images

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now

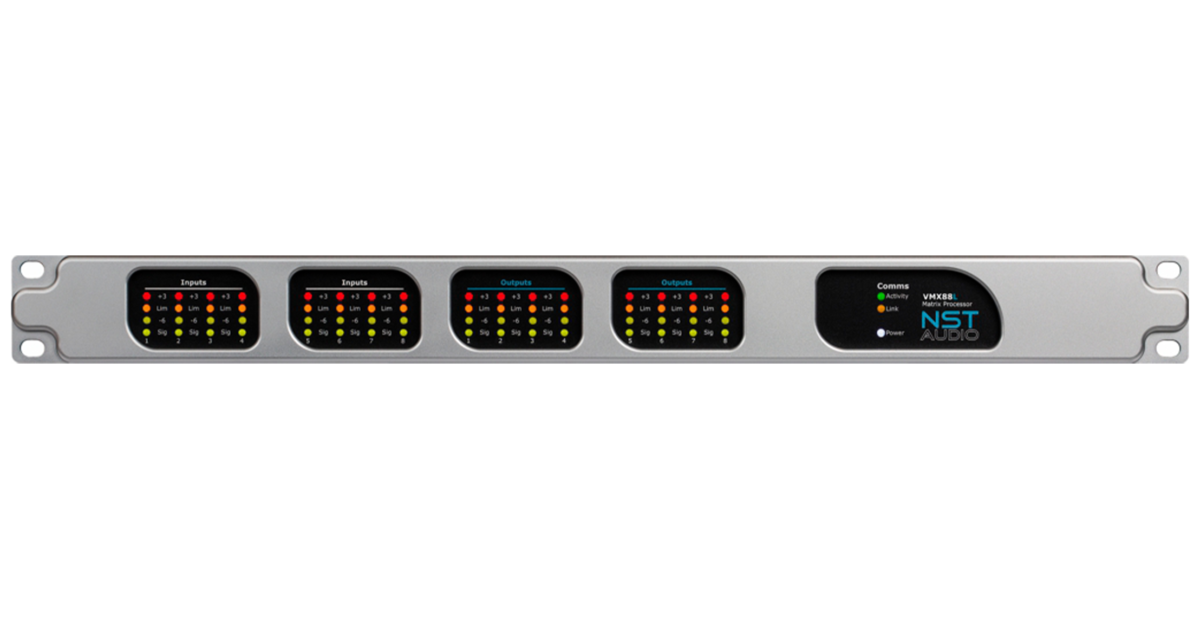

VMX88L Audio Installation Processor

VMX88L Audio Installation Processor

Finally, install gets the audio quality it deserves. Designed using the latest generation of NST DSP technology, VMX88L brings no-compromise audio performance and powerful system control to any audio installation.

VMX88L Overview

VMX88L delivers all the benefits and experience of our live sound filters and dynamics algorithms in an installation product. The 8 analogue inputs have individual compressors, as well as a 24dB/Oct high pass filter, 8 bands of parametric EQ and up to 1.3 seconds of delay. All of the 8 analogue outputs have 16 bands of parametric EQ, 48dB/Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.

All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.

Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet and wifi. The VMX88L is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.

VMX88L Technical Specifications

Analogue Inputs – 8

Electronically Balanced, Phoenix connectors
CMRR : >70dB @ 1kHz Maximum Level >20dBu
Dynamic Range >120dB (20Hz – 20kHz A-weighted)
Input Impedance : 10kΩ Balanced

Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Dynamic EQ (per channel) : 2 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Analogue Outputs – 8

Electronically Balanced, Phoenix connectors
Maximum Level >20dBu
Dynamic Range >119dB (20Hz – 20kHz A-weighted)
Source Impedance : <60Ω

Performance

Processing [96kHz]
Frequency Response (20Hz to 20kHz) : +/-0.05dB
THD + N (-10dB @ 1kHz) : 0.001%
Latency : 0.427ms (in to out, analogue at 96kHz)

Routing Inputs to Outputs: Full matrix mixer

Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Comms : 100Mbps Ethernet on rear panel (RJ45 connector)

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < <20W Dimensions Height : 44mm (1.75inch) 1U Depth : 170mm (6.75 inches) Width : 482mm (19 inches) Weight Net : 2.2kg Shipping : 3.4kg Due to continuing product improvement the above specifications are subject to change.

Images

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now

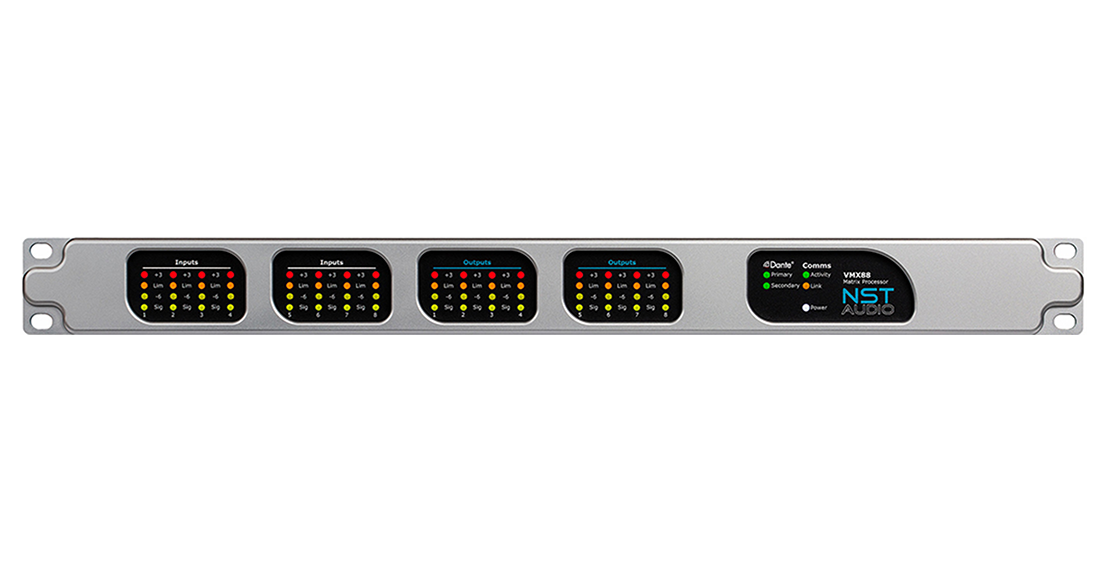

VMX88 Audio Installation Processor

VMX88 Audio Installation Processor

Finally, install gets the audio quality it deserves. Designed using the latest generation of NST DSP technology, VMX88 brings no-compromise audio performance and powerful system control to networked audio installations.

VMX88 Overview

VMX88 delivers all the benefits and experience of our live sound filters and dynamics algorithms in an installation product. The 8 analogue inputs have individual compressors, as well as a 24dB/Oct high pass filter, 8 bands of parametric EQ and up to 1.3 seconds of delay. The full matrix mixer allows mixing of not just the analogue inputs but also 8 channels of networked audio (Dante + AES67) inputs to any output channel. Audio channels can be routed to the 8 channels of networked audio outputs from multiple stages in the audio chain to give flexibility in system design.

All of the 8 analogue outputs have 16 bands of parametric EQ, 48dB/Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.

All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.

Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet and wifi. The VMX88 is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.

VMX88 Technical Specifications

Analogue Inputs – 8

Electronically Balanced, Phoenix connectors
CMRR : >70dB @ 1kHz Maximum Level >20dBu
Dynamic Range >120dB (20Hz – 20kHz A-weighted)
Input Impedance : 10kΩ Balanced

Analogue Outputs – 8

Electronically Balanced, Phoenix connectors
Maximum Level >20dBu
Dynamic Range >119dB (20Hz – 20kHz A-weighted)
Source Impedance : <60Ω

Performance

Frequency Response (20Hz to 20kHz) : +/-0.05dB
THD + N (-10dB @ 1kHz) : 0.001%
Latency : 0.427ms (in to out, analogue at 96kHz)

Processing [96kHz]

Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Dynamic EQ (per channel) : 2 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Routing Inputs to Outputs: Full matrix mixer including all local and Dante inputs to local outputs

Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Networked Audio : 8in / 8out Dante channels on dual redundant RJ45 connectors

Comms : 100Mbps Ethernet on rear panel (RJ45 connector)

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < 40W

Dimensions

Height : 44mm (1.75inch) 1U
Depth : 170mm (6.75 inches)
Width : 482mm (19 inches)

Weight

Net : 2.2kg
Shipping : 3.4kg

Due to continuing product improvement the above specifications are subject to change.

Images

ARE YOU INTERESTED TO LEARN MORE ABOUT NST AUDIO?

Speak to one of our Consultants now
