A multi-zone audio system is a commercial audio installation where different areas of a building each have independent audio control — their own music source, their own volume level, and their own schedule — all managed from a single controller.
In a restaurant, that might mean the bar plays upbeat background music at a higher volume while the dining room runs a quieter, more relaxed playlist simultaneously.
In a hotel, the lobby, spa, gym and restaurant each have their own atmosphere, each adjustable from a single interface at the front desk.
In a gym, the main floor and the group exercise studio each need different music at different volumes, while the changing rooms run quietly in the background.
The alternative — a single audio system playing the same thing at the same level everywhere — is a compromise that serves no space particularly well.
Multi-zone audio is the professional standard for any commercial venue with more than one distinct space or customer-facing area.
Not every venue does. A single-room café with one space and one atmosphere can be served perfectly well by a single-zone system — one controller, one set of speakers, one volume level. Simpler is better when simpler is sufficient. A multi-zone system becomes the right choice when any of the following apply:
Every multi-zone commercial audio installation has the same three building blocks, regardless of venue size.
Zone ControllerZone is the brain of the system. It receives audio from one or more sources — a streaming service, a media player, a local microphone input, an HDMI-connected screen — and routes that audio to the correct zones at the correct levels.
It also handles the DSP (digital signal processing) that optimises the sound for each space: equalisation, volume limits, delay alignment between speakers in a large room. Optimal Audio Zone controllers come in two primary formats.
Zone 4 is a passive unit requiring external amplification whereas Zone 4P is an all-in-one unit with built-in amplification, both for up to four zones — ideal for smaller venues where compact unit under the counter or in a back office is the cleanest solution.
Zone 8 and Zone 8P handles up to eight independently controlled zones and connects respectively to either external SmartAmp amplifiers or has integrated amplification— the right choice for larger venues where different zonal control is required.
AmplificationAmplifiers take the signal from the controller and deliver the power that drives the loudspeakers. If the built-in amplification of a powered Zone 4P or Zone 8P is all you need, then choose this solution.
Where dedicated SmartAmp amplifiers sized for the specific demands of each space deliver the right output with efficiency, then this is the right choice.
Matching amplifier output to loudspeaker load and room size is one of the areas where an installer adds genuine value — under specifying an amplifier causes distortion at volume, or limits its capability and over specifying is unnecessary cost.
The system design examples available on Optimal Audio venue pages show recommended amplifier configurations for typical venue sizes.

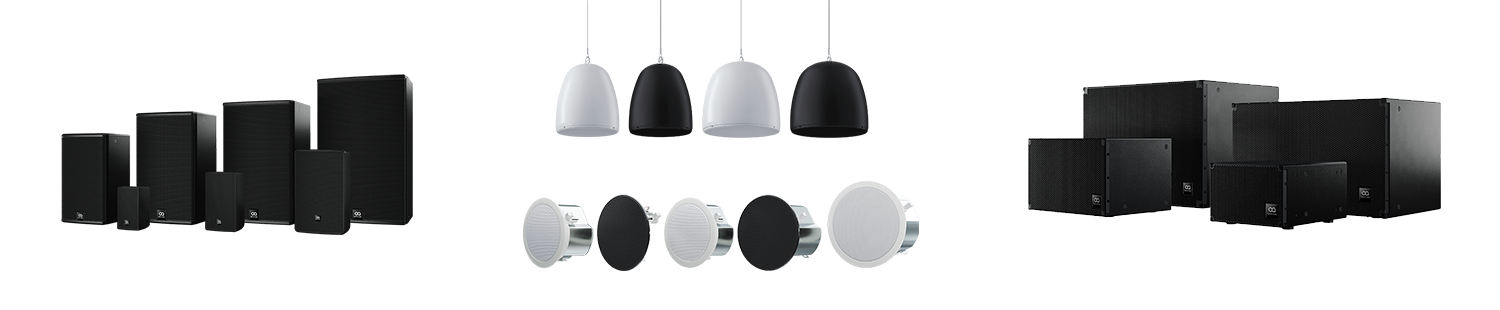

LoudspeakersLoudspeaker selection is driven by three factors: the acoustic characteristics of the space, the installation constraints, and the required volume and sound quality for the application.
Ceiling speakers — the Up range — are the standard choice for background music in most commercial spaces. They provide even, unobtrusive coverage and are acoustically well-suited to rooms with normal ceiling heights.
Up 3 works well in corridors and low-traffic areas. The Up 4 and Up 4S are the workhorse of most hospitality and retail installations. The Up 6 is specified for larger spaces or where higher volume is required — gym floors, exhibition halls, and larger restaurant rooms with high ceilings.
Wall-mounted Cuboid loudspeakers are the right choice where ceiling installation is not possible, where the space demands higher-impact sound — group exercise studios, presentation spaces, bar areas designed for higher volume — or where the aesthetic of a visible, architectural speaker is preferred.
The Column loudspeaker series provides clarity in difficult rooms, flexibility between speech and music, and discretion of the architecture.
Subwoofers — the Sub range — add low-frequency extension where the application demands it. A gym with a dedicated spin studio, a bar that hosts DJ nights, or a restaurant where music is a significant part of the brand all benefit from a sub.
For most background music applications in hospitality and retail, subwoofers are not necessary and ceiling speakers alone deliver excellent results.

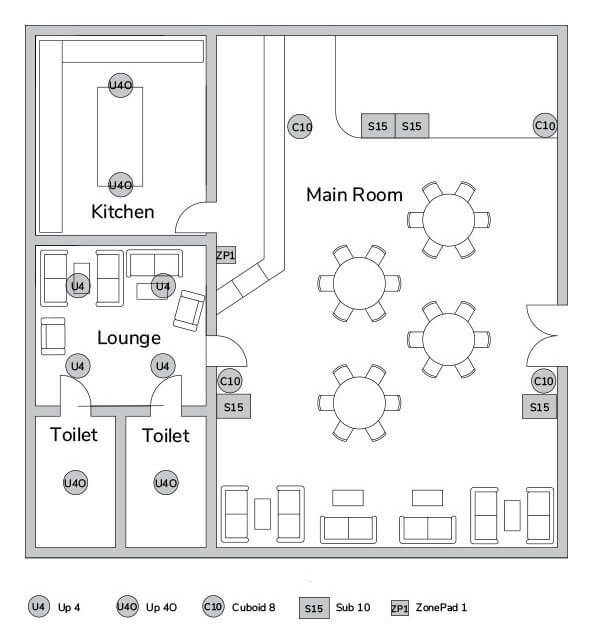

The most important step in designing a multi-zone system is mapping your venue into its natural zones before choosing any equipment. A zone is any space that needs independent audio control.
The question to ask for each area is: would there ever be a reason for this space to play different music, at a different volume, from a different source, than the space next to it? If yes, it is a zone. If no, it can share a zone with adjacent spaces. For a typical café-bar-restaurant the zones might be: bar area, dining room, terrace, and toilets — four zones, served by a Zone 4 or Zone 4P.
For a hotel covering lobby, restaurant, spa, gym, bar and conference room: six zones, served by a Zone 8 or Zone 8P with spare capacity for growth. For a gym with a main floor, two studios, changing rooms and reception: five zones, served again by a Zone 8 or Zone 8P.
Two common zone planning mistakes to avoid. Over-zoning — creating separate zones for spaces that will always run identically, adding cost and complexity without benefit. Under-zoning — combining spaces with meaningfully different acoustic needs or schedules into one zone and then trying to compromise. A practical rule: plan for one more zone than you think you need. Venues evolve, spaces get repurposed, and adding a zone after installation is significantly more disruptive than planning for it from the start.
A multi-zone system can distribute audio from multiple sources simultaneously. Typical sources for a commercial installation include: A streaming service accessed via a network-connected media player or directly through the Zone controller’s WebApp interface.
This is the most common primary source for background music in hospitality and retail venues. Local inputs at individual zones — allowing a DJ, live band, or microphone to connect directly at zone level without affecting the rest of the venue.
HDMI inputs for video and audio from a PC or media player — used in museums and visitor attractions to synchronise the soundtrack of a video installation with the Zone controller, or in hotels to route screen audio to the room’s speakers.
For venues that need to make live announcements or broadcast pre-recorded messages across specific zones — hotels, gyms, retail chains, museums — Optimal Audio’s Talk 8 is a dedicated eight-zone digital paging station that integrates directly with the Zone controller ecosystem.
Talk 8 sits on a desk or counter and connects to the Zone controller via the dedicated paging port. Staff use it to page individual zones, groups of zones, or the whole venue simultaneously.
It comes supplied with the Mic 1 gooseneck microphone for live voice announcements, and includes six instant message playback buttons that can be loaded with pre-recorded clips — opening time reminders, safety announcements, promotional messages — each assignable to any zone.
Message routines can also be scheduled via WebApp for fully automatic playback at set times throughout the day, with an optional pre-announcement chime to signal that a message is coming.
The most technically excellent audio system is worthless if the staff who operate it day-to-day cannot use it confidently. This is where Optimal Audio’s design approach is meaningfully different from many commercial audio systems.
WebApp — control from any deviceWebApp is the primary control interface and runs on any smartphone, tablet or desktop browser — no dedicated hardware, no special app to install, no licence fee.
Every member of staff with a phone can adjust their relevant zones, change source, check volume, or activate a preset.
An installer configures the system once at commissioning, setting the zones, presets and schedules. Staff then operate within those parameters without needing to understand the underlying configuration.
ZonePad wall controllersFor venues where a dedicated physical control point makes more operational sense, the ZonePad range of wall-mounted controllers gives staff direct access to the system without a phone or screen.
ZonePad 1 provides single-zone local control — ideal at a teaching position in a classroom or studio, at a reception desk that only needs to adjust one area, or in a breakout room where relay on and off is all that’s needed.
ZonePad 4 gives direct access to four zones from a single panel — the standard choice for a hotel reception desk or a bar manager’s station. ZonePad 8 is the full-venue touchscreen controller — an eight-inch IPS touch display covering all eight zones, source switching, volume, microphone levels and routine triggering from a single elegant wall-mounted panel.
It connects via Power over Ethernet (PoE) or WiFi, making it straightforward to install in locations where running a dedicated cable is not practical.
Scheduled routinesScheduled routines are one of the most underused features of a well-configured system and one of the most commercially valuable.
WebApp allows time-of-day programming for every zone — a restaurant that automatically shifts from a quiet lunch setting to a livelier dinner atmosphere at 5:30pm without anyone touching a dial; a hotel lobby that wakes up with soft morning music and builds energy through the afternoon; a gym that starts each day at a lower volume and increases automatically through peak hours.
Once configured, the system runs itself. For venues with Talk 8, message routines work in the same way — pre-recorded announcements scheduled to play automatically to specific zones at set times, with no staff action required.
A well-configured Optimal Audio system should need staff involvement only when something genuinely changes — a special event, a volume adjustment for an unexpectedly busy evening, a source switch.
Day-to-day, the system should run on its routines without manual intervention.
A multi-zone commercial audio installation is a designed system that requires a site survey, specification, installation and commissioning by a trained professional.
The process typically follows four stages. A site survey establishes the zone plan, acoustic characteristics of each space, installation constraints, and any integration requirements with existing infrastructure.
A system specification documents the recommended Zone controller, amplifiers, loudspeakers and cabling for each zone, along with a system diagram and cost estimate. Installation fits the physical components — cabling, speaker mounting, controller and ZonePad placement.
Commissioning configures WebApp with the zone routing, DSP settings, source inputs, staff presets and scheduled routines, and trains the venue staff on day-to-day operation.
