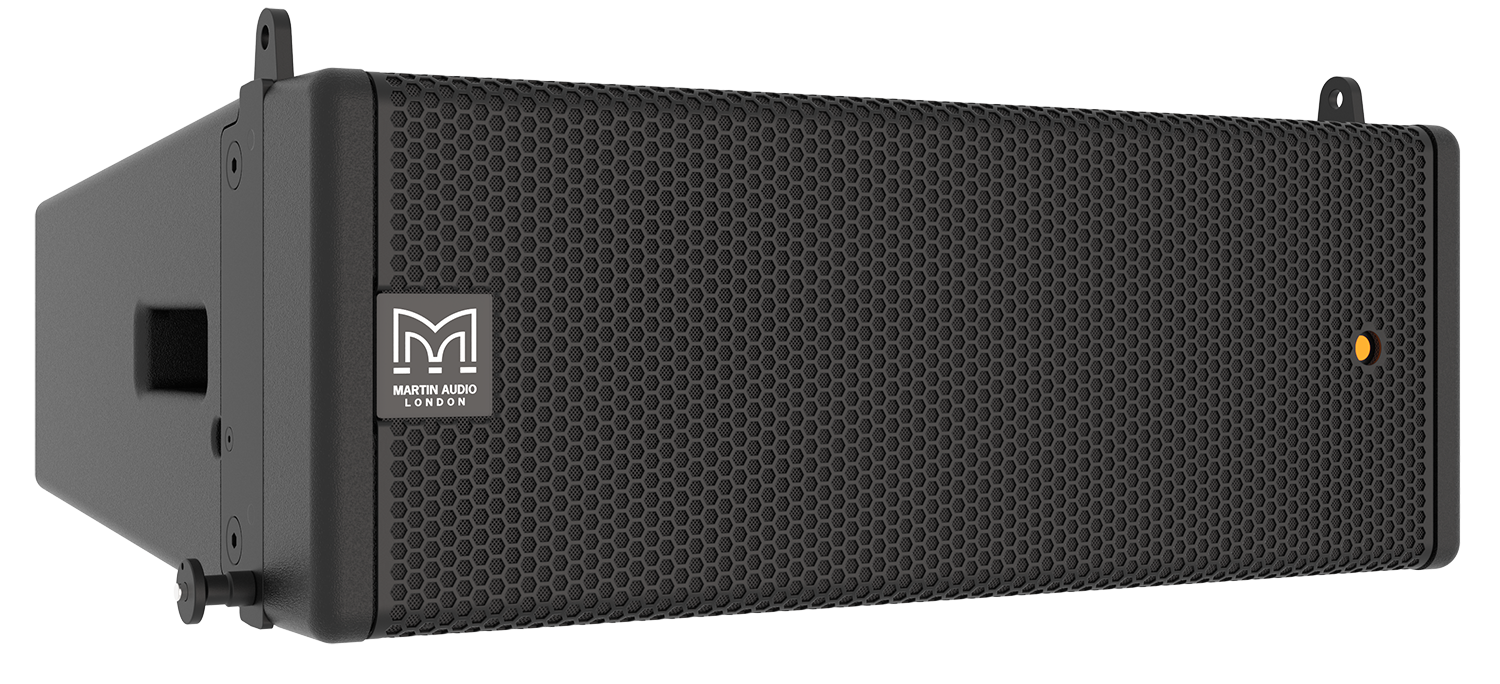

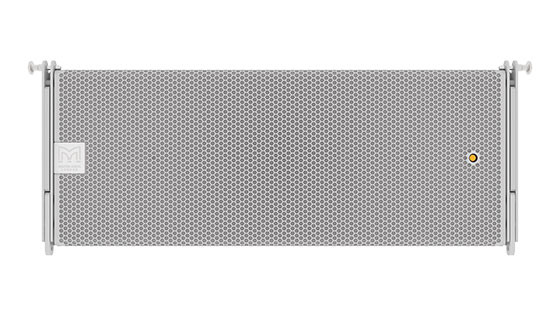

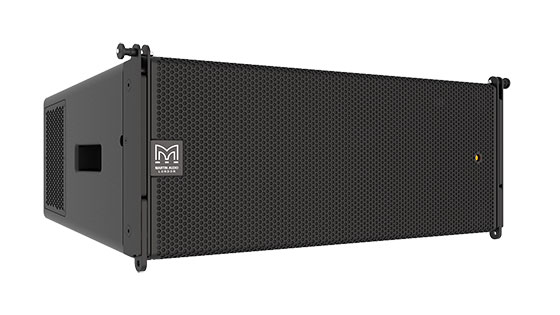

WPC

Three-way, Bi-amp Line Array Element

The scalable resolution of WPC offers greatly improved coverage consistency and control compared to a standard line array and provides a flexible pathway to advanced array optimisation.

Features

  • Compact line array
  • Scalable resolution for advanced array control
  • External, dedicated, multi-channel Class D amplification

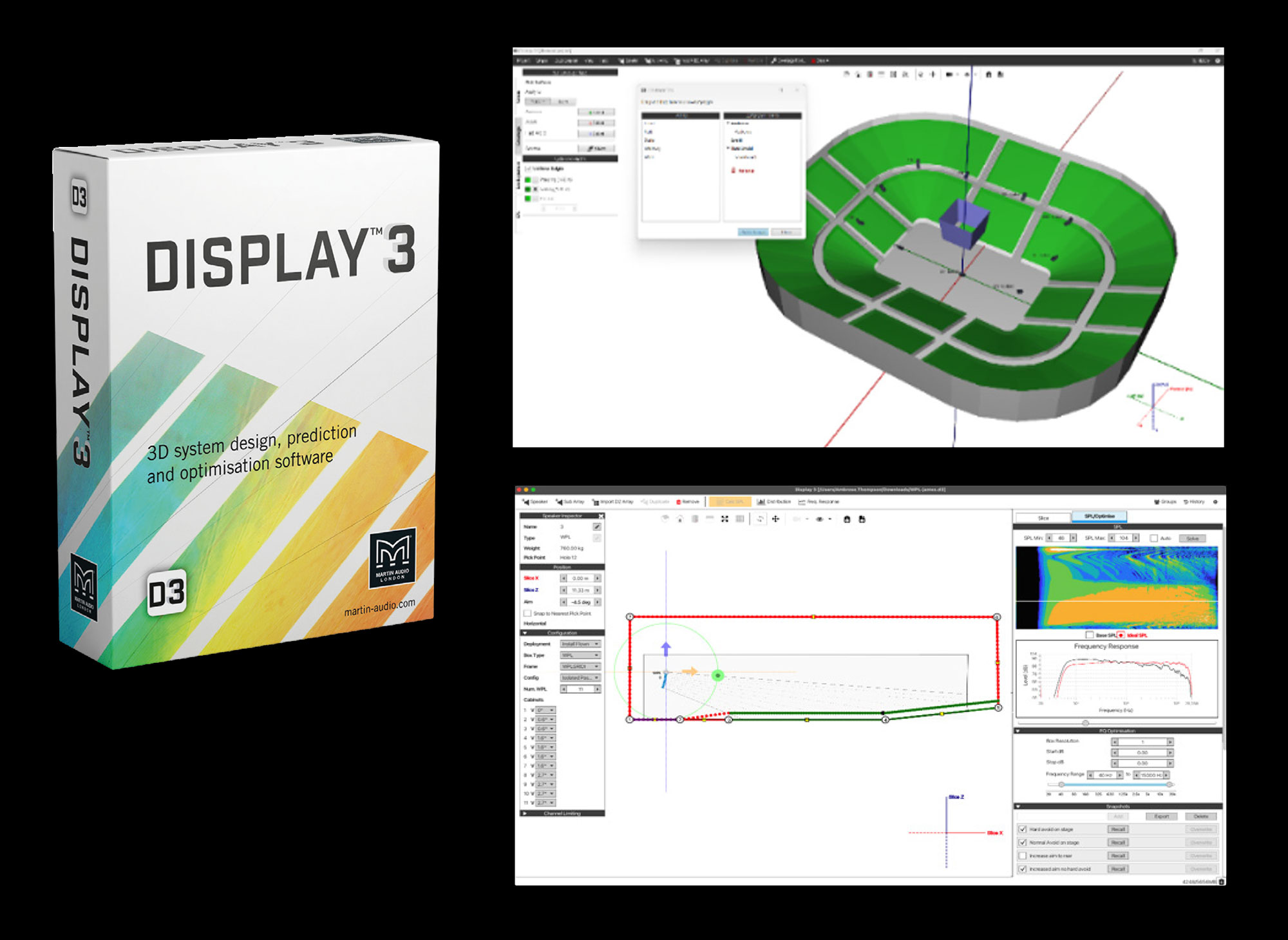

  • Industry-leading DISPLAY software interacts with DSP for highly-accurate results
  • Fast, integral 3-point flying systems for up to 16 enclosures
  • Side and rear handles for ease of handling and setting splay angles
  • 100° horizontal constant directivity pattern control

Benefits

  • Consistent coverage achieved ‘straight-out-of-the-box’
  • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
  • Improved audience coverage with reduced sound-spill

Applications

  • Touring sound reinforcement for small and medium-size venues
  • Fixed installations in concert halls, theatres, ballrooms and HoW
  • Sports stadium, arena installations & corporate AV events

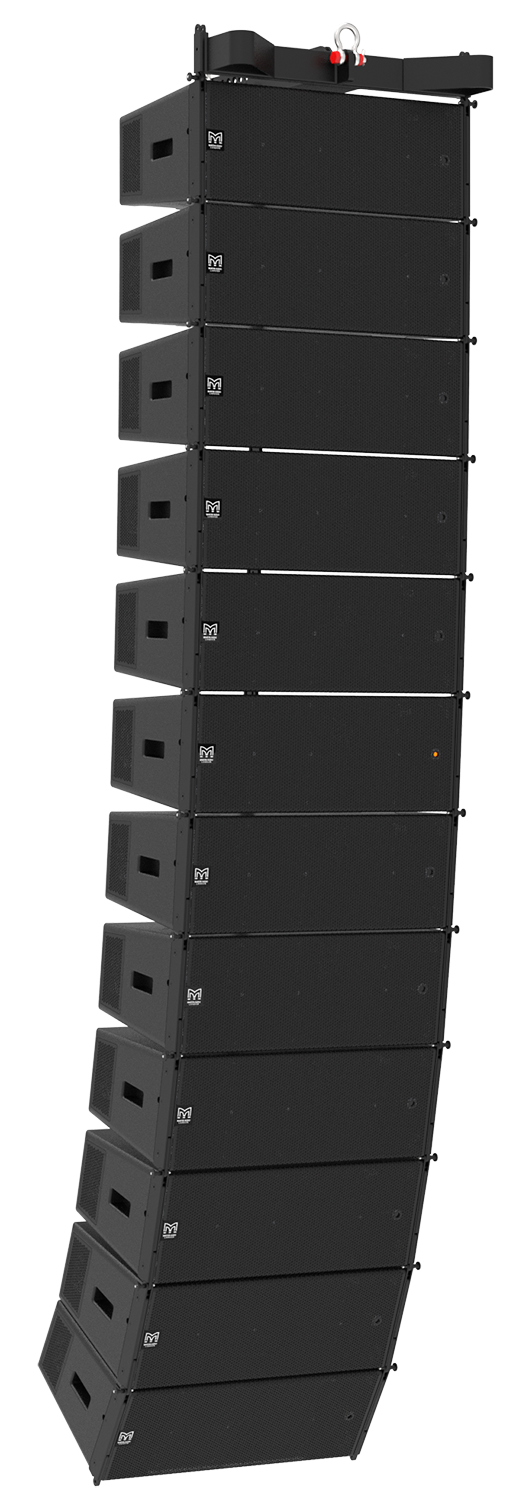

WPC is a new breed of medium-format optimised line array which brings innovative acoustic design, ultra-high performance and coverage consistency to a wider range of users, applications and budgets than previously possible. A three-way, bi-amp system, it features horn-loaded low frequency, mid and HF sections to raise efficiency and increase output. With a peak SPL of 135dB its high efficiency acoustic design can equal or outperform larger, direct radiator systems — a 12-box array will throw beyond 60 metres (200ft) and deliver impressive rock levels to a 5000-seat venue, saving on truck space and weight.

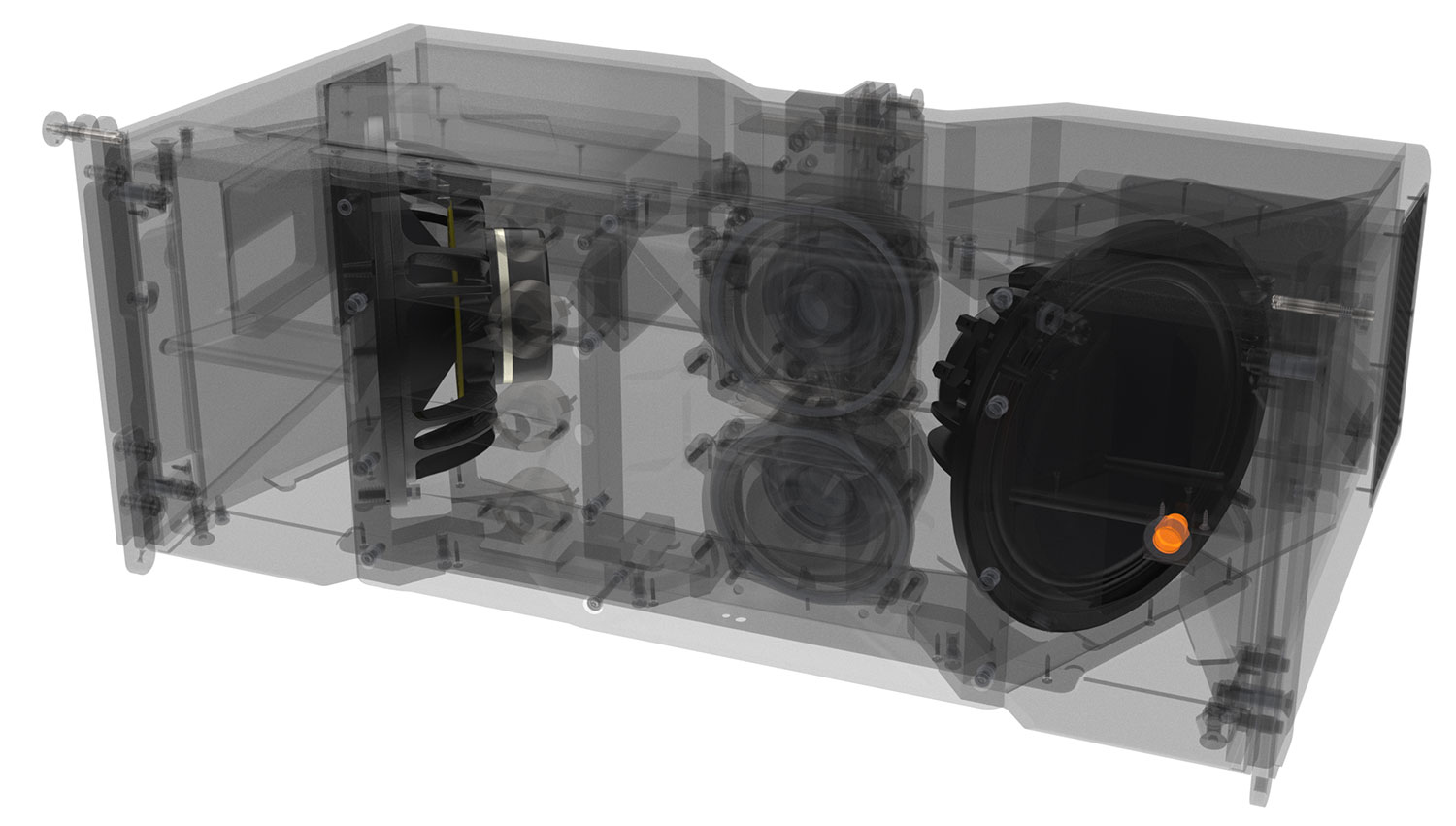

WPC’s low frequency section consists of 2 x 10” (250mm) neodymium drivers in a Hybrid® configuration which marries the benefits of horn and reflex loading. Each driver is slot-loaded into a short horn to give a high sensitivity, while the rear of the driver is reflex-loaded to extend the LF output. The punch and low-frequency extension produced from such a small enclosure volume are remarkable.

Mid and HF horns are physically separate — a key factor in the WPC’s exemplary 100° horizontal constant directivity dispersion pattern. The midrange horn design utilises 2 x 5” (125mm) neodymium drivers to produce a high output while the HF section employs 4 x 0.7” (19mm) exit neodymium compression drivers which feed 4 individual horns. Use of multiple small HF drivers instead of a more traditionally-used large format compression driver results in less distortion and a more extended HF response.

Edit

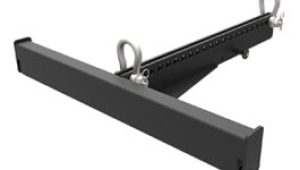

WPCGRIDI / WPCGRIDI-W

Install flying frame for WPC,
available in black or white

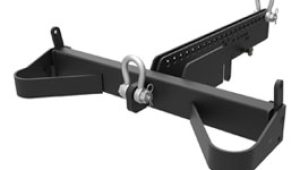

WPCGRIDT / WPCGRIDT-W

Touring flying frame for WPC,
available in black or white

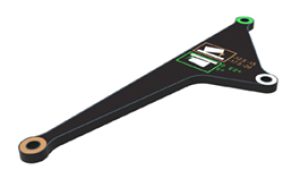

WPCGST

Touring ground stack bar
for WPC

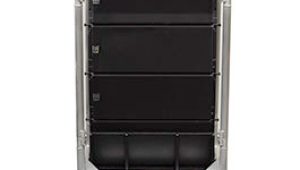

WPCCART

Transport cart
for WPC

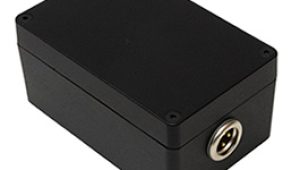

ASM20017

Inclinometer
assembly

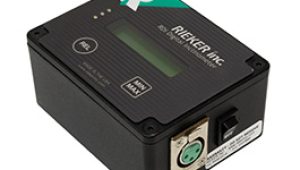

ASM20019

Reader for
inclinometer

IK42DIST32UK

Distro for iK42
ROW version

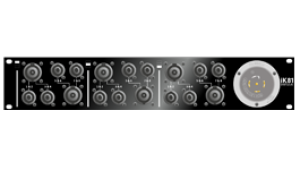

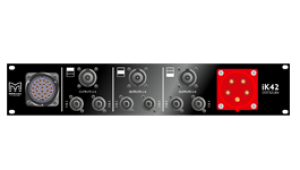

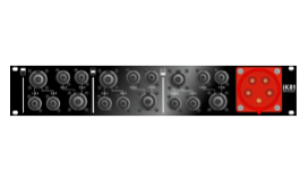

IK42DIST32UK+

Distro for iK81
ROW version

IK42DIST32US

Distro for iK42
US version

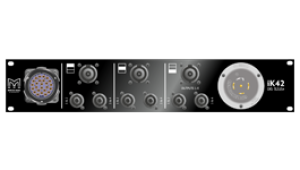

IK42DIST32US+

Distro for iK42
US version

IK42AMPRACK-UK

Amplifier rack
for iK42

IK42AMPRACK-UK+

Amplifier rack
for iK42

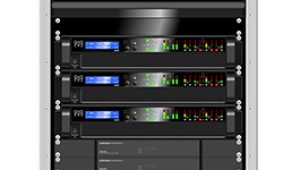

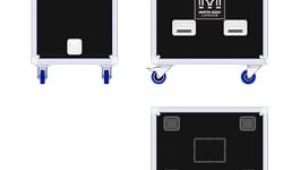

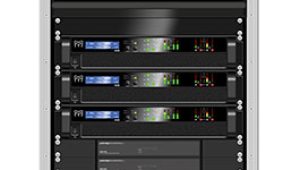

AMPRACK9UUK

9U amplifier rack
for iK42 and iK81

WPC CABLING

Cabling
for WPC

INDIST1U+

Distro panel for
iKON amplifier racks

Edit

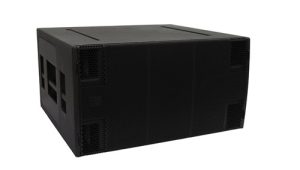

SXH218

HYBRID® HORN/REFLEX

Dual

18″ Subwoofer

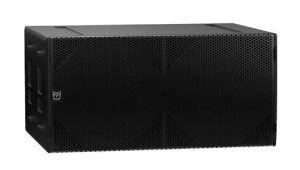

SX218

DIRECT RADIATING

Dual

18″ Subwoofer

Edit

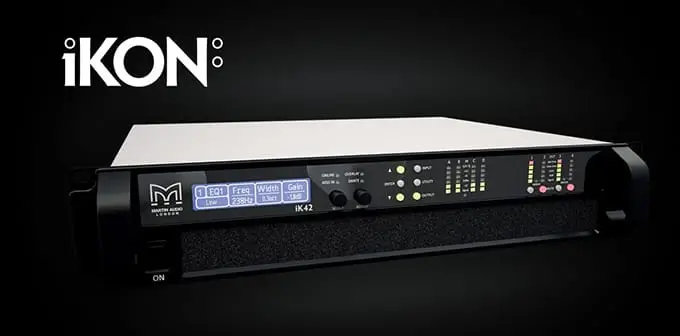

iK42

HIGH POWER
4-CHANNEL CLASS D AMPLIFIER

20,000 Watts RMS
