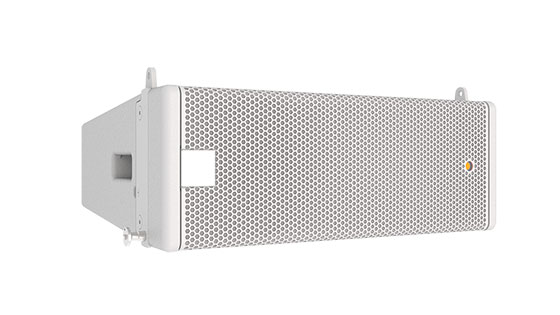

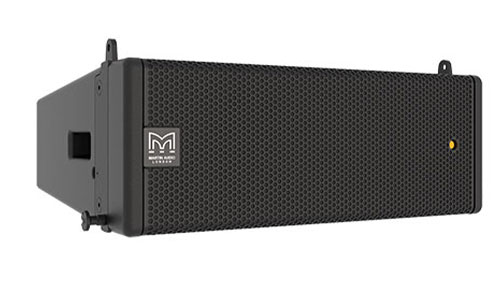

WPM

Two-way, Passive Line Array Element

The scalable resolution of WPM offers greatly improved coverage consistency and control compared to a standard line array and provides a flexible pathway to advanced array optimisation.

Features

  • Ultra-Compact line array
  • Scalable resolution for advanced array control
  • External, dedicated, multi-channel Class D amplification
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate results

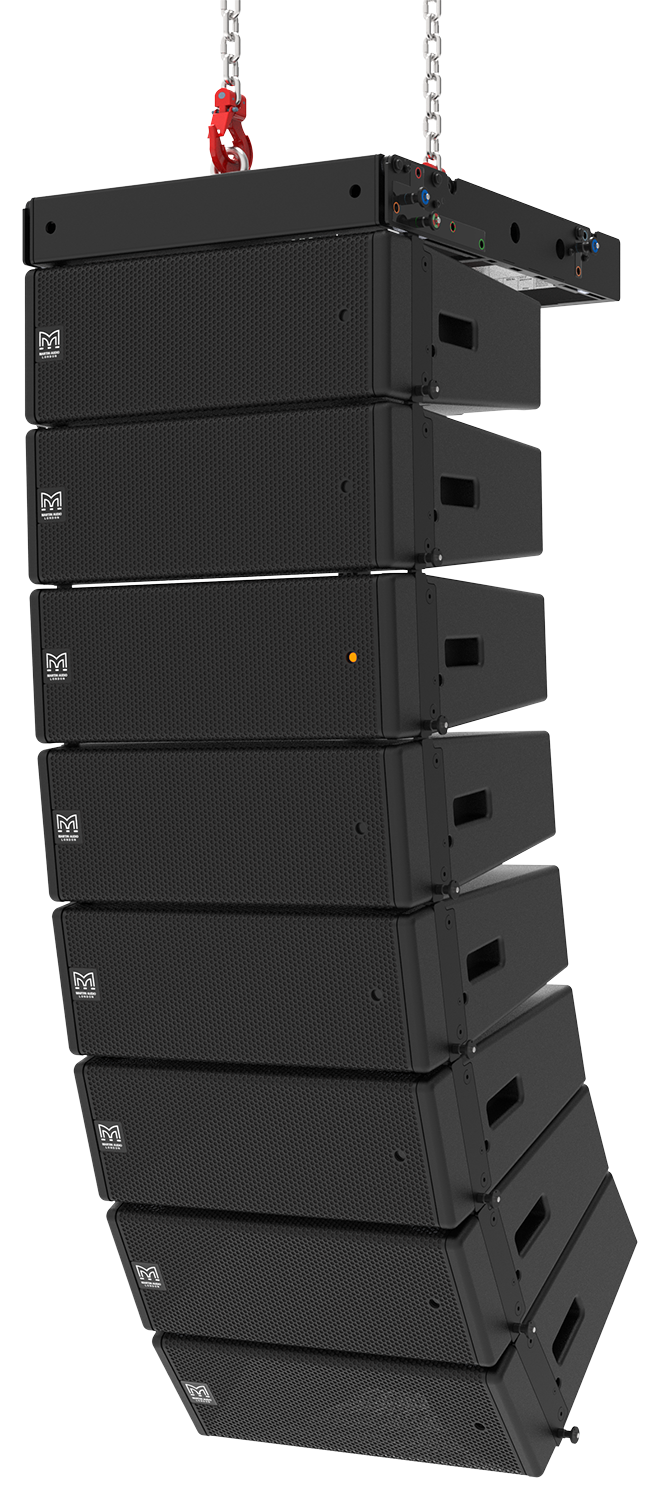

  • Fast, integral 3-point flying systems for up to 16 enclosures
  • Side and rear handles for ease of handling and setting splay angles
  • 100° horizontal constant directivity pattern control

Benefits

  • Consistent coverage achieved ‘straight-out-of-the-box’
  • DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
  • Improved audience coverage with reduced sound-spill

Applications

  • Touring sound reinforcement for small and medium-size venues
  • Fixed installations in concert halls, theatres, ballrooms and HoW
  • Sports stadium, arena installations & corporate AV events

WPM is incredibly versatile. Its very small footprint and light weight make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array. With a peak SPL of 130dB peak, it is also very powerful — a 12-box array will throw beyond 35 metres (115ft) and produce live music at high levels in up to 3000-seat venues. It embodies the very latest acoustic technology in an ultra-compact enclosure and is the ideal system for small-to-medium scale theatres and live music venues, AV events and installations in concert halls, ballrooms and HoW.

A passive 2-way system with an impedance of 16 ohms, it can be driven in blocks of 1, 2, 3 or 4 resolution configuration. With a complement of 2 x 6.5” (165mm) LF drivers and a vertical column of 3 x 1.4” (35mm) aluminium dome HF drivers, the acoustic design of WPM is uniquely innovative. The LF drivers are located in the side walls of the HF horn — an arrangement which would introduce acoustic cavities which would degrade the horizontal dispersion if conventional cone drivers were used. WPM’s drivers adopt an elegant solution by having solid moulded diaphragms which match the contours of the horn walls and maintain the continuity of the horn profile. Each LF driver also features a demodulation ring in the neodymium motor system to minimize distortion and maximise mid-band output.

In the triple-driver HF section, each individual HF wavefront is precisely coupled to the horn throat via a short waveguide for faultless 100° horizontal constant directivity coverage.

Edit

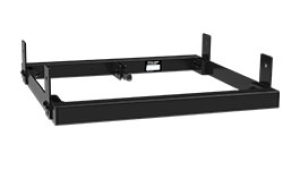

WPMGRIDi / WPMGRIDi-W

Install flying frame for WPM
Available in black or white

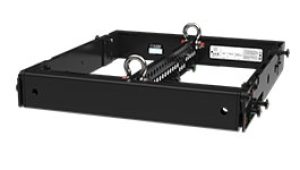

WPMGRIDT / WPMGRIDT-W

Touring flying frame for WPM
Available in black or white

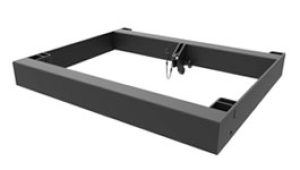

WPMMSXGRID

Transition frame
for WPM to SXF115

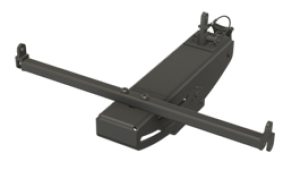

WPMUNIV

Universal bracket
for WPM

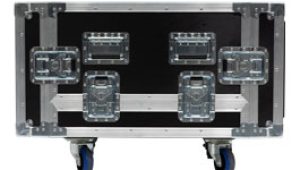

WPMFCUK

Flightcase for
4 x WPM

ASM20017

Inclinometer
assembly

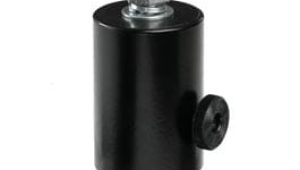

ASF20045

Pole mount
adaptor

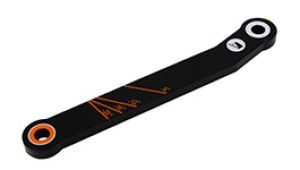

ASF20056

Long ground stack bar
for MLA Mini and WPM

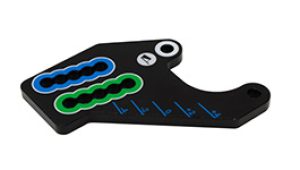

ASF20057

Short ground stack bar
for MLA Mini and WPM

ASM20019

Reader for
inclinometer

IK81DIST32UK

Distro for iK81
ROW version

IK81DIST32US

Distro for iK81
US version

iK81AMPRACK-UK

Amplifier rack
for iK81

AMPRACK9UUK

9U amplifier rack
for iK42 and iK81

WPM CABLING

Cabling
for WPM

INDIST1U+

Distro panel for
iKON amplifier racks

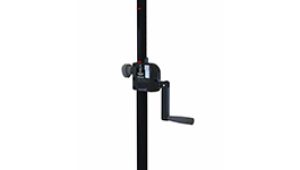

ASF20071

Wind-up
telescopic pole

Edit

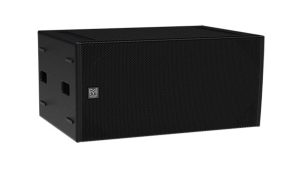

SX218

DIRECT RADIATING

Dual

18″ Subwoofer

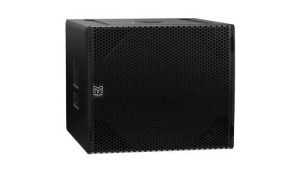

SX118

DIRECT RADIATING

Compact

18″ Subwoofer

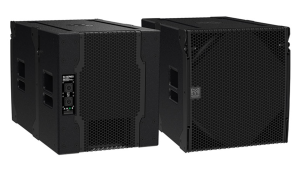

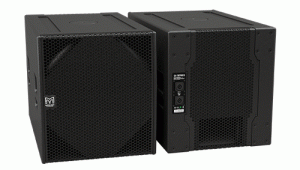

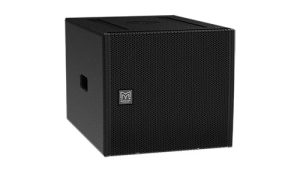

SXF115

DIRECT RADIATING

Compact

15″ Subwoofer

Edit

iK81

HIGH POWER
8 CHANNEL CLASS D AMPLIFIER

10,000 Watts RMS

iK42

HIGH POWER
4-CHANNEL CLASS D AMPLIFIER

20,000 Watts RMS
