Series: Cuboid

ON-WALL LOUDSPEAKERS

Cuboid is a series of full range, two-way, passive loudspeakers designed for short to medium throw distances, delivering rich and detailed sound with punch and precision, at a cost competitive price point.

Cuboid 6TX

Cuboid 6TX

Two-way, full range, passive, 6.5” loudspeaker with premium transformer

Cuboid 6TX is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.


With its attractive design and included mounting hardware, Cuboid 6TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.


Cuboid 6TX features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

Each Cuboid 6TX has an improved 60w transformer which enables the delivery of premium sound when installed on 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.


For enhanced bass performance, Cuboid 6TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.

When coupled with Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.

WHERE TO BUY
CUBOID-6-FRONT-Cutout
CUBOID-6-FRONT-WHITE-Cutout
CUBOID-6-REAR-Cutout
CUBOID-6-SIDE-Cutout
CUBOID6-6-SIDE-BRACKET-Cutout

Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 107dB (cont) 113dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover
  • 8 ohm or 70/100V line operation

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET
USER GUIDE
Edit Content
TYPE
Two-way, full range, passive 6.5” loudspeaker with transformer
FREQUENCY RESPONSE (with preset)
90Hz – 20kHz +/-3dB, -10dB @ 70Hz
DRIVERS
LF: 6.5”(165mm) coated paper, ferrite motor system
HF: 1” (25.4mm) Silk Dome, neodymium motor system
IP RATING
IP54 when used with accessory terminal cover
RATED POWER
60 W (AES)
240W (peak)
NOMINAL IMPEDANCE
8 Ohms
SENSITIVITY (1W/1m)
89dB
MAXIMUM SPL
107dB (cont) 113dB (peak) @ 8Ω
CROSSOVER
3.4kHz
RECOMMENDED HIGH PASS FILTER
24dB Per Octave @ 50 Hz
TRANSFORMER TAPS @ 70v
3.75, 7.5, 15, 30W
TRANSFORMER TAPS @ 100v
7.5, 15, 30, 60W
DISPERSION (-6dB)
130°H x 120°V
ENCLOSURE
ABS
FINISH
Black and White finish
PROTECTIVE GRILLE
Painted Aluminium
CONNECTORS
4 pin Euroblock
PIN CONNECTIONS (INPUT)
Positive and negative in with link out terminals
FITTINGS
M4 mounting points for wall bracket
DIMENSIONS
(W)200 x (H)320 x (D)190mm
(W)7.9” x (H)12.6” x (D)7.5”
WEIGHT
3.82kg (8.4lb)
Edit Content
DWG FILE
PDF FILE
Edit Content
OA-Zone-4P-FRONT-ANGLE-NO-EARS-Cutout

Zone 4P

4 zone audio controller with DSP, amplification and WebApp

OA-Zone-8P-FRONT-ANGLE-NO-EARS-Cutout

Zone 8P

8 zone audio controller with DSP, amplification and WebApp

OA-SMARTAMP-Series-Cutout

SmartAmp

Amplifiers with DSP
Edit Content
SUB-10-FRONT-Cutout

Sub 10

Low-profile sub-bass loudspeaker

Cuboid 6

Cuboid 6

Two-way, full range, passive, 6.5” loudspeaker

Cuboid 6 is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a compact form factor, for distributed applications with high quality background music and speech reproduction.


With its attractive design and included mounting hardware, Cuboid 6 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 6 features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.


For enhanced bass performance, Cuboid 6 can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.

When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.

WHERE TO BUY
CUBOID-6-FRONT-Cutout
CUBOID-6-FRONT-WHITE-Cutout
CUBOID-6-REAR-Cutout
CUBOID-6-SIDE-Cutout
CUBOID6-6-SIDE-BRACKET-Cutout

Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 105dB (continuous) 111dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET
USER GUIDE
Edit Content
TYPE
Two-way, full range, passive 6.5” loudspeaker
FREQUENCY RESPONSE (with preset)
90Hz – 20kHz +/-3dB, -10dB @ 70Hz
DRIVERS
LF: 6.5”(165mm) coated paper, ferrite motor system
HF: 1” (25.4mm) Silk Dome, neodymium motor system
IP RATING
IP54 when used with accessory terminal cover
RATED POWER
60 W (AES)
240W (peak)
NOMINAL IMPEDANCE
8 Ohms
SENSITIVITY (1W/1m)
89dB
MAXIMUM SPL
107dB (cont) 113dB (peak) @ 8Ω
CROSSOVER
3.4kHz
RECOMMENDED HIGH PASS FILTER
24dB Per Octave @ 50 Hz
DISPERSION (-6dB)
130°H x 120°V
ENCLOSURE
ABS
FINISH
Black and White finish
PROTECTIVE GRILLE
Painted Aluminium
CONNECTORS
4 pin Euroblock
PIN CONNECTIONS (INPUT)
Positive and negative in with link out terminals
FITTINGS
M4 mounting points for wall bracket
DIMENSIONS
(W)200 x (H)320 x (D)190mm
(W)7.9” x (H)12.6” x (D)7.5”
WEIGHT
3.82kg (8.4lb)
Edit Content
DWG FILE
PDF FILE
Edit Content
OA-Zone-4P-FRONT-ANGLE-NO-EARS-Cutout

Zone 4P

4 zone audio controller with DSP, amplification and WebApp

OA-Zone-8P-FRONT-ANGLE-NO-EARS-Cutout

Zone 8P

8 zone audio controller with DSP, amplification and WebApp

OA-SMARTAMP-Series-Cutout

SmartAmp

Amplifiers with DSP
Edit Content
SUB-10-FRONT-Cutout

Sub 10

Low-profile sub-bass loudspeaker

Cuboid 5TX

Cuboid 5TX

Two-way, full range, passive, 5” loudspeaker with transformer

Cuboid 5TX is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 5TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 5TX features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

Each Cuboid 5TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY
Cuboid-5-Front-Cutout
Cuboid-5-Front-White
Cuboid-5-Side-Bracket-Cutout
Cuboid-5-Side-Cutout

Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 105dB (continuous) 111dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover
  • 8 ohm or 70/100V line operation



Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

Cuboid 5

Cuboid 5

Two-way, full range, passive, 5” loudspeaker

Cuboid 5 is a full range, two way, passive 5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 5 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid features a 5.25” low frequency driver and a 0.75” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY
Cuboid-5-Front-Cutout
Cuboid-5-Front-White
Cuboid-5-Side-Bracket-Cutout
Cuboid-5-Side-Cutout

Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 105dB (continuous) 111dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

Cuboid 3TX

Cuboid 3TX

Two-way, full range, passive, 3” loudspeaker with transformer

Cuboid 3TX is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 3TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 3TX features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

Each Cuboid 3TX can be run on a series of 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY
Cuboid-3-Front-Cutout
Cuboid-3-Front-White
Cuboid-3-Rear-Cutout
Cuboid-3-Side-Bracket
Cuboid-3-Side-Cutout

Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 98dB (continuous) 104dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover
  • 8 ohm or 70/100V line operation


Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

Cuboid 3

Cuboid 3

Two-way, full range, passive, 3" loudspeaker

Cuboid 3 is a full range, two way, passive 3” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

With its attractive design and included mounting hardware, Cuboid 3 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.

Cuboid 3 features a 3.5” low frequency driver and a 0.5” PEI dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY
Cuboid-3-Front-Cutout
Cuboid-3-Front-White
Cuboid-3-Rear-Cutout
Cuboid-3-Side-Bracket
Cuboid-3-Side-Cutout

Features

  • Discreet size, high performance
  • Portrait or landscape mounting options
  • Wall bracket included
  • Max SPL 98dB (continuous) 104dB (peak)
  • 130° horizontal x 120° vertical coverage
  • IP54 for outdoor use with accessory terminal cover

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

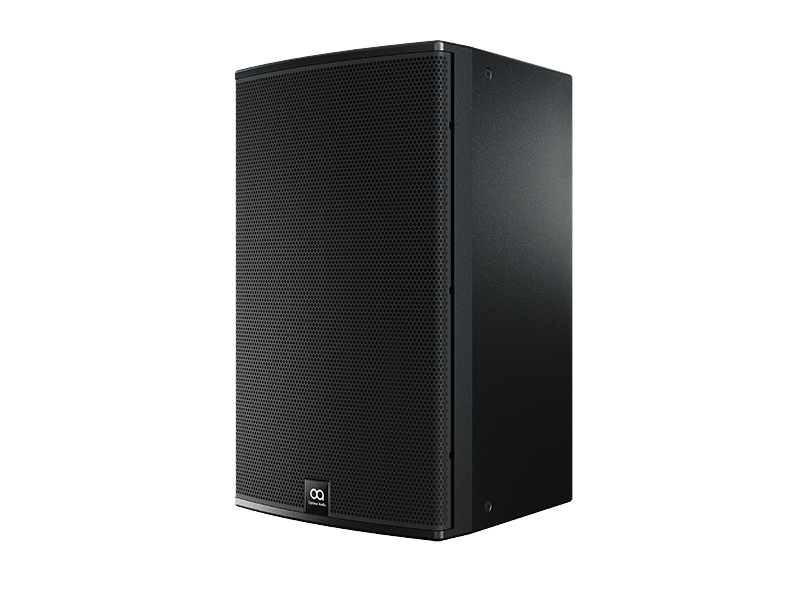

Cuboid 15

Cuboid 15

Two-way, full range, passive, 15" loudspeaker

Cuboid 15 is a full range, two-way, passive, 15” loudspeaker designed to perform. For any applications requiring big output, it effortlessly delivers rich and detailed sound with extra punch and precision.

With its steel grille and optional mounting hardware the professionally presented Cuboid 15 can be fixed in either portrait or landscape mode for a flexible, simple installation.

Cuboid 15 features a 15” (380mm) low frequency (LF) driver – for extra bass performance and mid-band – and a 1” (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY

Features

  • Portrait or landscape mounting options
  • Rotatable high-frequency horn
  • 58Hz – 18kHz frequency response ±3dB
  • Maximum SPL 126dB (continuous), 132dB (peak)
  • 80° horizontal x 50° vertical coverage

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

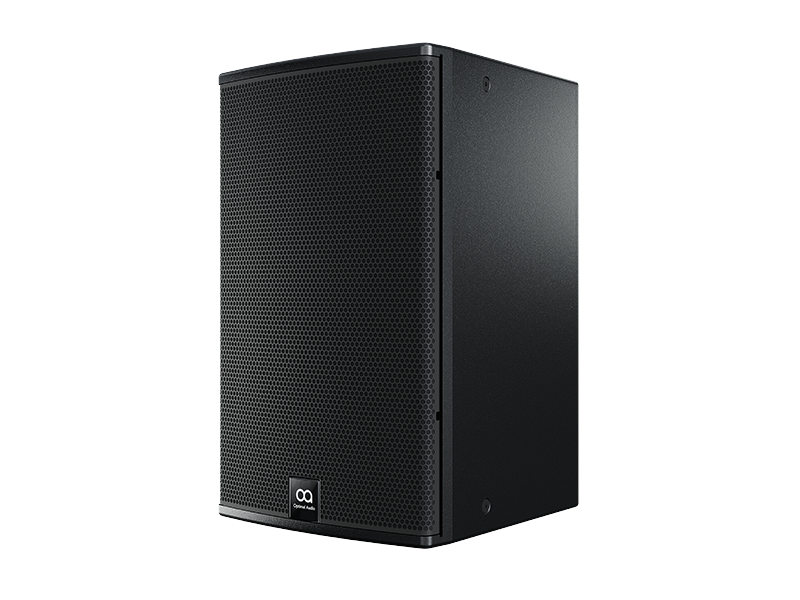

Cuboid 12

Cuboid 12

Two-way, full range, passive, 12" loudspeaker

Cuboid 12 is a full range, two-way, passive, 12” loudspeaker designed to perform. For applications requiring that extra power and performance, it effortlessly delivers rich and detailed sound with punch and precision.

With its steel grille and optional mounting hardware the professionally presented Cuboid 12 can be fixed in either portrait or landscape mode for a flexible, simple installation.

Cuboid 12 features a 12” (300mm) low frequency (LF) driver – for added bass performance and mid-band – and a 1” (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY

Features

  • Portrait or landscape mounting options
  • Rotatable high-frequency horn
  • 62Hz – 20kHz frequency response ±3dB
  • Maximum SPL 123dB (continuous), 129dB (peak)
  • 80° horizontal x 50° vertical coverage

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

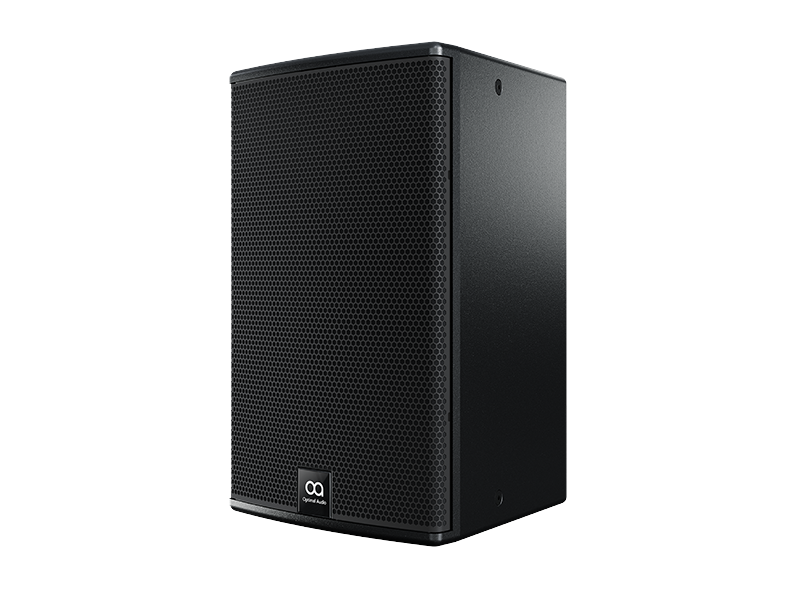

Cuboid 10

Cuboid 10

Two-way, full range, passive, 10" loudspeaker

Cuboid 10 is a full range, two-way, passive, 10” loudspeaker designed to outperform its compact size. For short to medium throw distances, it effortlessly delivers rich and detailed sound with punch and precision.

With its steel grille and optional mounting hardware the professionally presented Cuboid 10 can be fixed in either portrait or landscape mode for a flexible, simple installation.

Cuboid 10 features a 10” (250mm) low frequency (LF) driver – for impressive bass and mid-band – and a 1” (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY

Features

  • Compact size
  • Portrait or landscape mounting options
  • Rotatable high-frequency horn
  • 65Hz – 20kHz frequency response ±3dB
  • Maximum SPL 120dB (continuous), 126dB (peak)
  • 90˚ horizontal x 50˚ vertical coverage

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET

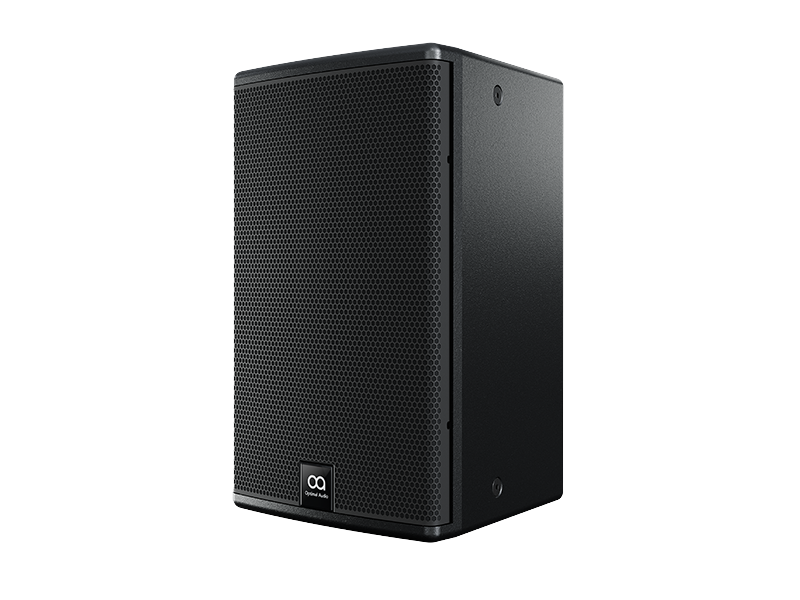

Cuboid 8

Cuboid 8

Two-way, full range, passive, 8" loudspeaker

Cuboid 8 is a full range, two-way, passive, 8” loudspeaker designed to outperform its compact size. For short to medium throw distances, it effortlessly delivers rich and detailed sound with punch and precision.

With its steel grille and optional mounting hardware the professionally presented Cuboid 8 can be fixed in either portrait or landscape mode for a flexible, simple installation.

Cuboid 8 features an 8” (200mm) low frequency (LF) driver – for impressive bass and mid-band – and a 1” (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.

When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

WHERE TO BUY

Features

  • Discreet size
  • Portrait or landscape mounting options
  • Rotatable high-frequency horn
  • 65Hz – 20kHz frequency response
  • Max SPL 115dB (cont), 121dB (peak)
  • 90˚ horizontal x 50˚ vertical coverage

Applications

  • Bars/Restaurants & Cafes
  • Retail
  • Wedding Venues
  • Hotels
  • Education Facilities
  • Houses of Worship
  • Corporate Offices
  • Museums
  • Fitness Studios
  • Residential
DATASHEET
