Series: Reference Series

In-Wall Subwoofer Enclosures

Reference Series Accessories

In-Wall Subwoofer Enclosures

Feature a combination of 1/2″ and 1″ MDF materials for superior isolation of bass; extruded aluminum bracing for minimal obstruction of airflow inside the enclosure; mass damping of front and back walls of enclosure; long-strand fiberglass internal damping for standing wave dissipation; dual positive and negative terminals for maximum wire connectivity; floating enclosure design minimizes vibration transfer to adjoining rooms; fits in standard 2×4 stud bay; blank pre-construction plate for easy installation

R10SUB ENC
R12SUB ENC
Internal Volume
.80 cubic feet (22.6 liters) of volume
1.20 cubic feet (34.3 liters) of volume
Material
MDF wood box with long strand fiberglass acoustic dampening material
MDF wood box with long strand fiberglass acoustic dampening material
Compatibility
For use with R10SUB only
For use with R12SUB only
Enclosure Dimensions (WxHxD)
14 1/4″ x 47 1/4″ x 3 7/16″ (362mm x 1200mm x 87mm)
14 1/4″ x 70 7/8″ x 3 7/16″ (362mm x 1800mm x 87mm)
Mounting Depth
3 3/8” (85.7mm)
3 3/8” (85.7mm)
Mounting Bracket Width
16 1/4” (409.5mm)
16 1/4” (409.5mm)
Hardware
Integrated L-bracket mounting system included
Integrated L-bracket mounting system included
Shipping Weight
51 lbs
79 lbs

Downloads



ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

In-Wall Subwoofers Reference

Reference Series

In-Wall Subwoofers

  • Designed for installation during the construction or renovation process
  • Enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion
  • State-of-the-art design and cutting-edge materials deliver the bass of a large cabinet subwoofer without sacrificing floor space
  • Available in 10″ or 12″ models to suit any sized room or available wall space
  • Provides an aesthetic consistent with Sonance Visual Performance Series
  • Pair with Sonance DSP Amplifiers for custom-tuned performance
R12SUB
R10SUB
Woofer
12” (305mm) laminated carbon fiber cone with a rubber surround
10” (254mm) laminated carbon fiber cone with a rubber surround
Frequency Response
25Hz – 250Hz ±3dB
30Hz – 250Hz ±3dB
Impedance
8 ohms nominal
8 ohms nominal
Sensitivity
90dB (2.83V/1) meter
88dB (2.83V/1) meter
Required Enclosure
R12SUB ENC acoustic enclosure (sold separately)
R10SUB ENC acoustic enclosure (sold separately)
Required Amplification
Sonance DSP2-750 (set for 8 Ohm operation)
Sonance DSP2-150 or Sonance DSP8-130MKII (using two channels bridged)
Dimensions Woofer (WxHxD)
12 3/8” x 12 3/8” x 3 5/32” (314mm x 314mm x 80.2mm)
10 7/16” x 10 7/16” x 3 5/32” (265mm x 265mm x 80.2mm)
Dimensions With Grill (WxHxD)
15” x 15” x 5/32” (381mm x 381mm x 4mm)
13 1/16” x 13 1/16” x 5/32” (332mm x 332mm x 4mm)
Required
*Sonance R12SUB ENC Subwoofer Enclosure (sold seperately)
*Sonance R10SUB ENC Subwoofer Enclosure (sold separately)

Accessories

Downloads

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

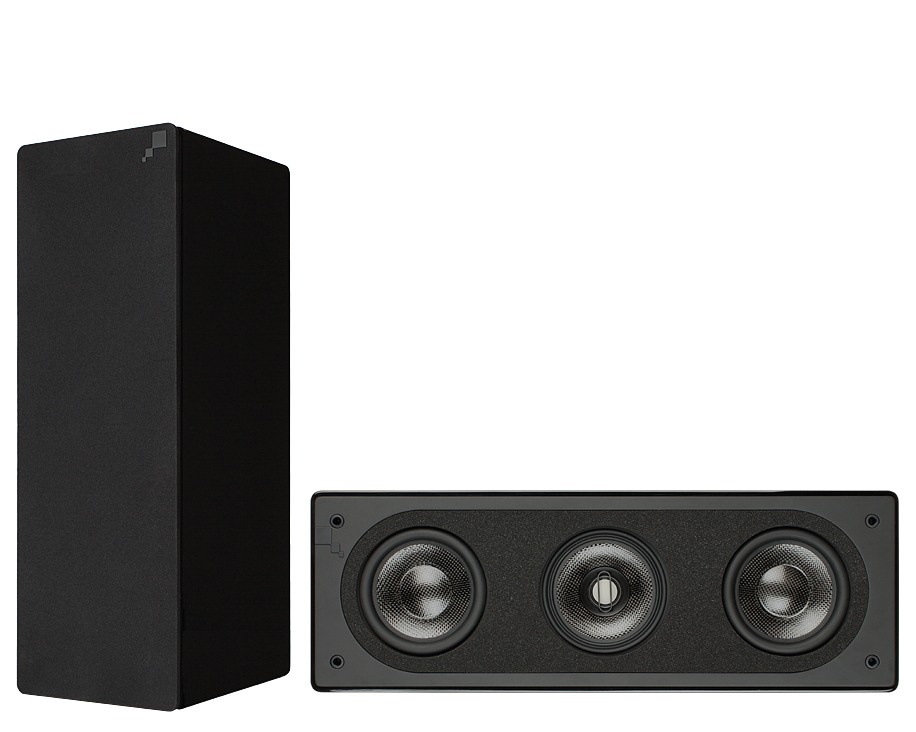

Cabinet LCR Reference

Reference Series

Cabinet LCR

  • Piano black finish with black speaker cloth for elegant and minimalistic aesthetic
  • Perfect for installations in built-in furniture or entertainment units
  • Designed to bring out the best in television, movies, gaming and concerts
  • Coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
  • Dual woofers for deep impactful bass response
  • Mix and match with Reference Series in-wall or in-ceiling speakers to achieve optimal sound in any room layout
R1CAB
Tweeter
1″ (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Midrange
5 1/4″ (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Woofer
Two 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz – 30kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
Grille
Black cloth
Shipping Weight
25 lbs (11.4kg) each
Dimensions (WxHxD)
7 1/2″ x 22″ x 9 1/16″ (191mm x 559mm x 230mm)

Downloads

ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

In-Ceiling Reference

Reference Series

In-Ceiling

  • Purpose-built design to bring out the best in movies, TV, gaming and multimedia content.
  • Angled driver design for accurate imaging and clear dialogue.
  • Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms.
  • Designed to fit into a standard ceiling cavity.
  • Mix and match with Reference Series in-wall speakers to achieve optimal sound in any room layout.
  • Provides a consistent aesthetic with other Reference Series speakers.
  •
R1C
R1CSUR
Tweeter
1″ (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Two 1″ (25mm) Ceramic domes, Ferrofluid-cooled
Midrange
5 1/4″ (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Two 3″ (76mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Woofer
Two 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Two 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz – 30kHz ±3dB
70Hz – 30kHz ±3dB
Impedance
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 150 watts maximum
5 watts minimum; 150 watts maximum
Sensitivity
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Shipping Weight
15 lbs (7.0kg) each
15 lbs (7.0kg) each
Cut-Out Dimensions (LxH)
12 3/8″ (314 mm) x 12 3/8″ (314 mm)
12 3/8″ (314 mm) x 12 3/8″ (314 mm)

Shared Specifications

13 25/32″ (350mm) x 13 25/32″ (350mm) x 7 9/16″ (192mm)


12 3/8″ (314 mm) x 12 3/8″ (314 mm)

Accessories

Downloads



ARE YOU INTERESTED TO LEARN MORE ABOUT SONANCE?

Speak to one of our Consultants now

speak to us

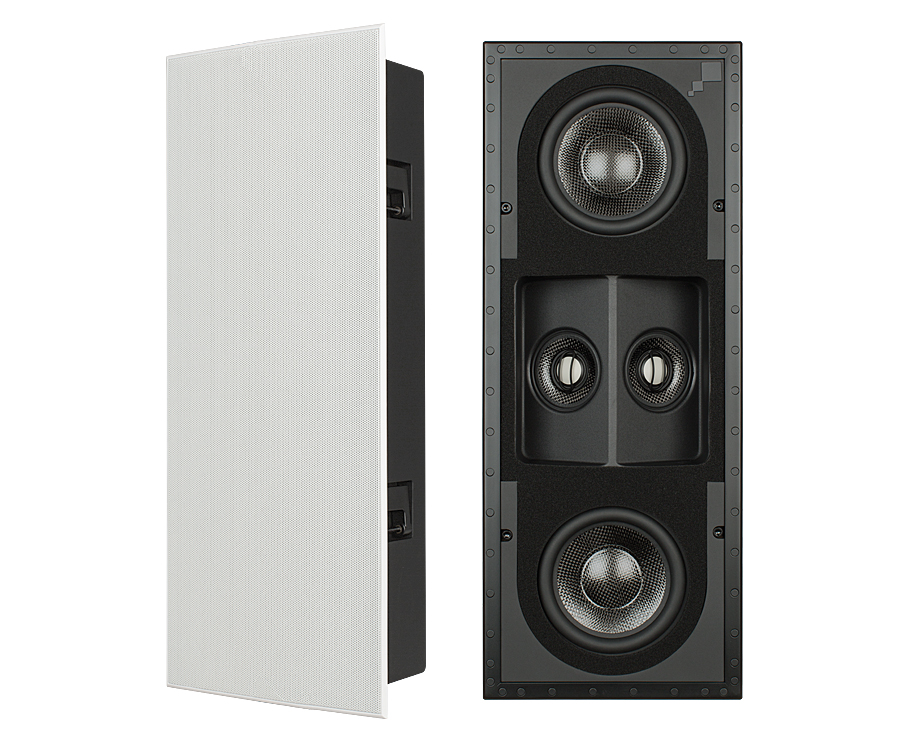

In-Wall Reference

Reference Series

In-Wall

  • Designed to bring out the best in television, movies, gaming and concerts
  • 4th generation coaxial driver and tweeter for accurate imaging and clean dialog.
  • Individual crossover networks for a more precise sound.
  • Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms.
  • Designed to fit into a standard wall cavity.
  • Mix and match with Reference in-ceiling speakers to achieve optimal sound in any room layout.
  • Provides a consistent aesthetic with other Sonance speakers series.
R2
R2SUR
R1
R1SUR
Tweeter
1″ (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Two 1″ (25mm) Ceramic domes, Ferrofluid-cooled
1″ (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Two 1″ (25mm) Ceramic domes, Ferrofluid-cooled
Midrange
5 1/4″ (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Two 3″ (76mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
5 1/4″ (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Two 3″ (76mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Woofer
Four 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Four 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Two 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Two 5 1/4″ (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response
70Hz – 30kHz ±3dB
70Hz – 30kHz ±3dB
70Hz – 30kHz ±3dB
70Hz – 30kHz ±3dB
Impedance
6 ohms nominal; 4 ohms minimum
6 ohms nominal; 4 ohms minimum
8 ohms nominal; 6 ohms minimum
8 ohms nominal; 6 ohms minimum
Power Handling
5 watts minimum; 200 watts maximum
5 watts minimum; 200 watts maximum
5 watts minimum; 150 watts maximum
5 watts minimum; 150 watts maximum
Sensitivity
92dB SPL (2.83V/1 meter)
92dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
90dB SPL (2.83V/1 meter)
Speaker Depth
3 7/8″ (98mm)
3 7/8″ (98mm)
3 7/8″ (98mm)
3 7/8″ (98mm)
Dimensions (WxH)
8 7/8″ x 34 7/8″ (225mm x 886mm)
8 7/8″ x 34 7/8″ (225mm x 886mm)
8 7/8″ x 21 3/4″ (225mm x 553mm)
8 7/8″ x 21 3/4″ (225mm x 553mm)
Cut-Out Dimensions (WxH)
7 1/2″ x 33 1/2″ (191mm x 851mm)
7 1/2″ x 33 1/2″ (191mm x 851mm)
7 1/2″ x 20 1/2″ (191mm x 521mm)
7 1/2″ x 20 1/2″ (191mm x 521mm)
Grille Material
Perforated steel
Perforated steel
Perforated steel
Perforated steel
Shipping Weight
29 lbs (13.2kg) each
29 lbs (13.2kg) each
19 lbs (8.6kg) each
19 lbs (8.6kg) each

Accessories

Downloads
