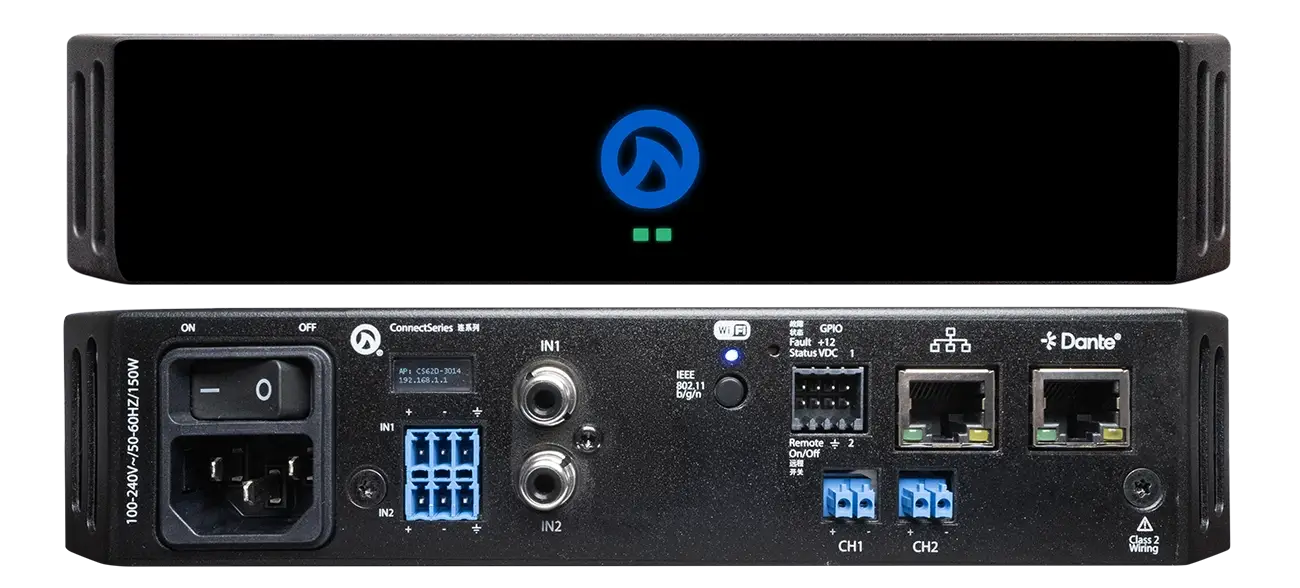

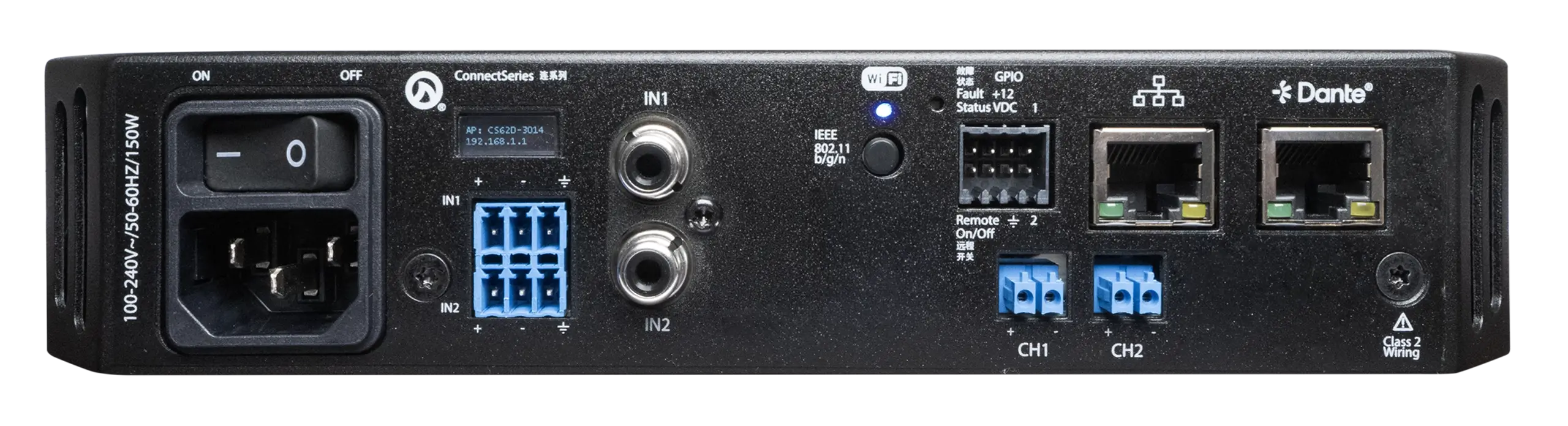

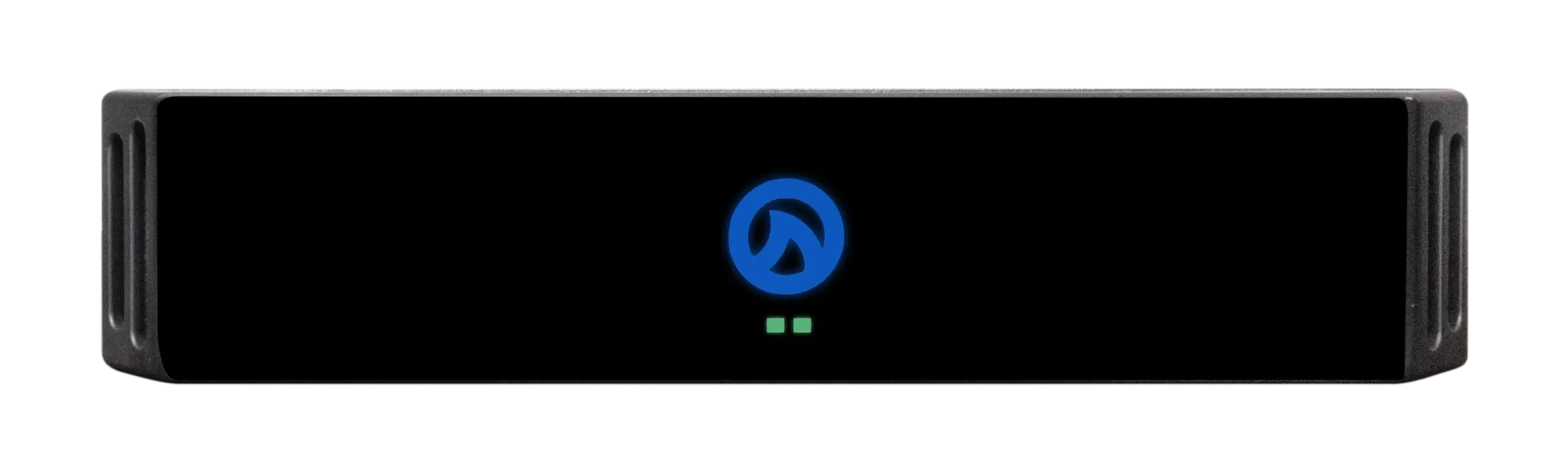

The Connect Series 62D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
AUDIO SPECIFICATIONS | |
|---|---|
INPUTS | Analog: 2 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity
2 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity ***Note – Unbalanced and RCA inputs share the same analog input channel Dante: 2 x 2 Dante at 48kHz, Multicast or Unicast AES 67: Configurable via the Dante Controller software |
THD+N | 0.1% (20Hz to 20kHz) |
FREQUENCY RESPONSE | 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω |
SIGNAL TO NOISE LEVEL | 102dB (20Hz to 20kHz referenced to 8Ω) |
CROSSTALK | 70dB (20Hz to 20kHz) |
AMPLIFIER OUTPUT CLASSIFICATION | Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel |
DSP | |
|---|---|
DSP ARCHITECTURE | Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
INPUT MATRIX & MATRIX MIXER | Routable matrix; any input can be mixed to any output |
CROSSOVERS | Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
8 Band Parametric EQ per channel | 8 Band Parametric EQ per channel |
OUTPUT DELAY | 100ms per channel |
OUTPUT PROTECTION | DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
USER ADJUSTABLE LIMITING | Peak Voltage and RMS Voltage |
LOAD MONITORING | Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources |
CONTROL, MONITORING, NETWORKING | |
|---|---|
USER INTERFACE | Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare |
EXTERNAL I/O | External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health 2 general Purpose input and output pins for general input Triggering and output statuses – Coming Soon |
OPERATION | |
|---|---|
AC MAINS | 100VAC – 240VAC +/- 15% 50Hz or 60Hz |
POWER SUPPLY | Universal Switch Mode Power Supply |
PHYSICAL SPEC | |
|---|---|
DIMENSIONS (L X W X H) | Product: 11.82” x 8.58” x 1.71″ (300.11mm x 218mm x 43.5mm)
Shipping: 18” x 11” x 2.75” (457.2mm x 300mm x 69.85mm) |
WEIGHT | 7lbs / 4.1kg | Shipping: Coming Soon |
COOLING | Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m Fan Noise at 50% is 57dB @1m Fan Noise at full speed is 63dB @ 1m |
MODEL | CH COUNT | 2u2126 | 4u2126 | 8u2126 | 25V | 70V / 100V |
|---|---|---|---|---|---|---|
CONNECT 34 | 4 | 15W | tn30W | 30W | 30W | 30W |
CONNECT 34D | 4 | tn15W | 30W | tn30W | tn30W | 30W |
CONNECT 62 | 2 | 30W | 60W | 60W | 60W | 60W |
CONNECT 62D | 2 | 30W | 60W | 60W | 60W | 60W |
CONNECT 64 | 4 | 60W | 60W | 60W | 60W | 60W |
CONNECT 64D | 4 | 30W | 30W | 30W | 30W | 30W |
CONNECT 124 | 4 | 60W | 120W | 120W | 120W | 120W |
CONNECT 124D | 4 | 60W | 120W | 120W | 120W | 120W |
CONNECT 122 | 2 | 60W | 120W | 120W | 120W | 120W |
CONNECT 122D | 2 | 60W | 120W | 120W | 120W | 120W |
