Series: Tensor Series

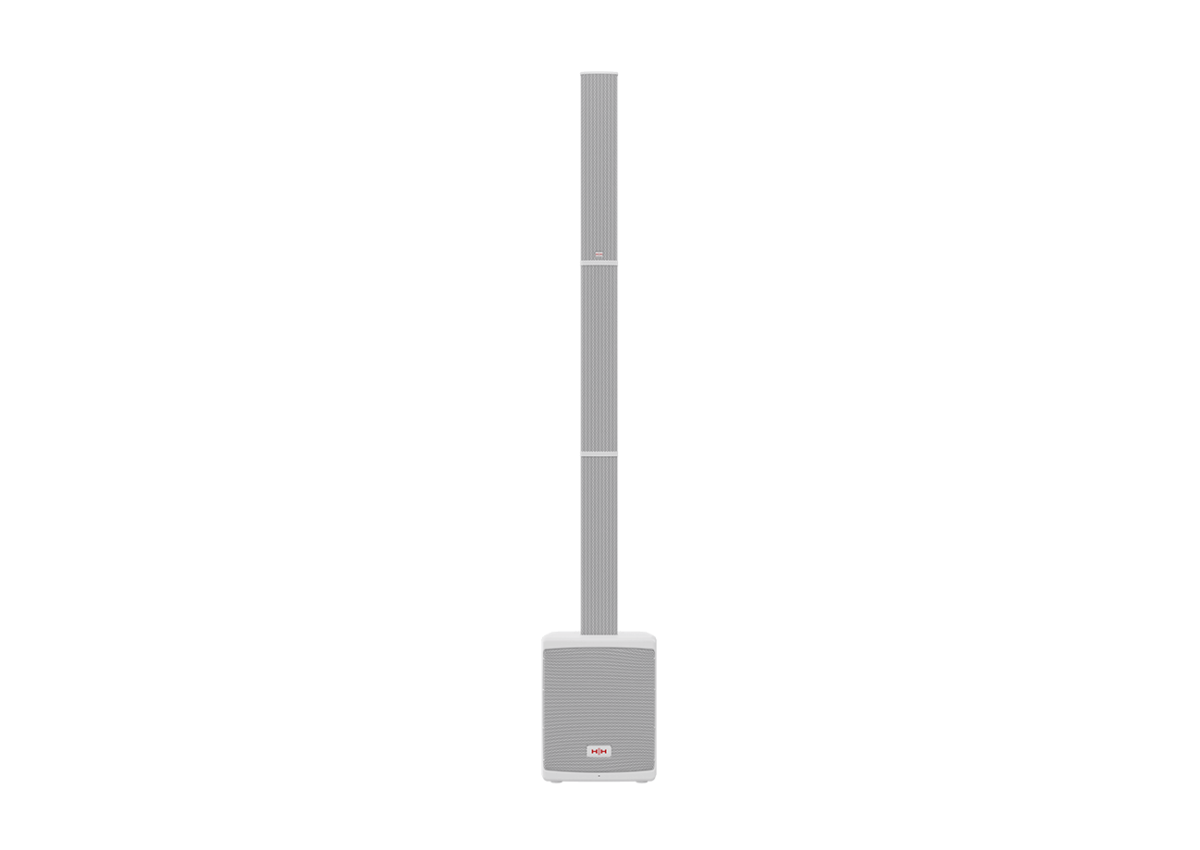

TENSOR-SOLO-WH

TENSOR-SOLO-WH

The Tensor-SOLO all-in-one column PA delivers a superior audio experience from an ultra portable system. The 8″ subwoofer and six 2.75″ drivers allow for crystal clear audio coverage for 100+ people. With its simple 4-piece ‘slot together’ design, the Tensor-SOLO can be set up swiftly and effortlessly. Microphones or line level devices such as keyboards can connect to the Tensor-SOLO simultaneously via the 4-channel mixer. Bluetooth enabled devices can also connect for wireless audio streaming and with integrated True Wireless Stereo technology (TWS), two Tensor-SOLO systems can be linked for stereo audio transmission wirelessly. The on-board DSP provides 4 EQ presets for different voicings as well as comprehensive audio protection to prevent the system being overloaded and damaged. Super-lightweight – weighing just 13kg, 29lbs, the Tensor-SOLO is the ultimate wireless audio solution.

  • Ultra-lightweight 4 piece design – only 13kg
  • Impressive audio performance
  • High power ensuring a large coverage
  • 4-channel mic/line mixer with reverb
  • Bluetooth connectivity with TWS linking
  • 4x DSP presets for effortless setup
  • Carry bag and slip cover included
WHERE TO BUY
TENSOR-SOLO-WH_Main
TENSOR-SOLO-WH_Left
TENSOR-SOLO-WH_Back
TENSOR-SOLO-WH_Panel
TENSOR-SOLO-WH_Exploded0
BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver unrivaled performance tailored towards live sound reinforcement.

Features

  • System Type
    Portable column PA system with 4-channel mixer
  • Outputs
    Balanced XLR mix out
  • Controls
    CH1/3 level, CH1/2 reverb and mic/line switch, bluetooth pairing, master volume control, reverb level, EQ mode button
  • HF Driver
    6x 2.75″ HH mid/high drivers
  • Max SPL (1M) (Peak)
    123dB
  • Amplifier Type
    Class D
  • Bluetooth Version
    V5.0
  • DSP
    Crossover, EQ, dual-band limiters, phase and delay optimisation
  • Finish
    White
  • Accessories
    1x Padded subwoofer slip cover, 1x Padded 3 piece column carry bag included
  • Unit Dimensions (Hwd)
    Spacers/satellite: 560 x 105 x 105mm (22″ x 4.1″ x 4.1″) Sub unit: 403 x 320 x 300mm (15.9″ x 12.6″ x 11.8″)
  • Carton Dimensions (Hwd)
    645 x 495 x 400mm (25.4″ x 19.5″ x 15.7″)
  • Inputs
    CH1/2 balanced XLR/6.3mm jack combi socket, CH3 3.5mm stereo aux and RCA, CH4 Bluetooth V5.0 audio receiver
  • Indicators
    Bluetooth connected LED, Power LED (turns red when limiters activate), EQ mode highlight LED
  • LF Driver
    8″ HH Long throw woofer
  • Frequency Response
    50-20kHz
  • Power
    1200W Peak (250W+50W RMS)
  • Protection
    Short circuit, thermal overload, multi-band limiter
  • EQ
    4 User selectable performance presets: Music, Live, Natural and Vocal
  • Cabinet
    Robust polypropylene enclosure (sub), ABS (spacers and satellite)
  • Power Supply
    Universal SMPS 100-240V~
  • Assembled Height
    1975mm (77.8″)
  • Unit Weight
    Satellite: 1.8Kg (4lbs) Spacers: 1Kg (2.2lbs) Sub unit: 9.9Kg (21.8lbs)
  • Packed Weight
    16.8Kg (37lbs)

Downloads

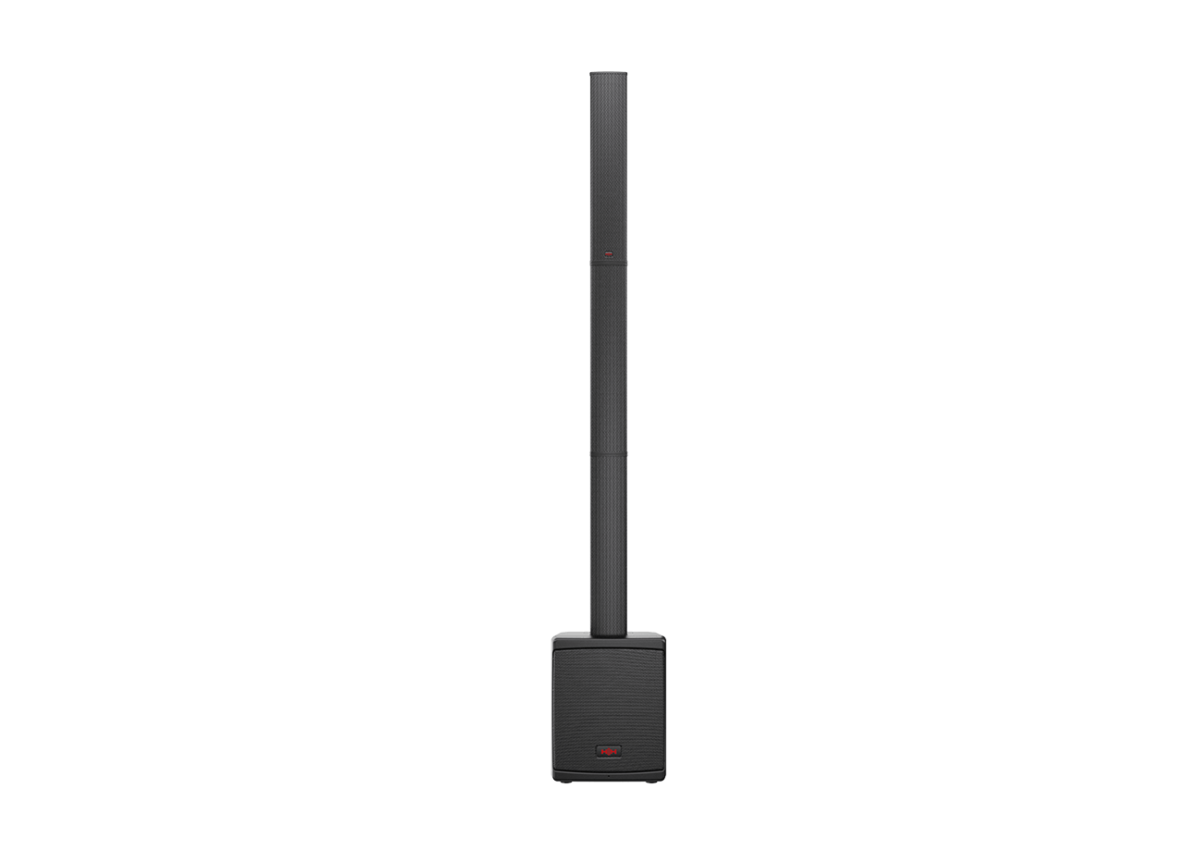

TENSOR-SOLO-BK

TENSOR-SOLO-BK

The Tensor-SOLO all-in-one column PA delivers a superior audio experience from an ultra portable system. The 8″ subwoofer and six 2.75″ drivers allow for crystal clear audio coverage for 100+ people. With its simple 4-piece ‘slot together’ design, the Tensor-SOLO can be set up swiftly and effortlessly. Microphones or line level devices such as keyboards can connect to the Tensor-SOLO simultaneously via the 4-channel mixer. Bluetooth enabled devices can also connect for wireless audio streaming and with integrated True Wireless Stereo technology (TWS), two Tensor-SOLO systems can be linked for stereo audio transmission wirelessly. The on-board DSP provides 4 EQ presets for different voicings as well as comprehensive audio protection to prevent the system being overloaded and damaged. Super-lightweight – weighing just 13kg, 29 lbs the Tensor-SOLO is the ultimate wireless audio solution.

  • Ultra-lightweight 4 piece design – only 13kg
  • Impressive audio performance
  • High power ensuring a large coverage
  • 4-channel mic/line mixer with reverb
  • Bluetooth connectivity with TWS linking
  • 4x DSP presets for effortless setup
  • Carry bag and slip cover included
WHERE TO BUY
TENSOR-SOLO-BK_Main-r
TENSOR-SOLO-BK_Left-r
TENSOR-SOLO-BK_Back-r
TENSOR-SOLO-BK_Panel-r
TENSOR-SOLO-BK_Exploded0-r
BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver unrivaled performance tailored towards live sound reinforcement.

Features

  • System Type
    Portable column PA system with 4-channel mixer
  • Outputs
    Balanced XLR mix out
  • Controls
    CH1/3 level, CH1/2 reverb and mic/line switch, bluetooth pairing, master volume control, reverb level, EQ mode button
  • HF Driver
    6x 2.75″ HH mid/high drivers
  • Max SPL (1M) (Peak)
    123dB
  • Amplifier Type
    Class D
  • Bluetooth Version
    V5.0
  • DSP
    Crossover, EQ, dual-band limiters, phase and delay optimisation
  • Finish
    Black
  • Accessories
    1x Padded subwoofer slip cover, 1x Padded 3 piece column carry bag included
  • Unit Dimensions (Hwd)
    Spacers/satellite: 560 x 105 x 105mm (22″ x 4.1″ x 4.1″) Sub unit: 403 x 320 x 300mm (15.9″ x 12.6″ x 11.8″)
  • Carton Dimensions (Hwd)
    645 x 495 x 400mm (25.4″ x 19.5″ x 15.7″)
  • Inputs
    CH1/2 balanced XLR/6.3mm jack combi socket, CH3 3.5mm stereo aux and RCA, CH4 Bluetooth V5.0 audio receiver
  • Indicators
    Bluetooth connected LED, Power LED (turns red when limiters activate), EQ mode highlight LED
  • LF Driver
    8″ HH Long throw woofer
  • Frequency Response
    50-20kHz
  • Power
    1200W Peak (250W+50W RMS)
  • Protection
    Short circuit, thermal overload, multi-band limiter
  • EQ
    4 User selectable performance presets: Music, Live, Natural and Vocal
  • Cabinet
    Robust polypropylene enclosure (sub), ABS (spacers and satellite)
  • Power Supply
    Universal SMPS 100-240V~
  • Assembled Height
    1975mm (77.8″)
  • Unit Weight
    Satellite: 1.8Kg (4lbs) Spacers: 1Kg (2.2lbs) Sub unit: 9.9Kg (21.8lbs)
  • Packed Weight
    16.8Kg (37lbs)

Downloads

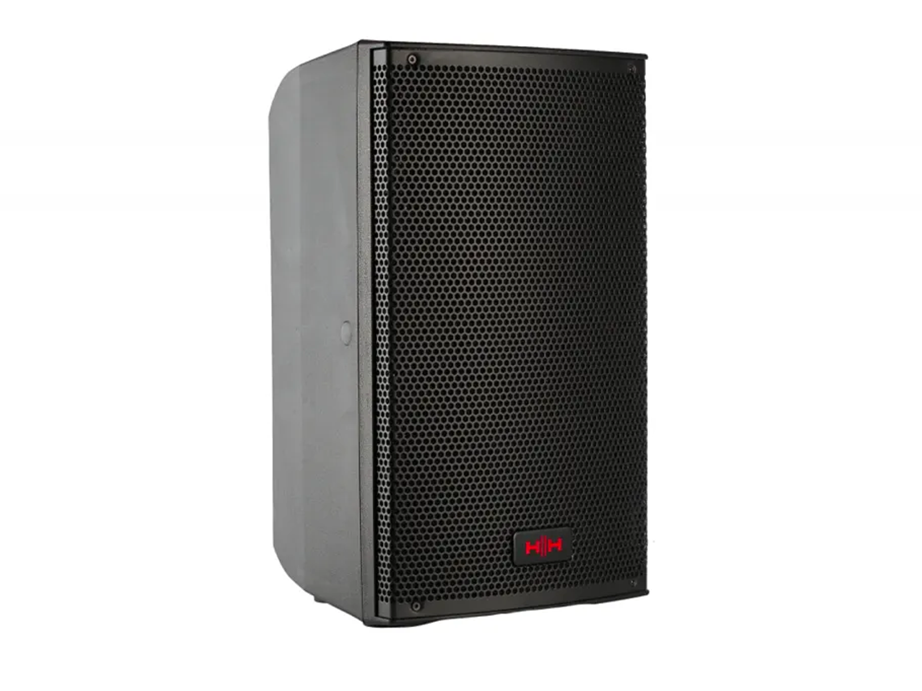

TRE-1001

TRE-1001

High-grade Class D Bi-amplifier

The Tensor TRE-1001’s design has been tailored to deliver unparalleled performance within a compact enclosure. The high-grade Class D bi-amplifier provides impressive output performance, while the intelligent on-board DSP optimises and protects your system from failure. With 4 pre-set audio modes, the TRE-1001 is instantly customisable. Perfect for DJ, live band, monitoring or announcements. The integrated 2 channel mixer allows instant connection from a wide-array of devices. All this contained in an ultra lightweight, multi-angle enclosure with 2 molded carry handles and 4 M8 suspension points.

WHERE TO BUY
TRE-1001_Right
TRE-1001_Panel
TRE-1001_Main
TRE-1001_Left
TRE-1001_Bottom

Features

  • 4 inch hh designed coaxial woofer
  • 100v transformer power taps: 30w, 15w, 6w
  • 70v trasnformer power taps: 15w, 7.5w, 3w
  • 106 db max spl (1m)
  • 4 position front power tap
  • Push spring input connectors

The HH TNi range has been engineered to provide the best audio performance, combined with compact dimensions and flexible mounting options to suit a wide range of installation projects.

From music venues to retail stores, cafes and restaurants to meeting rooms and public buildings, places of worship, fitness studios and hotels the TNi series are the ideal solution.

The five passive and two active models all feature high performance 2-way designs with timbre balancing across the range, enabling different models to seamlessly integrate in one installation. With renowned HH woofers and LaVoce compression drivers; the TNi family offer precisely controlled directivity and superb voice clarity for all speech applications, but also dynamic, musical response for foreground or background music use.

The HH TNi range are available in white or black finishes to suit your application

BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.

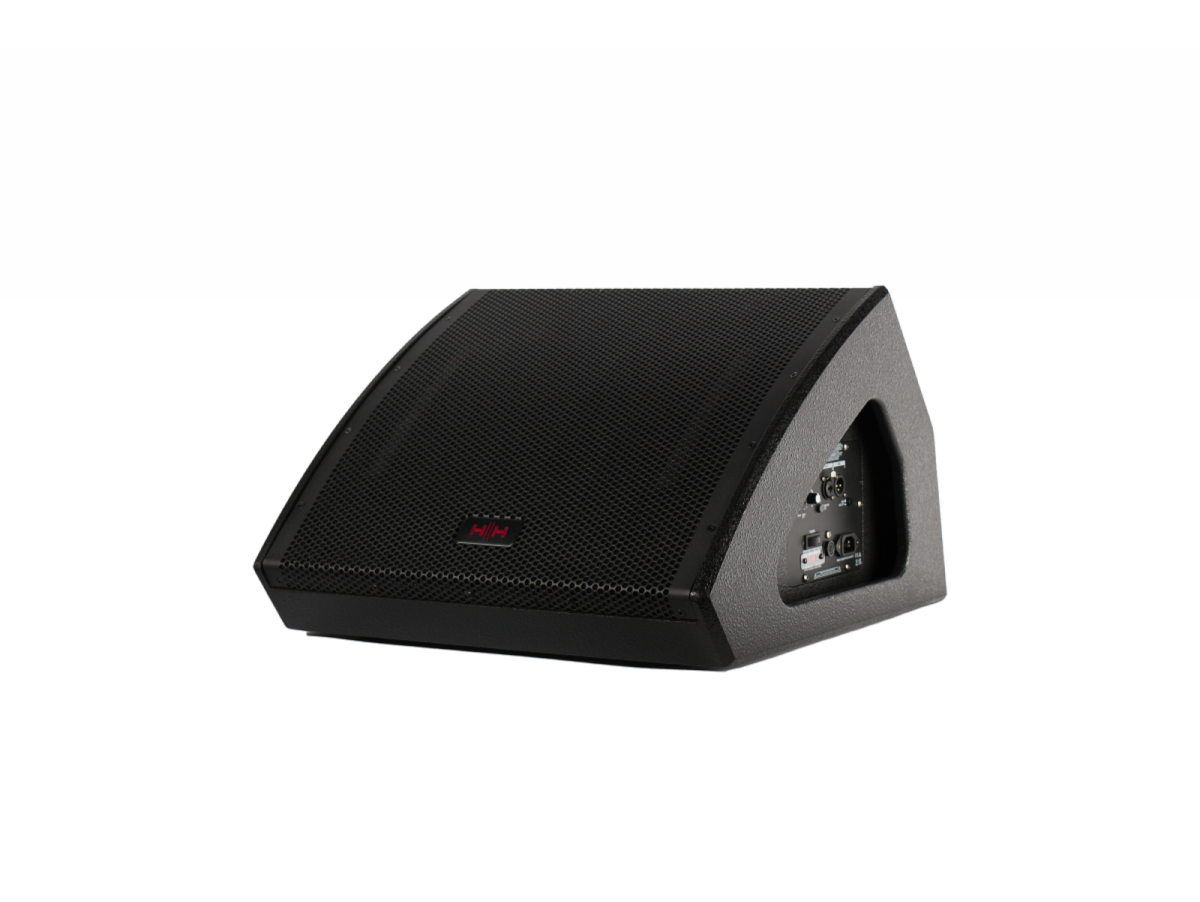

TRM-1201

TRM-1201

Ultra Efficient 1400 Watt Class D Amplifier

The Tensor TRM-1201 is a compact, active monitor; featuring a HH high-grade 12-inch driver with 1-inch compression driver. The ultra efficient 1400 Watt Class D amplifier delivers optimal power output for demanding applications. Dual audio modes provide effective voicing options for versatile operation, whether that’s live band, DJ or conference. The 6.3mm / XLR combination input socket enables simple connection. Combined with a painted, light-weight solid plywood enclosure with 35mm pole mount for tripod mounting, the Tensor TRM-1201 is the perfect active monitoring solution.

WHERE TO BUY
TRM-1201_Right
TRM-1201_Bottom
TRM-1201_Left
TRM-1201_Main
TRM-1201_Panel

Features

  • 4 inch hh designed coaxial woofer
  • 100v transformer power taps: 30w, 15w, 6w
  • 70v trasnformer power taps: 15w, 7.5w, 3w
  • 106 db max spl (1m)
  • 4 position front power tap
  • Push spring input connectors

The HH TNi range has been engineered to provide the best audio performance, combined with compact dimensions and flexible mounting options to suit a wide range of installation projects.

From music venues to retail stores, cafes and restaurants to meeting rooms and public buildings, places of worship, fitness studios and hotels the TNi series are the ideal solution.

The five passive and two active models all feature high performance 2-way designs with timbre balancing across the range, enabling different models to seamlessly integrate in one installation. With renowned HH woofers and LaVoce compression drivers; the TNi family offer precisely controlled directivity and superb voice clarity for all speech applications, but also dynamic, musical response for foreground or background music use.

The HH TNi range are available in white or black finishes to suit your application

BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.

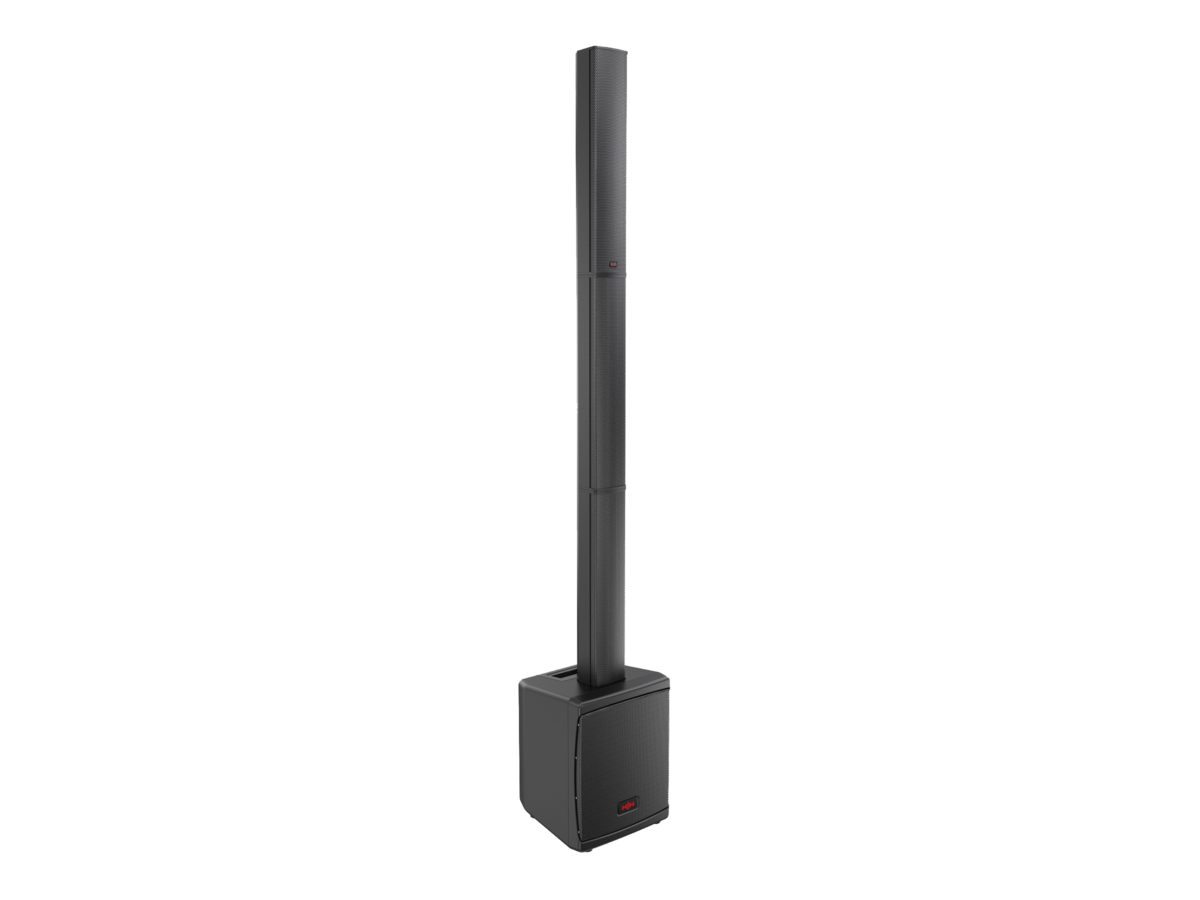

TENSOR-GO

TENSOR-GO

The Tensor-GO all-in-one column PA delivers a superior audio experience from an ultra portable system. The integrated high performance Lithium-ion battery enables long system usage with crystal clear audio coverage for 100+ people without the requirement of a mains power supply.

With its simple 4-piece ‘slot together’ design, the Tensor-GO can be set up swiftly and effortlessly. Microphones or line level devices such as keyboards can connect to the Tensor-GO simultaneously via the 4-channel mixer. Bluetooth enabled devices can also connect for wireless audio streaming and with integrated Wireless Stereo Pairing, two Tensor-Go systems can be linked for stereo audio transmission wirelessly.

Comprehensive audio protection via the on-board DSP prevents the system being overloaded and damaged. Super-lightweight – weighing just 14Kg/31lbs. Tensor-GO – the ultimate wireless audio solution.

WHERE TO BUY
TENSOR-GO_Right
TENSOR-GO_Main
TENSOR-GO_Left
TENSOR-GO_Top
TENSOR-GO_Bottom
TENSOR-GO_Back
BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver unrivaled performance tailored towards live sound reinforcement.
BROCHURE
DATASHEET
USER MANUAL

SC-TRE12

SC-TRE12

Tensor slip cover suitable for use with TRE-1201

Hardwearing durable made to measure slip covers with side handle access. SC-TRE12 Tensor slip cover suitable for use with TRE-1201.

WHERE TO BUY

Features

  • Dual 5-inch HH designed woofers
  • Custom designed Celestion compression driver, waveguide & horn
  • Power rating: 800w peak, 400w continuous, 200w aes
  • Max spl (1m) (peak): 124 db
  • Frequency response : 65hz-20khz
  • 16-ohm nominal system impedance
  • 15mm plywood cabinet

Applications

  • Retail outlets
  • Cafes, bars and restaurant chains
  • Hotels and convention centres
  • Educational facilities
  • Corporate offices

Features

  • Dual 5-inch HH designed woofers
  • Custom designed Celestion compression driver, waveguide & horn
  • Power rating: 800w peak, 400w continuous, 200w aes
  • Max spl (1m) (peak): 124 db
  • Frequency response : 65hz-20khz
  • 16-ohm nominal system impedance
  • 15mm plywood cabinet

APPLICATION

BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product
developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver
unrivaled performance tailored towards live sound reinforcement.

BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.

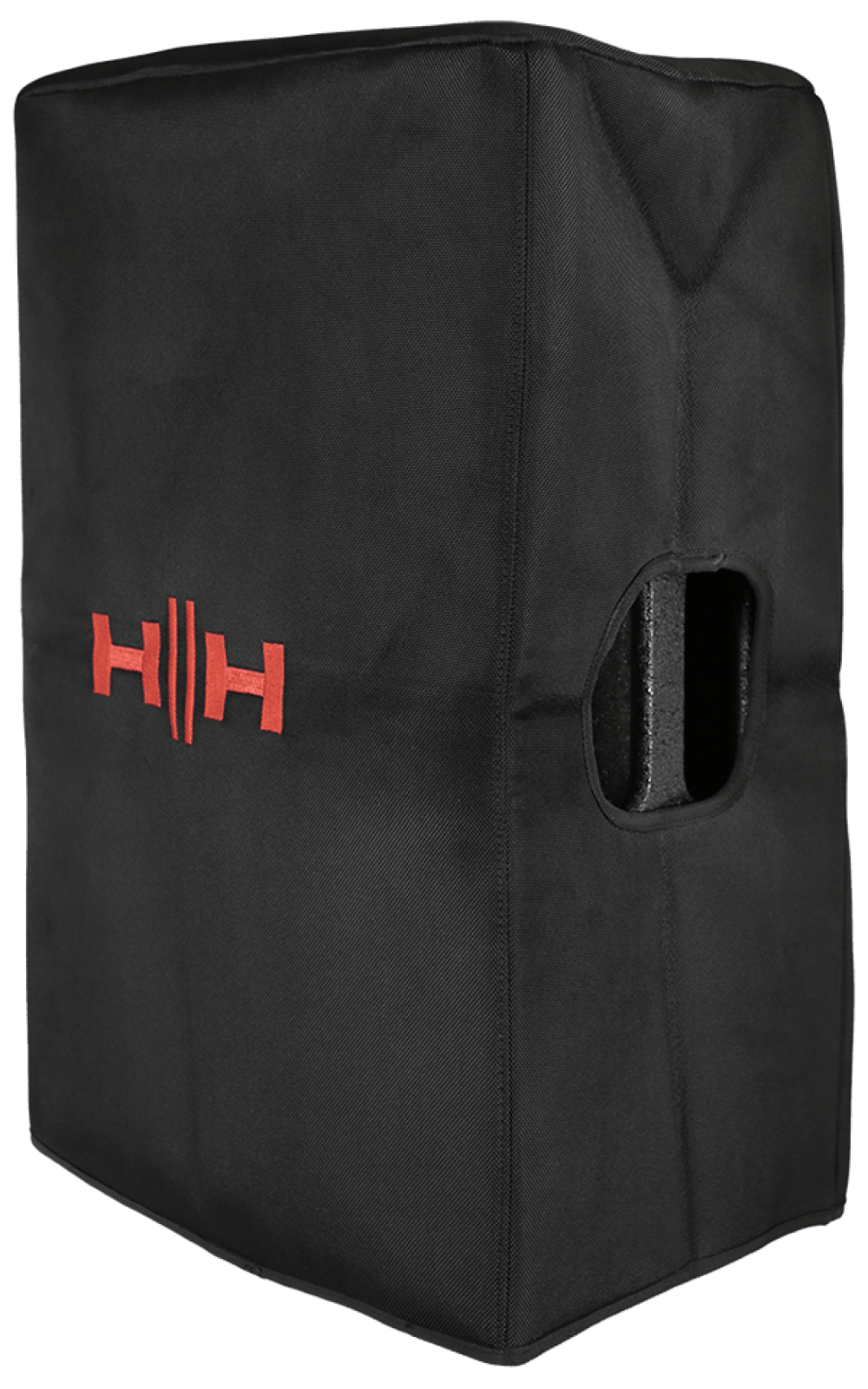

SC-TRE15

SC-TRE15

Tensor slip cover suitable for use with TRE-1501

Hardwearing durable made to measure slip covers with side handle access. SC-TRE15 Tensor slip cover suitable for use with TRE-1501.

WHERE TO BUY

Features

  • Dual 5-inch HH designed woofers
  • Custom designed Celestion compression driver, waveguide & horn
  • Power rating: 800w peak, 400w continuous, 200w aes
  • Max spl (1m) (peak): 124 db
  • Frequency response : 65hz-20khz
  • 16-ohm nominal system impedance
  • 15mm plywood cabinet

Applications

  • Retail outlets
  • Cafes, bars and restaurant chains
  • Hotels and convention centres
  • Educational facilities
  • Corporate offices

Features

  • Dual 5-inch HH designed woofers
  • Custom designed Celestion compression driver, waveguide & horn
  • Power rating: 800w peak, 400w continuous, 200w aes
  • Max spl (1m) (peak): 124 db
  • Frequency response : 65hz-20khz
  • 16-ohm nominal system impedance
  • 15mm plywood cabinet

APPLICATION

BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product
developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver
unrivaled performance tailored towards live sound reinforcement.

BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.

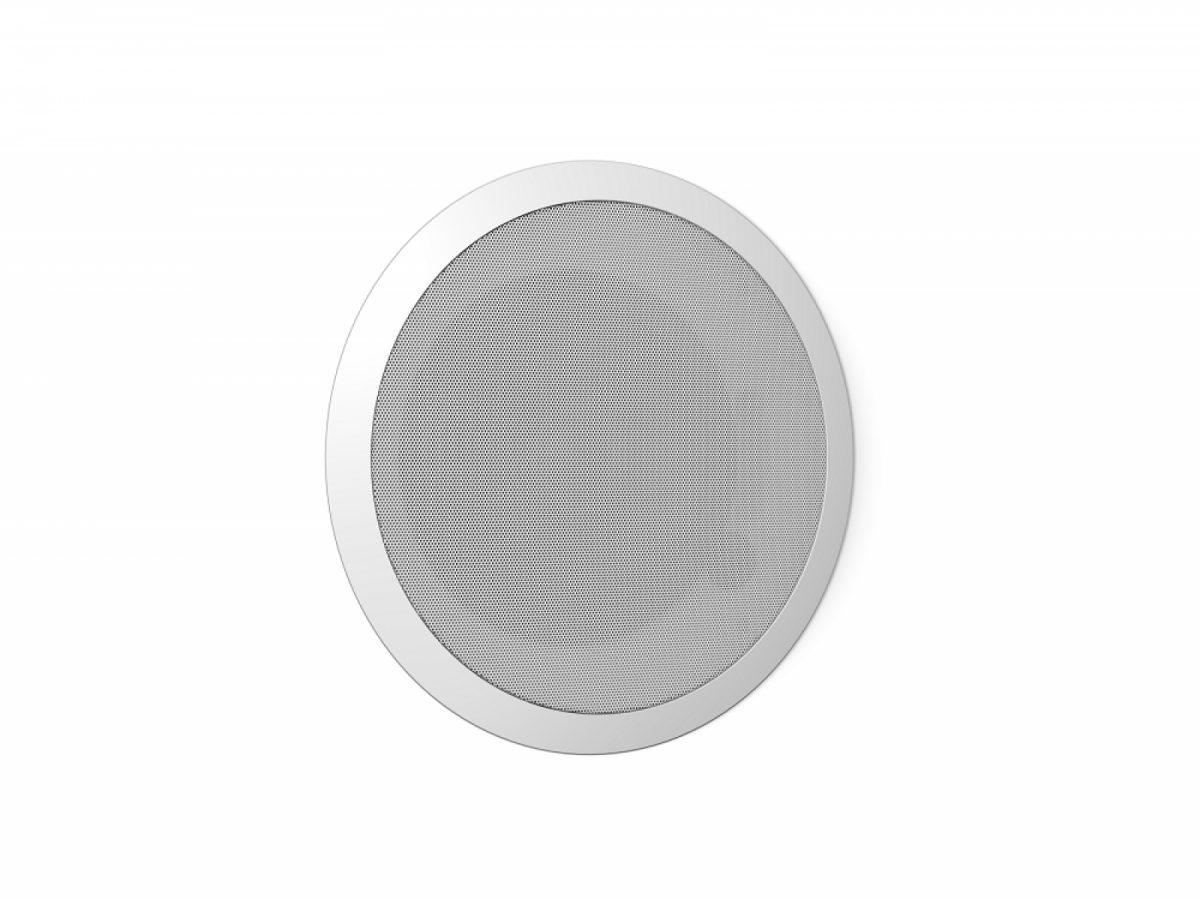

TNi-C6

TNi-C6

6.5 inch hh designed coaxial woofer

The Tessen TNi-C6 delivers premium audio reinforcement. designed with the installer in mind, The TNi-C6 – 6.5 inch coaxial ceiling speaker – features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, The TNi-C6 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.

WHERE TO BUY

Features

  • 6.5 inch hh designed coaxial woofer
  • 100v transformer power taps:40w, 20w, 10w
  • 70v transformer power taps:15w, 7.5w, 3w
  • 107 db max spl (1m)
  • 4 position front power tap
  • Push spring input connectors

The HH TNi range has been engineered to provide the best audio performance, combined with compact dimensions and flexible mounting options to suit a wide range of installation projects.

From music venues to retail stores, cafes and restaurants to meeting rooms and public buildings, places of worship, fitness studios and hotels the TNi series are the ideal solution.

The five passive and two active models all feature high performance 2-way designs with timbre balancing across the range, enabling different models to seamlessly integrate in one installation. With renowned HH woofers and LaVoce compression drivers; the TNi family offer precisely controlled directivity and superb voice clarity for all speech applications, but also dynamic, musical response for foreground or background music use.

The HH TNi range are available in white or black finishes to suit your application

BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.

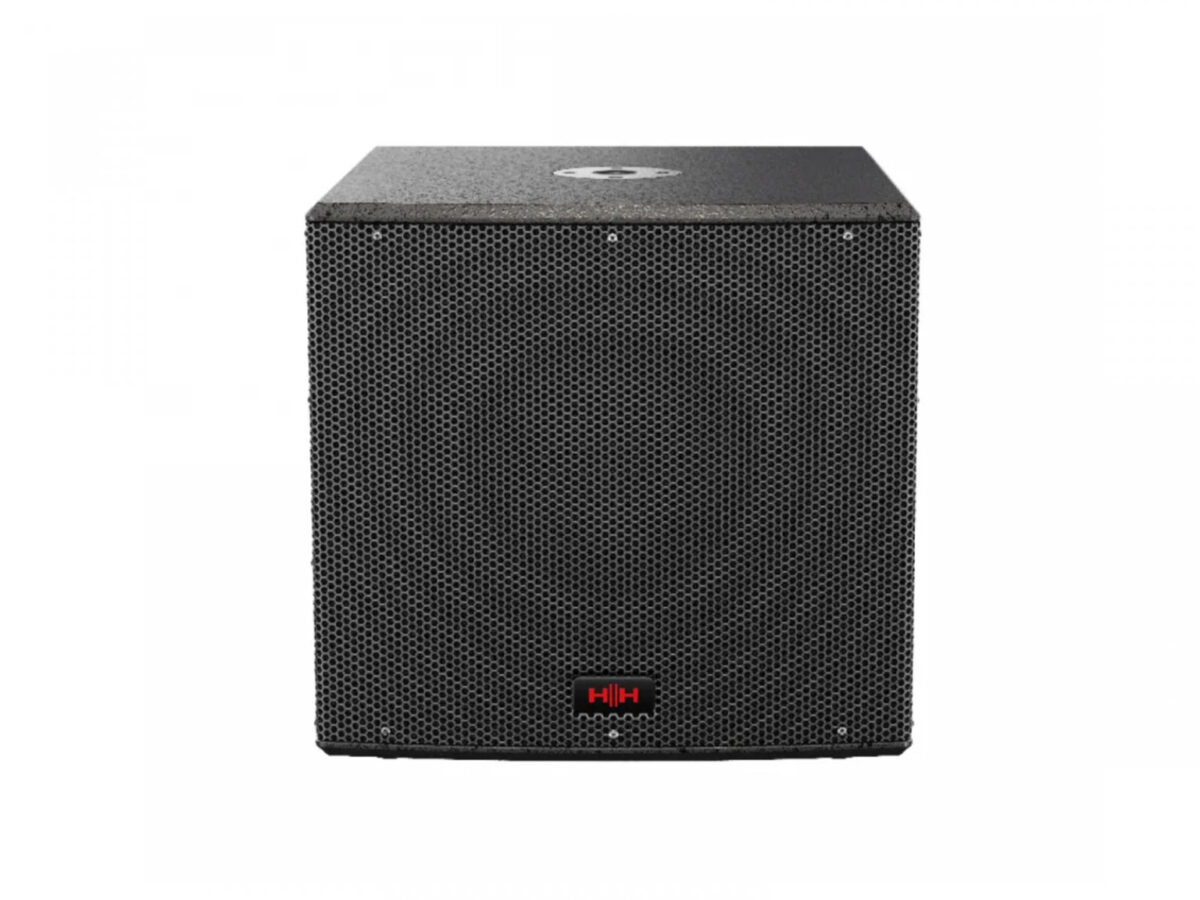

TRS-1800

TRS-1800

2400w active stereo subwoofer

The Tensor TRS-1800 has been engineered to deliver unparalleled performance to meet your requirements. The high-grade Class D amplifier combined with the long throw 18 inch HH designed woofer delivers the ultimate in low-end performance. The stereo input and high-pass output connections provide optimal crossover separation between your full-range and sub frequencies: Creating a flawless front-of-house mix. Need more bass? No problem. The shape preset boosts sub harmonic frequencies delivering a deeper bass response. All enclosed in a solid, lightweight enclosure with optimal bass porting.

WHERE TO BUY
trs-18001-1
trs-18001-2
trs-18001-3

Features

  • 1400W active stereo subwoofer
  • 18″ HH designed professional bass driver
  • 130dB MAX SPL
  • Stereo hi-pass outputs with variable crossover
  • 2 audio modes
  • Comprehensive protection and clip free limiting
  • Ultra-lightweight enclosure: 31kg / 68.3lbs

APPLICATION

BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver unrivaled performance tailored towards live sound reinforcement.
BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.

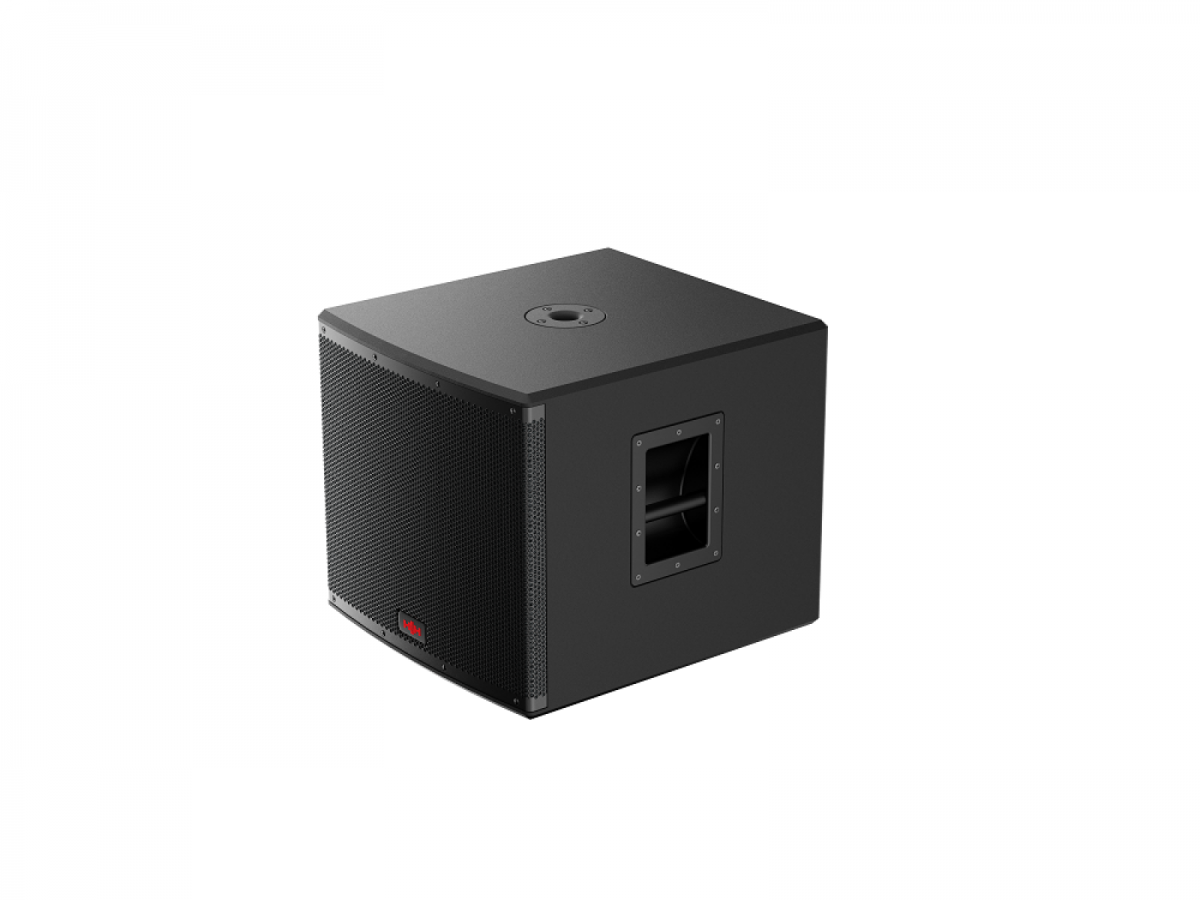

TRS-1500

TRS-1500

2400w active stereo subwoofer

The Tensor TRS-1500 has been engineered to deliver unparalleled performance to meet your requirements. The high-grade class D amplifier combined with the long throw 15 inch HH designed woofer delivers the ultimate in low-end performance. The stereo input and high-pass output connections provide optimal crossover separation between your full-range and sub frequencies: Creating a flawless front-of-house mix. Need more bass? No problem. The shape preset boosts sub harmonic frequencies delivering a deeper bass response. All enclosed in a solid, lightweight enclosure with optimal bass porting.

WHERE TO BUY
trs-15001-2
trs-15001-3
trs-15001-1

Features

  • Dual 5-inch HH designed woofers
  • Custom designed Celestion compression driver, waveguide & horn
  • Power rating: 800w peak, 400w continuous, 200w aes
  • Max spl (1m) (peak): 124 db
  • Frequency response : 65hz-20khz
  • 16-ohm nominal system impedance
  • 15mm plywood cabinet

Applications

  • Retail outlets
  • Cafes, bars and restaurant chains
  • Hotels and convention centres
  • Educational facilities
  • Corporate offices

Features

    • 1400W active stereo subwoofer
    • 15″ HH designed professional bass driver
    • 128dB MAX SPL
    • Stereo hi-pass outputs with variable crossover
    • 2 audio modes
    • Comprehensive protection and clip free limiting
    • Ultra-lightweight enclosure: 28kg / 61.7lbs

APPLICATION

BUILDING ON A WELL ESTABLISHED BACKGROUND

Since it’s conception in 1968, HH have delivered unparalleled engineering techniques with every product developed. The Tensor range establishes itself ahead of market leaders with it’s goal being to deliver unrivaled performance tailored towards live sound reinforcement.
BROCHURE
DATASHEET
USER MANUAL
Tab Item Content
Template is not defined.
Template is not defined.
Template is not defined.
